262D3

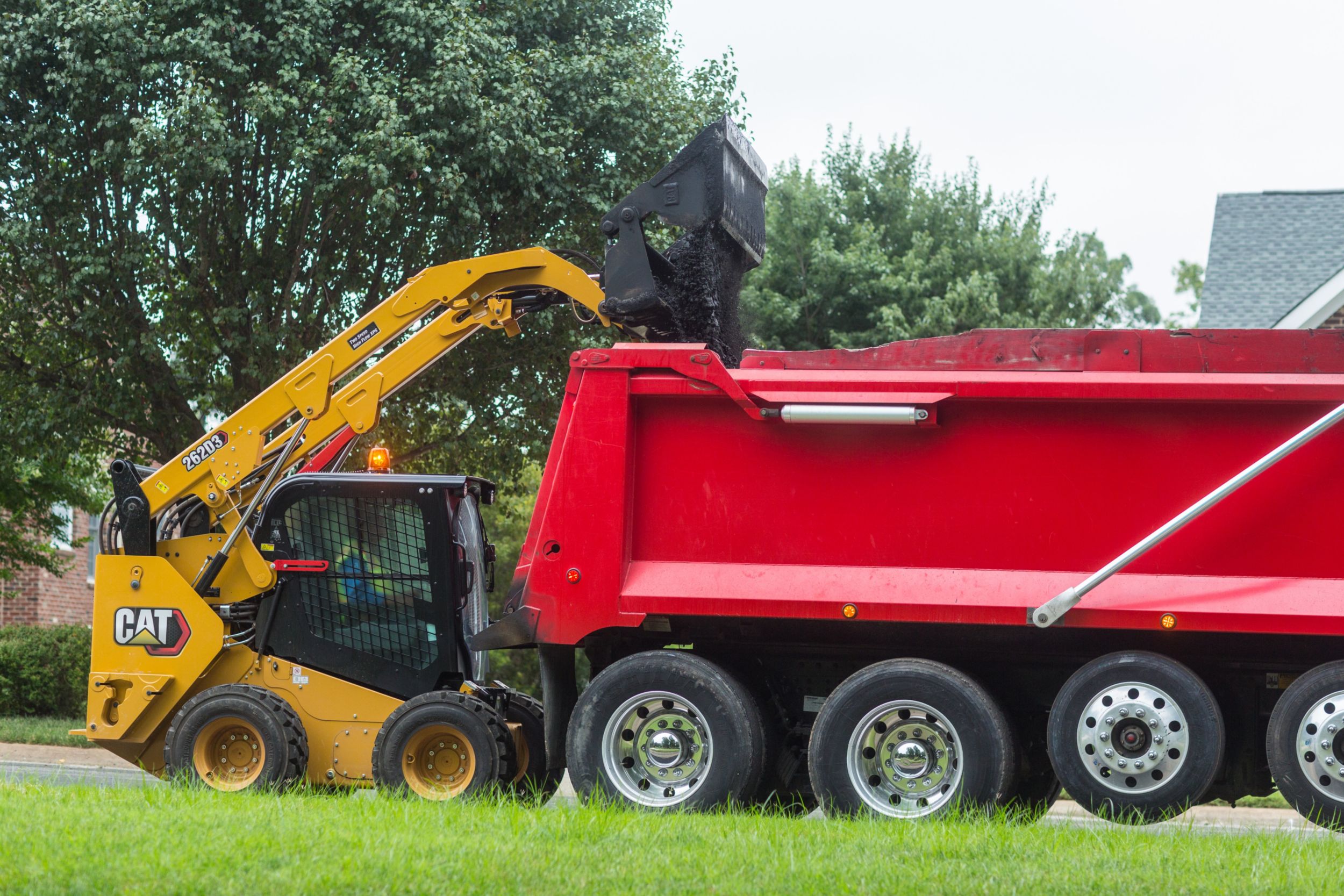

The Cat® 262D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Gross Power - SAE J1995

74.3 HP

Rated Operating Capacity

2700 lb

Operating Weight

8296 lb

DOWNLOAD TECHNICAL SPECIFICATIONS

REQUEST A QUOTE

COMPARE MODELS

Specifications

BENEFITS & FEATURES

MEDIA GALLERY

RELATED ATTACHMENTS

Specification

Value

Gross Power - SAE J1995

74.3 HP

Net Power - SAE 1349

71.8 HP

Displacement

203 in³

Stroke

4.7 in

Bore

3.7 in

Net Power - ISO 9249

72.6 HP

Net Power SAE 1349†

72.4 HP

Net Flywheel Power

71.8 HP

Note

†Engine meeting Brazil MAR-1 and China Nonroad Stage III emission standards emits equivalent to U.S. EPA Tier 4 Interim and is offered only for Australia/New Zealand, Brazil, China, French Polynesia, Hong Kong, Macedonia and New Caledonia.

Engine Model

Cat C3.3B DIT (turbo)

Peak Torque - 1,600 rpm - SAE J1995

195 ft·lbf

Net Power ISO 9249†

73.2 HP

Specification

Value

Rated Operating Capacity

2700 lb

Rated Operating Capacity with Optional Counterweight

3055 lb

Tipping Load

5400 lb

Breakout Force - Tilt Cylinder

7355 lb

Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Specification

Value

Operating Weight

8296 lb

Note

Specification

Value

Wheel Base

49.2 in

Length - With Bucket on Ground

146.2 in

Length - Without Bucket

117.9 in

Height - Top of Cab

83.1 in

Vehicle Width over Tires

66 in

Maximum Overall Height

157.8 in

Bucket Pin Height - Maximum Lift

124.9 in

Bucket Pin Height - Carry Position

7.9 in

Reach - Maximum Lift/Dump

30.9 in

Clearance at Maximum Lift and Dump

93.7 in

Ground Clearance

8.9 in

Departure Angle

26°

Bumper Overhang - Rear Axle

42.6 in

Maximum Dump Angle

51°

Rack Back Angle - Maximum Height

84°

Bucket Pin Reach - Maximum Lift

15.5 in

Note

Turning Radius from Center - Coupler

55.2 in

Maximum Reach - With Arms Parallel to Ground

50.9 in

Turning Radius from Center - Machine Rear

71.1 in

Turning Radius from Center - Bucket

85.9 in

Specification

Value

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)

76 HP

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure

4061 psi

Hydraulic Flow - Standard - Hydraulic Power (Calculated)

44 HP

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow

32 gal/min

Hydraulic Flow - Standard - Loader Hydraulic Flow

23 gal/min

Hydraulic Flow - Standard - Loader Hydraulic Pressure

3335 psi

Specification

Value

ROPS

ISO 3471:2008

FOPS

ISO 3449:2005 Level I

Specification

Value

Travel Speed - Forward or Reverse - One Speed

7.7 mile/h

Travel Speed - Forward or Reverse - Two Speed Option

11 mile/h

Specification

Value

Chain Box - Each Side

3.3 gal (US)

Cooling System

3.7 gal (US)

Engine Crankcase

3 gal (US)

Fuel Tank

27.7 gal (US)

Hydraulic System

13.7 gal (US)

Hydraulic Tank

10.3 gal (US)

Specification

Value

Outside Cab**

101 dB(A)

Inside Cab*

81 dB(A)

Note (1)

*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Note (2)

**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Specification

Value

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. *Photo shown may vary from machine referenced.
