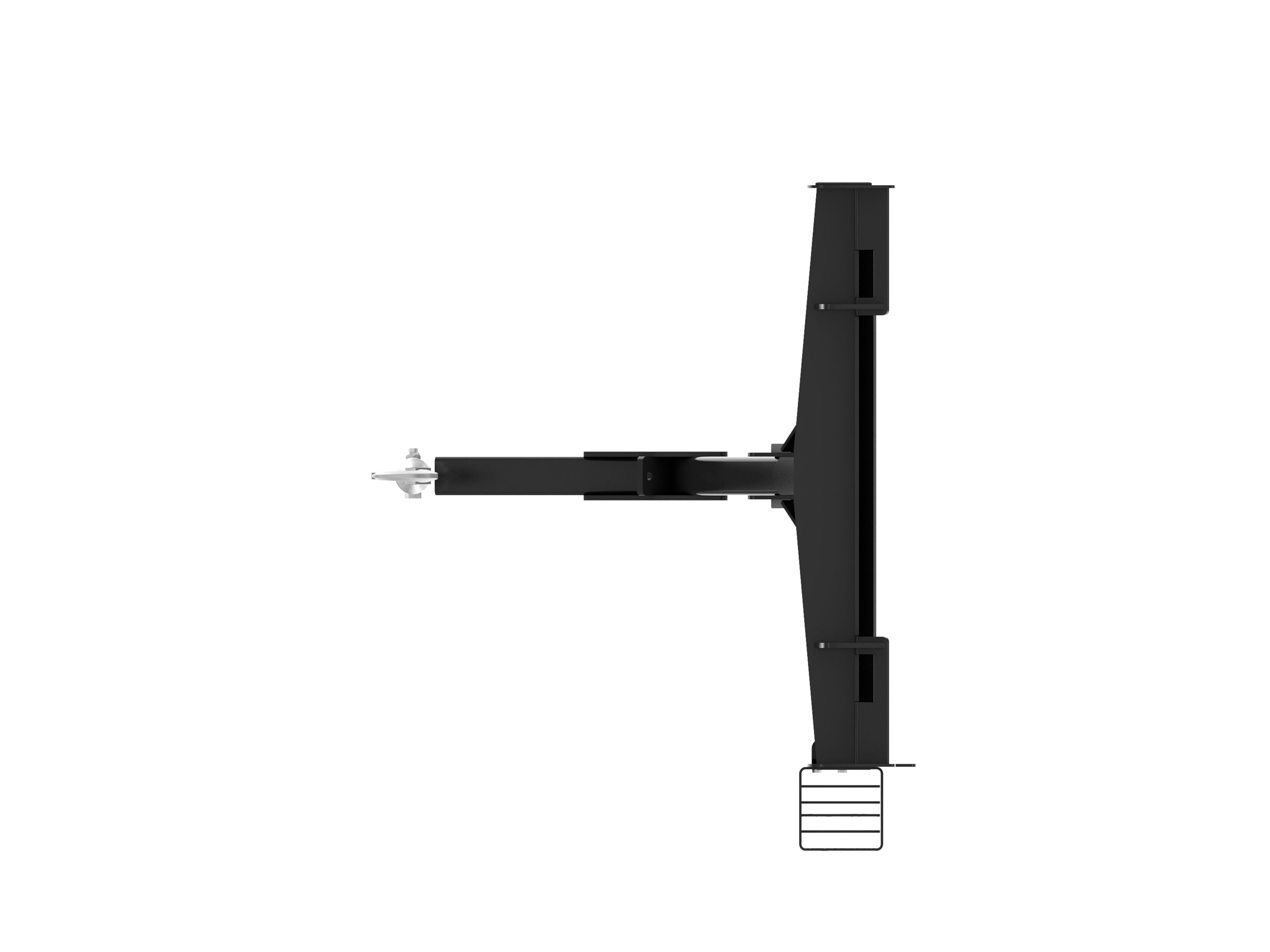

Material Handling Arm
The Cat® Material Handling Arm for compact products is a useful tool for virtually all types of applications, including industrial, construction and agricultural, to pick, carry and load a variety of materials and equipment. The heavy duty design is also well suited for landscaping to load, carry and set trees and large shrubs.
Overall Width
51.8 in
Maximum Load Rating
1999.6 lb
Maximum Horizontal Reach
84 in
Specification
Value
Overall Width
51.8 in
Maximum Load Rating
1999.6 lb
Maximum Horizontal Reach
84 in
Weight
280 lb
Overall Height
58 in
Retracted Length
40 in
Interface Type
Skid Steer Coupler
Designed to pick up, carry and load a variety of materials and equipment. Also well suited for loading, carrying and setting trees and large shrubs in landscaping applications.
Single, multi-angled boom provides excellent visibility to the load.
Two lift points, one at the far end of the boom and one closer to the machine mid point, offer excellent reach plus load and carry capabilities.
Two compartments on the front arm provide ample storage for chains and hooks.
Dual tie-down holes provide load support during transport.
Heavy-duty locking clasp swivels a full 360° and can be used at either lift point.
Serrated bolt-on step provides safe ingress and egress from machine cab and is replaceable if damaged.
