1829 mm (72 in)

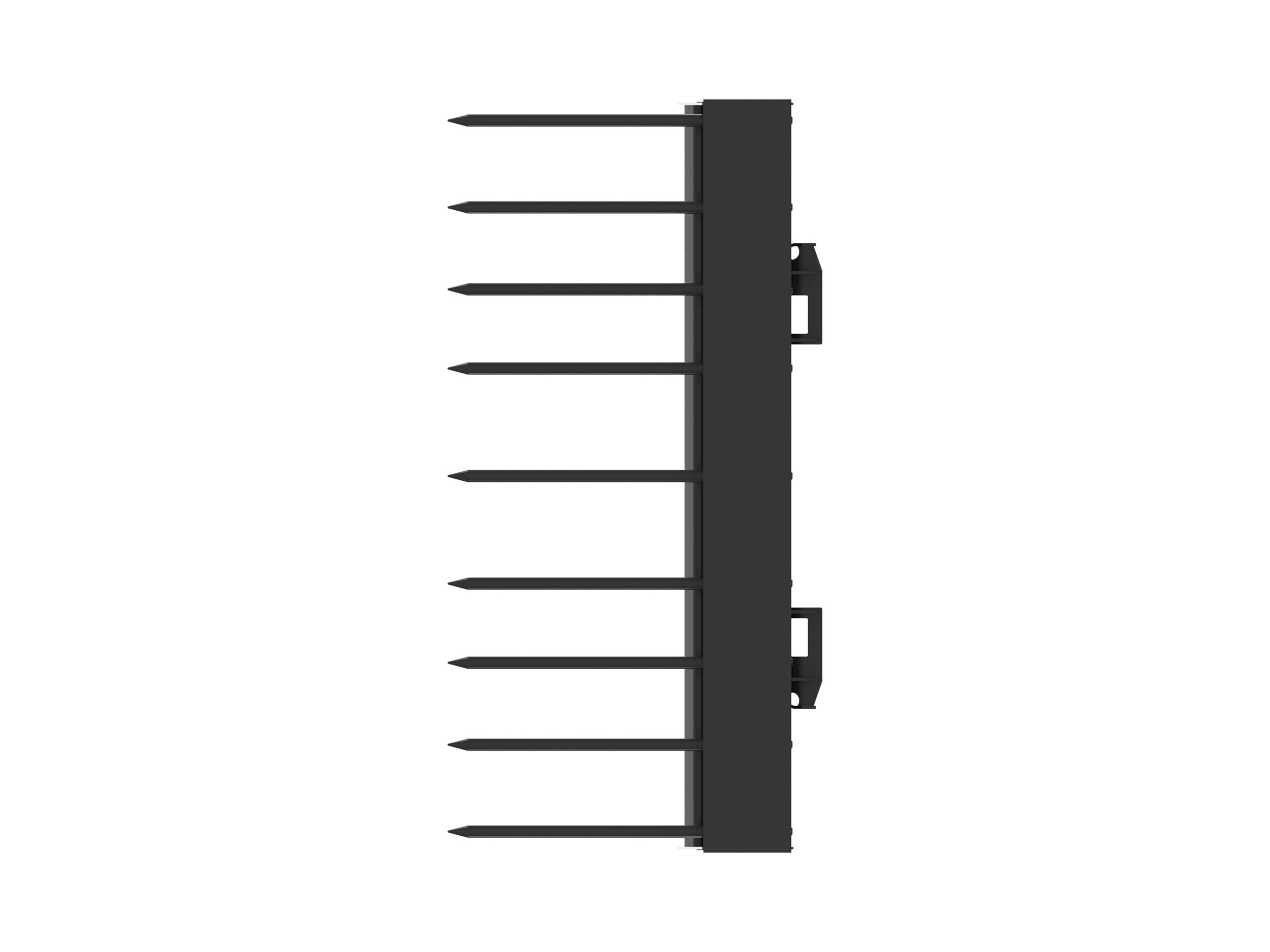

Cat® Utility Forks for Cat Skid Steer Loaders and Compact Track Loaders are designed for handling a variety of light materials in farming, ranching and landscaping applications. Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose material such as straw and hay, loosening of bedding material and aeration of soil. NOTE: Utility forks are not designed for piercing and carrying large, round bales.
Width
72 in
Height
22.9 in
Weight
485 lb
Specification
Value
Width
72 in
Height
22.9 in
Weight
485 lb
Length
36.4 in
Usable Tine Length
25.1 in
Tine Diameter
1.3 in
Number of Tines
9
Tine Width
1.3 in
Interface Type
Skid Steer Coupler
Designed for handling a variety of light materials in farming, ranching and landscaping applications.
Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose materials such as straw and hay, loosening of bedding material and aeration of soil.
The lower box channel is pre-drilled to accept various combinations of pin-on fork tines.
Serrated weld-on step provides safe ingress and egress from machine cab. Also, a bolt-on rubber bumper limits rack back travel on the larger Cat radial lift machines.
NOTE: Utility Forks are not designed for piercing and carrying large, round bales.
