1829 mm (72 in)
Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.
Blade Width
72 in
Width - Fully Angled
66.3 in
Maximum Blade Angle - Right/Left of Center
30 degrees
Specification
Value
Blade Width
72 in
Width - Fully Angled
66.3 in
Maximum Blade Angle - Right/Left of Center
30 degrees
Blade Height
24.2 in
Cutting Edge Width
74.5 in
Length
29.6 in
Weight
690 lb
Cutting Edge Thickness
0.6 in
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Required Hydraulics
Standard Flow
Interface Type
Skid Steer Coupler
Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.
Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.
Blade angles +/- 30 degrees to assist in various tasks.

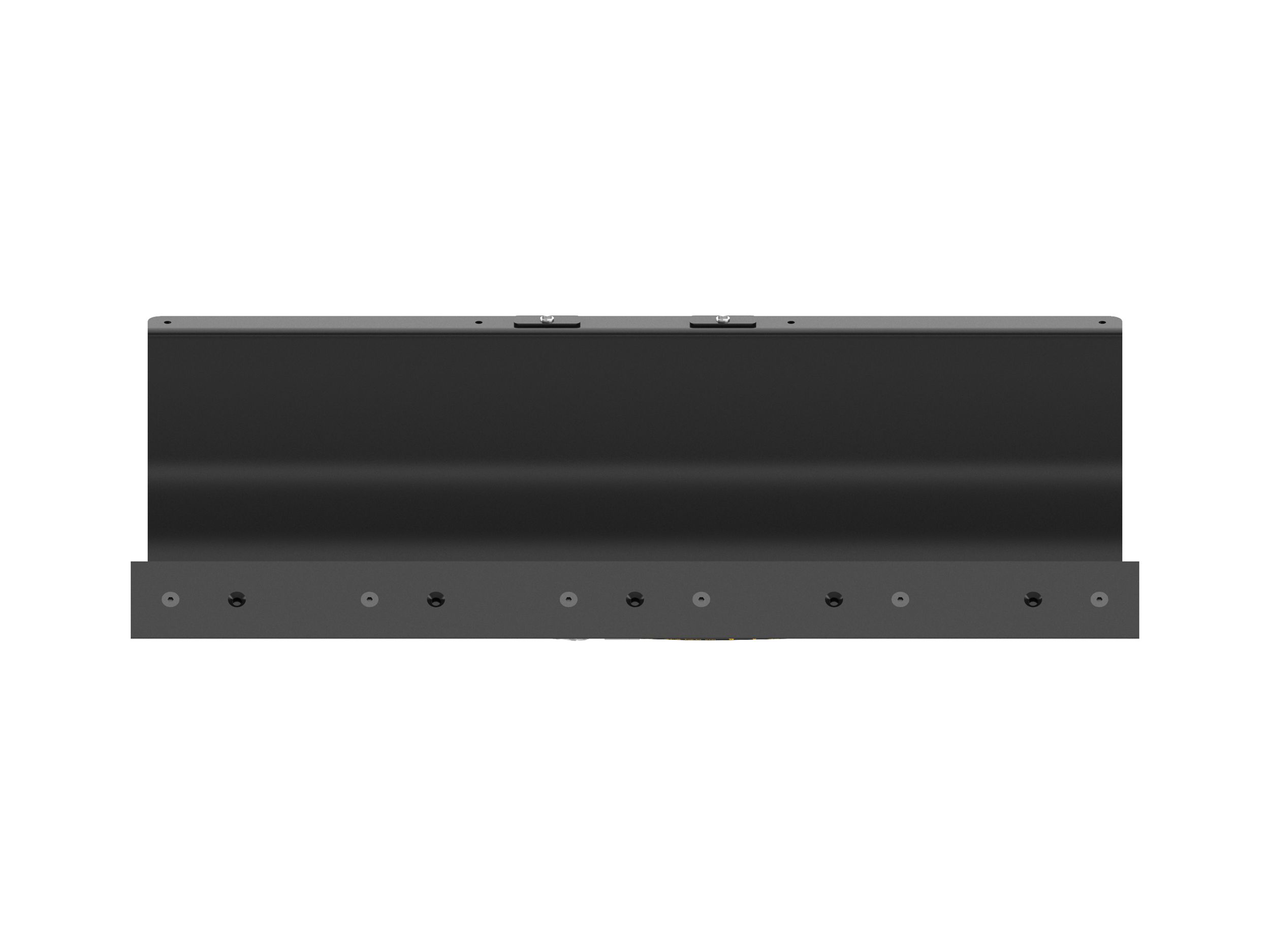

Curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.
Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting-edge depth.
Spherical rod eye cylinder adds another degree of movement to jointed section for better impact protection.
Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.
Allows for proper ground interface with different hinge pin heights on compact wheel loaders, skid steer and compact track loaders.
Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware.
Optional bolt-on, non-metallic edge reduces surface scratches or marring of concrete and asphalt surfaces.
