2133 mm (84 in)

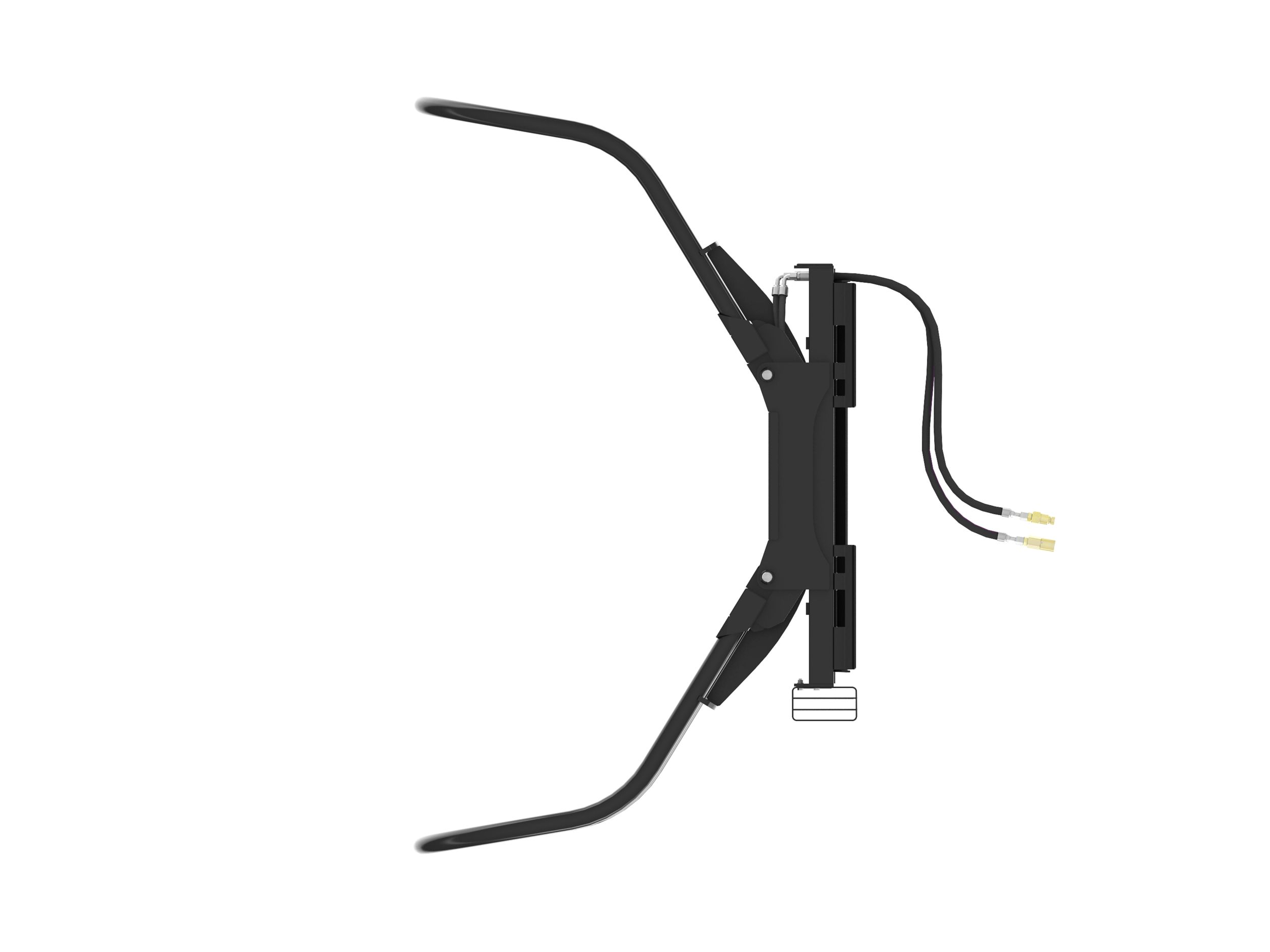

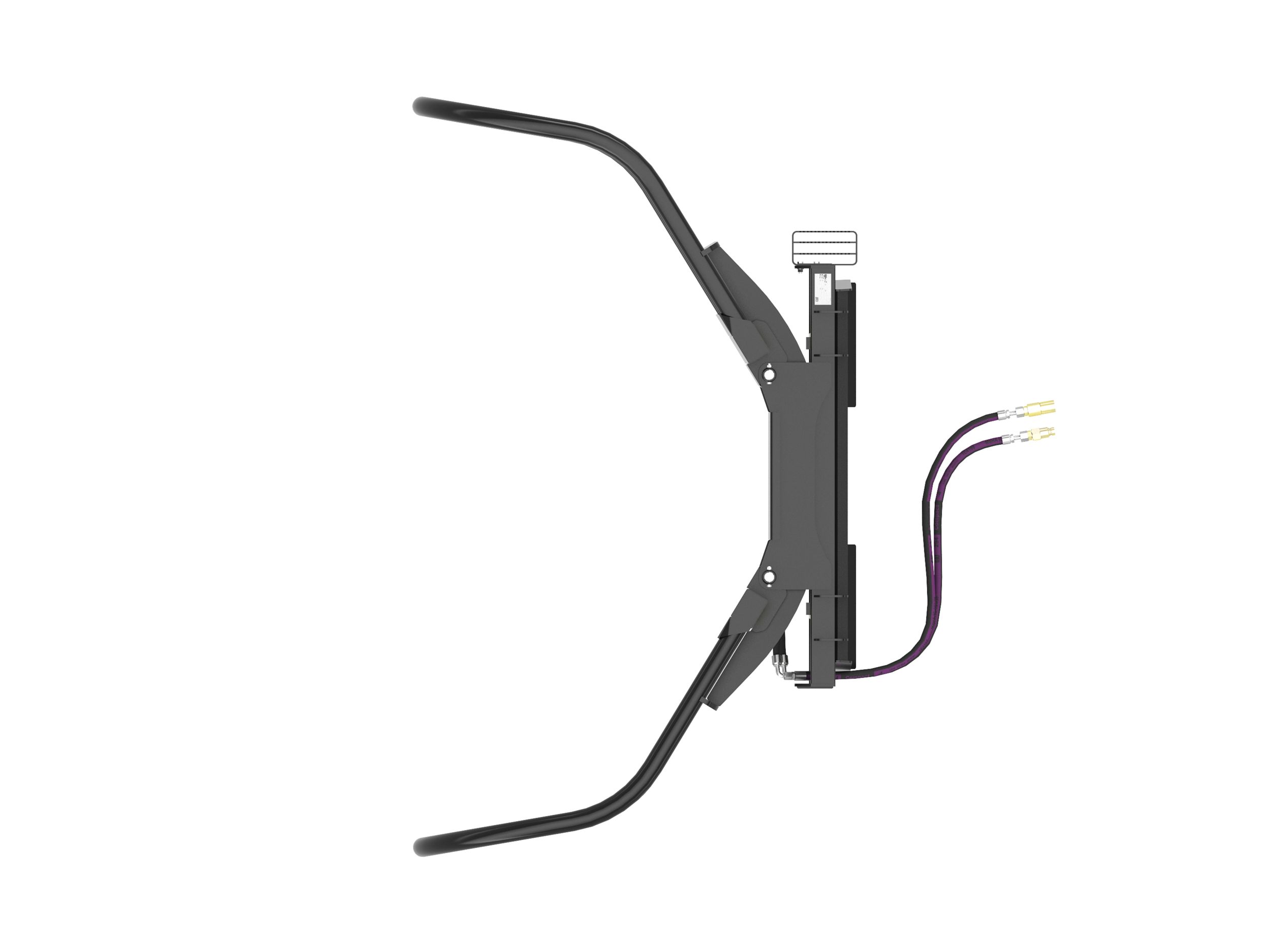

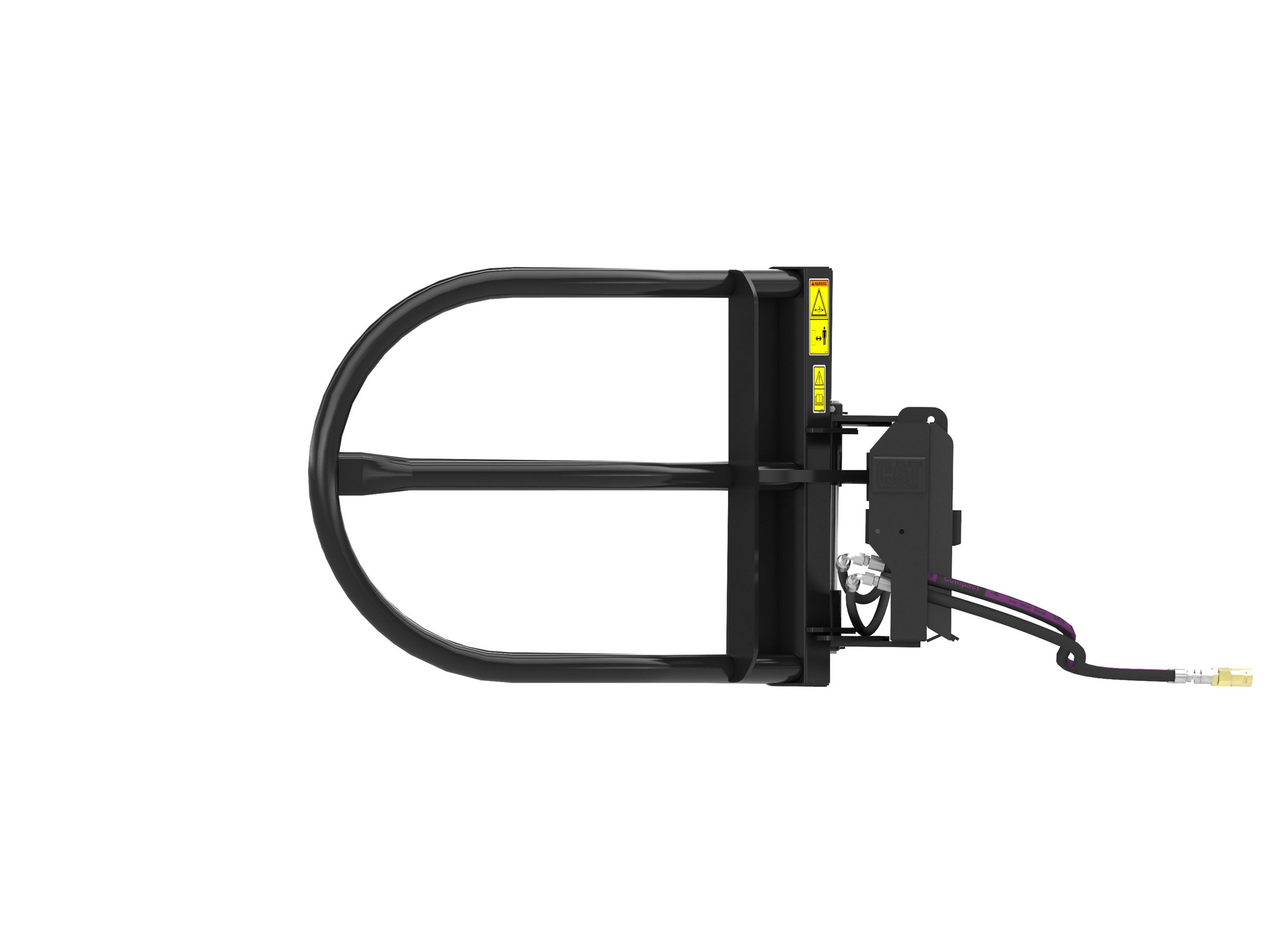

Cat® Bale Grabs for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders and Compact Wheel Loaders are designed for grasping and carrying baled material. Bales of wheat, hay and other materials are easily transported for livestock feed, bedding, to and from bale wrapper, and movement to storage. The Bale Grab firmly grasps baled materials but due to the rounded arm design no damage will take place to the bale. Offering the ability to pick up bales sitting flat or on their side the Bale Grab increases machine versatility to manipulate round or square bales in any position.
Overall Width
55.2 in
Overall Height
34.4 in
Maximum Opening Width
84 in
Specification
Value
Overall Width
55.2 in
Overall Height
34.4 in
Maximum Opening Width
84 in
Capacity
2405.2 lb
Overall Depth
64.2 in
Weight
579.8 lb
Working Pressure
3045.8 psi
Internal Width, Arms Closed
36.1 in
Required Hydraulics
Standard Flow
Opening is wide enough to grasp 1803 mm (71 in) or 2133 mm (84 in) bales of hay.
Tubular constructed arms eliminate damage to wrapped bales.
Bolt-On serrated step allows safe and ergonomic access to machine cab and is easily replaceable if damaged.
High strength steel frame ensures durability. Hardened pins and easily accessible grease points lead to extended life and productivity.
