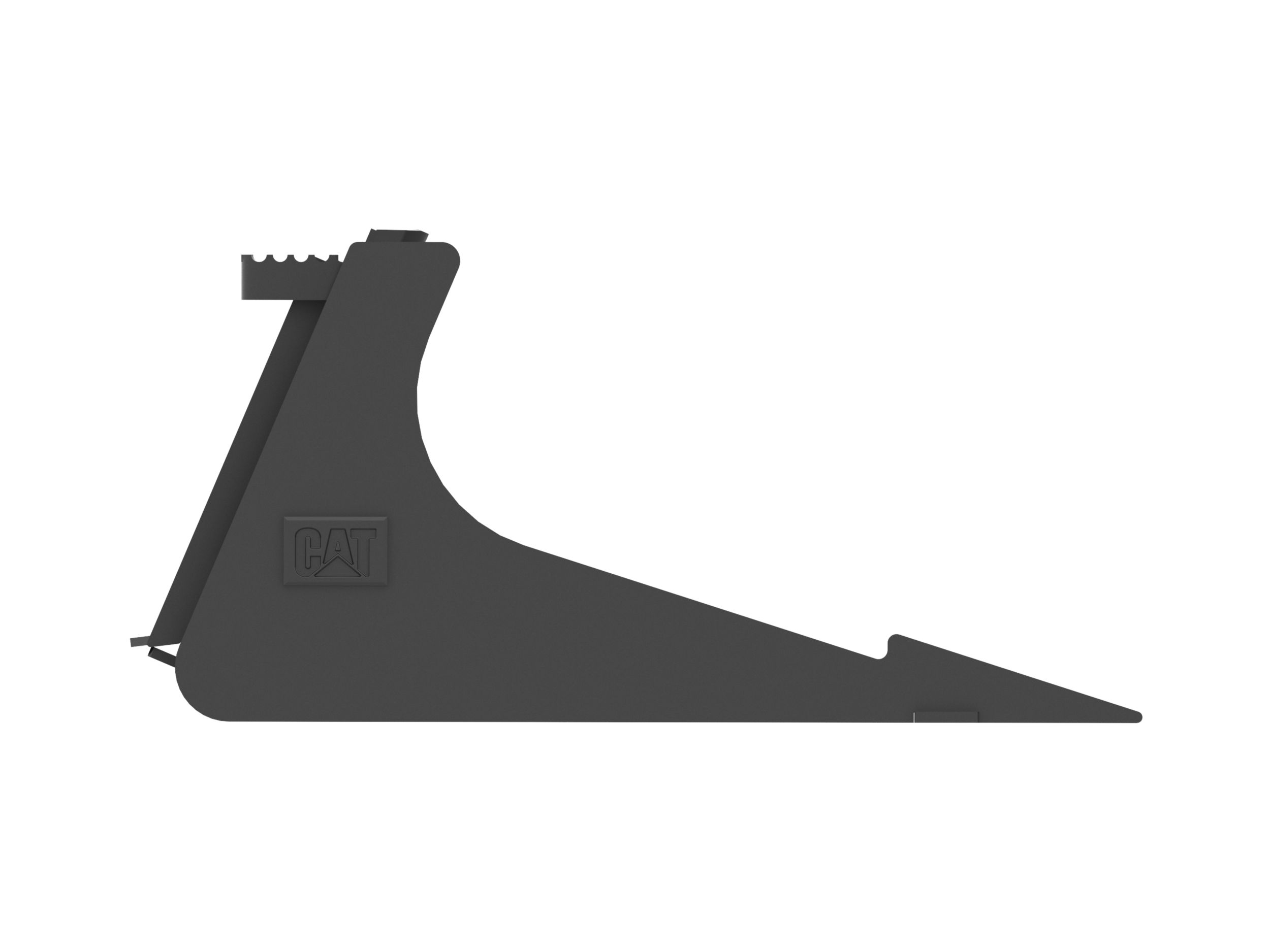

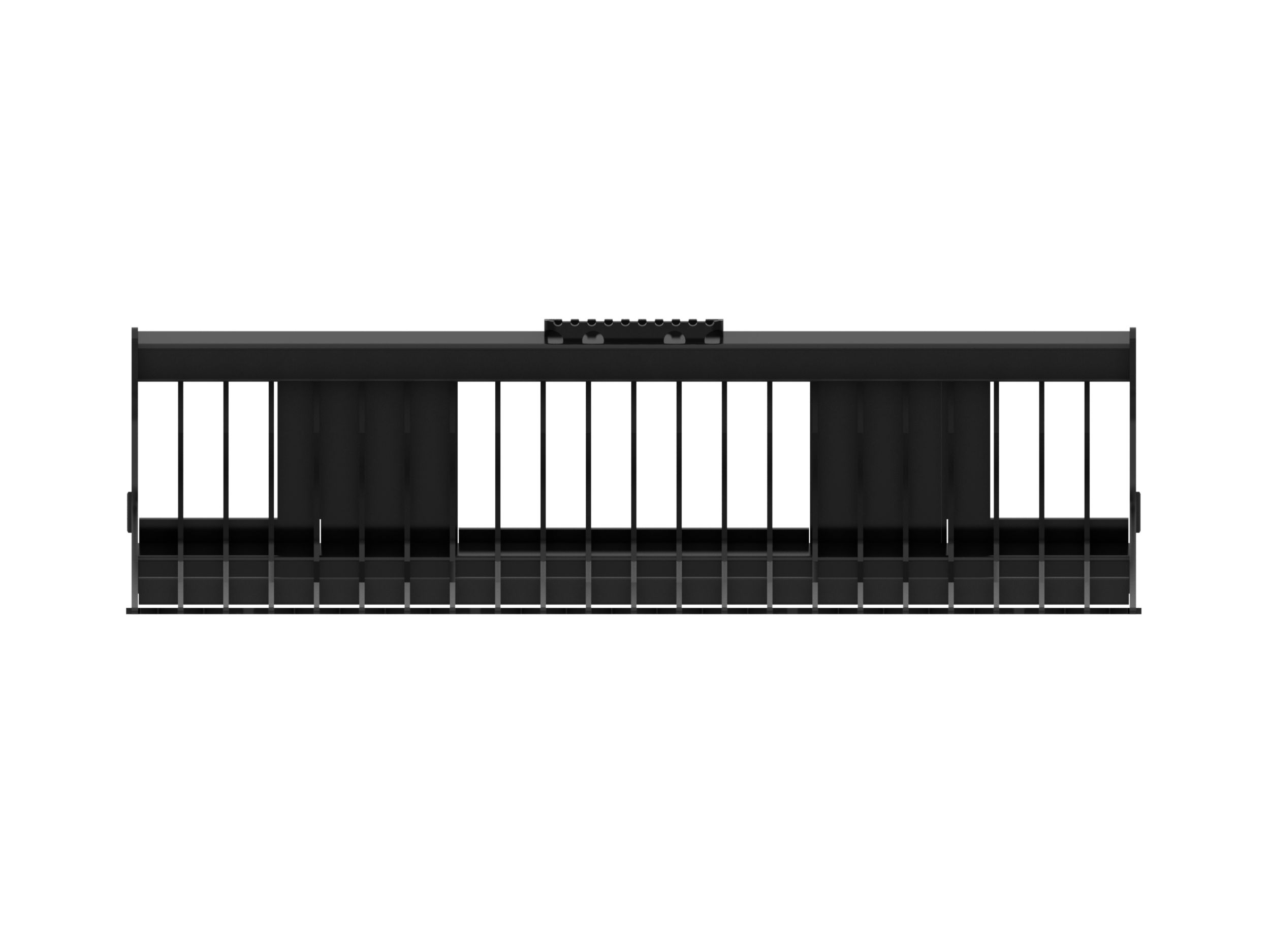

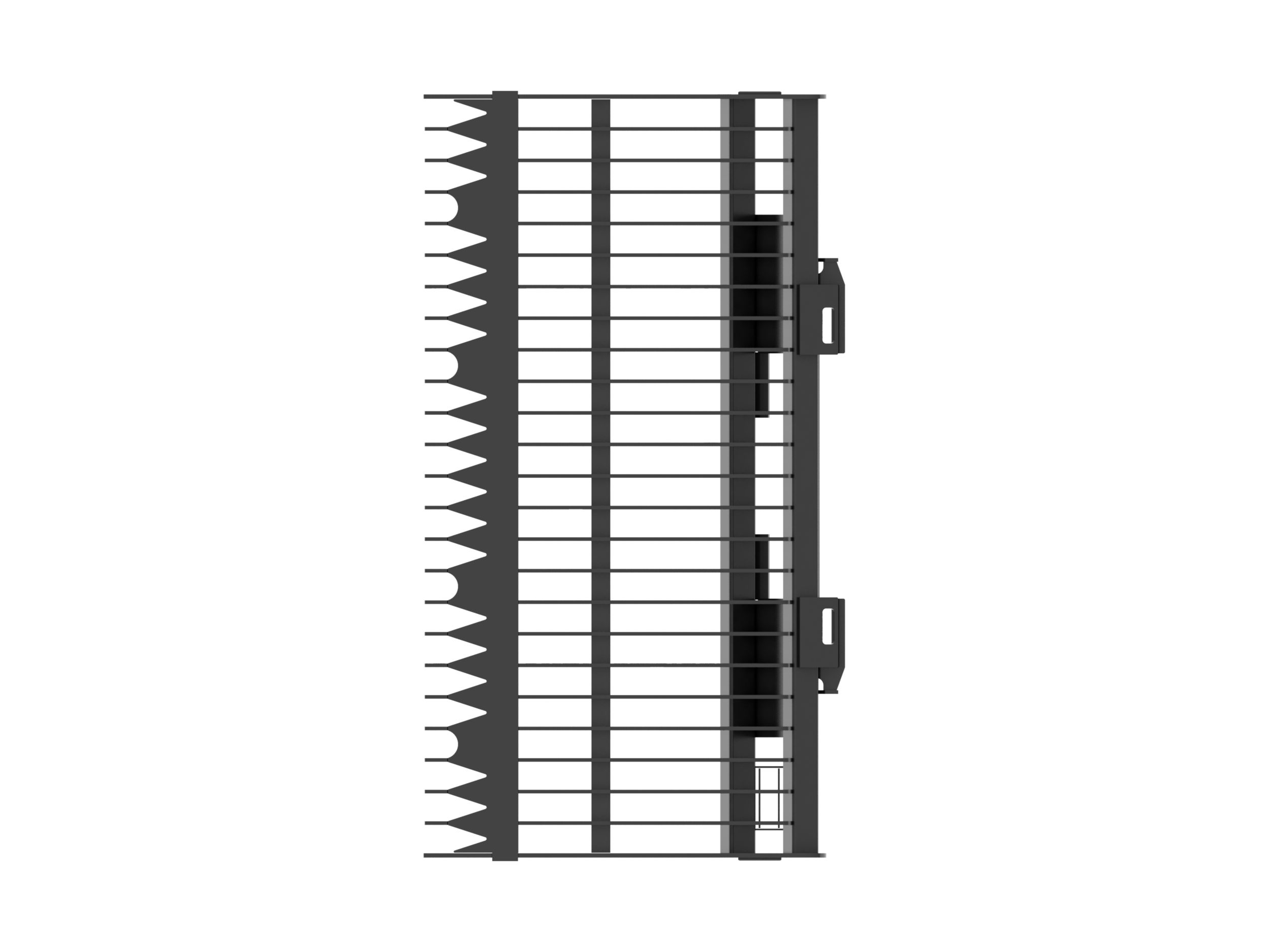

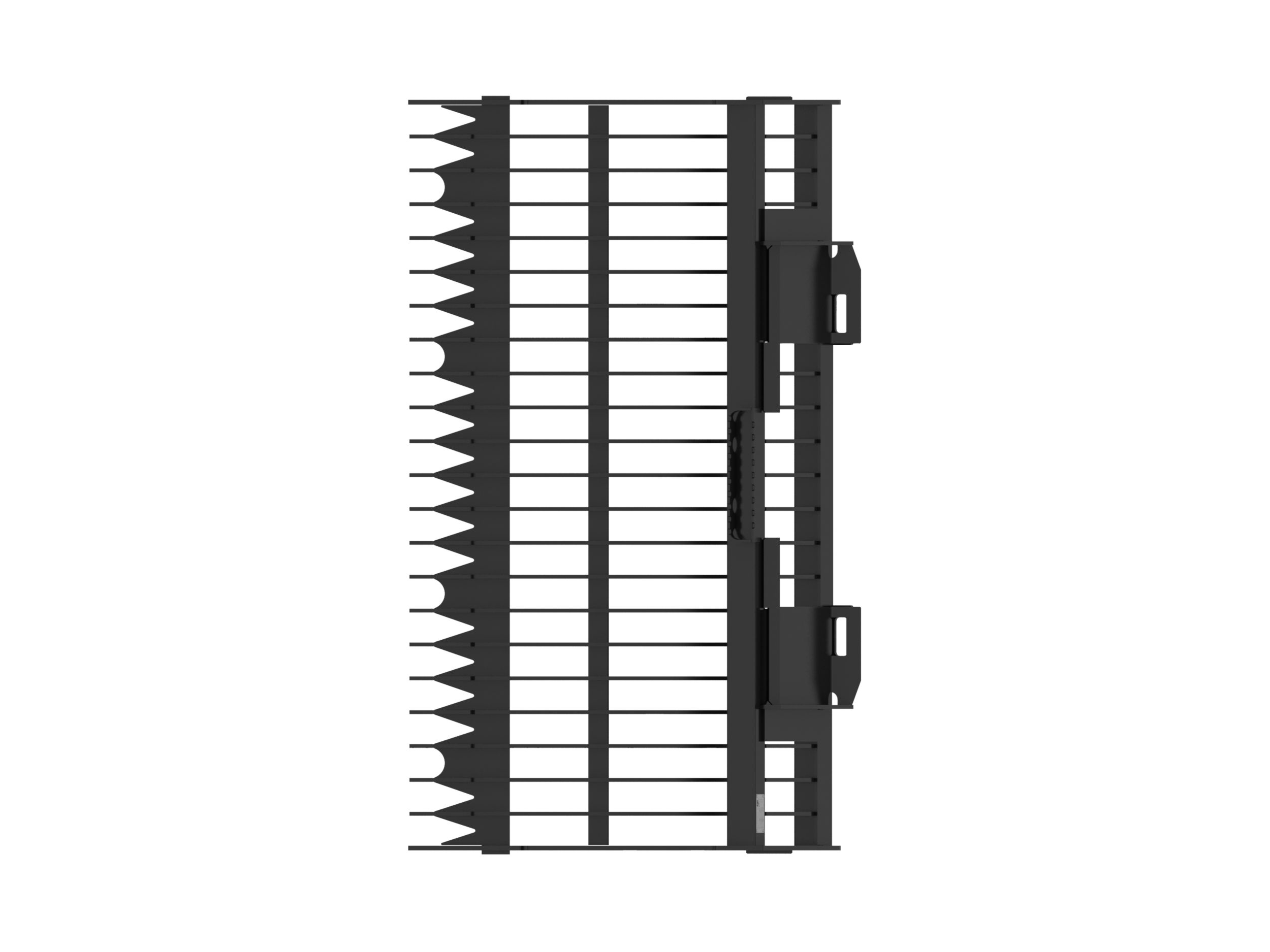

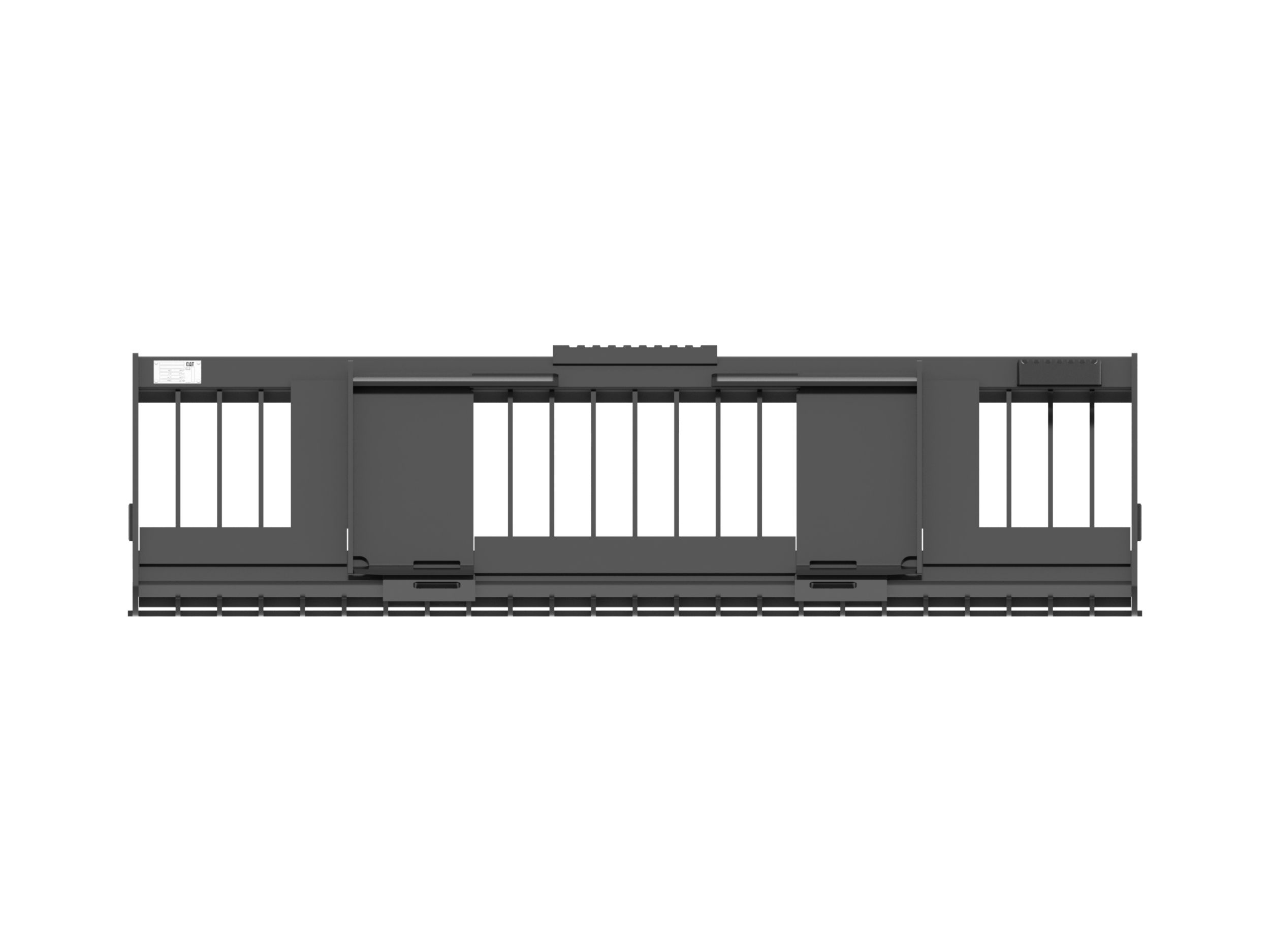

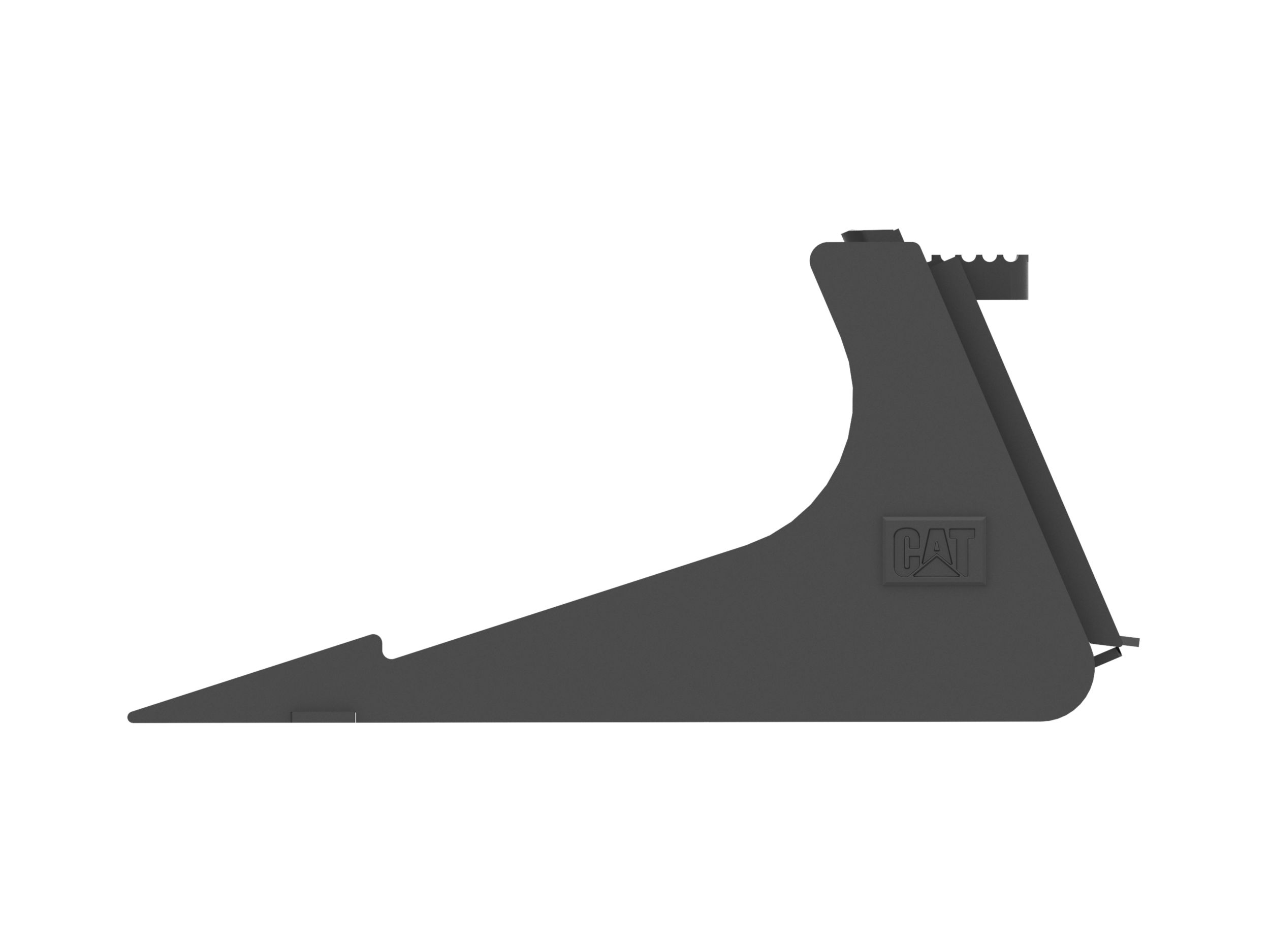

1849 mm (74 in), Plate Tine Style
Cat® Skeleton Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for removing rocks and larger debris from soil and sand in a variety of applications and materials. These buckets are ideal for agriculture, construction, landscaping, industrial and scrap handling applications.
Width
72.8 in
Weight
698.9 lb
Height
21.4 in
Specification
Value
Width
72.8 in
Weight
698.9 lb
Height
21.4 in
Length
43.9 in
Sidewall Thickness
0.5 in
Tine Spacing
2.9 in
Tine Thickness
0.4 in
Number of Tines
21
Interface Type
Skid Steer Coupler
Designed for screening debris from finer materials such as sand and loose soil, and for reclaiming rock and landscaping materials buried by sediment. Cat® Skeleton buckets are for use on both Cat Skid Steer Loaders and Compact Track Loaders.
Plate tines are 10 mm (0.4 in) in thickness with fishhook style tine points for better soil penetration to remove roots and reclaim construction material left on the jobsite.
Rock dam improves material retention, reduces spillage and increases productivity.
Serrated step ensures operator stability for entering and exiting the cab.
Wide tine spacing allows for quicker screening and greater material separation.
