1150 mm (45 in)

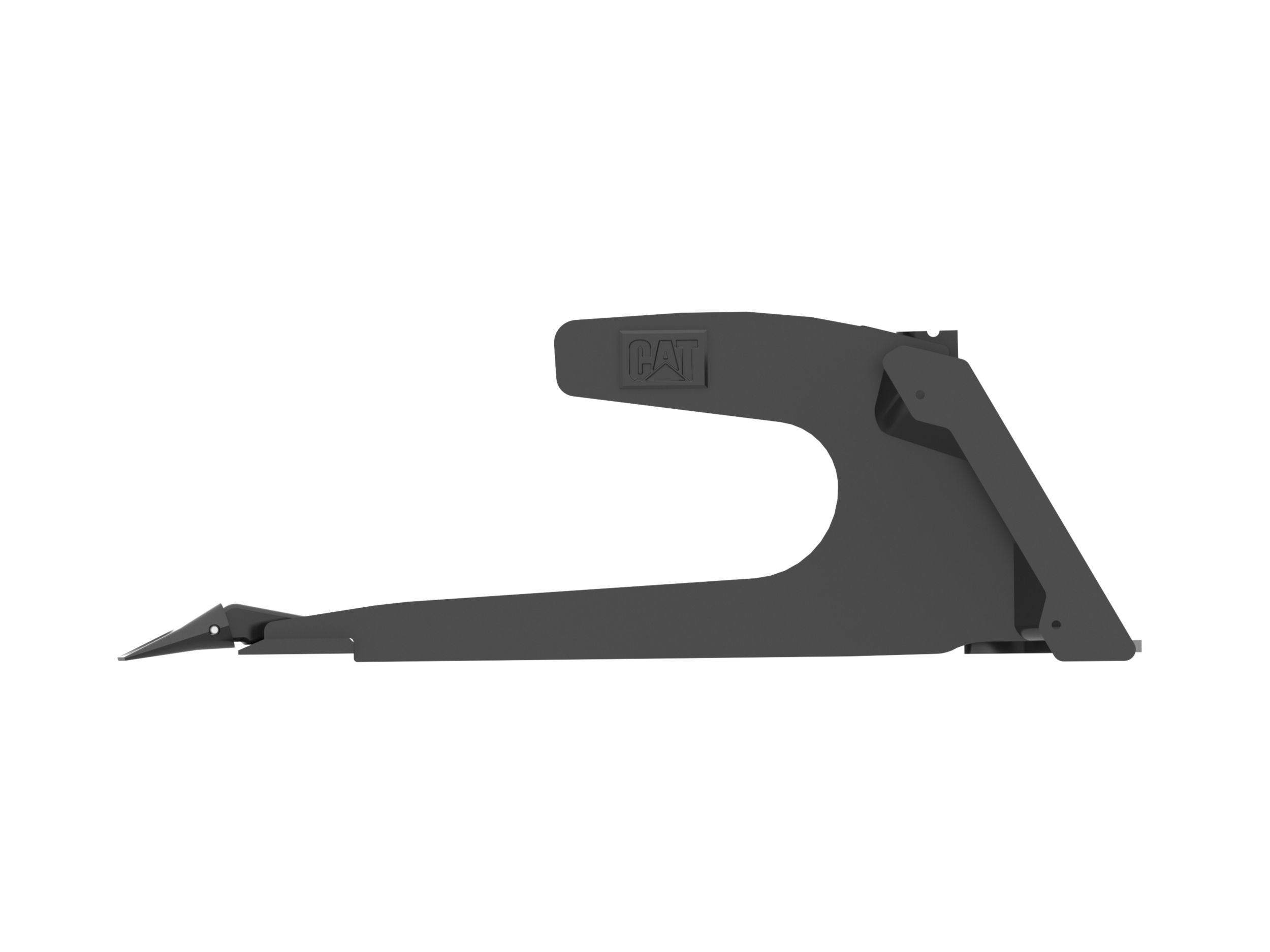

Cat® Concrete Slab Buckets for Cat Skid Steer Loaders, Compact Track Loaders, and Compact Wheel Loaders are specifically designed for removing and carrying concrete slab portions. The flat floor design and replaceable teeth allow the bucket to easily slide under and lift slabs up to 202 mm (8 in) thick. The slab bucket is built with heavy steel side plates to resist bending and twisting when prying large sections of concrete. The top clamp features an integrated sight window to allow the operator to see the teeth edge when sliding under the slab for quick and easy operation. Applications include driveway replacement, sidewalk replacement, and many other construction applications involving concrete slab removal.
Width
23.9 in
Maximum Slab Thickness
8 in
Overall Width
45.3 in
Specification
Value
Width
23.9 in
Maximum Slab Thickness
8 in
Overall Width
45.3 in
Weight
463 lb
Height
18.1 in
Length
52.4 in
Base Edge Thickness
0.8 in
Sidewall Thickness
0.8 in
Number of Teeth
3
Interface Type
Skid Steer Loader
The concrete slab bucket is specifically designed for removing and carrying concrete slabs.
Sight window on top clamp provides good visibility to teeth edge, making it easier to slide under concrete slabs.
Bucket is designed with a large working area to pick up and carry large concrete slabs up to 202 mm (8 in) thick.
Three replaceable teeth aid in sliding under a concrete slab, for quick and easy lift.
Welded gussets ensure strength and durability of bucket.
Drainage hole prevents water accumulation in the bucket.
Integrated step provides safe and ergonomic access to machine cab.
