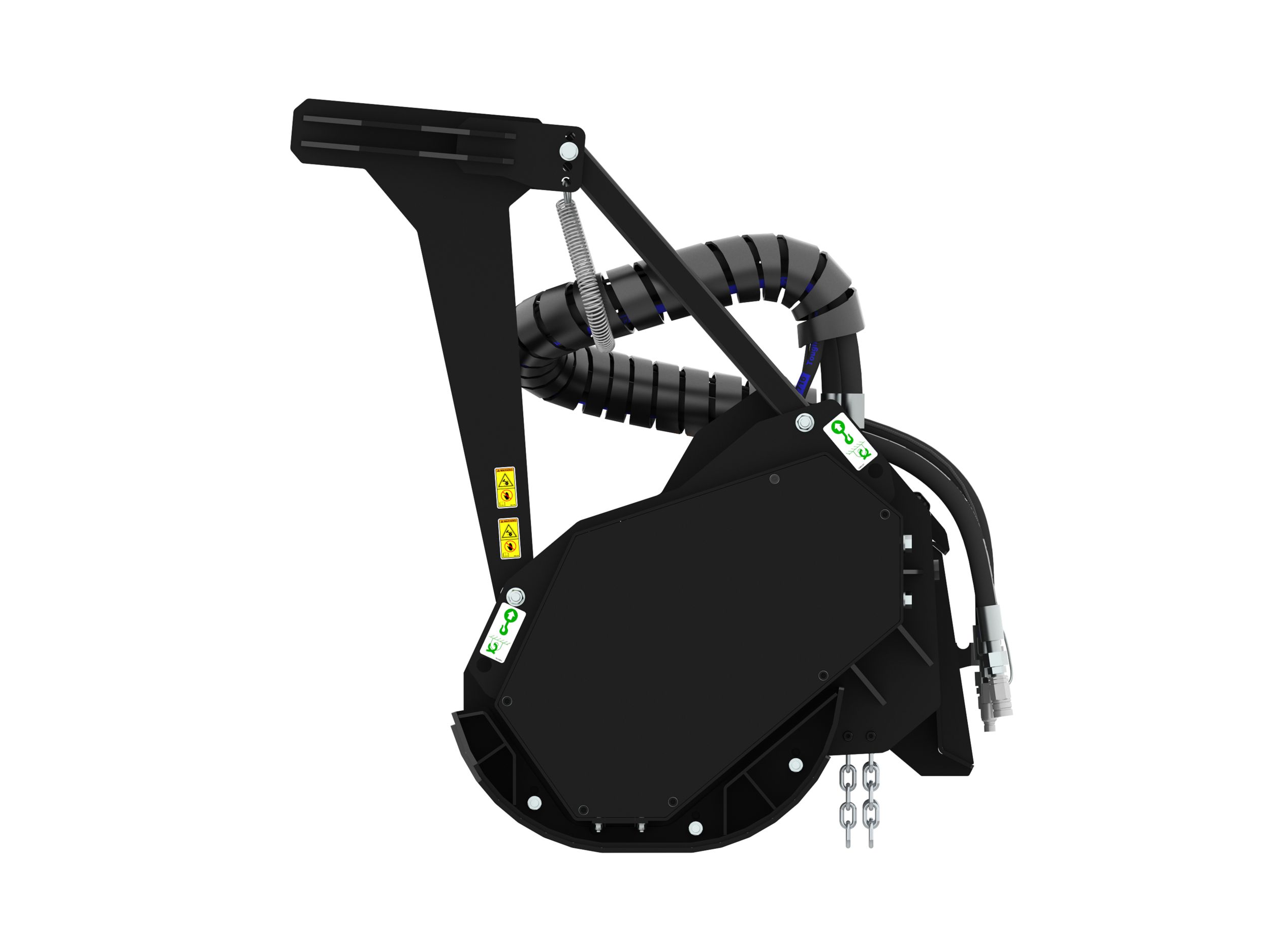

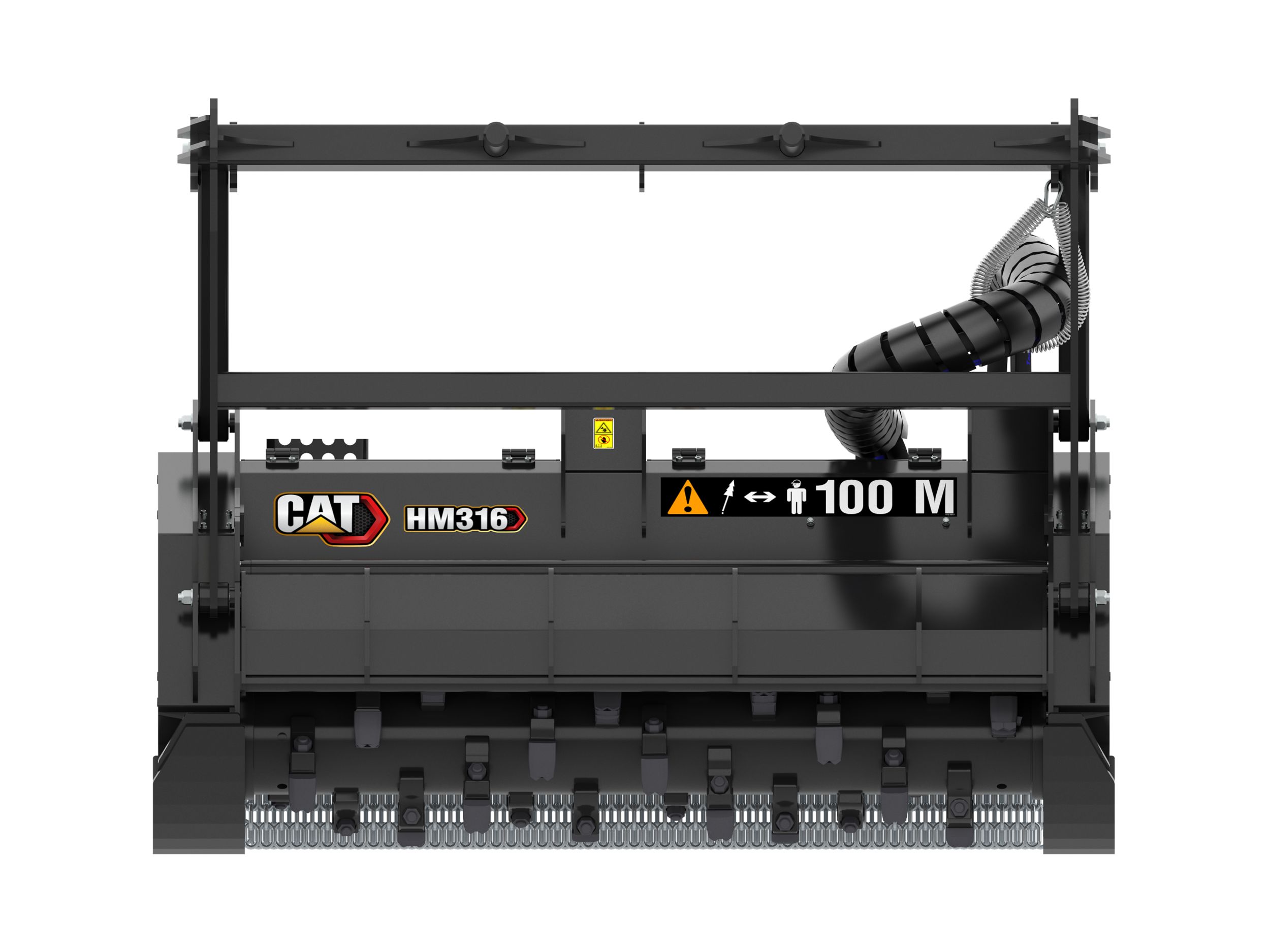

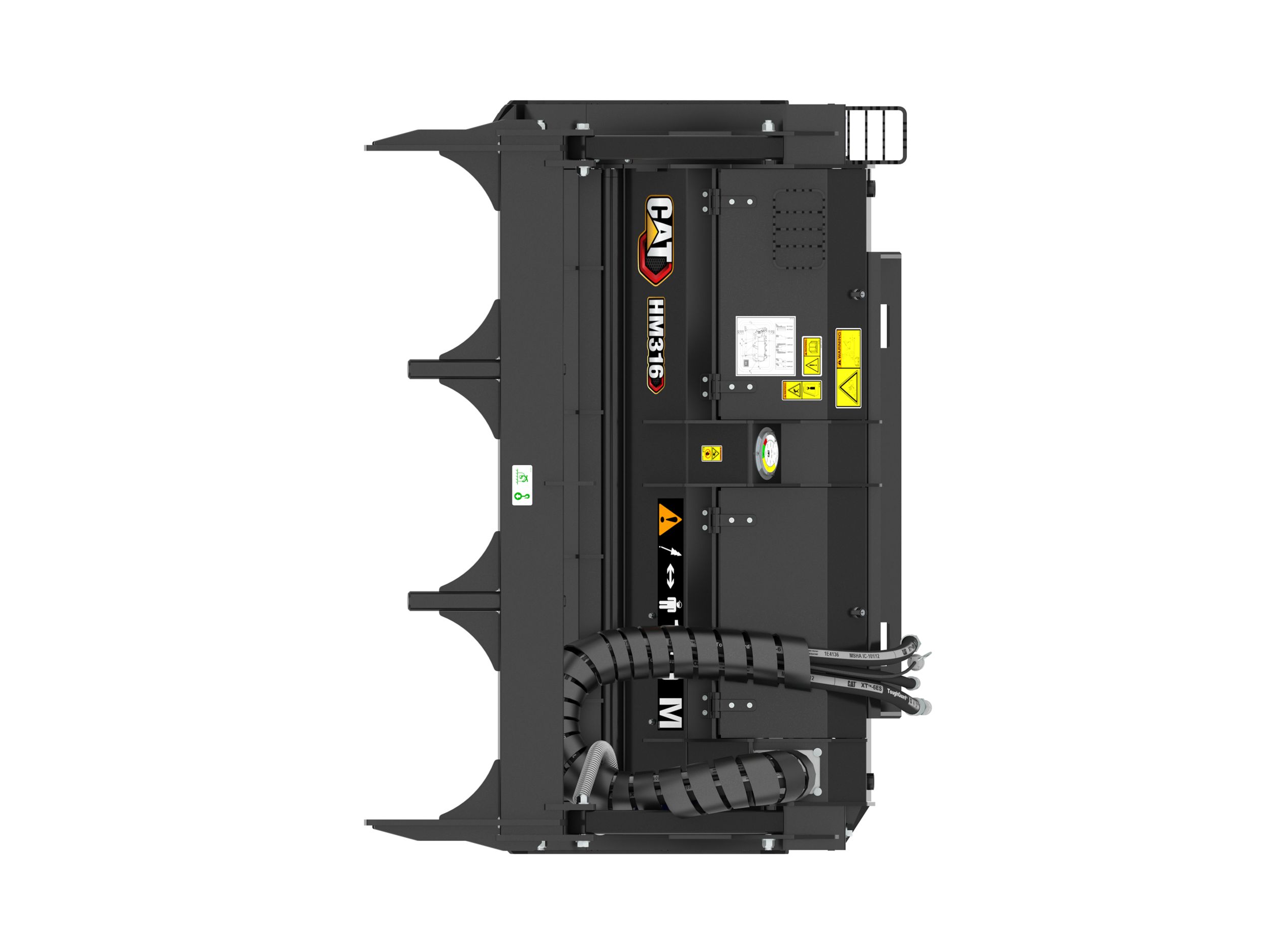

HM316
Cat® Mulchers for Skid Steer Loaders and Compact Track Loaders are designed for high-performance cutting and mulching vegetation and undergrowth from forested terrain. The hydraulic mulcher reduces saplings, shrubs and trees into mulched material, making it ideal for environmental maintenance, such as creating fire lanes. Other applications include land reclamation, foliage removal from building construction sites, and shredding pruned material and organic waste for biomass production.
Overall Width
74.1 in
Working Width
62.3 in
Length
53.3 in
Specification
Value
Overall Width
74.1 in
Working Width
62.3 in
Length
53.3 in
Overall Height
58.3 in
Weight
2958.6 lb
Drive Method
Polychain Belt
Motor
Axial Piston Dual Speed
Required Hydraulics
High Flow XPS
Optimal Hydraulic Flow
120-125 L/min (31-33 gpm)
Optimal Hydraulic Pressure
200-280 bar (2900-4061 psi)
Drum Speed
2100-2400 RPM
Fixed Teeth per Drum
34
Maximum Cutting Diameter
7.9 in
Maximum Cutting Depth
4.1 in
Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.
Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.
Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.
Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.
Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.
Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.
Hydraulically operated front hood is standard. Linkage is enclosed within mulcher frame on High Flow models. Quick to open and close door allows for finer finished material to be produced from cutting all types of vegetation.
Rear chain guard protection reduces spread of material.
Serrated steps allow for safe and easy access in and out of the cab.
Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat key, the service panel allows easy access to drive train components during service and inspection.
Adjustable and replaceable skid shoes allow operator to control the ground height to accommodate different types of terrain.
Located inside the lockable service panel and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Select from Standard Carbide, Rock Resistant, Chisel, and Side Cutter options to configure the C Series Mulcher to any underfoot or vegetation condition.
