Specification
Value
Overall Width
74 in
Cutting Width
72 in
Maximum Cutting Diameter
3 in
Required Hydraulics
High Flow
Overall Length
85 in
Overall Height
21.3 in
Weight
1106.7 lb
Optimal Hydraulic Flow
100-130 L/min (26-34 gpm)
Optimal Hydraulic Pressure
150-280 bar (2176-4065 psi)
Tip Speed (Depends On Flow)
3998-5198 mpm (13118-17054 fpm)
Motor Displacement
12 in³/rev
Drive Shaft Torque
297-554 N.m (219-409 lb/ft)

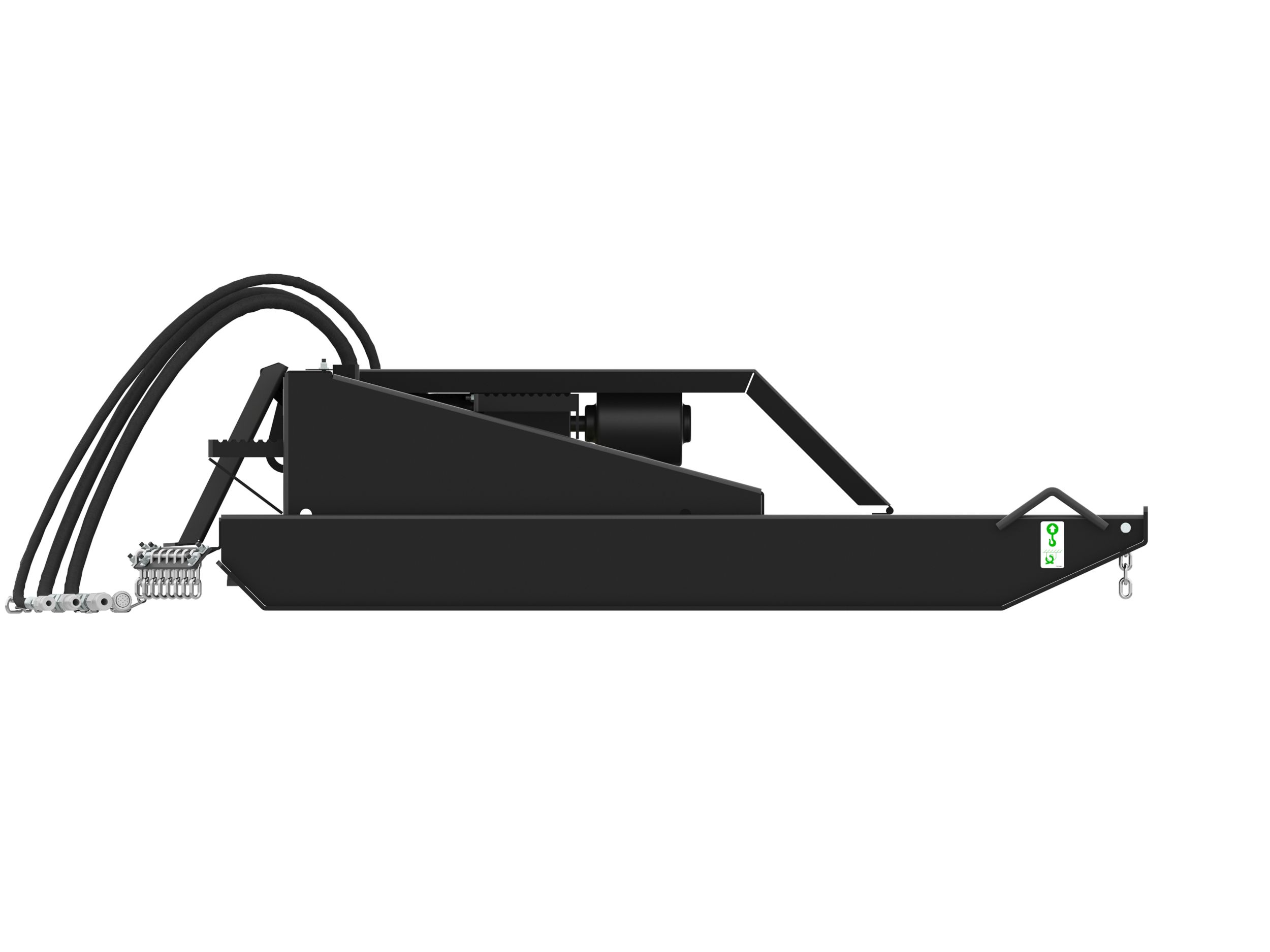

Cat® Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas.
High strength blades deliver high cutting action, durability and also mulch overgrowth. Fully balanced blade carrier prevents unnecessary vibration. Tapered blade carrier allows cutter to ride up over stumps and rocks.
Long life motor deliver years of high-speed blade performance. Machined and heat-treated gears in sealed gearbox provide reliable, durable transfer of torque from motor to blade carrier.
Motor protection guard shields motor and gear box from debris. Removing a set of bolts allows this hinged guard to be moved away for easy access to motor and gearbox.
Galvanized coil chains (7.9 mm [5/16 in] proof) provide debris guarding in the front and rear areas to restrict flying debris and material.
Heavy-duty skids allow easy movement of the brushcutter through uneven terrain while maintaining stability of the work tool and machine.
Lift restriction chains limit operating height of the brush cutter to reduce flying debris and blade damage.
