2642 mm (104 in), Bolt-On Cutting Edge
Cat® Material Handling Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for loading, carrying, dumping and handling light, loosely packed material in agricultural and landscaping applications. They are specifically for applications where a larger capacity than Light Material Buckets is needed.
Width
104 in
Capacity
1.74 yd³
Weight
921.5 lb
Specification
Value
Width
104 in
Capacity
1.74 yd³
Weight
921.5 lb
Height
29.8 in
Length
40.6 in
Base Edge Thickness
0.7 in
Cutting Edge Thickness
0.6 in
Interface Type
Skid Steer Coupler

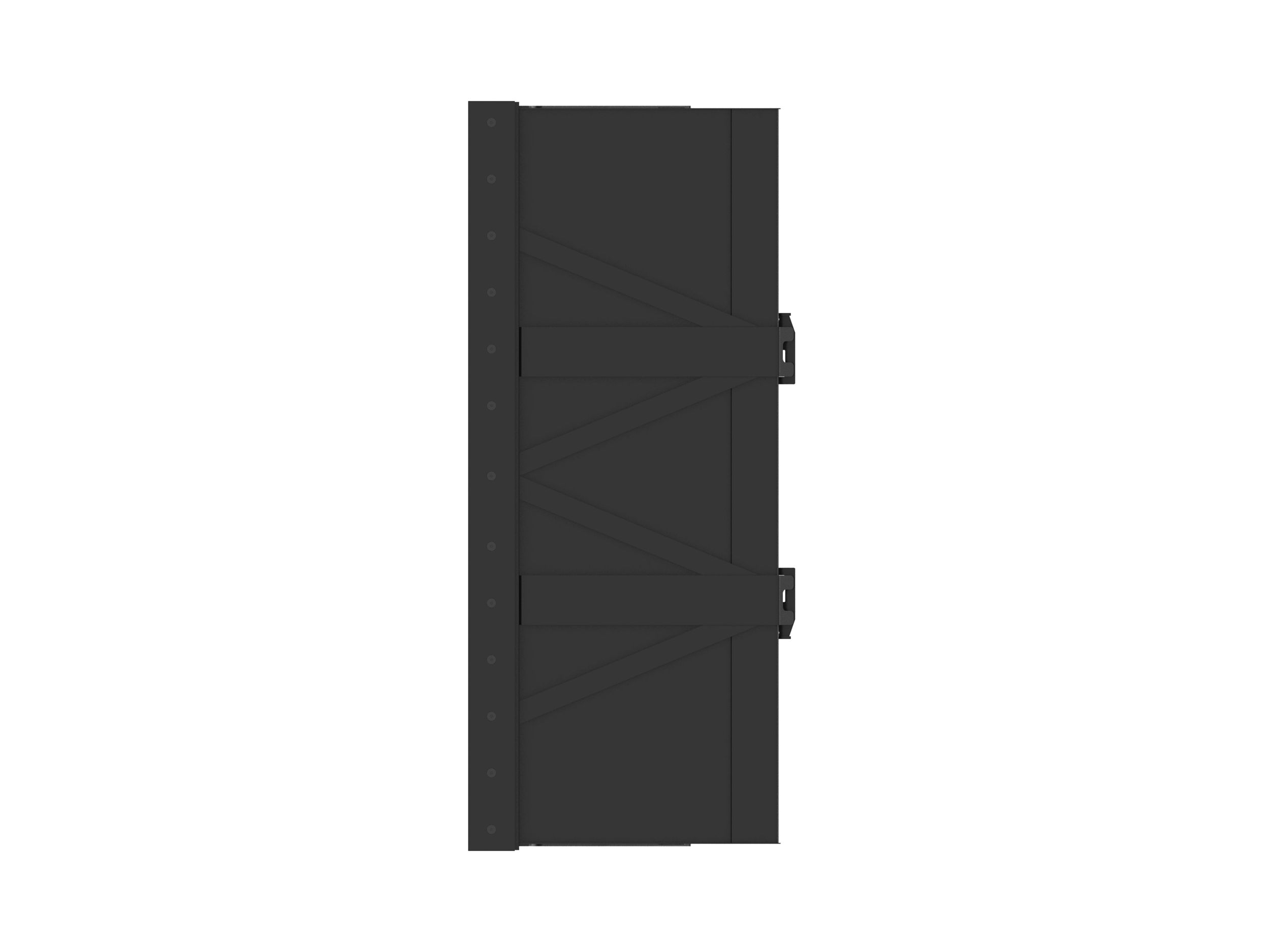

Material Handling Buckets incorporate underside support straps to elongate the life of the bucket and ensure minimal wear to the wrapper sheet.
Integrating a serrated step onto the side of the bucket ensures safe entry and exit from the machine cab without having to step over the center of the work tool.
Bolt-On cutting edges ensure a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.

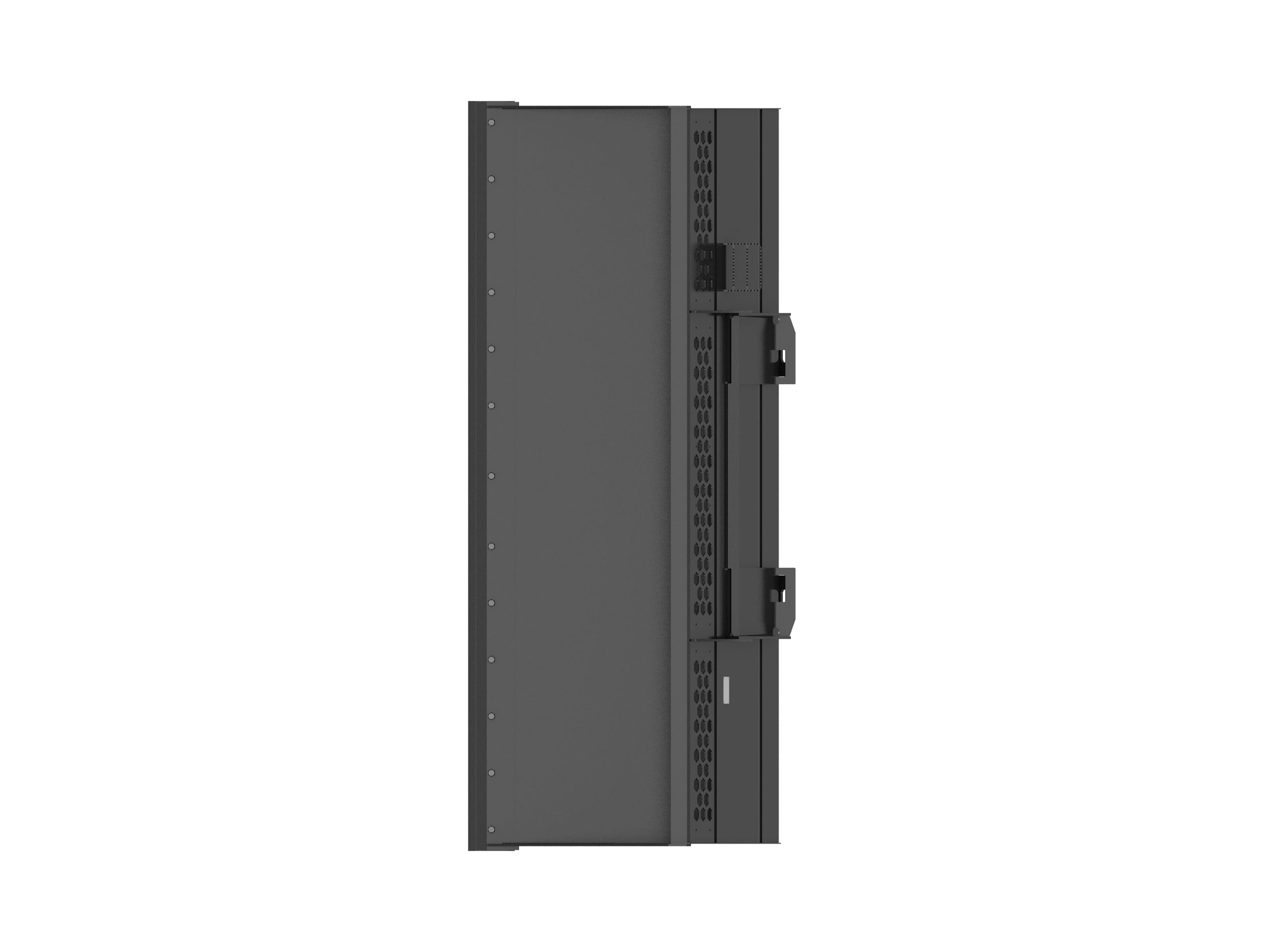

A large torque tube located on the back side of the bucket ensures that it can withstand machine forces and large capacity loads.
Located above the Torque Tube structural support, the honeycomb visibility section allows the operator to easily view the cutting edge to ensure accurate placement and loading.
