Jallad | 920K

920K

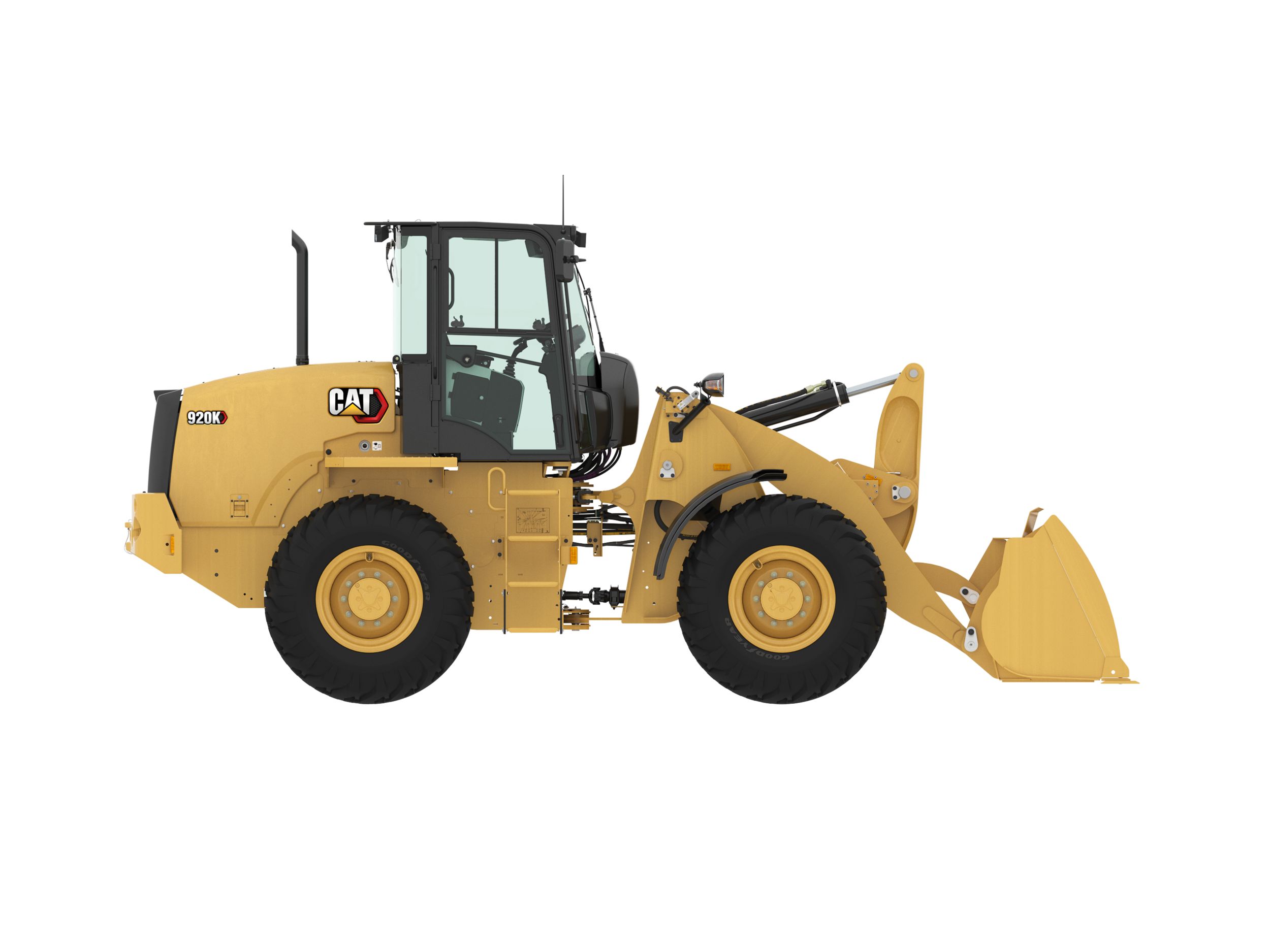

The Cat® 920K Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. A new engine layout greatly improves rear visibility and service access.

Maximum Gross Power

100 HP

Engine Model

Cat C4.4

Maximum Gross Power - Maximum Engine Speed

2350 r/min

DOWNLOAD TECHNICAL SPECIFICATIONS

REQUEST A QUOTE

COMPARE MODELS

Specifications

BENEFITS & FEATURES

MEDIA GALLERY

RELATED ATTACHMENTS

Specification

Value

Maximum Gross Power

100 HP

Engine Model

Cat C4.4

Maximum Gross Power - Maximum Engine Speed

2350 r/min

Maximum Gross Power - SAE J1995

102 HP

Maximum Gross Power - ISO 14396

100 HP

Maximum Gross Power - ISO 14396 (DIN)

102 HP

Rated Net Power - Rated Engine Speed

2200 r/min

Rated Net Power - SAE J1349

98 HP

Rated Net Power - ISO 9249

99 HP

Rated Net Power - ISO 9249 (DIN)

101 HP

Displacement

268 in³

Bore

4.13 in

Stroke

5 in

Maximum Gross Torque - SAE J1995

306 ft·lbf

Maximum Gross Torque - ISO 14396

302 ft·lbf

Maximum Net Torque - SAE J1349

295 ft·lbf

Maximum Net Torque - ISO 9249

299 ft·lbf

Emissions

Engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA.

Note

Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.

Specification

Value

Operating Weight

20126 lb

Specification

Value

Bucket Capacities

1.6-3.5 m3 (2.1-4.6 yd3)

General Purpose

1.6-1.9 m³ (2.1-2.5 yd³)

Light Material

2.5-3.5 m³ (3.2-4.6 yd³)

Specification

Value

Steering Articulation Angle - Each Direction

40 °

Maximum Flow - Steering Pump

22 gal/min

Maximum Working Pressure - Steering Pump

2901 psi

Steering Cycle Times - Lock to Lock - At 2,350 rpm

2.3 s

Number of Steering Wheel Turns - Lock to Lock

3.4 turns

Specification

Value

Maximum Flow - Implement Pump

39 gal/min

Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard

25 gal/min

Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High

36 gal/min

Maximum Flow - Implement Pump - 4th Function, Maximum Flow

25 gal/min

Maximum Working Pressure - Implement Pump

4061 psi

Relief Pressure - Tilt Cylinder

4641 psi

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure

4061 psi

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure

4641 psi

Hydraulic Cycle Time - Maximum Engine Speed - Raise, Ground Level to Maximum Lift

4.8 s

Hydraulic Cycle Time - Maximum Engine Speed - Dump, at Maximum Reach

1.8 s

Hydraulic Cycle Time - Maximum Engine Speed - Rack Back

2.2 s

Hydraulic Cycle Time - Maximum Engine Speed - Float Down, Maximum Lift to Ground Level

2.7 s

Hydraulic Cycle Time - Maximum Engine Speed - Total Cycle Time

11.5 s

Specification

Value

Fuel Tank

40.7 gal (US)

Cooling System

5.7 gal (US)

Engine Crankcase

2.4 gal (US)

Axles - Front Center Differential

3.3 gal (US)

Axles - Rear Center Differential

3.3 gal (US)

Hydraulic System - Including Tank

25.9 gal (US)

Hydraulic Tank

14.5 gal (US)

Transmission

0.9 gal (US)

Specification

Value

Forward and Reverse - Low Range, Speed Range 1*

6.3 mile/h

Forward and Reverse - Low Range, Speed Range 2*

12.5 mile/h

Forward and Reverse - High Range

25 mile/h

Note

*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.

Specification

Value

Standard Size

17.5-25 16 PR (L-3)

Other Choices Include

17.5-25 12 PR (L-2), 1 pc rim; 17.5-25 12 PR (L-3), 1 pc rim; 17.5R-25, radial (L-3), 1 or 3 pc rim; 20.5-25 16 PR (L-2); 20.5-25 16 PR (L-3); 20.5 R25, radial (L-3)

Note (1)

Tire options may vary by region. Contact your Cat dealer for details.

Note (2)

In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

Note (3)

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Specification

Value

ROPS

ISO 3471:2008

FOPS

ISO 3449:2005 Level II

Note (1)

Cab and Rollover Protective Structures (ROPS) are standard.

Note (2)

The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).

Note (3)

The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).

Note (4)

*The measurements were conducted with the cab doors and windows closed.

Specification

Value

Front

Fixed; Locking differential (standard)

Rear

Oscillating ±11 degrees; Locking differential (standard)

High full turn tipping loads, powerful breakout forces and increased engine power the 920K delivers a balanced solution for all customer applications.

State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.

The Cat® Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. Multi-function work has never been easier with dedicated pumps for each system, allowing the operator to simultaneously lift, steer and drive without compromise.
