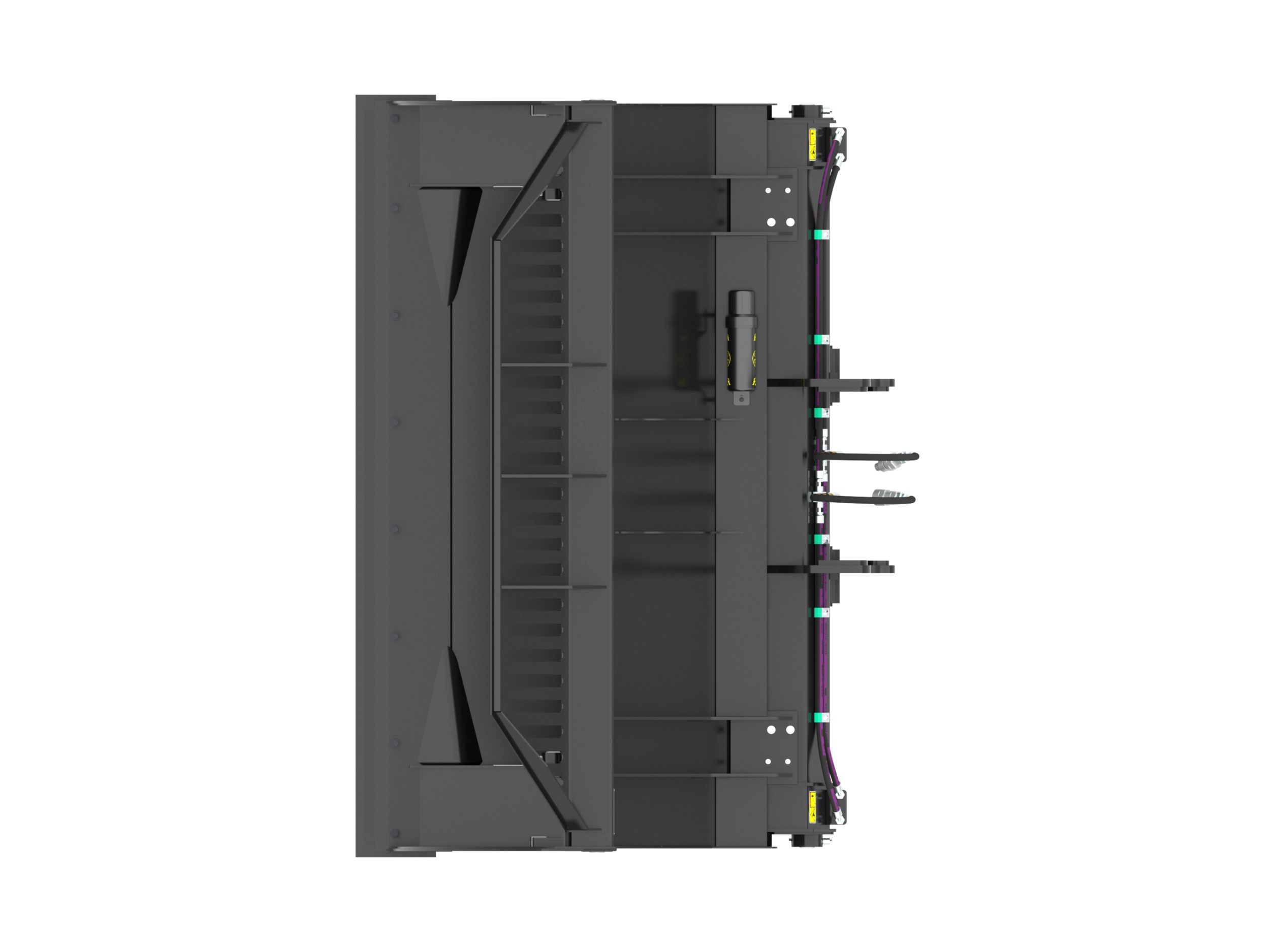

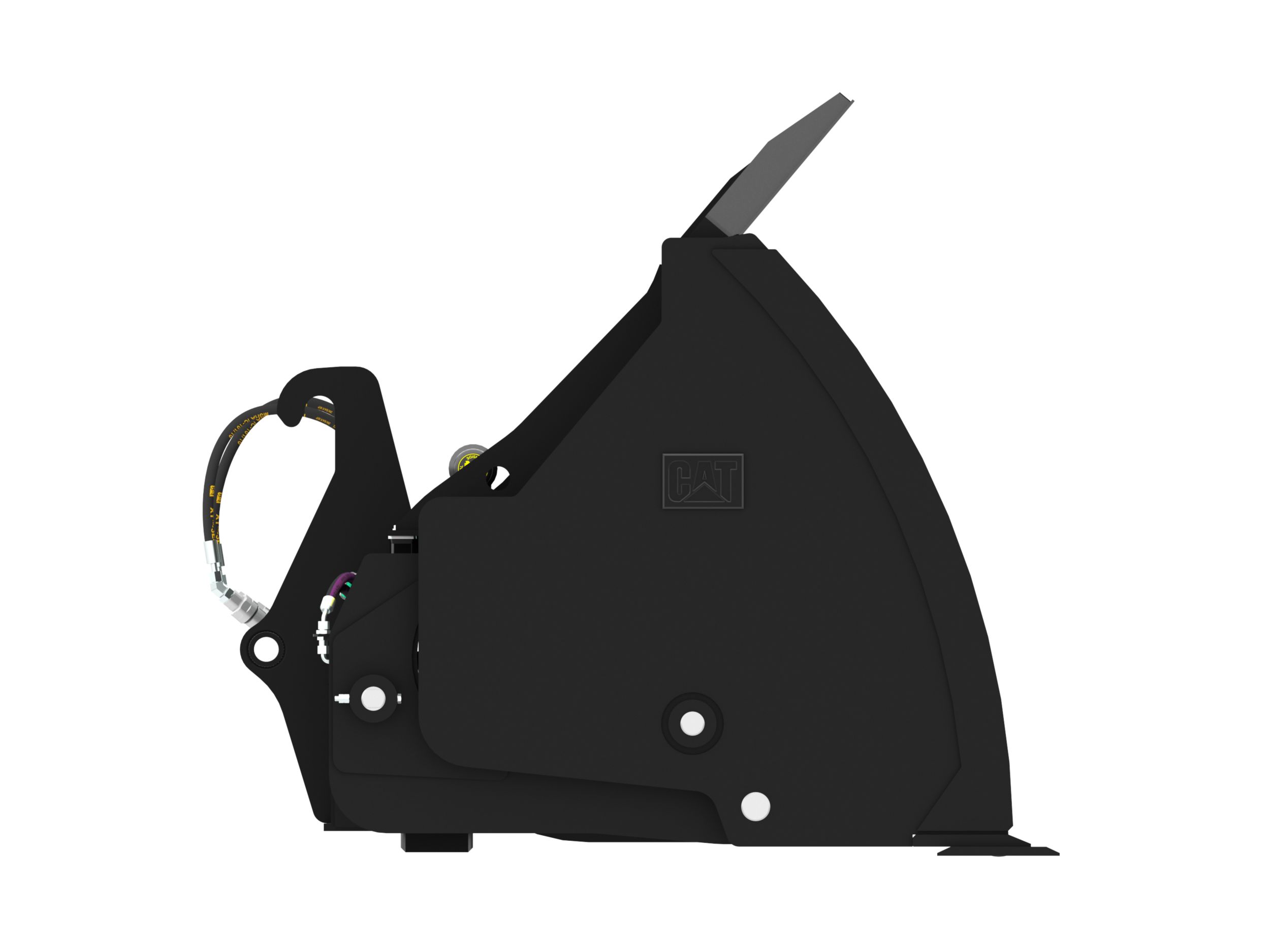

2.5 m3 ( 3.3 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® High Dump Buckets for Compact Wheel Loaders feature greatly increased dump height over standard material handling buckets. Whether loading trucks, feeding compactors or just working in the pile, Cat High Dump Buckets offer the performance you need.
Width
93.1 in
Height
62.3 in
Weight
3240.8 lb
Specification
Value
Width
93.1 in
Height
62.3 in
Weight
3240.8 lb
Length
66.9 in
Capacity
3.3 yd³
Base Edge Thickness
1 in
Cutting Edge Thickness
0.7 in
Interface Type
IT Coupler
Required Hydraulics
3rd Function
Designed with an increased dump height for better truck loading.
Diverts overflow away from hinge pins, lift arms, hydraulic cylinders and tilt sensors which helps to protect the machine from damage. Also creates good forward visibility for the operator.
Rear debris deflector is designed to deflect material away from bucket frame to protect against dirt and damage.
4 Non-metallic dump stops to reduce shock loads and protect cylinders.2 Metallic dump stops to prevent overloading the non-metallic stops and prevent cylinder over centering.
Non-metallic bucket dump stops are designed to reduce shock loads, protect cylinders and to avoid bucket over centering.
Corner bucket gussets were added to stiffen bucket and protect against bending and weld cracking.
Reversible one piece cutting edge protects base edge, while providing rigidity and extending the life of the bucket.
Replaceable wear support plates underneath the rear frame corners provide protection for the bucket as well as making it easy for the operator to level the bucket on the ground.
Tool mounted and sealed from the elements, this holder includes all the operation manuals and maintenance guides required for proper operation of the high dump bucket.
