BA25 Manual

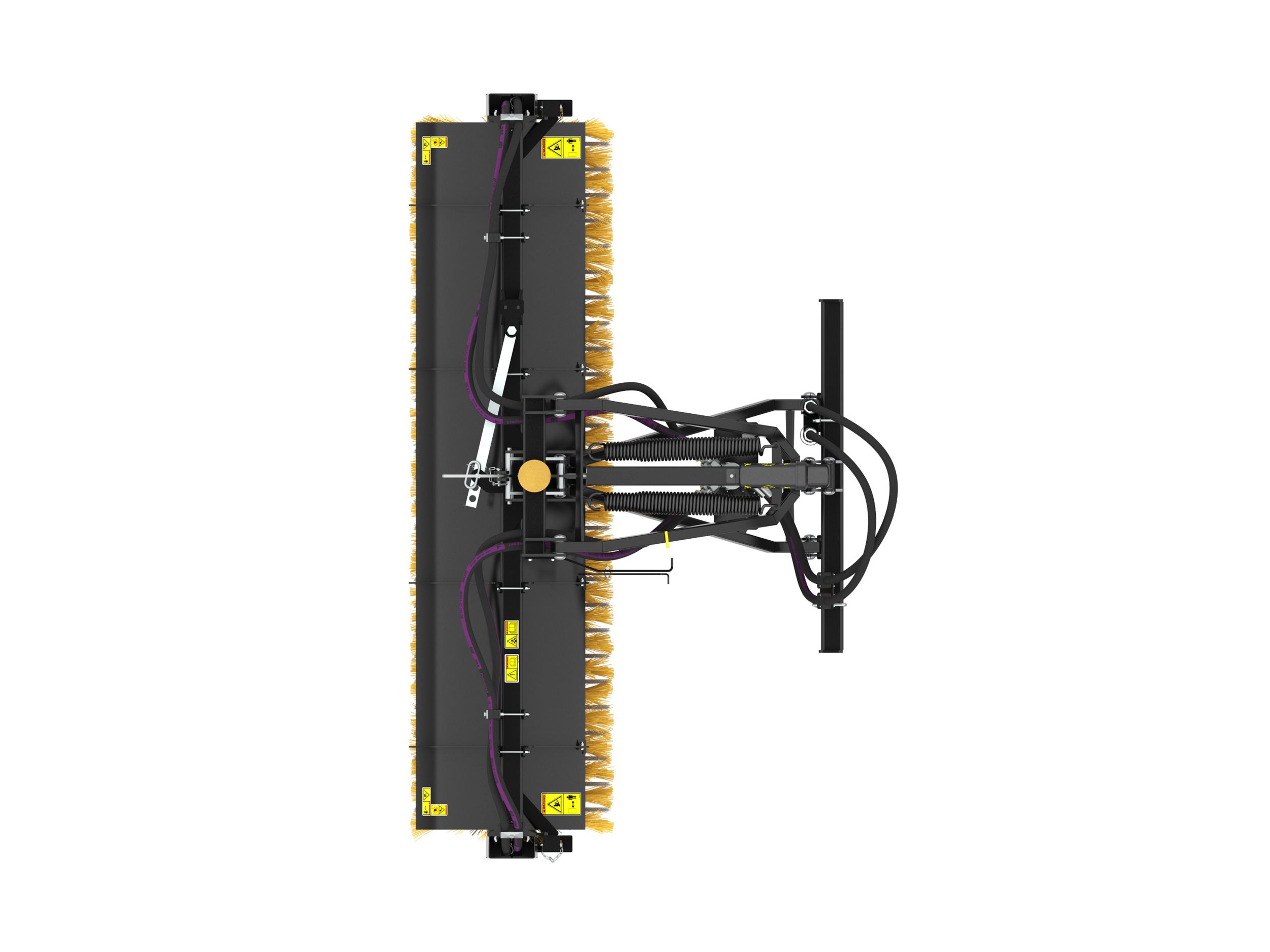

Hydraulic and Manual Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Overall Width
106 in
Required Hydraulics
Standard Flow
Height
51.2 in
Specification
Value
Overall Width
106 in
Required Hydraulics
Standard Flow
Height
51.2 in
Weight
948 lb
Optimal Hydraulic Flow
40-150 L/min (11-40 gpm)
Optimal Hydraulic Pressure
150-260 bar (2176-3771 psi)
Brush Speed at Maximum Flow
385 RPM
Sweeping Width - Angled (± 30 Degrees)
86.6 in
Drive Method
Direct Drive
Interface Type
Tool Interface
Sweeping Width
98.4 in
Brush Diameter
27.6 in
Length
60.4 in
Motor Displacement
11.9 in³/rev
Overall Width - Angled (± 30 Degrees)
94.5 in
Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.
Unique suspension system eliminates the need for support wheels. Brush maintains constant ground pressure through a range of vertical motion from the initial setting.
Parking supports provide stable and secure parking of the broom when not in use.
Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.
Hydraulic motors are protected from dust and debris - yet easily accessible if needed.
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.
Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
