3941 mm (155 in)

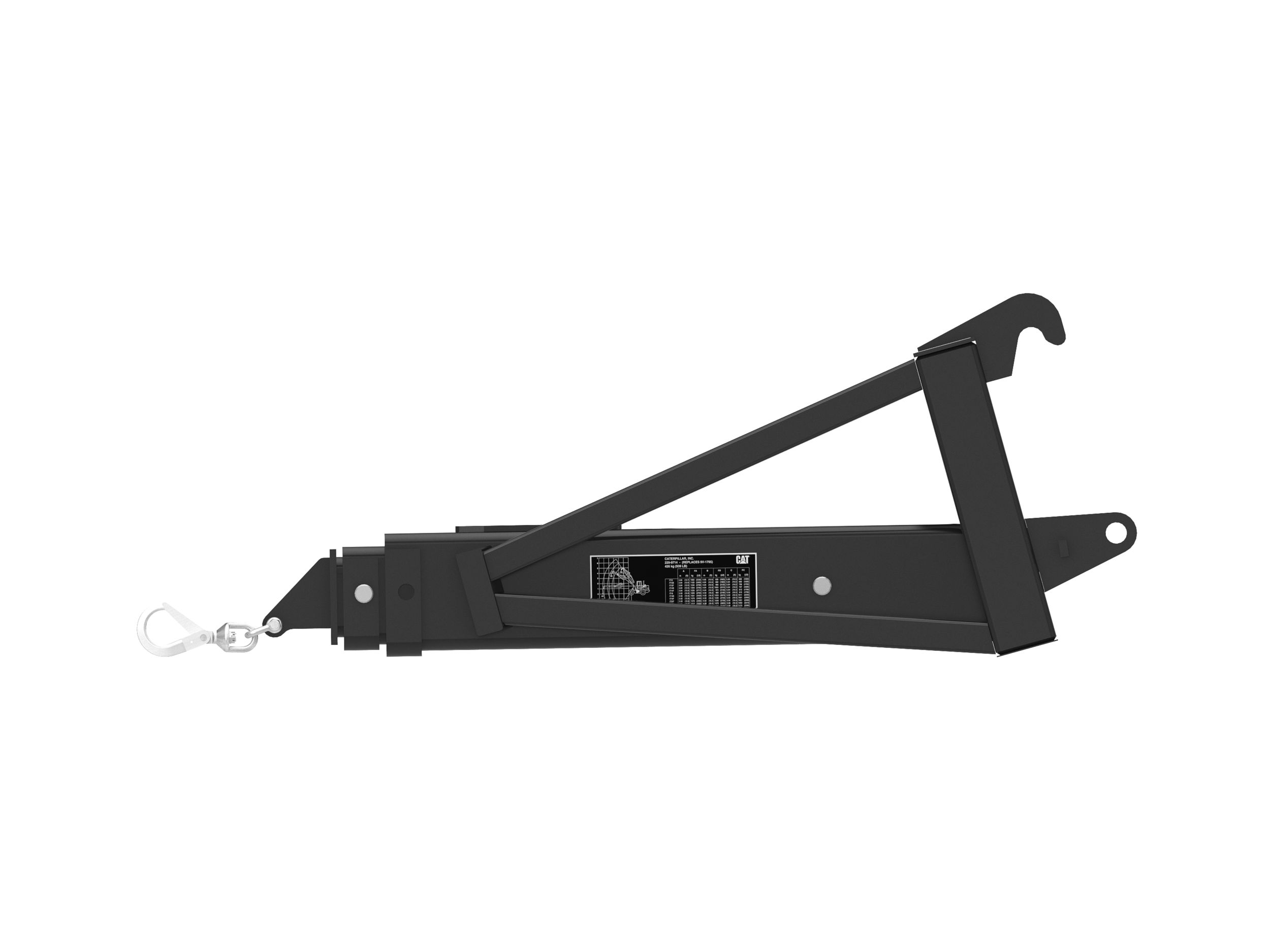

Move pipe, concrete blocks, highway dividers and other construction materials quickly and easily with an Extendable Material Handling Arm. Length of the arm is manually adjustable to match load and reach requirements.
Overall Width
26 in
Maximum Load Rating
4618.7 lb
Maximum Horizontal Reach
155.2 in
Specification
Value
Overall Width
26 in
Maximum Load Rating
4618.7 lb
Maximum Horizontal Reach
155.2 in
Weight
899.5 lb
Overall Height
32.6 in
Extended Length
155 in
Retracted Length
79 in
Number of Adjustments
3
Length Between Adjustments
38.1 in
Interface Type
IT Coupler
Designed to pick up, carry and load a variety of materials and equipment. Also well suited for loading, carrying and setting trees and large shrubs in landscaping applications.
Heavy duty design provides extra rigidity and strength.
Telescoping inner boom is pre-drilled for easy positioning. Arm length can easily be manually adjusted with a locking pin to match job and loading conditions.
Heavy duty locking clasp swivels full 360 degrees.
Extendable from face of coupler to three lengths - All with the ease of pulling a single pin.
