MP332 Tank Shear
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Cycle Time - Open
1.9 s
Cycle Time - Close
1.3 s
Cutting Force - Blade Tip
792 Sh Ton
Specification
Value
Cycle Time - Open
1.9 s
Cycle Time - Close
1.3 s
Cutting Force - Blade Tip
792 Sh Ton
Cutting Force - Blade Center
342 Sh Ton
Cutting Force - Blade Throat
217 Sh Ton
Specification
Value
Jaw Circuit - Max. Oil Pressure
5076 psi
Jaw Circuit - Max. Oil Flow
74 gal/min
Rotation Circuit - Max. Oil Pressure
2321 psi
Rotation Circuit - Max. Oil Flow
11 gal/min
Specification
Value
Jaw Depth
20.5 in
Cutter Length
23.6 in
Jaw Opening - Maximum
20.5 in
Jaw Width - Fixed
15.4 in
Jaw Width - Moveable
4.7 in
Specification
Value
Width
86.6 in
Length
77.5 in
Height
39.6 in
Specification
Value
Weight - Housing, Jaw and Bracket
8150 lb
Weight - Jaw Only
4026 lb
Specification
Value
Excavator Minimum
32 tons
Excavator Maximum
50 tons
- New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
- You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
- Maximum crushing/cutting force is applied as soon as the jaw contacts material.
- Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
- Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
- Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.
- Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
- Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.
- MP332 accepts these jaw types:
- Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
- Demolition – opens wide to crack the largest concrete structures
- Pulverizer – crushes concrete, separating the rebar
- Shear – cuts structural steel, pipe, and cable

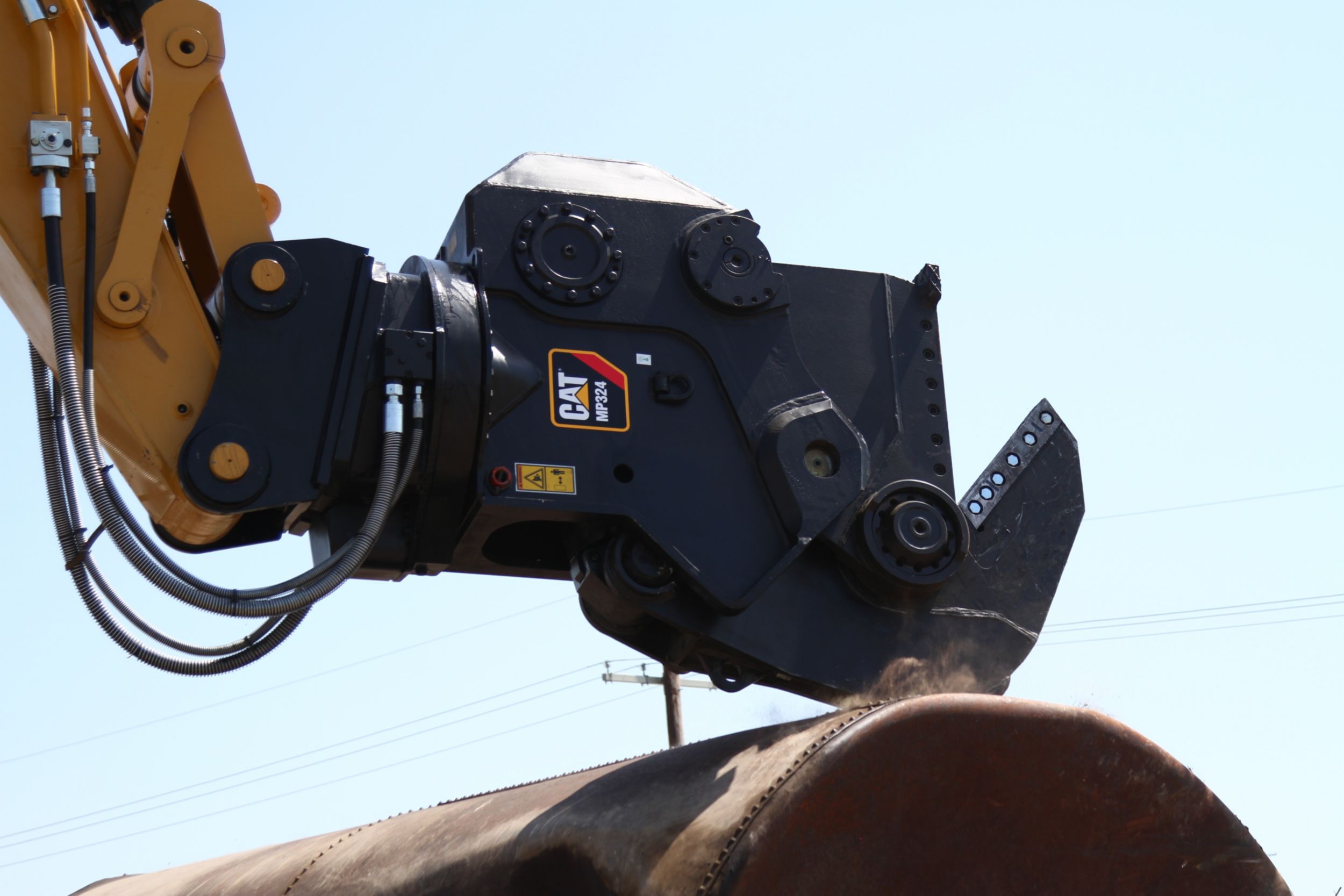

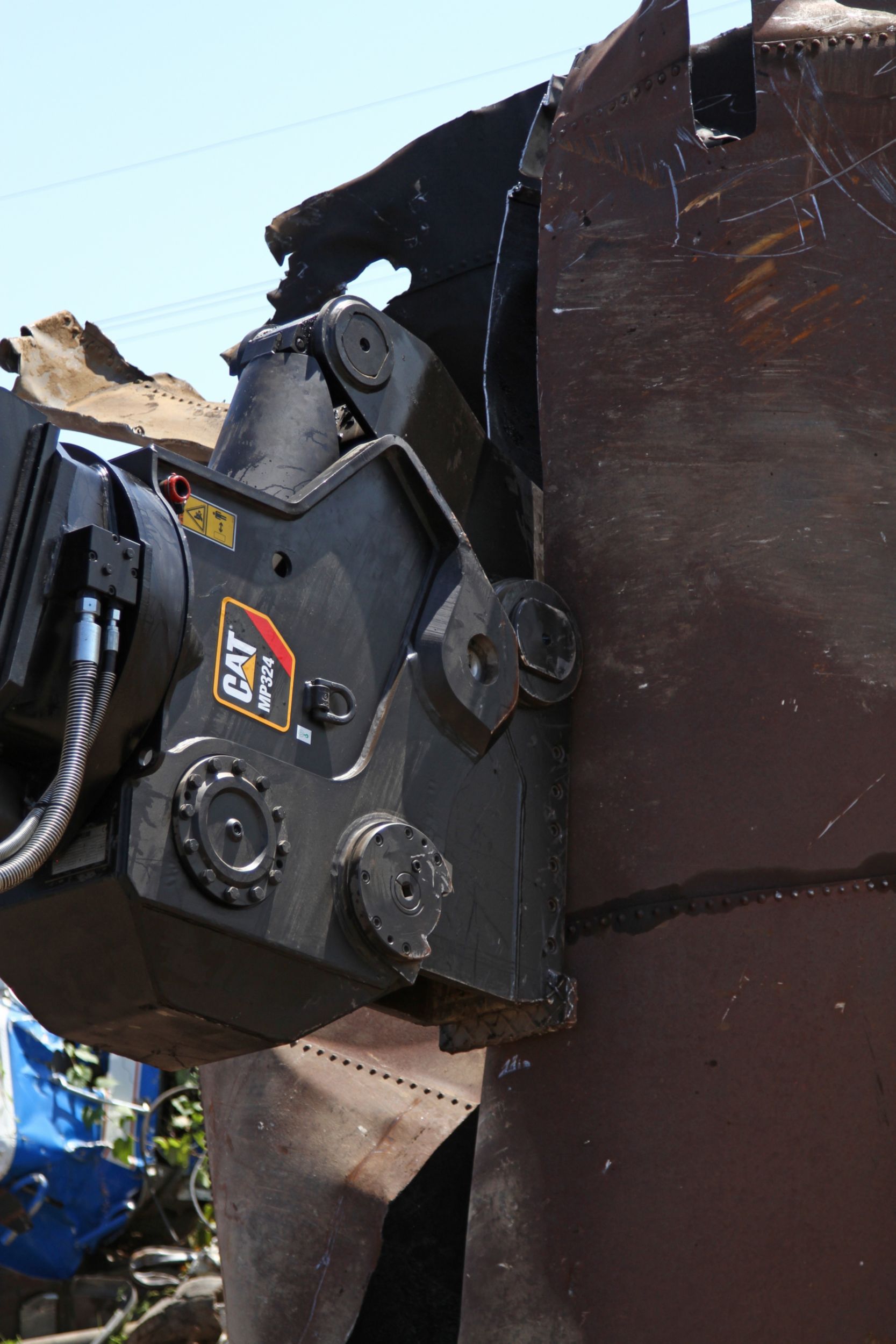

- Tank Shear – cuts at right angle on three sides, cleanly cutting tanks or plate steel
- Universal – innovative design cuts steel and crushes concrete
- Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
- Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
- Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.
