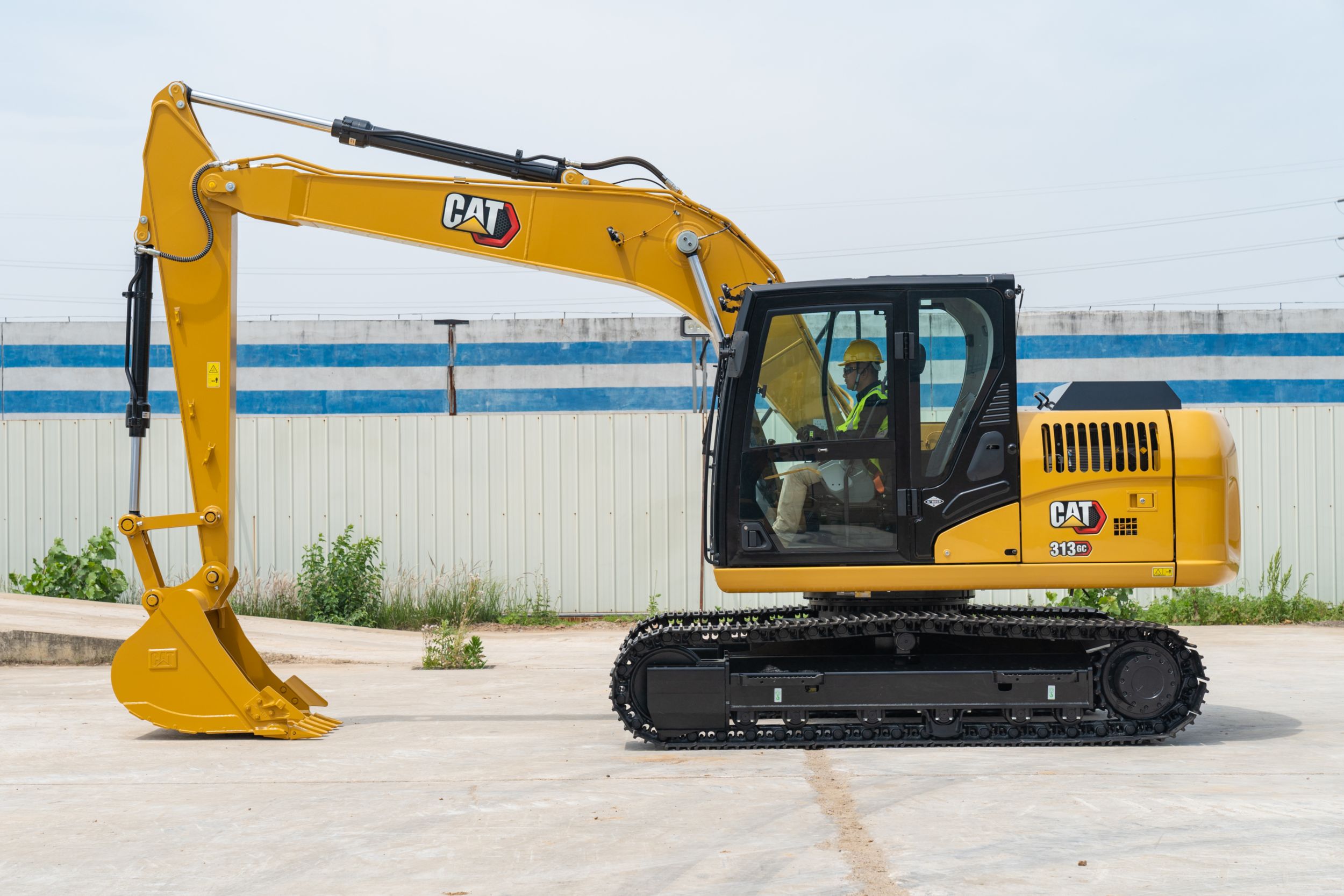

313 GC

If you need reliability, durability, high productivity, and low cost, the Cat® 313 GC is made for you. This excavator is designed, built, and uniquely supported to put you on the fast track to prosperity.

Net Power - ISO 9249

95 HP

Engine Model

Cat C3.6

Net Power - ISO 9249 (DIN)

96 hp (metric)

DOWNLOAD TECHNICAL SPECIFICATIONS

REQUEST A QUOTE

COMPARE MODELS

Specifications

BENEFITS & FEATURES

MEDIA GALLERY

RELATED ATTACHMENTS

Specification

Value

Net Power - ISO 9249

95 HP

Engine Model

Cat C3.6

Net Power - ISO 9249 (DIN)

96 hp (metric)

Engine Power - ISO 14396

100 HP

Engine Power - ISO 14396 (DIN)

101 hp (metric)

Bore

4 in

Stroke

5 in

Displacement

220 in³

Biodiesel Capability

Up to B20¹

Emissions

Meets Brazil MAR-1 emission standards equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

Note (1)

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2)

¹Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to 100% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. *For use of blends higher than 20% biodiesel, consult your Cat dealer. **Lower-carbon intensity fuels do not significantly reduce GHGs

Specification

Value

Main System - Maximum Flow

247 L/min (65 gal/min)

Maximum Pressure - Equipment

5075 psi

Maximum Pressure - Travel

5075 psi

Specification

Value

Swing Speed

11.5 r/min

Maximum Swing Torque

31641 ft·lbf

Specification

Value

Operating Weight

27200 lb

Specification

Value

Fuel Tank Capacity

62.6 gal (US)

Cooling System

2.9 gal (US)

Engine Oil

2.9 gal (US)

Final Drive - Each

0.8 gal (US)

Hydraulic System - Including Tank

38.3 gal (US)

Hydraulic Tank

20.3 gal (US)

Specification

Value

Boom

Reach 4.65 m (15'3")

Stick

Reach 2.5 m (8'2")

Bucket

GD 0.53 m³ (0.69 yd³)

Shipping Height - Top of Cab

9.1 ft

Handrail Height

9.3 ft

Shipping Length

25.3 ft

Tail Swing Radius

7.3 ft

Counterweight Clearance

2.9 ft

Ground Clearance

1.4 ft

Track Length

11.5 ft

Length to Center of Rollers

9.1 ft

Track Gauge

6.5 ft

Transport Width

8.1 ft

Specification

Value

Maximum Digging Depth

18.3 ft

Boom

Reach 4.65 m (15'3")

Stick

Reach 2.5 m (8'2")

Bucket

GD 0.53 m³ (0.69 yd³)

Maximum Reach at Ground Level

26.9 ft

Maximum Cutting Height

27.9 ft

Maximum Loading Height

19.9 ft

Minimum Loading Height

6.5 ft

Maximum Depth Cut for 2440 mm (8 ft) Level Bottom

17.6 ft

Maximum Vertical Wall Digging Depth

16.5 ft

Bucket Digging Force - ISO

21510 lbf

Stick Digging Force - ISO

15330 lbf

Cab Monitor Improvements

Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
A notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
Color coded notifications set critical messages apart from the rest.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to”videos.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 05D

The redesigned 313 GC allows you to be up to 5% more productive than with the previous 313D2 GC model.
The C3.6 engine and electrohydraulic system work in sync to help you move loads of material without burning excessive fuel, and meets China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIA.
The main hydraulic pump is electronically controlled and provides more fluid flow than the previous model, improving control and productivity.
Breakout force is increased and a redesigned swing drive gives you improved swing torque and smoothness, maximizing your productivity.
Undercarriage and track design balances performance and stability.
Boom, stick, and bucket linkage are enhanced to ensure maximum durability.
A hammer-ready valve is standard for added versatility.

Match the power to the job with three working modes: Smart for power automatically adjusted to demand, Eco for lowest fuel burn, and Power for highest productivity.
The 313GC is designed for easier and less expensive maintenance, lowering costs up to 20%.
Hydraulic and air filters have increased service life, while the pilot and case drain filters have been eliminated.
Routine maintenance can be performed from ground level, decreasing the amount of time you spend on daily tasks.
Swing drive operates on the hydraulic system, eliminating the need to check or refill a separate oil system.
Both the hydraulic and engine oil refill amounts have been reduced with no change in performance or service life.
When hydraulic demand is low, the Automatic Engine Control (AEC) system reduces RPM, lowering your fuel costs.
Cat Product Link™ comes standard so you can remotely monitor fuel consumption, machine health, location, and hours on demand through VisionLink®.

Start the engine with a pushbutton.
One-button sticks (with adjustable joystick response and gain) make control easy for any operator.
Navigate quickly through simplified control menus on the high-resolution 203 mm (8 in) touchscreen monitor.
Easily move soft, wet, and sticky material with a new, optional shallow profile bucket.
Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format. Productivity applications are displayed in grid-view to read on-the-go, and touchscreen navigation is programmed to make sure job performance continues without any hold ups.

Wide seat (larger than previous models) adjusts for operators of all sizes.
Standard automatic climate control keeps you at the right temperature all shift long.
Convenience features include a radio, headphone port, and a USB port for connecting and charging devices.
Cup holder and storage space in front of the controls can hold large cups and wide cell phones; storage behind the seat can hold a hard hat, large lunchbox, and other items.

Nearly all major mechanical components are accessed from the ground or the service platform.
Radiator screens can be removed easily, are simple to clean, and keep the radiators free of small debris that can be difficult to remove, such as grass clippings.
Engine compartment is easily accessed from the service platform; fluid caps and gauges are easily reached, and an automatic tensioner ensures you will never need to make belt adjustments.
Cat technology helps you monitor your machine, and the Caterpillar service network helps you maximize uptime.

Access daily maintenance points from ground level – no climbing necessary.
Emergency engine and electrical shut-offs are also at ground level.
Handrails meet ISO 2867:2011 requirements; steps and platforms use anti-skid plates with countersunk bolts to prevent slipping and tripping.
Operator can exit in an emergency through either the rear window or the steel top hatch.
New cab has larger windows and smaller cab posts, providing excellent visibility into the trench and in every direction.
Bright exterior LED lights and an optional rearview camera ensure you have total visibility on the jobsite.
Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
