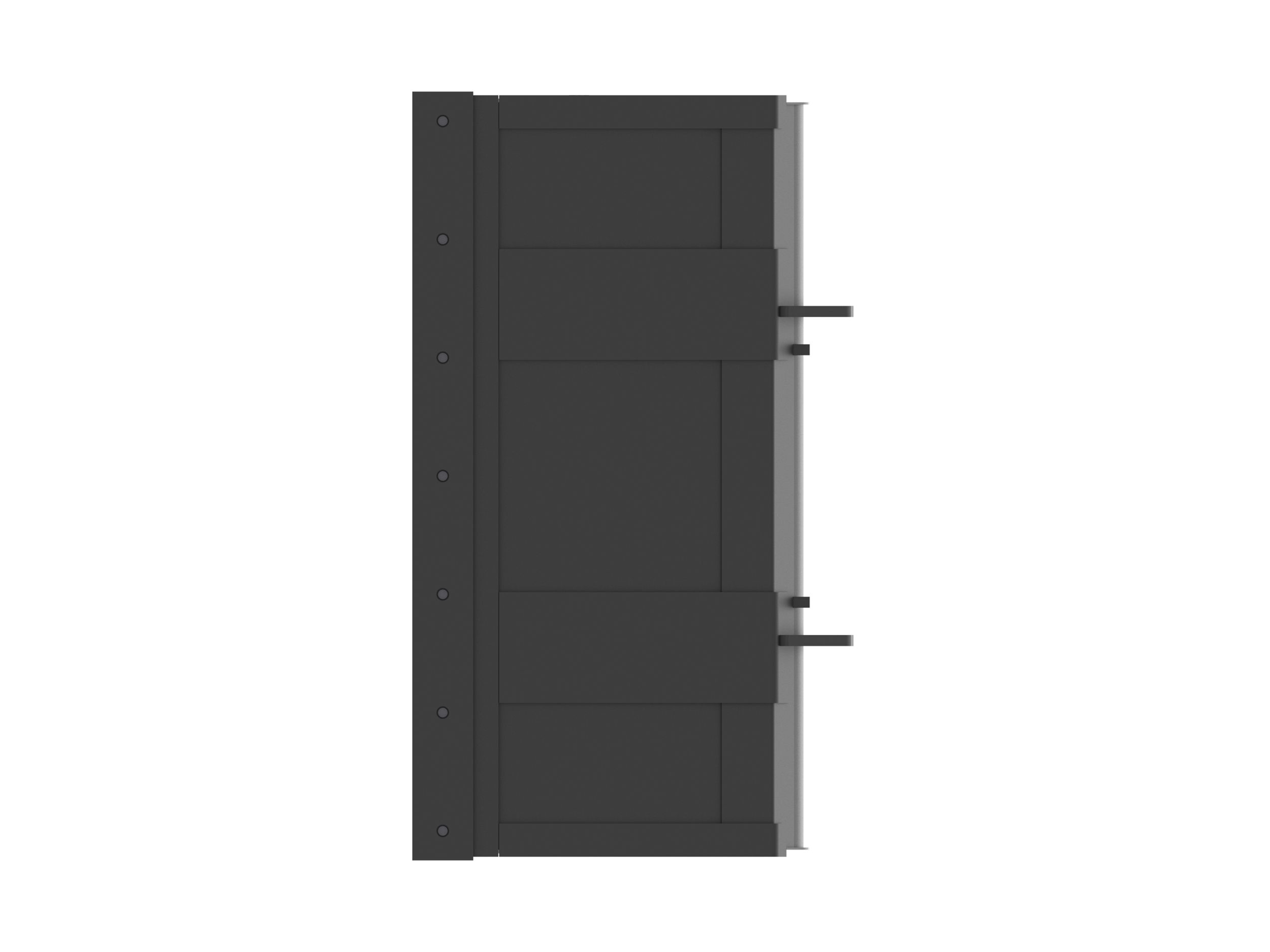

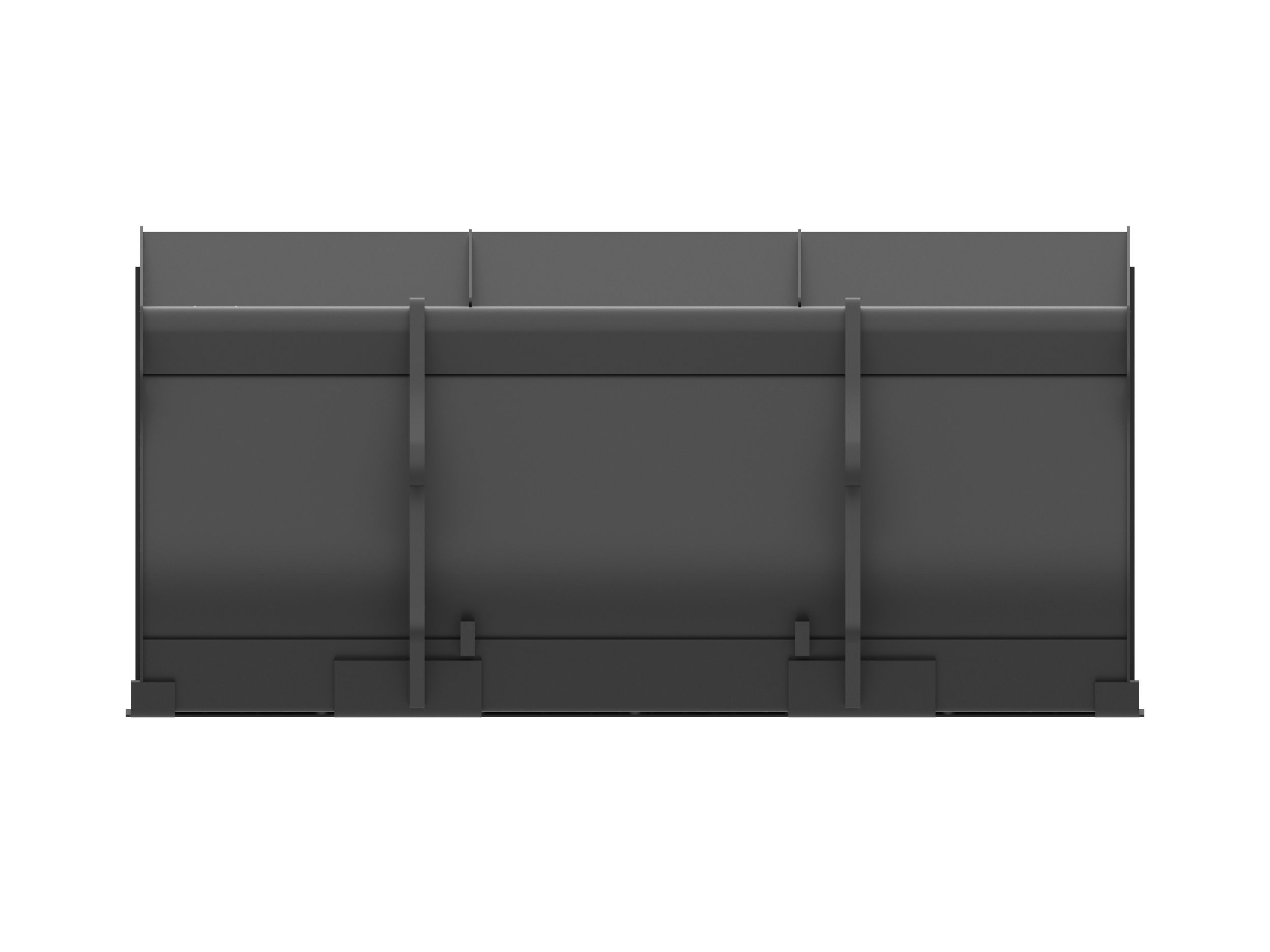

1.6 m3 (2.0 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Light Material Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
Width
81.9 in
Weight
1148.6 lb
Height
39.8 in
Specification
Value
Width
81.9 in
Weight
1148.6 lb
Height
39.8 in
Length
46.7 in
Capacity
2 yd³
Base Edge Thickness
0.8 in
Cutting Edge Thickness
0.6 in
Interface Type
Horizontal Pin Lock (L35)
Designed to improve material retention when truck loading or working on rough, uneven ground.
Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.
Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.
Buckets are available with bolt-on cutting edges.
