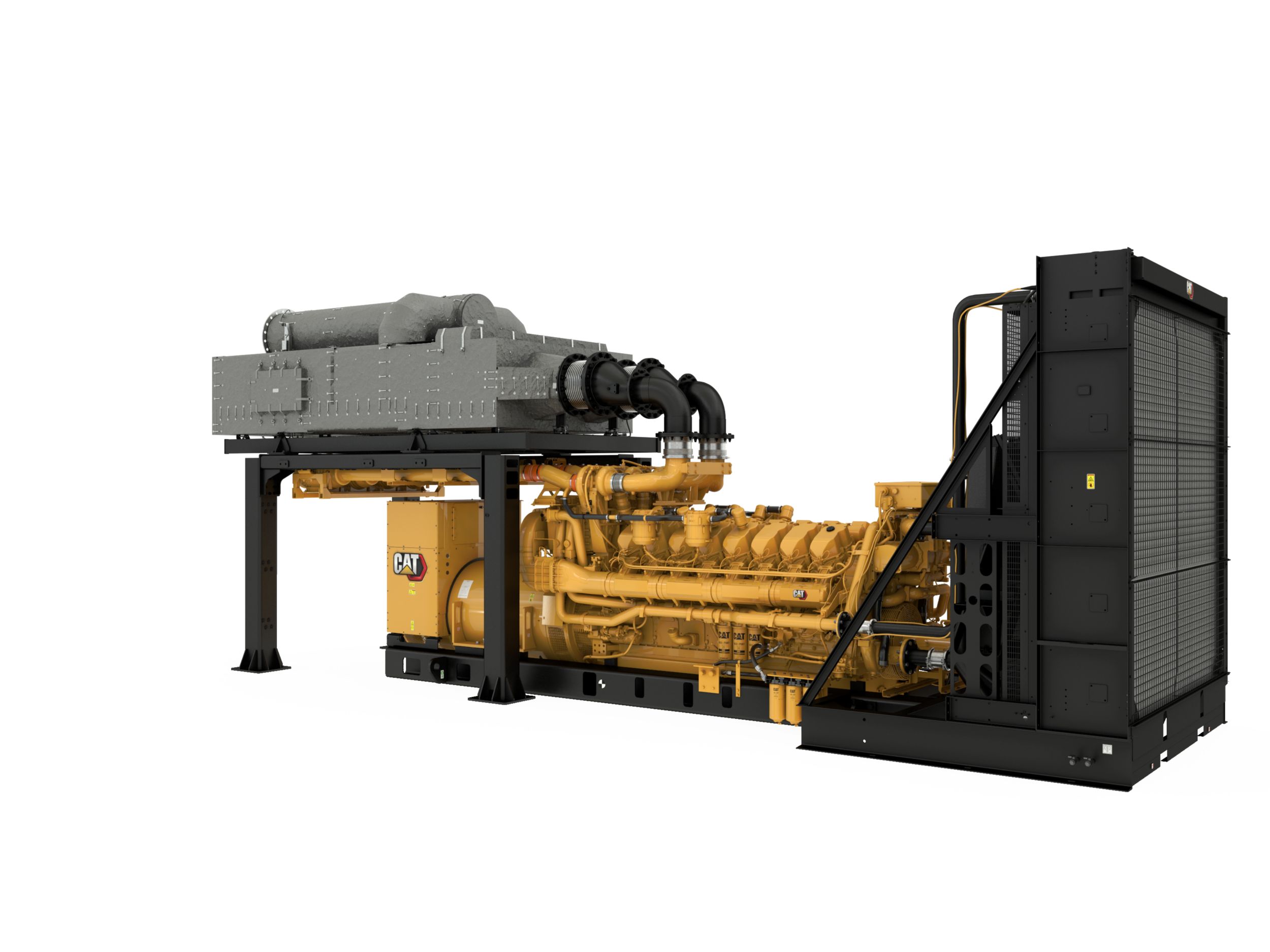

C175-16 Tier 4 Final (60 Hz)
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Standby Rating
3100(no fan)/3000 ekW
Prime Power Rating
2825(no fan)/2725 ekW
Emissions/Fuel Strategy
U.S. EPA Certified Tier 4
Specification
Value
Standby Rating
3100(no fan)/3000 ekW
Prime Power Rating
2825(no fan)/2725 ekW
Emissions/Fuel Strategy
U.S. EPA Certified Tier 4
Voltage
480 to 13800 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby, Mission Critical, Prime, Continuous
Maximum Rating
3100 ekW
Minimum Rating
2500 ekW
Specification
Value
Engine Model
C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel
Bore
6.89 in
Stroke
8.66 in
Displacement
5155.88 in³
Compression Ratio
16.7:1
Aspiration
Turbo Aftercooled
Fuel System
EUI
Governor Type
ADEM� A4
Specification
Value
Length - Minimum
242.77 in
Length - Maximum
312.2 in
Width - Minimum
83.1 in
Width - Maximum
123 in
Height - Minimum
87 in
Height - Maximum
142.3 in
Dry Weight - Genset (minimum)
42750 lb
Dry Weight - Genset (maximum)
45114 lb
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
- UL 2200 Listed
- CSA
- IBC seismic certification
- OSHPD pre-approval
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
