Specification
Value
Maximum Rating
450 kVA
Minimum Rating
350 kVA
Emissions/Fuel Strategy
Low Fuel, R96/EUIIIa
Voltage
380 to 415 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby, Prime
Specification
Value

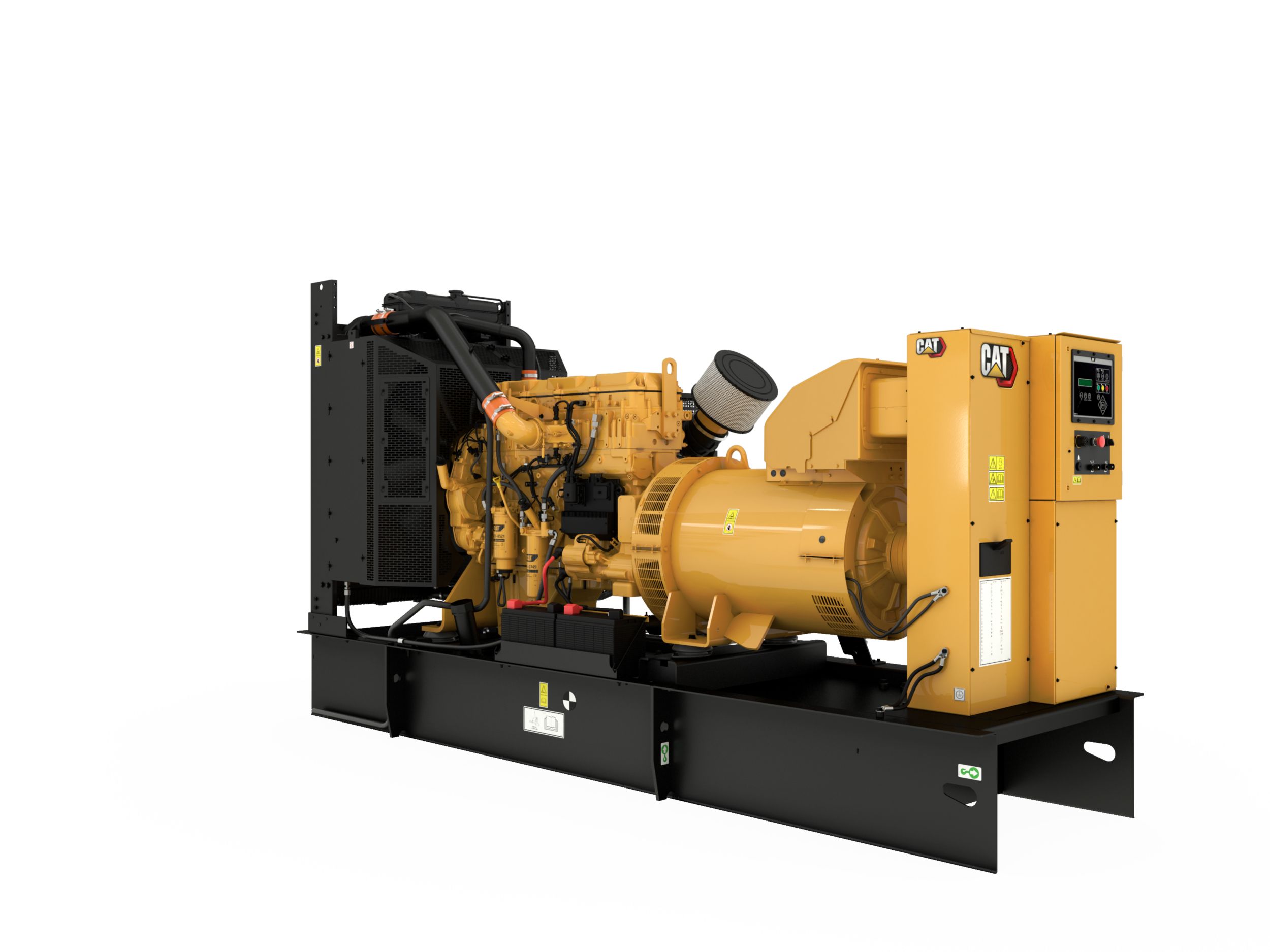

Engine Model
C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Bore
5.12 in
Stroke
6.18 in
Displacement
762.8 in³
Compression Ratio
16.3:1
Aspiration
Air to Air Aftercooled
Fuel System
MEUI
Governor Type
Adem™A4
Specification
Value
Length - Maximum
186.7 in
Width - Maximum
79.3 in
Height - Maximum
84 in
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
