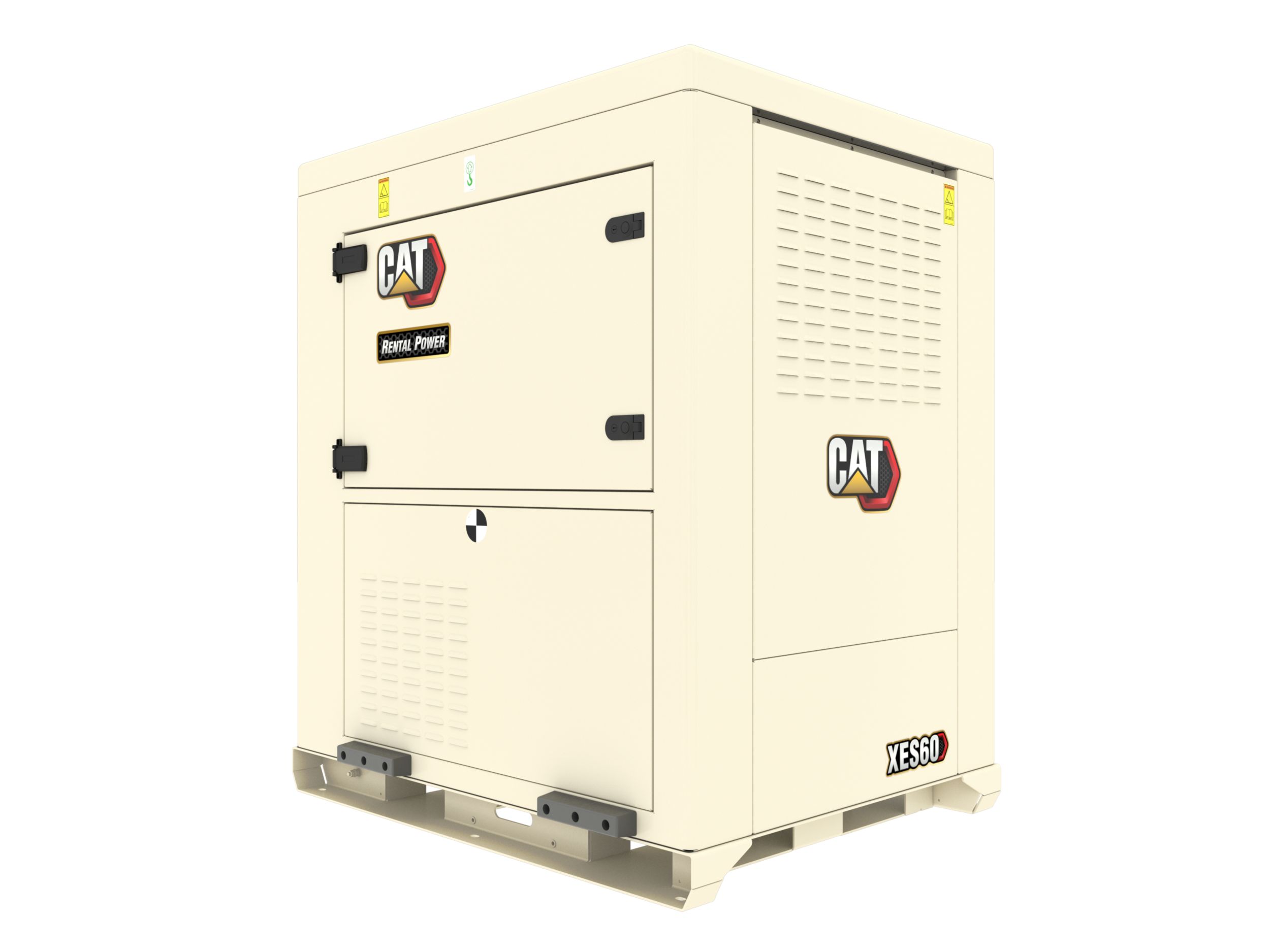

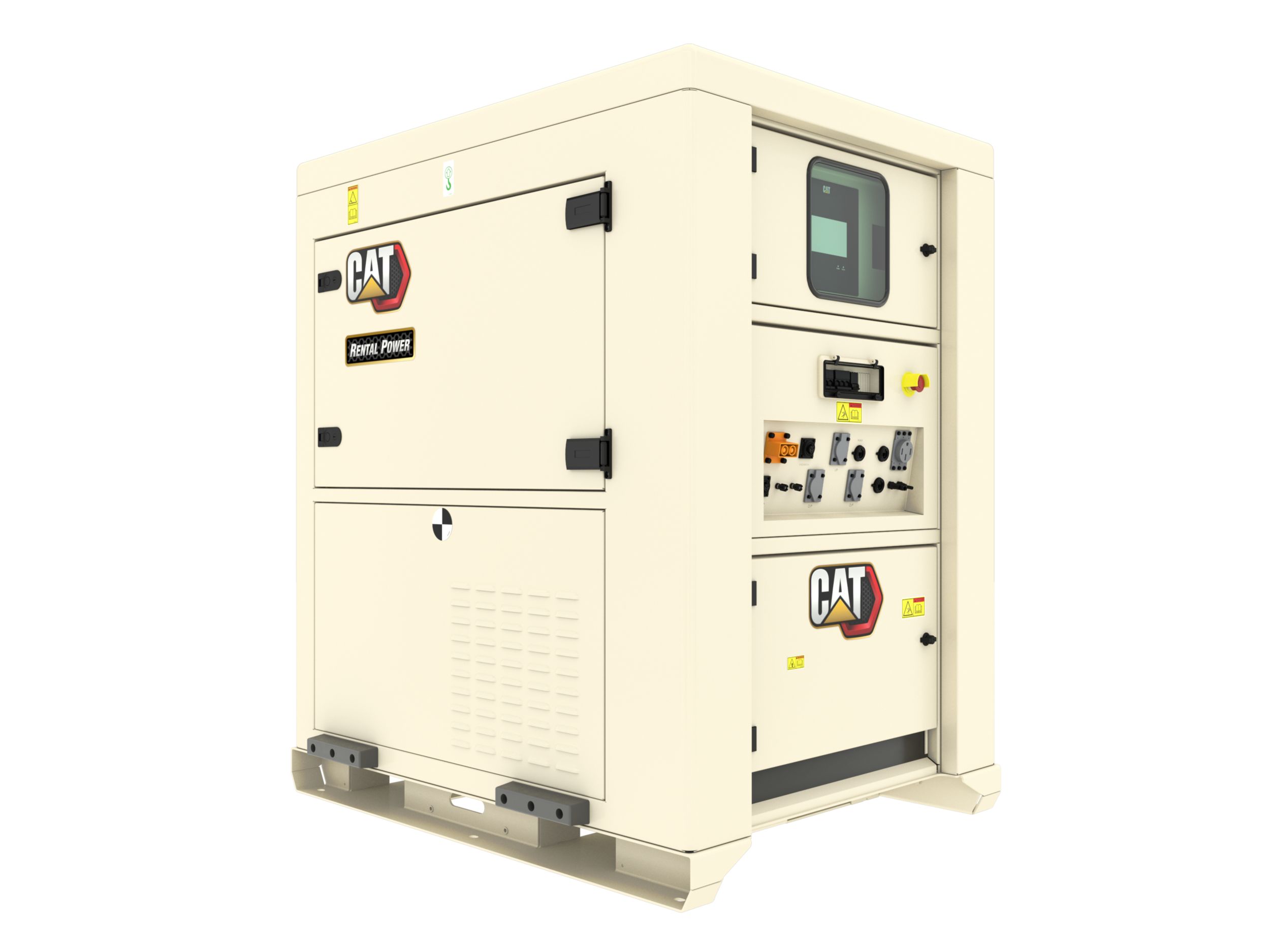

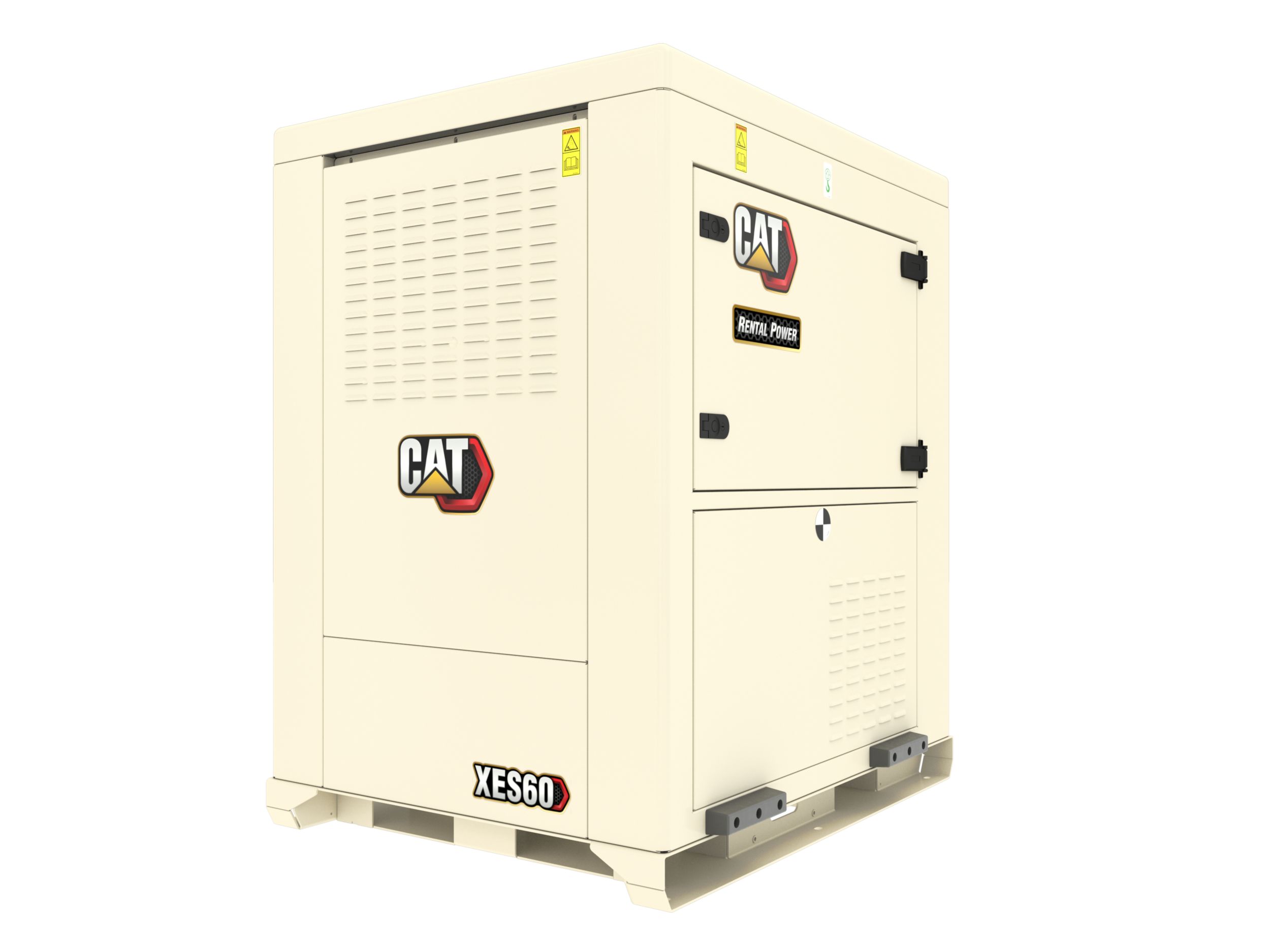

XES60 (60 Hz)
Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.
Nominal Power
24 kW (30 kVA)
Energy Storage
56.8 kWh
Enclosure Rating
IP55
Specification
Value
Nominal Power
24 kW (30 kVA)
Energy Storage
56.8 kWh
Application
Energy Storage
Specification
Value
Enclosure Rating
IP55
Operating Temperature
0° to 50°C (32° to 122°F)
Storage Temperature
-10° to 50°C (14°to 122°F)
- Color graphical display (7 in)
- Simple, user-friendly interface navigation
- Home screen displaying status and real time power distribution
- Generator set, battery, load and solar monitoring
- System information and set-up
- Connectors and busbars for rapid connection to supply and load
- Intuitive set-up using on-board controller
- Automatic switching between generating set power and stored energy
- Rugged galvanized steel baseframe
- Powder coated painted panels
- Lifting eye(s) and fork pockets for easy maneuverability
- Locks on all accLocks on all access doors
- Clear access for service and maintenance
- Exterior emergency stop (E-stop) button
- Includes telematics hardware for remote monitoroing across cellular network
- Two-way communication for remote control and equipment monitoring
- Customer-defined, equipment-based, real-time status updates and alerts
- Flexible and customer-configurable user interface
- Fleet management
- Requires data subscription
