D6 GC

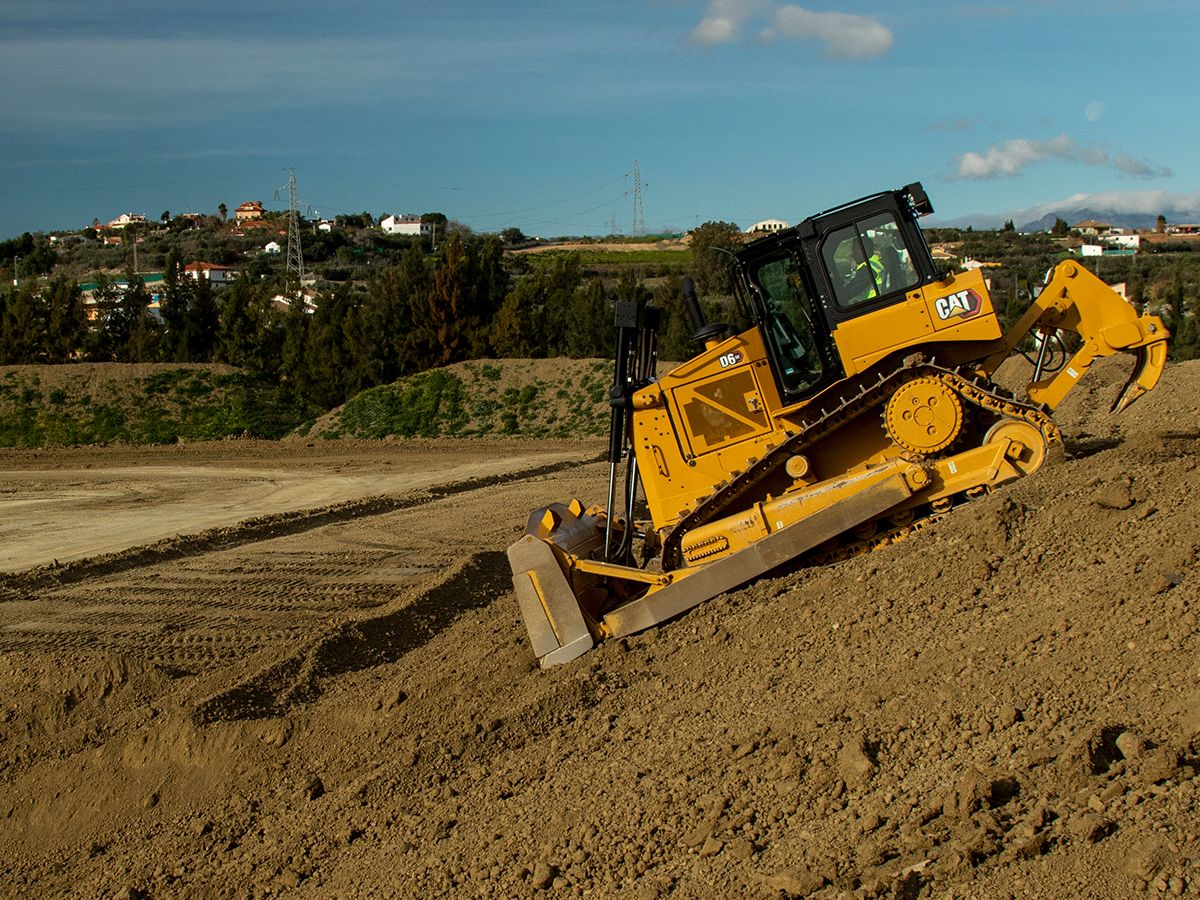

The Cat® D6 GC gives you performance and reliability in a simple, economical dozer. Designed to take on a variety of tough tasks, this bulldozer is easy to operate and delivers the straightforward service and maintenance you need.
Engine Model
Cat 3306B DIT
Power - Net
212 HP
Net Power - Rated - ISO 9249/SAE J1349
212 HP
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Engine Model
Cat 3306B DIT
Power - Net
212 HP
Net Power - Rated - ISO 9249/SAE J1349
212 HP
Net Power - Rated - ISO 9249/SAE J1349 (DIN)
215 mhp
Net Power - 80/1269/EEC
212 HP
Build Number
01A
Emissions
Noncertified
Note
Net power 2200 rpm. Net power advertised is the power available at the flywheel when engine is equipped with a fan at maximum speed, air cleaner, muffler, alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
Specification
Value
Fuel Tank
112 gal (US)
Specification
Value
Operating Weight
48116 lb
Note (1)
For additional configurations and specifications, please refer to the D6 GC Technical Specifications available for download on cat.com or from your Cat dealer. Configurations and features may vary by region. Please consult your Cat dealer for availability in your area.
Specification
Value
Operating Weight
48116 lb
Ground Pressure
9.3 psi
Width of Standard Shoe
22 in
Blade
Semi-Universal (SU)
Blade Capacity
8 yd³
Specification
Value
Operating Weight
50783 lb
Ground Pressure
5.5 psi
Width of Standard Shoe
36 in
Blade
Straight Blade
Blade Capacity
5 yd³
  • Designed for your business needs - cost effective to own and operate.
  • Equipped with the well-known Cat 3306B engine.
  • Caterpillar designed power train components work as a system for reliability and performance.
  • Heavy structures make for a robust machine that can stand up to challenging conditions.
  • Undercarriage designed for long life to save you money.
  • Horsepower, weight and blade capacity give you the productivity you need to take on demanding work.
  • Familiar controls and clutch and brake steering platform suit varied operator experience levels.
  • Choice of cab or canopy dozer, with Integrated Roll Over Protective Structure (ROPS/FOPS), for comfort, excellent visibility and added safety.
  • Analog display with machine health monitoring.
  • Suspension seat with retractable seatbelt for safety.
  • Added comfort with available cab air conditioning.
  • Air filter helps keep cab air cleaner.
  • Maintenance, diagnostics and repairs are easier, even in remote locations, with familiar engine and power train systems.
  • Robust fuel system, up to B30 compatible.
  • Long service life from maintenance-free batteries.
  • Major components are modular for easy access and fast in-field exchanges.
  • Product Link telematics help simplify your maintenance by tracking machine location and service hours.
  • Low maintenance track roller frame recoil system.
  • Wide access doors and grouped service points save routine maintenance time.
  • Daily power train oil check and sampling ports easily accessed from machine platform for convenience and added safety.
  • Save time with a minimal number of easy-to-access service grease points.
  • Lockable shovel holder option gives you a place to keep a shovel handy for quick undercarriage clean outs.
  • Caterpillar elevated sprocket undercarriage protects the power train from shock loads.
  • Optimized undercarriage with strong structures for stability and durability.
  • Heavy-duty sealed and lubricated track for long life.
  • Added durability with heavy-duty case and frame.
  • Aluminum bar plate cooling package delivers outstanding cooling, is highly abrasion resistant and designed to minimize plugging.
  • Air intake system delivers clean air to the engine for better performance.
  • Take on tough tasks with optimal weight-to-power ratio.
  • Experience fast speeds and quick directional changes with a Cat 3-speed planetary power shift transmission.
  • Harness more power to the ground with a proven, Caterpillar exclusive torque divider.
  • Long length of track on the ground adds to machine stability and performance in a variety of applications.
  • Low Ground Pressure (LGP) undercarriage option provides more traction and flotation in difficult ground conditions.
  • High drive design allows heavy components to sit low in the mainframe, resulting in a low center of gravity and excellent machine balance.
  • Choose a Semi-Universal (SU) blade or mechanical tilt Angle Blade to suit the work you do.
  • Heavier blade structures handle added weight and horsepower.
  • Rear attachment choices add versatility.
  • Rip or scarify with a multi-shank ripper.
  • Winch mount allows you to use your preferred platform to customize for your applications.
  • Rigid drawbar extends beyond the rear tracks for use in recovery and towing.
  • Cold weather package offers heavy-duty batteries and starter, solid engine hood, lubricants and an engine coolant heater
  • connection to aid frigid weather starting.
  • Manually adjustable reversible fan varies air flow through the radiator in extreme cold climates.
  • Forestry Arrangement is available with optional protection like sweeps, screens and added guarding to help protect both the
  • operator and machine in harsh conditions.
  • Land clearing blade includes a brush rack to add height/capacity and help protect the machine from debris spilling over the blade.
  • Cooling system is designed for high debris environments, with easy access for cleanout.
