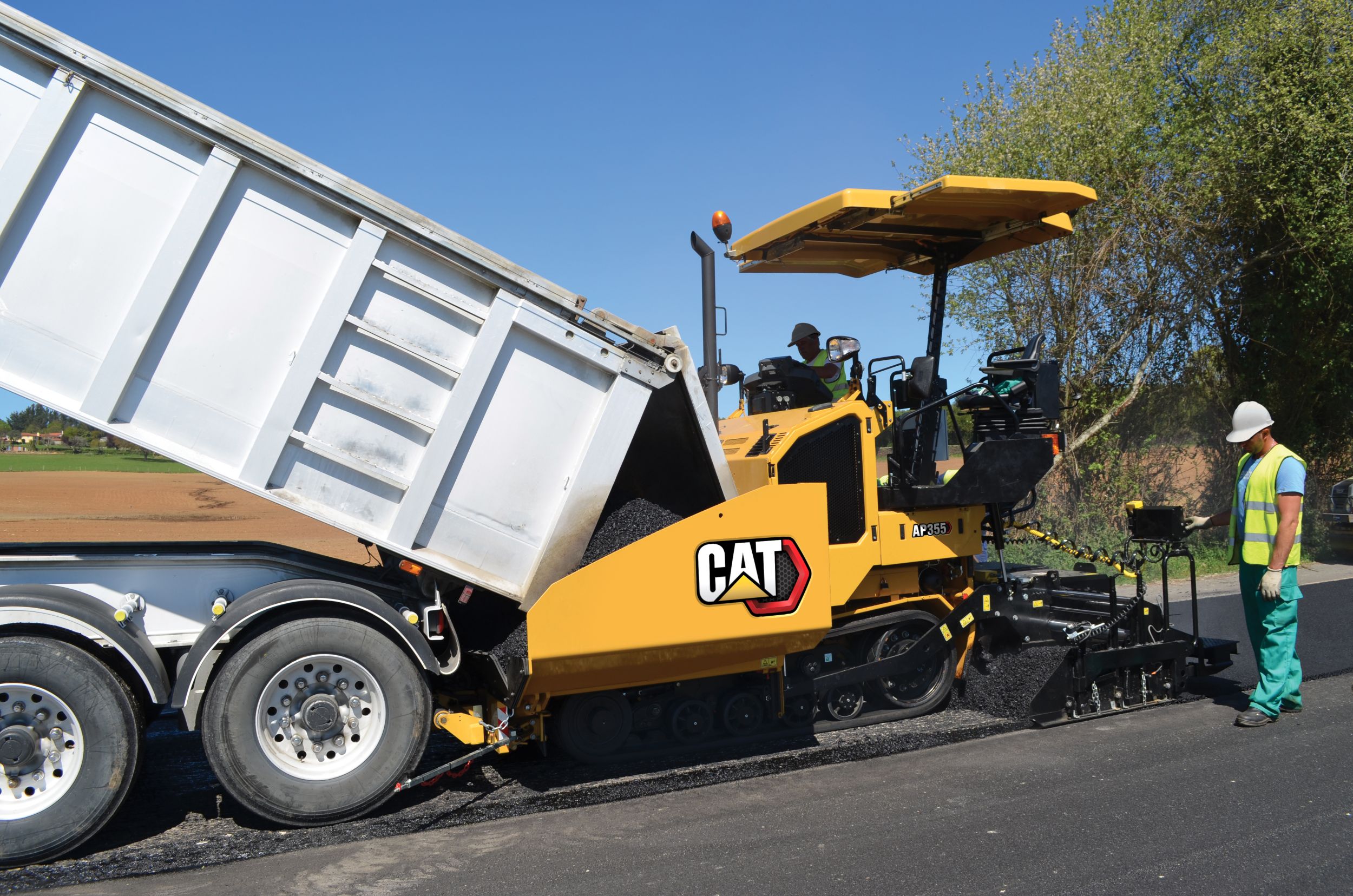

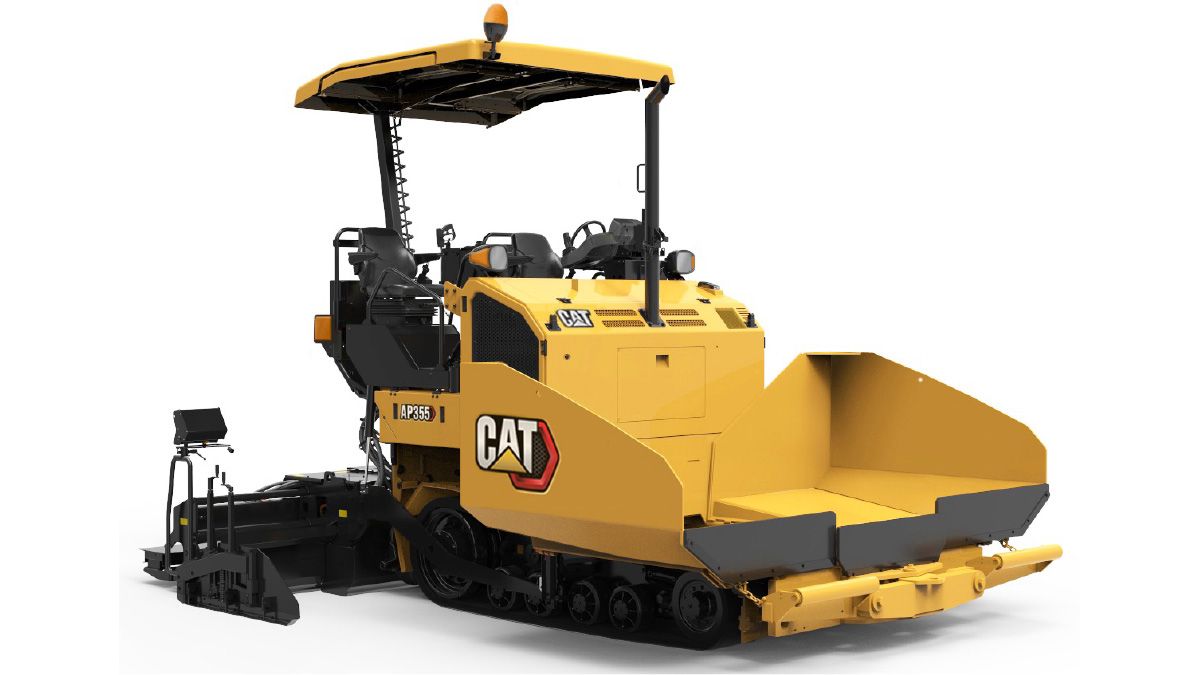

AP355
The AP355 Asphalt Paver combines excellent styling with technology that exemplifies comfort and productivity. Numerous technological enhancements help contractors navigate around the twists and turns of urban environments and mountain roads.
Engine Model (1)
Cat C3.3B
Engine Power (1)
74.8 HP
Truck Entry Width
10.3 ft
Specification
Value
Standard Paving Range
1.75-3.42 m (5' 9" - 11' 2")
Maximum Throughput Capacity
447 ton(US)/h
Maximum Paving Width
15.1 ft
Maximum Paving Speed
210 ft/min
Maximum Travel Speed
7 mile/h
Specification
Value
Engine Model (1)
Cat C3.3B
Engine Power (1)
74.8 HP
Specification
Value
Operating Weight - With SE34 VT
19246 lb
Operating Weight - With SE34 V
18850 lb
Shipping Weight - Paver Only
16094 lb
Specification
Value
Operating Length
16.5 ft
Operating Width
10.4 ft
Operating Height - With Canopy
11.1 ft
Transport Length
16.1 ft
Transport Width
6.1 ft
Transport Height - Canopy Retracted
8.6 ft
Truck Entry Height
21.5 in
Truck Entry Width
10.3 ft
Specification
Value
Fuel Tank Capacity
29 gal (US)
Cooling System
2.4 gal (US)
Engine Oil
3.5 gal (US)
Hydraulic Oil Tank
17.6 gal (US)
Washdown Spray Tank
6.2 gal (US)
- Exclusive Eco-mode and automatic engine speed control, reduce fuel consumption and lower sound levels for better comfort and communication
- Auto-fill feeder system simplifies setup by filling the auger chamber to the set point determined by the feed sensors
- Single touch feeder system activation optimizes efficiency by activating each auger and each conveyor
- Automated travel feature; augers raise with the screed, preventing damage during transport
- Single-touch hopper control enables operators to concentrate on other duties
- Standard paving range of 1.75 m - 3.2 m (5' 9" - 11' 2") with a maximum width of 4 m (13' 1") deliver excellent performance for parking lots, urban streets, pathways, trenches, narrow shoulders, and other mid-sized applications
- An optional paving reduction attachment narrows the paving width to 700 mm (27.5")
- Heated end gates, variable frequency vibration, and tamper bar settings help provide smooth material flow
- Mobil-trac™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
- Counter-rotating tracks provide excellent maneuverability in tight quarters
- Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
- Rubber-coated components help shed asphalt and prevent accumulation
- Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression
- Engine options available to meet U.S. EPA Tier 4 Final, EU Stage V emissions and other regional standards
- Million cycle key-pad switches provide reliability
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Heating elements slide-out for easy replacement
- Machined screed frames simplify screed plate leveling
- Ventilation system option draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Single sliding console enables operation from either side of the machine
- Dual independent seats swing out beyond the platform for good visibility to curbs and obstacles
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance
- Operating displays can be tailored to specific language requirements with multiple options available
- Easy access to generator activation, screed temperature control, screed heating zones, tamper and vibratory speeds, and service code information
- Intuitive symbols and large graphics simplify operation
- Adjustable brightness control for easy viewing day or night
- Raised switch design enables easy recognition for better efficiency and performance
- SE34 V and SE34 VT screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
- Basic Grade Control option available
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
