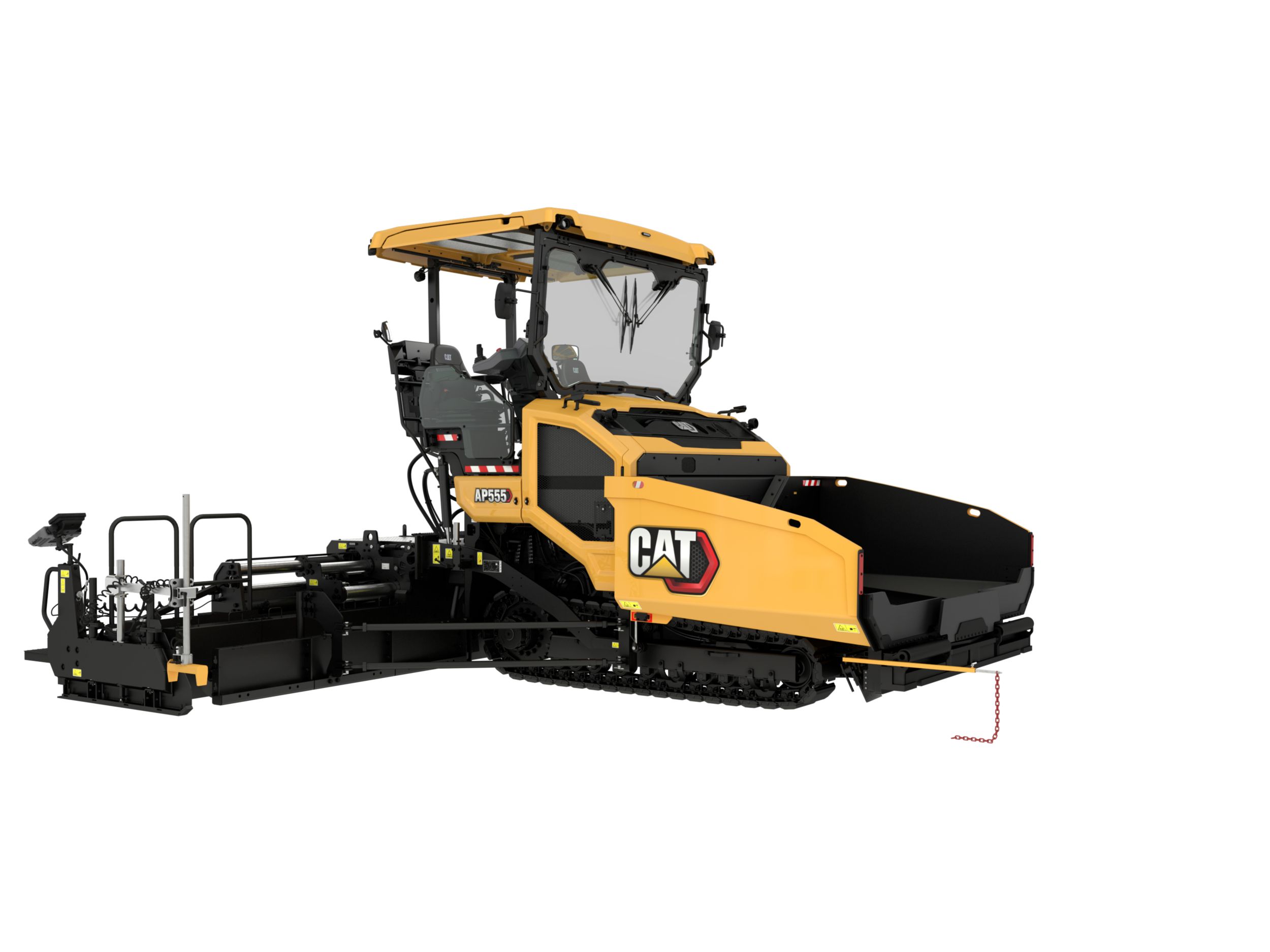

AP555 Steel Track
The Cat® AP555 Steel Track Asphalt Paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, car parks, rural roads and many other intermediate sized applications.
Paving Range with SE47 VT
2.4 m - 6.0 m (7' 10" - 19' 8")
Engine Model (1)
Cat® C4.4 (U.S. Tier 4 Final, EU Stage V)
Engine Power (1)
148 HP
Specification
Value
Paving Range with SE47 VT
2.4 m - 6.0 m (7' 10" - 19' 8")
Paving Range with SE50 VT
2.55 m - 7.64 m (8' 4" - 25')
Truck Entry Height
22 in
Operating Length
19.5 ft
Operating Width
10.75 ft
Overall Height
12.5 ft
Transport Length
18.75 ft
Transport Width
8.3 ft
Transport Height
9.6 ft
Specification
Value
Engine Model (1)
Cat® C4.4 (U.S. Tier 4 Final, EU Stage V)
Engine Power (1)
148 HP
Engine Model (2)
Cat C4.4 (Brazil MAR-1, UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA)
Engine Power (2)
142 HP
Specification
Value
Maximum Paving Speed - With Tamper Bar Screed
82 ft/min
Maximum Travel Speed
3.7 mile/h
Maximum Throughput Capacity
1100 ton(US)/h
Specification
Value
Operating weight with SE47 VT
35,752 lb
Operating weight with SE50 VT
35926 lb
Shipping Weight - Paver Only
28,422 lb
Specification
Value
Fuel Tank
53 gal (US)
DEF Tank
5 gal (US)
Cooling System - Total
6.3 gal (US)
Hydraulic Oil Tank
32 gal (US)
Washdown Spray Tank
8.5 gal (US)
- Powerful C4.4 engine supports increased feeder system capacity as well as hopper inserts for continuous paving
- Tight 90º turning capability enables the paver to rotate and cover tracks on a return paving pass
- Standard paving range utilizing the SE47 VT screed is 2.4 m - 4.7 m (7' 10" - 15' 4") with a maximum width of 6.0 m (19' 8")
- Standard paving range utilizing the the SE50 VT is 2.55 m - 5.0 m (8' 4" - 16' 4") with a maximum width of 7.64 m (25')
- Paving depths up to 300 mm (12") supports aggregate paving applications
- Paver and screed combination weight of 16.3 mt (35,926 lb) enables easy transport on a variety of trailer types
- Length of less than 5.72 m (18' 9") and width of 2.55 m (8' 4") when equipped with the SE47 VT accommodates machine transport without special permits
- Length of less than 6.0 m (19' 6") and width of 2.55 m (8' 4") when equipped with the SE50 VT and folding end gates accommodates machine transport without special permits
- The front-loading angle of 15º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
- Front, middle, and rear tie-down locations make securing the load efficient for quick travel to the next job site
- Steel track undercarriage provides outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
- Counter-rotating tracks provide excellent maneuverability in tight quarters
- Automatic track tensioning system, double carrier rollers and track guide plates help ensure the tracks are properly aligned and tensioned to provide smooth travel
- Triple grouser track shoes with profiled polyurethane pads provide strength and durability while also delivering smooth travel and minimal base disturbance on uneven surfaces
- Efficient track plow design pushes material away from the tracks and helps eliminate density variations caused by track compression
- Low truck entry height and short front apron enhance material flow while simplifying clean out
- Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
- Confined auger chamber keeps material moving and helps eliminate stagnate patches
- Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for proportional feed system control
- Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- The single sliding console provides operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
- Dual independent seats swing-out 40º beyond the platform for good visibility to curbs and obstacles Optimized height and integrated exhaust provide unobstructed visibility around the machine
- Optional screed and paver mounted umbrellas offer protection from direct sunlight
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance
- High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
- New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
- Single-touch functions from main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
- Cat® Grade Control or Basic Grade Control options available
- Operating displays can be tailored to specific language requirements with multiple options available
- Wash-down system includes level indication
- Durable Cat C4.4 engine provides 110 kW (148 hp) of power with variations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards. The Cat C4.4 engine also meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA and provides 106 kW (142 hp) of power.
- Single source supplier of Cat engines and machine parts helps maximize uptime
- Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Remote flash for easy software updates
- Scheduled maintenance and Scheduled Oil Sampling notification
- Remote disable deactivates the engine for enhanced security
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over-the-counter purchases or through the dealer service shop
