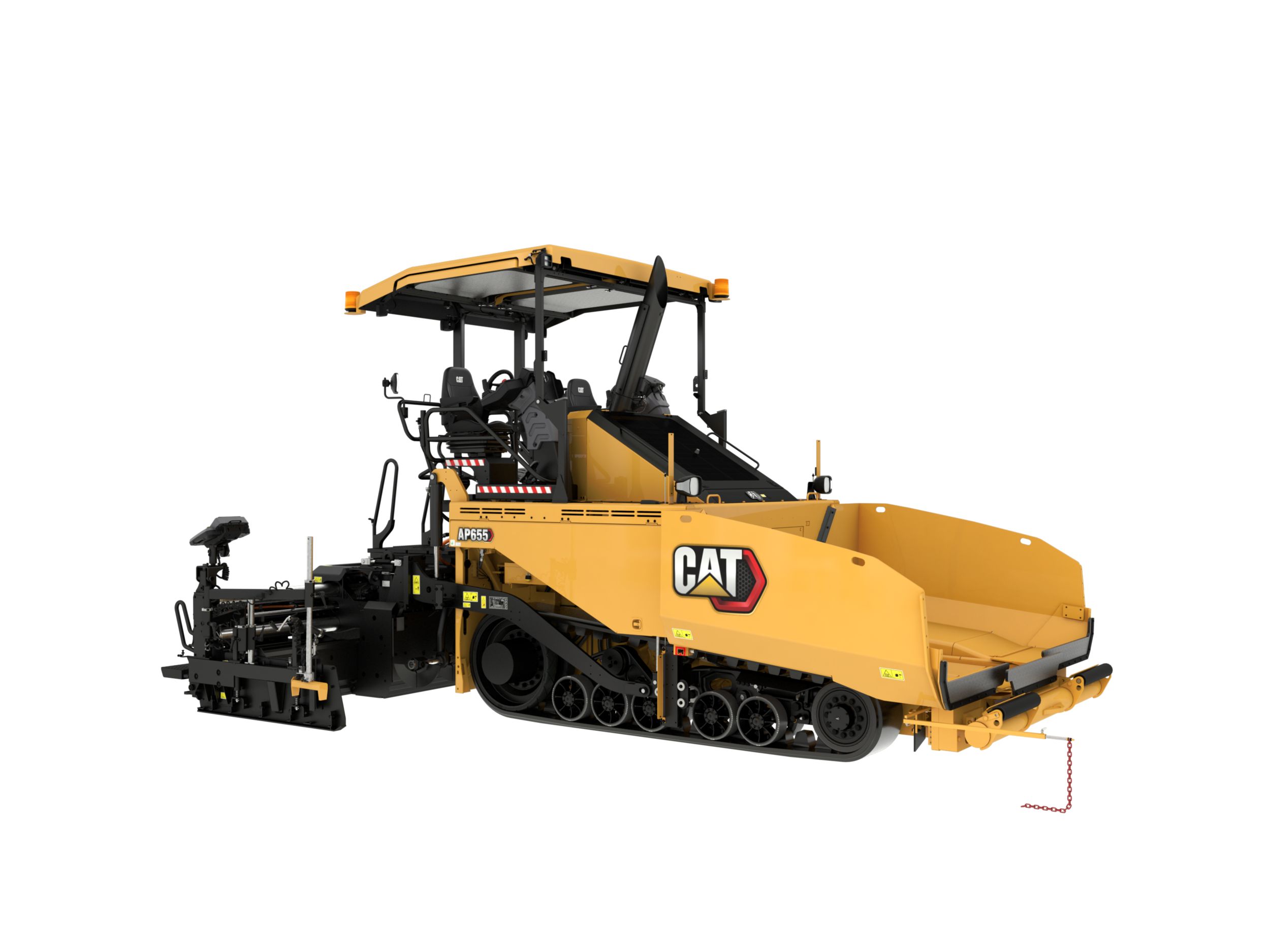

AP655
The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provideversatility and high-quality results on interstates, highways, airports, and parking lots.
Paving Range with SE50 VT
2.55 m - 8.0 m (8' 4" - 26' 4")
Engine Power (1)
202 HP
Engine Model (1)
C7.1
Specification
Value
Paving Range with SE50 VT
2.55 m - 8.0 m (8' 4" - 26' 4")
Paving Range with SE60 VT XW
3.0 m - 10.0 m (10' - 33')
Operating Length
22.5 ft
Operating Width
10.8 ft
Overall Height
12.75 ft
Transport Length
21.9 ft
Transport Width
8.3 ft
Transport Height
10 ft
Specification
Value
Engine Power (1)
202 HP
Engine Model (1)
C7.1
Specification
Value
Maximum Travel Speed
9 mile/h
Maximum Paving Speed
82 ft/min
Inside Turn Radius
1.5 ft
Maximum Throughput Capacity
1433 ton(US)/h
Specification
Value
Operating weight with SE50 VT
43,056 lb
Operating weight with SE60 VT XW
46,411 lb
Shipping Weight - Paver Only
34,731 lb
Specification
Value
Fuel Tank Capacity
73 gal (US)
Cooling System
9.8 gal (US)
Hydraulic Oil Tank
58 gal (US)
Washdown Tank
7.9 gal (US)
- Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
- Fast heating screed leads to more daily production, heating time in as little as 15 minutes
- Mobil-trac™ undercarriage design delivers excellent traction, good flotation, and fast travel that helps lead to increased production
- Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability
- Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
- A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
- Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
- Cat Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency
- Versatile tamper-bar screed designs deliver excellent ride, density, and mat texture while providing superior adjustment
- Tow-point design utilizes exclusive linkage for optimal screed flotation
- Exclusive 2-speed proportional control on the screed extenders
- Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
- Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
- 4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
- Million cycle switches provide reliability
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Heating elements slide-out for easy replacement
- Machined screed frames simplify screed plate replacement
- Enhanced hopper flashing with increased memory and temperature resiliency offers better performance during truck exchanges
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
- Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
- Eco-mode provides low sound levels that supports clear communication with the crew
- High visibility 76 mm (3") seat belt helps with crew safety compliance
- USB port simplifies software updates
- Cup holders offer convenience
- Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
- Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences
- Operating displays can be tailored to specific language requirements with multiple options available
- Make timely, fact-based decisions to maximize efficiency, improveproductivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time
- Diagnostic codes are made available through online web applications
- Paver and screed service and repair kits include the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
