The Cat 772 bare chassis comes equipped with a higher Tractor ROPS certification ratings needed for specialty machines including water trucks, tow trucks, and fuel and lube trucks.
772 Bare Chassis
Caterpillar offers partial machines and systems, working with Cat dealers and Original Equipment Manufacturers (OEMs) to provide specialty machines for specific applications. Bare chassis trucks (WTR models) can be ordered with or without cylinders and most product options are identical to the dump truck models. Typically, these models come equipped with the higher Tractor ROPS certification ratings needed for specialty machines including water trucks, tow tractors, and fuel / lube trucks. You'll find these partial machine configurations are used in construction, demolition, waste, material handling, and mining industries and allow you to purchase complete solutions from your Cat dealer, using Cat equipment every step of the way.
Engine Model
Cat® C18
Rated Engine Speed
1700 r/min
Gross Power - SAE J1995
605 HP
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Engine Model
Cat® C18
Rated Engine Speed
1700 r/min
Gross Power - SAE J1995
605 HP
Rated Net Power - SAE J1349
550 HP
Number of Cylinders
6
Bore
5.7 in
Stroke
7.2 in
Displacement
1105 in³
Note
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Specification
Value
LRC Bare Chassis Weight without Hoist
58414 lb
LRC Bare Chassis Weight with Hoist
59223 lb
LRC Gross Vehicle Weight (Target) with Hoist
180999 lb
LRC Gross Vehicle Weight (Target) without Hoist
180999 lb
HRC Bare Chassis Weight without Hoist
59567 lb
HRC Bare Chassis Weight with Hoist
60376 lb
HRC Gross Vehicle Weight (Target) with Hoist
180999 lb
HRC Gross Vehicle Weight (Target) without Hoist
180999 lb
Note
LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
Specification
Value
Nominal Water Tank Capacity
11000 gal (US)
Specification
Value
Tractor ROPS
77430 lb
Specification
Value
Forward - 1
8 mile/h
Forward - 2
10.9 mile/h
Forward - 3
14.8 mile/h
Forward - 4
19.8 mile/h
Forward - 5
26.9 mile/h
Forward - 6
36.2 mile/h
Forward - 7
49.2 mile/h
Reverse
10.4 mile/h
Note
Maximum travel speeds with standard 21.00R33 (E4) tires.
Specification
Value
Brake Surface - Front
216 in²
Brake Surface - Rear
7794 in²
Specification
Value
Fuel Tank Capacity
140 gal (US)
Cooling System
33 gal (US)
Crankcase
17 gal (US)
Brake/Hoist Hydraulic Tank
38 gal (US)
Brake Hoist System
60 gal (US)
Differential - Final Drives
47 gal (US)
Steering System - Including Tank
60 gal (US)
Torque Converter - Transmission System
17 gal (US)
Specification
Value
Steering Standards
ISO 5010:2007
Steer Angle
31 °
Turning Diameter
57.7 ft
Turning Circle - Clearance Diameter
66.6 ft
  • Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.

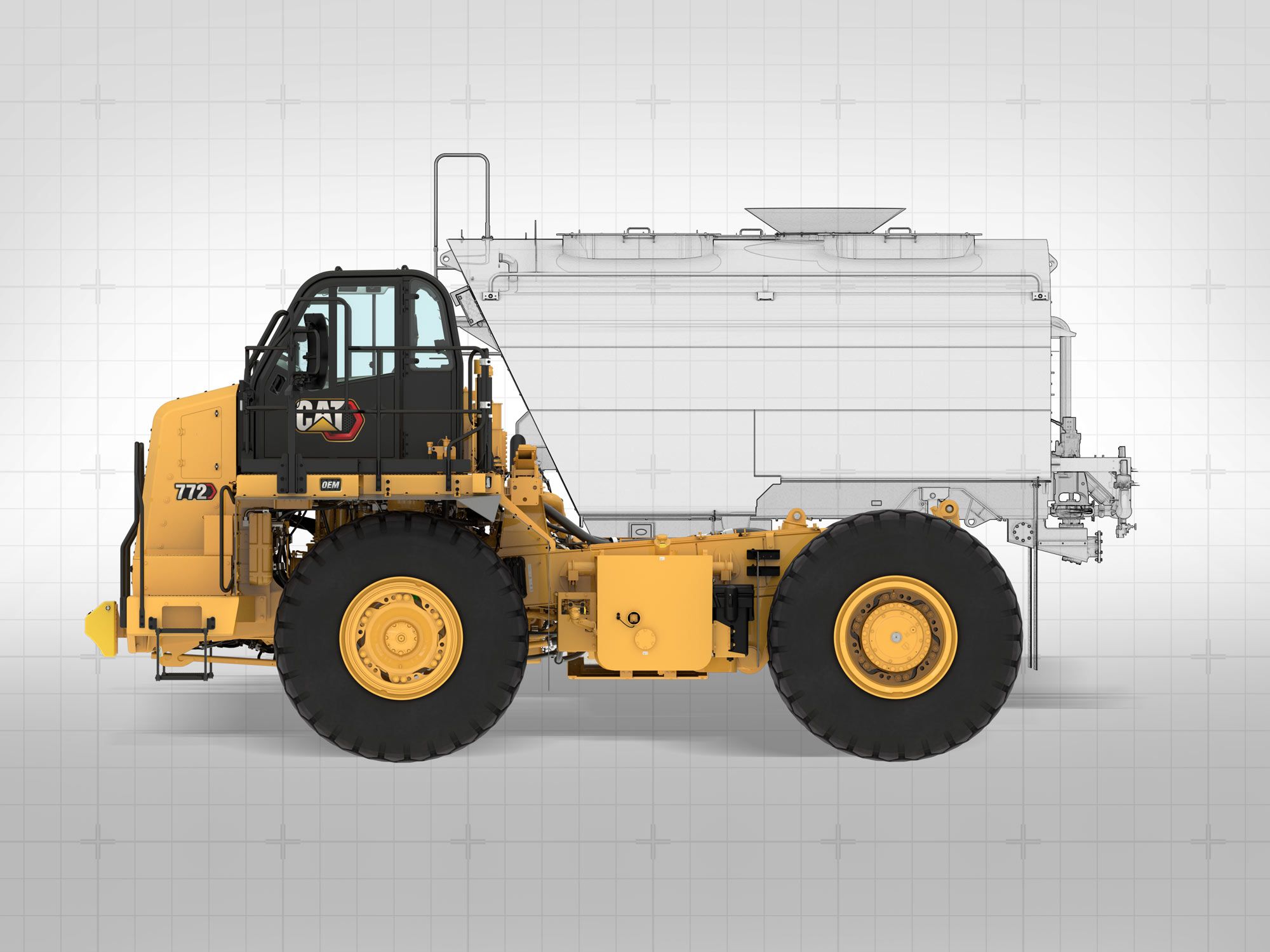

  • Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
  •
  • Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
  •
  • Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.

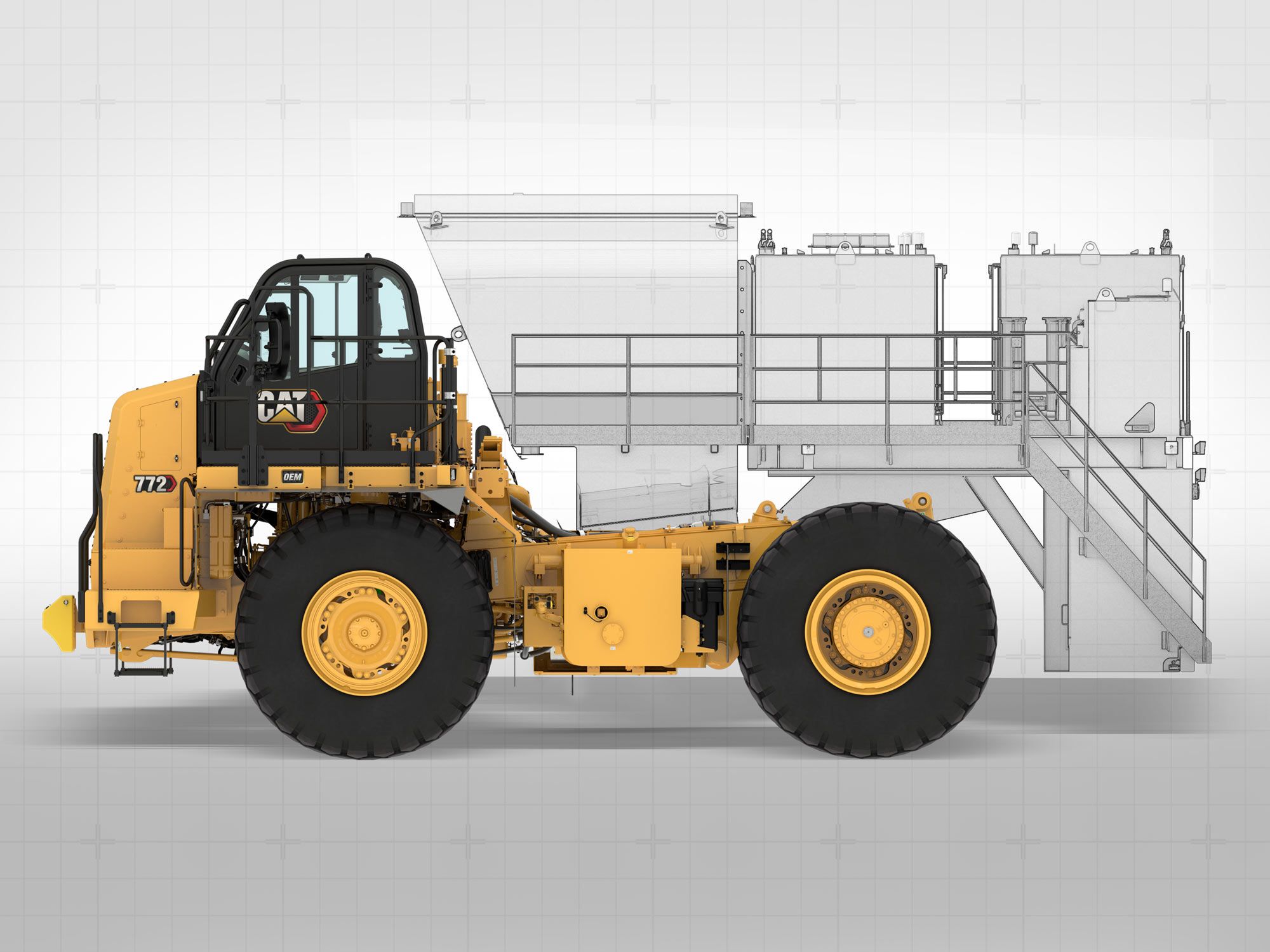

  • Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
  •
  • Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
  •
  • Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.
  • Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
  • Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
  • Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.
