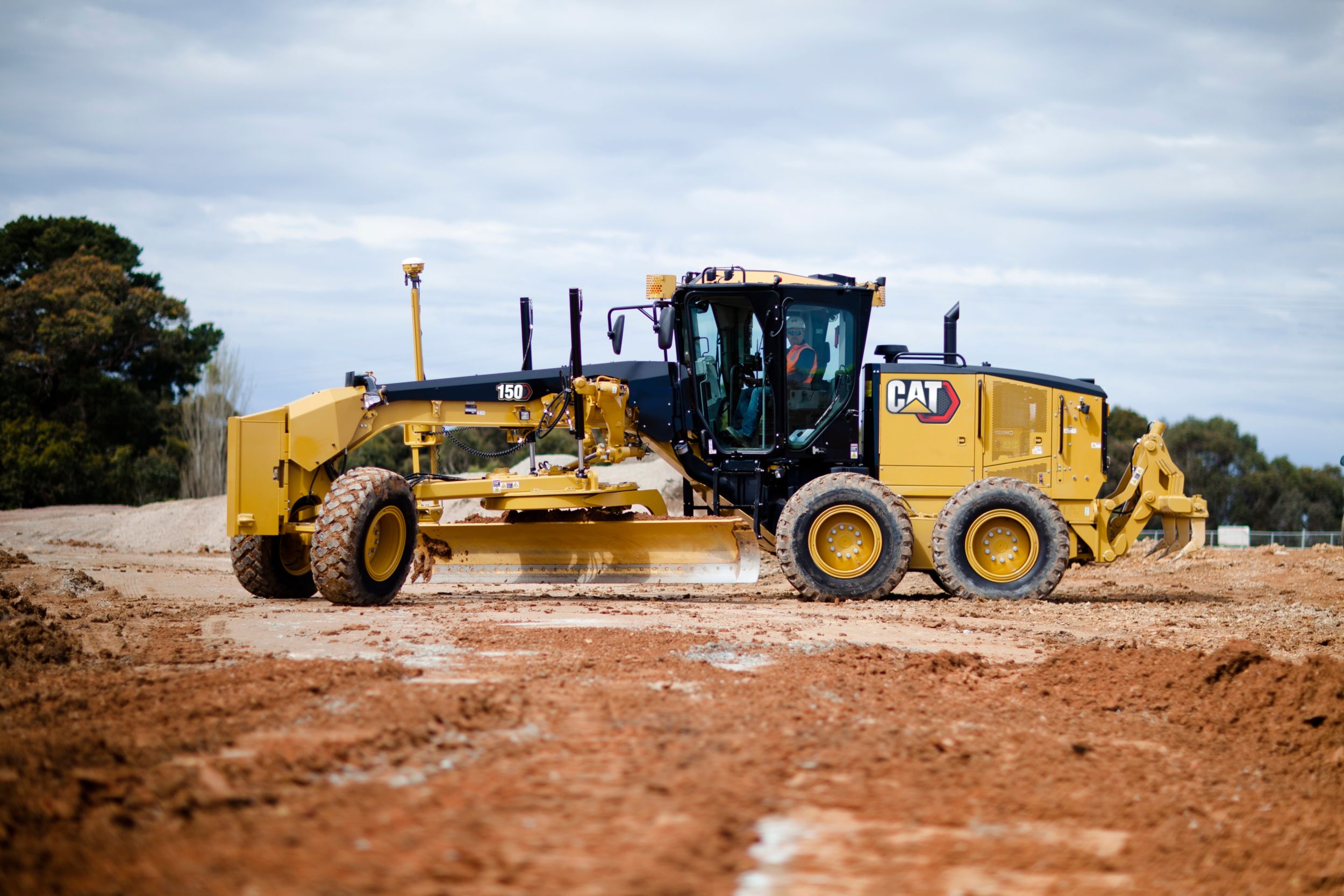

150 / 150 AWD
Designed for maximum comfort, the Cat® 150 (140M) optimizes operational efficiency and productivity. Get the work done with the M Series Motor graders. With ease of operation and service, get the most out of your investment to build and maintain roads.
Net Power Range (Tier 3)
183 HP
Engine Model
Cat® C7 / AWD C9
Base Power (1st Gear) - Net - Metric
186 HP
Specification
Value
Net Power Range (Tier 3)
183 HP
Engine Model
Cat® C7 / AWD C9
Base Power (1st Gear) - Net - Metric
186 HP
VHP Plus Range - Net
136-174 kW (183-233 hp)
VHP Plus Range - Net - Metric
136-174 kW (186-237 hp)
Displacement
439 in³
Bore
4.3 in
Stroke
5 in
Torque Rise - VHP Plus
39%
Maximum Torque - VHP Plus
855 lb/ft
Speed at Rated Power
2,000 rpm
Number of Cylinders
6
Derating Altitude
10000 ft
Standard - Fan Speed - Maximum
1,450 rpm
Standard - Fan Speed - Minimum
600 rpm
Standard - Ambient Capability
109 °F
High Ambient - Fan Speed - Maximum
1,650 rpm
High Ambient - Fan Speed - Minimum
600 rpm
High - Ambient Capability
122 °F
Emissions
Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)
Maximum torque (VHP Plus) measured at 1,000 rpm.
Note (2)
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3)
Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator.
Note (4)
Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp)
Note (5)
No engine derating required up to 3048 m (10,000 ft).
Specification
Value
Forward/Reverse Gears
8 Forward/6 Reverse
Transmission
Direct drive, power shift, countershaft
Brakes - Service
Multiple oil disc
Brakes - Service - Surface Area
3565 in²
Brakes - Parking
Multiple oil disc
Brakes - Secondary
Dual circuit control system
Specification
Value
Circuit Type
Electro-hydraulic load sensing, closed center
Pump Type
Variable piston
Pump Output
55.7 gal/min
Maximum System Pressure
3500 psi
Standby Pressure
450 psi
Note
Pump output measured at 2,150 rpm.
Specification
Value
Top Speed - Forward
29 mile/h
Top Speed - Reverse
22.9 mile/h
Turning Radius - Outside Front Tires
24.93 ft
Steering Range - Left/Right
47.5 degrees
Articulation Angle - Left/Right
20 degrees
Forward - 1st
2.5 mile/h
Forward - 2nd
3.4 mile/h
Forward - 3rd
5 mile/h
Forward - 4th
6.8 mile/h
Forward - 5th
10.6 mile/h
Forward - 6th
14.5 mile/h
Forward - 7th
19.9 mile/h
Forward - 8th
29 mile/h
Reverse - 1st
2 mile/h
Reverse - 2nd
3.7 mile/h
Reverse - 3rd
5.4 mile/h
Reverse - 4th
8.4 mile/h
Reverse - 5th
15.7 mile/h
Reverse - 6th
22.9 mile/h
Specification
Value
Fuel Capacity
110 gal (US)
Cooling System
10.6 gal (US)
Hydraulic System - Tank
16.9 gal (US)
Engine Oil
6.6 gal (US)
Transmission - Differential - Final Drives
16.9 gal (US)
Tandem Housing - Each
16.9 gal (US)
Front Wheel Spindle Bearing Housing
0.13 gal (US)
Circle Drive Housing
1.8 gal (US)
Specification
Value
Circle - Diameter
60.2 in
Circle - Blade Beam Thickness
1.6 in
Drawbar - Height
6 in
Drawbar - Width
3 in
Front Frame Structure - Height
12 in
Front Frame Structure - Width
12 in
Front Frame Structure - Thickness
0.6 in
Front Axle - Height to Center
23 in
Front Axle - Wheel Lean - Left/Right
18 degrees
Front Axle - Total Oscillation per Side
32 degrees
Specification
Value
Height
19.9 in
Width
7.9 in
Sidewall Thickness - Inner
0.6 in
Sidewall Thickness - Outer
0.7 in
Drive Chain Pitch
2 in
Wheel Axle Spacing
60 in
Tandem Oscillation - Front Up
15 degrees
Tandem Oscillation - Front Down
25 degrees
Specification
Value
Blade Width
12 ft
Moldboard - Width
12 ft
Moldboard - Height
24 in
Moldboard - Thickness
0.87 in
Arc Radius
16.3 in
Throat Clearance
6.5 in
Cutting Edge Width
6 in
Cutting Edge Thickness
0.6 in
End Bit - Width
6 in
End Bit - Thickness
0.6 in
Blade Pull - Base GVW
24294 lb
Blade Pull - Maximum GVW
31758 lb
Down Pressure - Base GVW
16410 lb
Down Pressure - Maximum GVW
28503 lb
Note
Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW).
Specification
Value
Circle Centershift - Right
28.7 in
Circle Centershift - Left
27.4 in
Moldboard Sideshift - Right
26 in
Moldboard Sideshift - Left
20.1 in
Maximum Blade Position Angle
90 degrees
Blade Tip Range - Forward
40 degrees
Blade Tip Range - Backward
5 degrees
Maximum Shoulder Reach Outside of Tires - Right
77.9 in
Maximum Shoulder Reach Outside of Tires - Left
70.5 in
Maximum Lift Above Ground
18.9 in
Maximum Depth of Cut
28.1 in
Specification
Value
Ripping Depth - Maximum
16.8 in
Ripper Shank Holders
5
Ripper Shank Holder Spacing
21 in
Penetration Force
20540 lb
Pry-Out Force
26259 lb
Machine Length Increase, Beam Raised
36.2 in
Specification
Value
Front, V-Type, 5 or 11 Tooth - Working Width
47.4 in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum
18.4 in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders
5, 11
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing
4.6 in
Mid, V-Type - Working Width
46.6 in
Mid, V-Type - Scarifying Depth, Maximum
11.5 in
Mid, V-Type - Scarifier Shank Holders
11
Mid, V-Type - Scarifier Shank Holder Spacing
4.6 in
Rear - Working Width
91 in
Rear - Scarifying Depth, Maximum
10.5 in
Rear - Scarifier Shank Holders
9
Rear - Scarifier Shank Holder Spacing
10.5 in
Specification
Value
Operating Weight - Typically Equipped
41868 lb
Gross Vehicle Weight - Base - Total
36554 lb
Gross Vehicle Weight - Base - Front Axle
9561 lb
Gross Vehicle Weight - Base - Rear Axle
26993 lb
Gross Vehicle Weight - Maximum - Total
51893 lb
Gross Vehicle Weight - Maximum - Front Axle
16606 lb
Gross Vehicle Weight - Maximum - Rear Axle
35287 lb
Gross Vehicle Weight - Typically Equipped
41868 lb
Gross Vehicle Weight - Typically Equipped - Total
41868 lb
Gross Vehicle Weight - Typically Equipped - Front Axle
11716 lb
Gross Vehicle Weight - Typically Equipped - Rear Axle
30152 lb
Note
Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator.
Specification
Value
Height - Top of Cab
130 in
Height - Top of Cab Product Link
133 in
Height - Front Axle Center
23.5 in
Length - Between Tandem Axles
60 in
Length - Front Axle to Moldboard
100 in
Length - Front Axle to Mid Tandem
241 in
Length - Front Tire to Rear of Machine
344 in
Length - Push Plate to Ripper
399 in
Length - Push Plate to Ripper Retracted
386 in
Ground Clearance - Rear Axle
13.3 in
Height - Top of Cylinders
119 in
Height - Exhaust Stack
121 in
Width - Tire Center Lines
84 in
Width - Outside Rear Tires
98 in
Width - Outside Front Tires
98 in
Specification
Value
ROPS/FOPS
ISO 3471:2008, ISO 3449:2005 Level II
Steering
ISO 5010:2007
Brakes
ISO 3450:1996
Sound
ISO 6394:2008, ISO 6395:2008
Note (1)
The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A).
Specification
Value
Gear - Forward 1st
183 HP
Gear - Forward 2nd
188 HP
Gear - Forward 3rd
203 HP
Gear - Forward 4th
208 HP
Gear - Forward 5th
213 HP
Gear - Forward 6th
218 HP
Gear - Forward 7th
233 HP
Gear - Forward 8th
233 HP
Gear - Reverse 1st
183 HP
Gear - Reverse 2nd
188 HP
Gear - Reverse 3rd-6th
203 HP

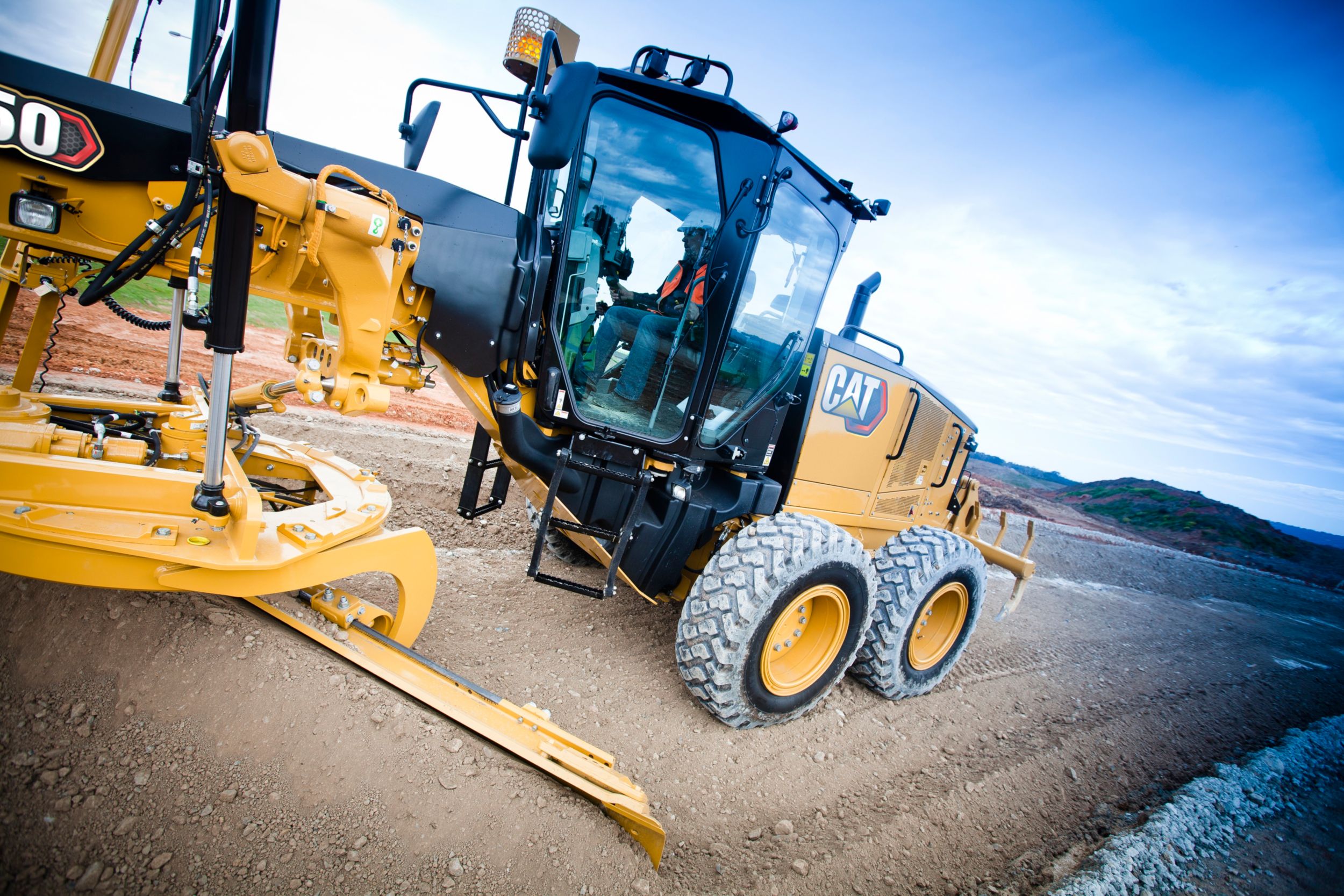

- Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear vision camera further enhances lines of sight all around the machine.
- Experience the most spacious, comfortable cab in the industry.

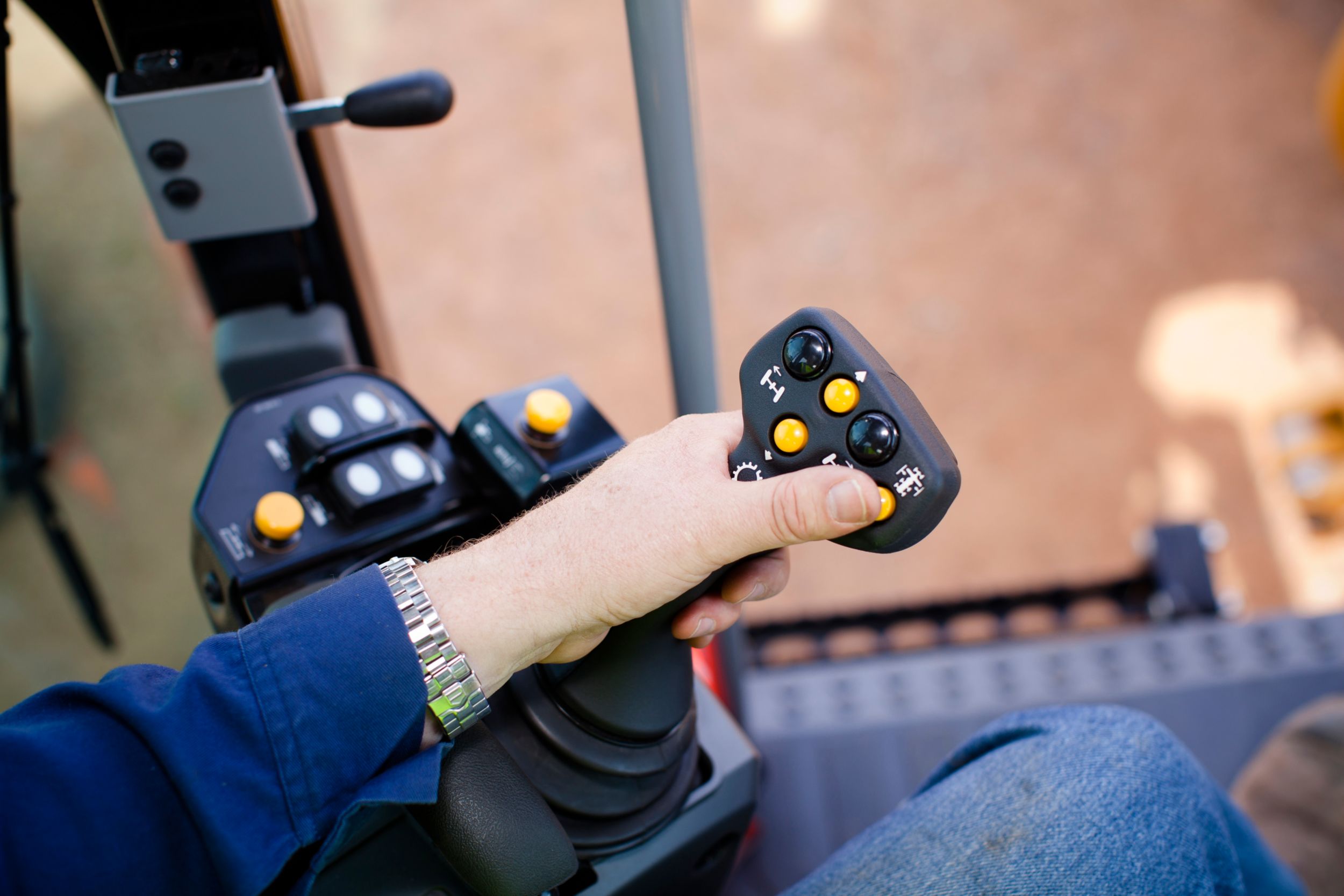

- Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue for better productivity.
- Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
- Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock.
- Joystick lean angle mirrors the steer tires' turning angle.
- A brake tensioning system holds the joystick in position until the operator moves it.
- Steering control automatically reduces sensitivity at higher ground speeds for predictable control.
- Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
- Control switches are in easy reach.
- Standard Cat Comfort Series suspension seat is fully adjustable.
- Control pods are electronically positioned allowing each operator to set the ideal operating position.
- Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
- High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
- An optional deluxe radio with CD features MP3 and Bluetooth® technology.
- Easy-to-read, high-visibility gauges and warning lamps keep you aware of critical system information.
- Cat Messenger offers real-time machine performance and diagnostic data to help get the most from your machine.
- Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
- Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
- Cat C7 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity. For All-Wheel-Drive, the Cat C9 engine is available fo extra power.
- Superior torque and lugging capability provide the power to pull through sudden, short-term increases in loads.
- Engine technology lowers combustion chamber temperatures and optimizes fuel combustion to generate more work output for each unit of fuel.
- Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
- Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
- The Motor Graders to give you efficiency and longevity in your most demanding applications.
- Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
- Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
- Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
- Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
- Wide operating gear range for maximum productivity.
- Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
- Sealed spindle keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
- Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
- Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
- Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
- Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
- Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
- Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
- Caterpillar designs motor grader frame and drawbar components to give you performance and durability.
- The one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
- Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
- The drawbar, circle and moldboard make it easy for you to keep the components tight.
- Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
- Durable nylon composite wear inserts maximize circle torque and component life.
- Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
- Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
- An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
- Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
- Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
- Proven load-sensing system and advanced electro-hydraulics give you superior implement control and responsive hydraulic performance. Continuously matching hydraulic flow/pressure to power demands generates less heat and reduces fuel consumption.
- Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder. Count on consistent, predictable implement response.
- Balanced hydraulic flow is proportioned ensuring implements operate simultaneously without slowing the engine or implement reaction time.
- Blade Float allows the blade to move freely under its own weight.
- Float both cylinders allowing the blade to follow the ground contours
- Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
- Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, which reduces heat build-up and extends component life.
- Cat XT™ hose allows high pressures for maximum power and reduced downtime.
- Cat Technology makes smart use of technology and services to improve job site efficiency. Using the data from technology equipped machines, get more information and insight into equipment and operations
- Cat technologies offer improvements in these key areas:
- Equipment Management - increase uptime and reduce operating costs.
- Productivity - monitor production and manage job site efficiency.
- Safety - enhance job site awareness to keep your people and equipment safe.
- Featured Cat technologies include -
- Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
- Cat Product Link Elite is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
- Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.

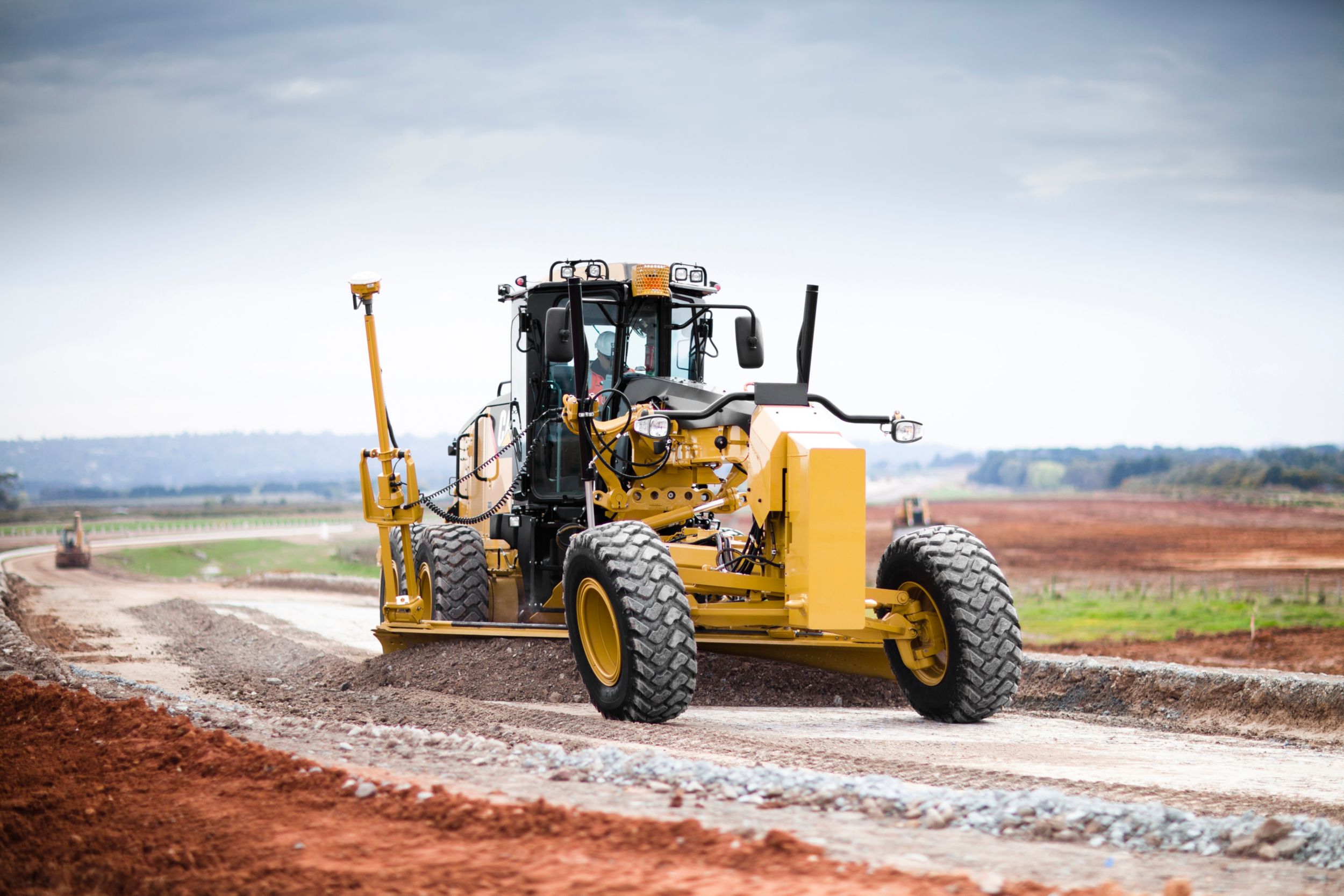

- Cat GRADE with Cross Slope is an optional, factory installed system that helps improve grading efficiency and more easily maintain accurate cross slopes. The system automatically controls one side of the blade, reducing manual operator inputs by as much as 50 percent. Experienced operators can maintain peak efficiency levels throughout more of the work day, while less experienced operators can be more productive faster. The system is job-ready from day one, and scalable for the future with AccuGrade™ upgrade kits that provide additional 2D and/or 3D control.
- Optional Stable Blade system detects bounce through an accelerometer and reduces engine rpm at 15 percent intervals to stabilize machine bounce. Once the motor grader has stabilized, Stable Blade will increase engine speed back to the initial set level. The throttle will not be reduced below 1,200 rpm.
- Optional Auto Articulation is active in gears 1-4F and 1-3R and allows the motor grader to automatically articulate to match the steering angle of the front tires. The system is tuned to allow full articulation at full steering angle and is modulated for maximum performance.
- Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
- Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
- Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
- Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
- Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
- Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
- Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
- Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
- Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
- Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
- Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
- Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
- Safety Features -
- Optional rearview camera with in-cab monitor
- Grouped, ground level service points
- Laminated front window glass
- Optional LED Lighting
- Ground-level electrical disconnect switch
- Ground-level engine shutoff switch
- Anti-glare paint eases night operation
- Optional front and rear fenders
- Cat motor graders are designed to help you increase uptime and reduce costs.
- Grouped service points and extended service intervals save maintenance time.
- Automatic Lubrication System maintains proper grease on working surfaces, increasing component life and purging contaminants from pins and bushings to help prevent damage.
- Fast-Fill allows customers to refuel in less than four minutes enhancing availability.
- Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.
