140 GC / 140 GC AWD

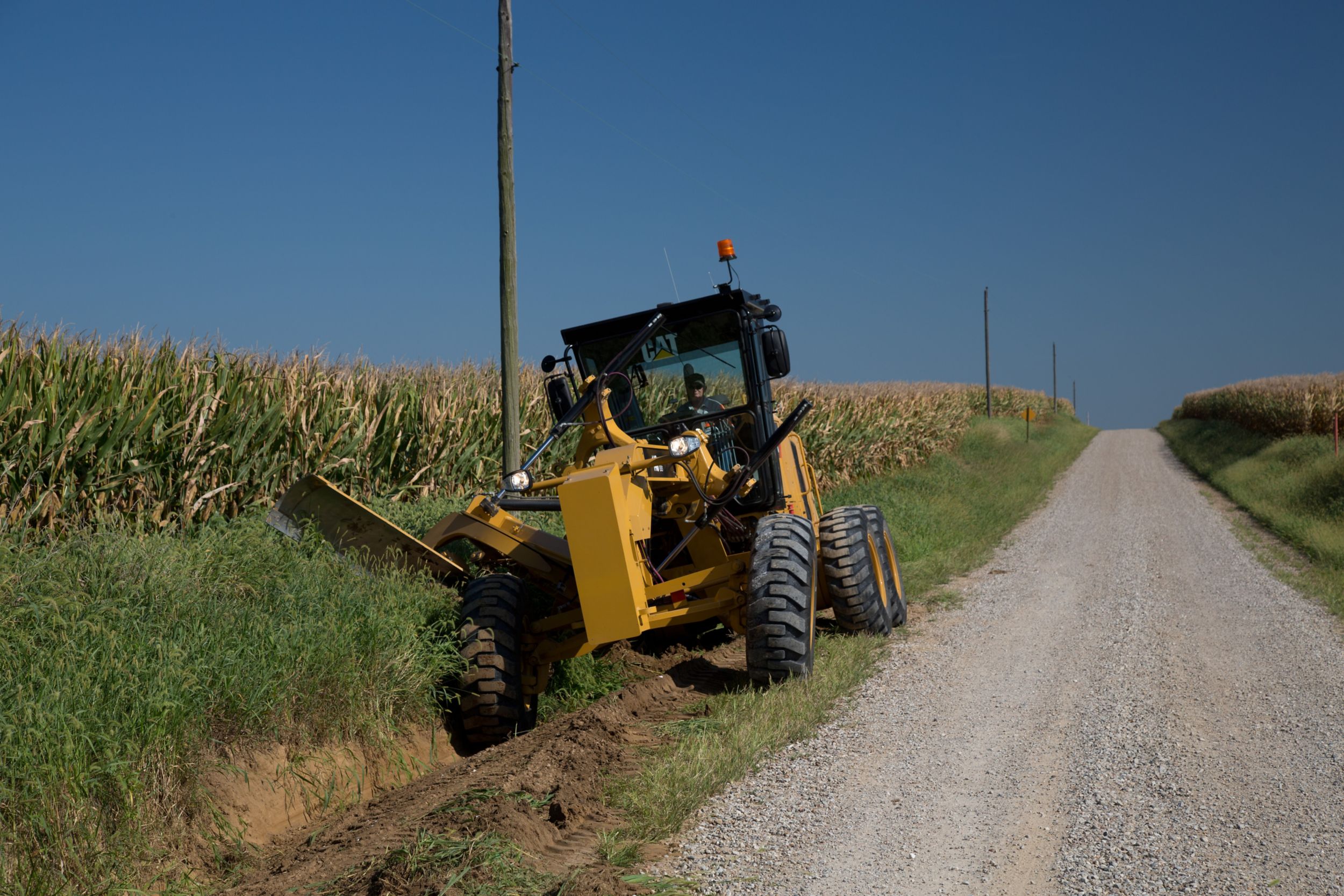

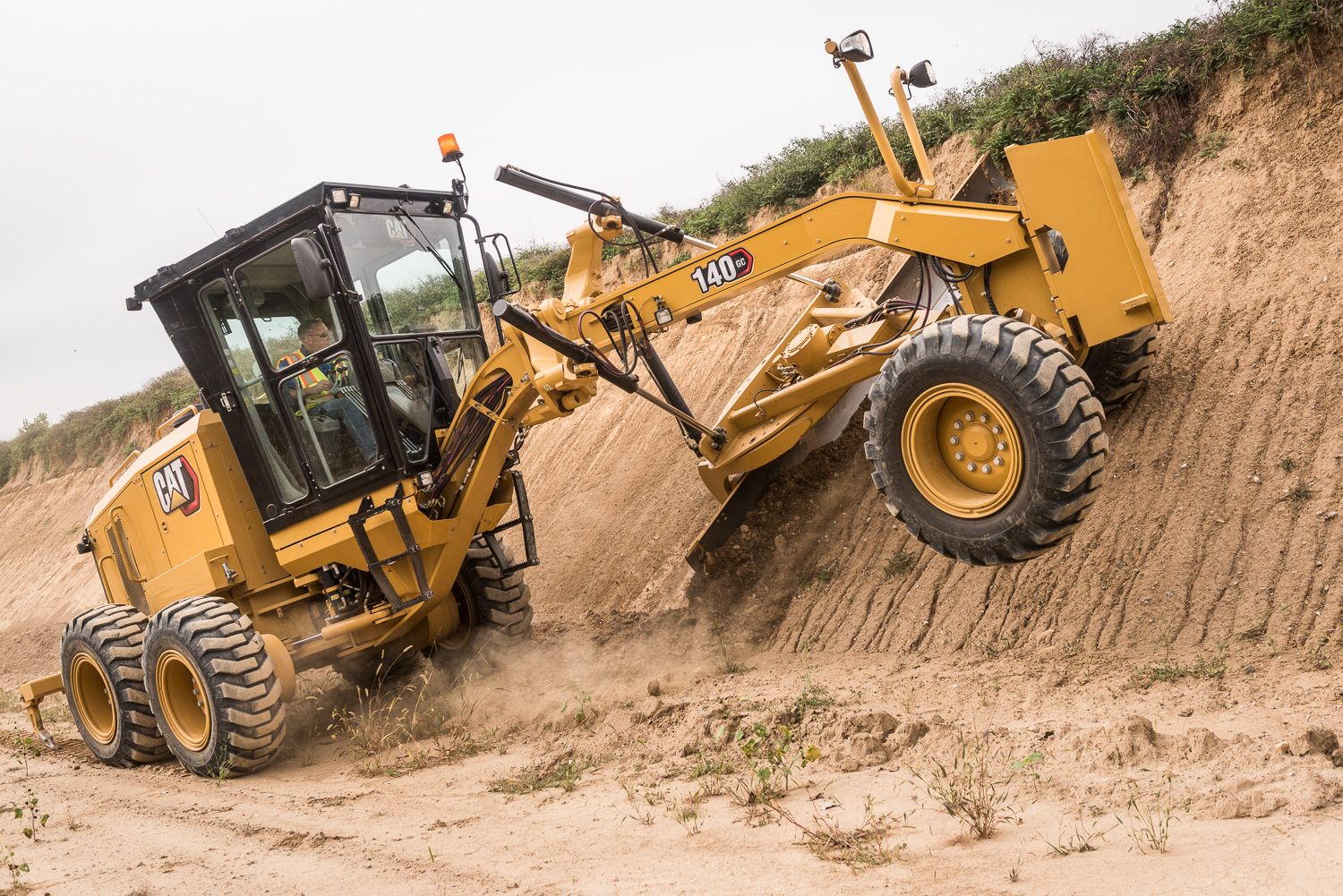

The Cat® 140 GC motor grader is easy to own and operate. It’s easy on your wallet too. A demand fan and standard ECO mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precession using lever controls from the comfort of the all new cab. Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.
Net Power Range (Tier 3)
176 HP
Weight*
38,338 lb
Blade Width
12 ft
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Net Power Range (Tier 3)
176 HP
Displacement
427.8 in³
Bore
4.1 in
Stroke
5.3 in
Engine Model
Cat 7.1
Note (1)
Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Torque - ISO 9249
656 lb/ft
Standard Capability
109 °F
Note (4)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes.
Derating Altitude
14764 ft
Number of Cylinders
6
Emissions
U.S. EPA Tier 3/EU Stage IIIA
Note (3)
Power as declared per ISO 14396
Note (2)
Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Torque Rise - ISO 9294
40%
Engine RPM
2,200
Specification
Value
Weight*
38,338 lb
Note
Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, ROPS closed cab, rear ripper/scarifier, 4.3 m (14 ft) blade, 17.5-25 MP tires on multi-piece rims and other equipment.
Specification
Value
Blade Width
12 ft
Throat Clearance
4.4 in
Blade Height
20 in
End Bit
6 in
Cutting Edge Width
6 in
Arc Radius
16.3 in
Specification
Value
Circle Drive without Slip Clutch
0.4 gal (US)
Circle Drive with Slip Clutch
2 gal (US)
Transmission
4.8 gal (US)
Cooling System
40 gal (US)
Hydraulic System
11.9 gal (US)
Fuel Tank
78.5 gal (US)
Engine Crankcase
5.6 gal (US)
Specification
Value
Moldboard Side Shift Left
26.1 in
Maximum Depth of Cut
29 in
Moldboard Side Shift Right
20.2 in
Maximum Shoulder Reach Right
76 in
Maximum Lift Above Ground
18.9 in
Circle Center Shift Left
29.6 in
Maximum Shoulder Reach Left
69.4 in
Blade Tip Range Backward
5
Circle Center Shift Right
28.7 in
Blade Tip Range Forward
40
Specification
Value
Width
95.6 in
Maximum Height
151.1 in
Length of Machine*
406.7 in
Note
*Typically equipped with push block and ripper.
Specification
Value
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430).The system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes.
  • Increase your fuel economy up to 5% with the standard ECO mode.
  • The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
  • Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
  • The powershift transmission and machine balanced design ensures that you get full drawbar power to the ground with the Cat C7.1 engine.
  • The all-wheel drive (AWD) option assists with traction and maneuvering in loose material. The increased power with all-wheel drive handles rough terrain with extra traction for better productivity.
  • The hydraulic system makes the machines more precise and predictable for a consistent grade.
  • The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers.
  • Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs.
  • Choose your comfort level in the cab with standard, mechanical suspension or air suspension seat.
  • Easily adjust the control console and steering wheel.
  • The high capacity Heating, Ventilation and Air Conditioning (HVAC) system option circulates fresh air, prevents dust entry and keeps windows from fogging.
  • Easily add a radio to the cab using the built-in mounting location option.
  • Drawbar circle moldboard stays factory tight providing precision grading pass after pass.
  • Machine structure is built for a long life. It’s designed to use several types of work tools, such as a front blade.
  • Slip clutch option protects the circle drive if the machine strikes an immovable object.
  • Front axle maximizes bearing life while also minimizing maintenance.
  • Reduce daily greasing requirements and costly repairs to your circle and pinion with Circle Saver option.
  • See what’s behind you with the rear camera option. The dedicated display can be always on to ensure a safe work environment.
  • The heated lens keeps the rearview camera clear in cold and wet conditions.
  • In the event of an engine stall, count on the secondary steering system option to help stop the machine safely.
  • Use three points of contact when entering and exiting the machine with strategically placed walk ways and grab rails.
  • Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
  • See the rear of your machine with side and rearview mirrors.
  • Work past sundown using the strategically placed lights for night time visibility.
  • Keep your work site safer with Cat GRADE Digital Blade Slope Meter to reduce the need for manual grade checking with working machines.
  • Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
  • Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability. Adding a separate line with replaceable wear inserts helps to sustain factory tightness.
  • Hydraulic brakes are well oiled to keep them maintenance free.
  • The standard bottom guard shields the transmission and filter. Optional guarding protects your machine from damage in demanding applications.
  • Improve the performance and efficiency of your machine with the counterweight or push block option.
  • Ripper and scarifier options are available to assist with grading hard ground.
  • The front lift group option is ready for attachments like the straight or angle front blade.
  • For more road coverage, add a moldboard extension to add 605 mm (24 in).
