120 GC

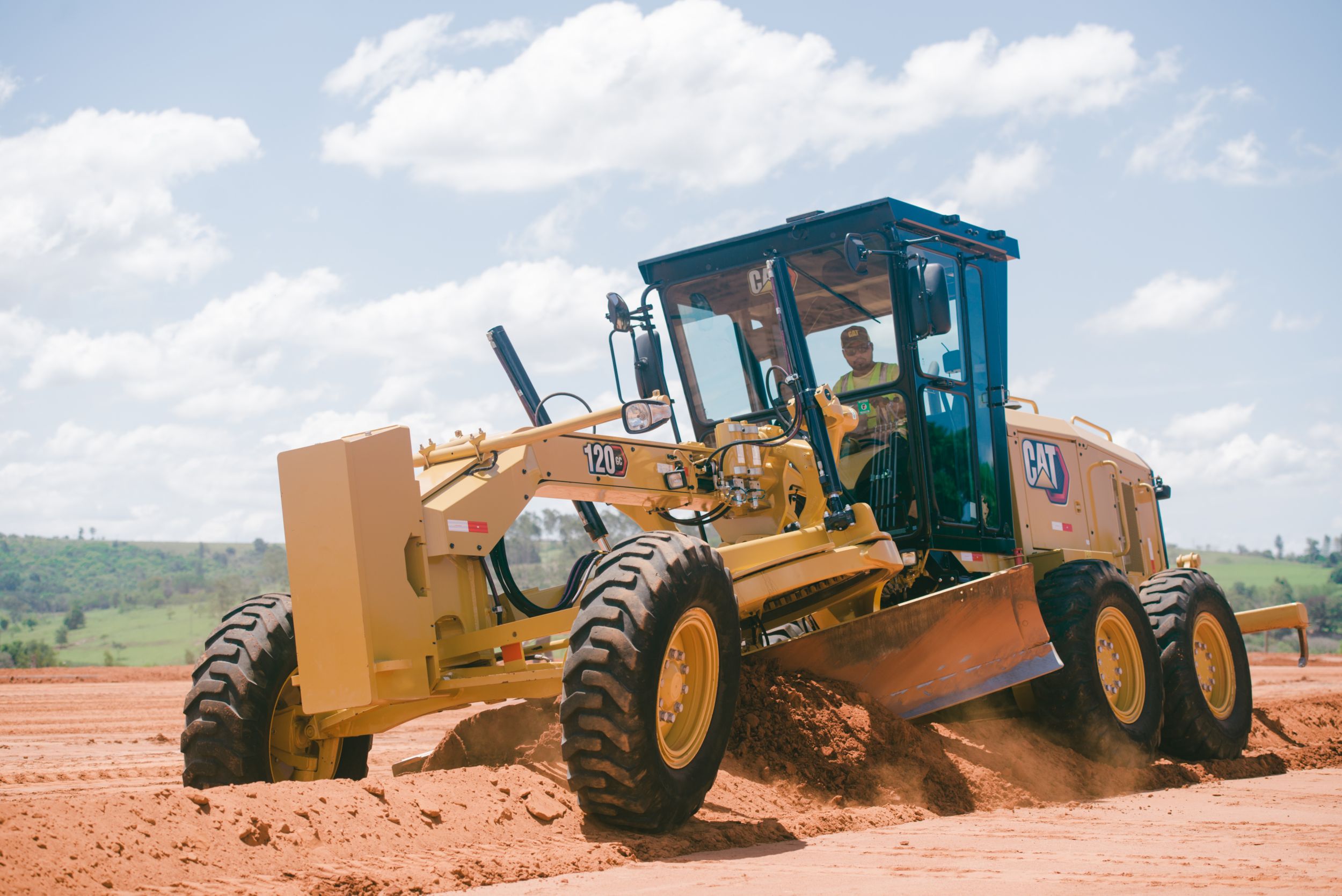

The Cat® 120 GC motor grader is easy to own and operate. A demand fan and standard ECO mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precision using lever controls from the comfort of the all new cab.
Net Power - ISO 9249/SAE J1349
171 HP
Maximum Torque
544 lb/ft
Engine Model
Cat® C4.4
Specification
Value
Net Power - ISO 9249/SAE J1349
171 HP
Maximum Torque
544 lb/ft
Engine Model
Cat® C4.4
Bore
4.1 in
Displacement
268.5 in³
Torque Rise - ISO 9294
21%
Stroke
5 in
Derating Altitude
9,842 ft
Emissions
Meets India CEV Stage V emission standards
Note (1)
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler, and alternator. Power as declared per ISO 14396.
Specification
Value
Weight*
35,494 lb
Specification
Value
Length of Machine*
391.4 in
Width
94.6 in
Maximum Height
149.1 in
Note
*Typically equipped with push block and ripper.
Specification
Value
Blade Width
12 ft
Cutting Edge Width
6 in
Throat Clearance
4.7 in
Blade Height
20 in
End Bit - Width
152 in
Arc Radius
16.3 in
Specification
Value
Blade Tip Range - Backward
5°
Circle Centershift - Right
25.8 in
Moldboard Sideshift - Right
26.1 in
Circle Centershift - Left
25.8 in
Moldboard Sideshift - Left
20.2 in
Maximum Depth of Cut
30.5 in
Blade Tip Range - Forward
40°
Maximum Lift Above Ground
16.1 in
Specification
Value
Circle Drive without Slip Clutch
0.4 gal (US)
Fuel Tank
71 gal (US)
Hydraulic System
14.5 gal (US)
Circle Drive with Slip Clutch
1.8 gal (US)
Engine Crankcase
2 gal (US)
Cooling System
10.3 gal (US)
Transmission
4.5 gal (US)
- Increase your fuel economy up to 5% with the standard ECO mode.
- The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
- Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
- The powershift transmission and machine balanced design ensures that you get full drawbar power to the ground with the Cat C4.4 engine.
- The hydraulic system makes the machines more precise and predictable for a consistent grade.
- The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers.
- Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data ondemand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs.
- Choose your comfort level in the cab with standard, mechanical suspension or air suspension seat.
- Easily adjust the control console and steering wheel.
- The high capacity Heating, Ventilation and Air Conditioning (HVAC) system option circulates fresh air, prevents dust entry, and keeps windows from fogging.
- Easily add a radio to the cab using the built-in mounting location option.
- The drawbar circle moldboard stays factory tight providing precision grading pass after pass.
- The machine structure is built for a long life. It’s designed to use several types of work tools, such as a front blade.
- A slip clutch option protects the circle drive if the machine strikes an immovable object.
- The front axle maximizes bearing life while also minimizing maintenance.
- Reduce daily greasing requirements and costly repairs to your circle and pinion with the Circle Saver option.
- See what’s behind you with the rear camera option. The dedicated display can be always on to ensure a safe workenvironment.
- In the event of an engine stall, count on the secondary steering system option to help stop the machine safely.
- Use three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
- Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
- See the rear of your machine with side and rearview mirrors.
- Work past sundown using the strategically placed lights for nighttime visibility.
- Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
- The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.
- Brake adjustments are maintenance free and easily accessible.
- The standard bottom guard shields the transmission and filter. Optional guarding protects your machine from damage in demanding applications.
- Spend less time cleaning the cooling system with the reversing fan option, which reduces costs when cleaned once per week for more uptime.
- Improve the performance and efficiency of your machine with the push block option.
- Ripper and scarifier options are available to assist with grading hard ground.
- Add the front blade option to spread more material faster.
- The optional tow hitch allows you to tow equipment or implements behind the machine.
