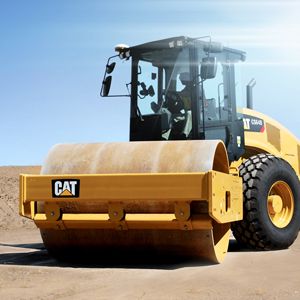

CS64B Vibratory Soil Compactor
CS64B
The CS64B provides exceptional performance for granular soil compaction applications.
Operating Weight - With Cab
26569 lb
Weight - Drum with Cab
15690.0 lb
Compaction Width
84.0 in
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Operating Weight - With Cab
26569 lb
Weight - Drum with Cab
15690.0 lb
Specification
Value
Compaction Width
84.0 in
Travel Speed - Maximum
6.8 mile/h
Ground Clearance
17.4 in
Static Linear Load - With Cab
186.8 lb/in
Turning Radius - Inside Drum Edge
12.08 ft
Specification
Value
Gross Power
129.4 HP
Engine Model
Cat C4.4
Bore
4.1 in
Stroke
5 in
Specification
Value
Overall Width
7.53 ft
Overall Length
19.17 ft
Drum Width
84.0 in
Drum Diameter
60.4 in
Wheel Base
9.58 ft
Height - With ROPS/FOPS or Cab
10.25 ft
Specification
Value
Centrifugal Force - Minimum
29900.0 lb
Nominal Amplitude - High
0.075 in
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Centrifugal Force - Maximum
52600.0 lb
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)
Nominal Amplitude - Low
0.037 in
Specification
Value
Tires
23.1 x 26
Specification
Value
Fuel Tank Capacity
64.0 gal (US)
