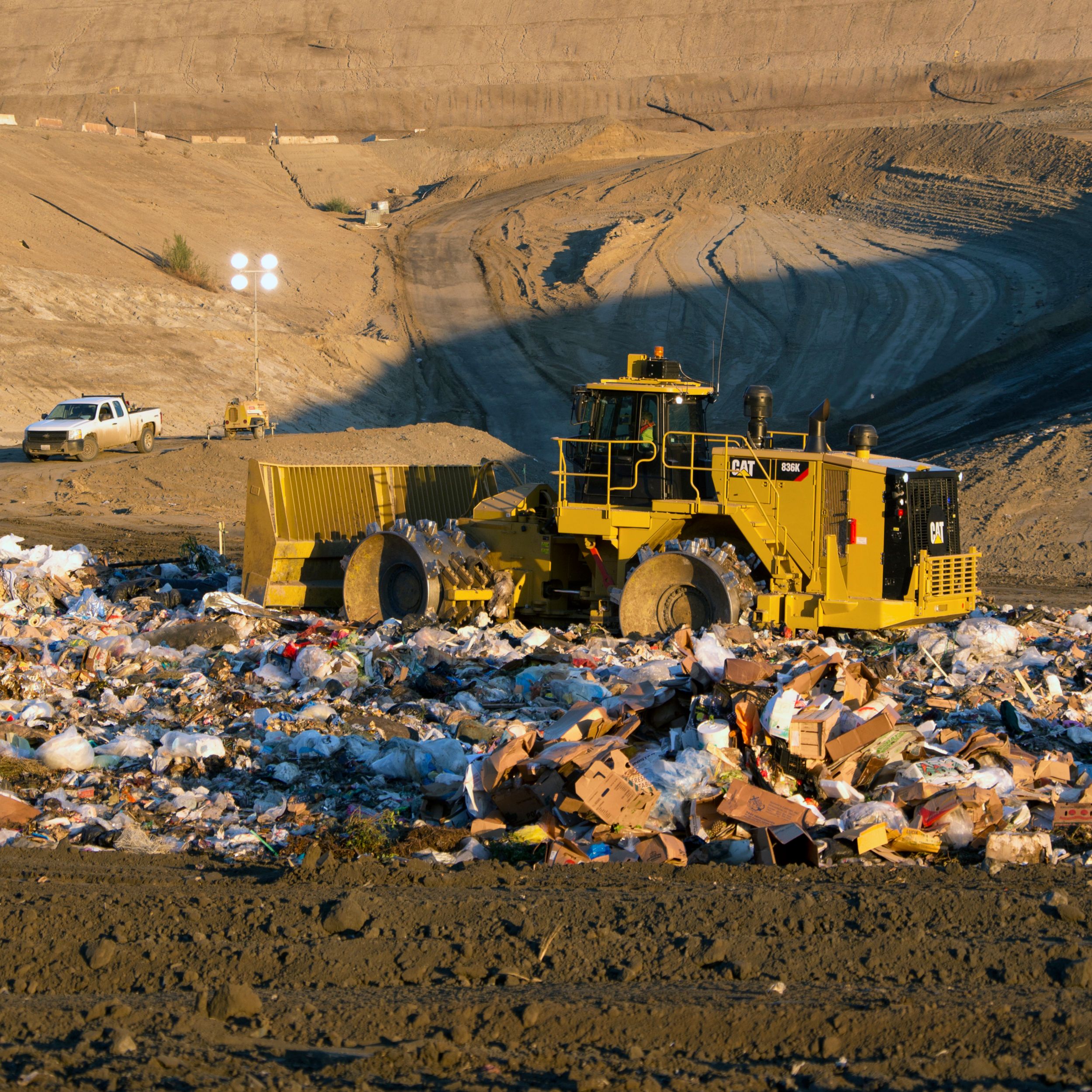

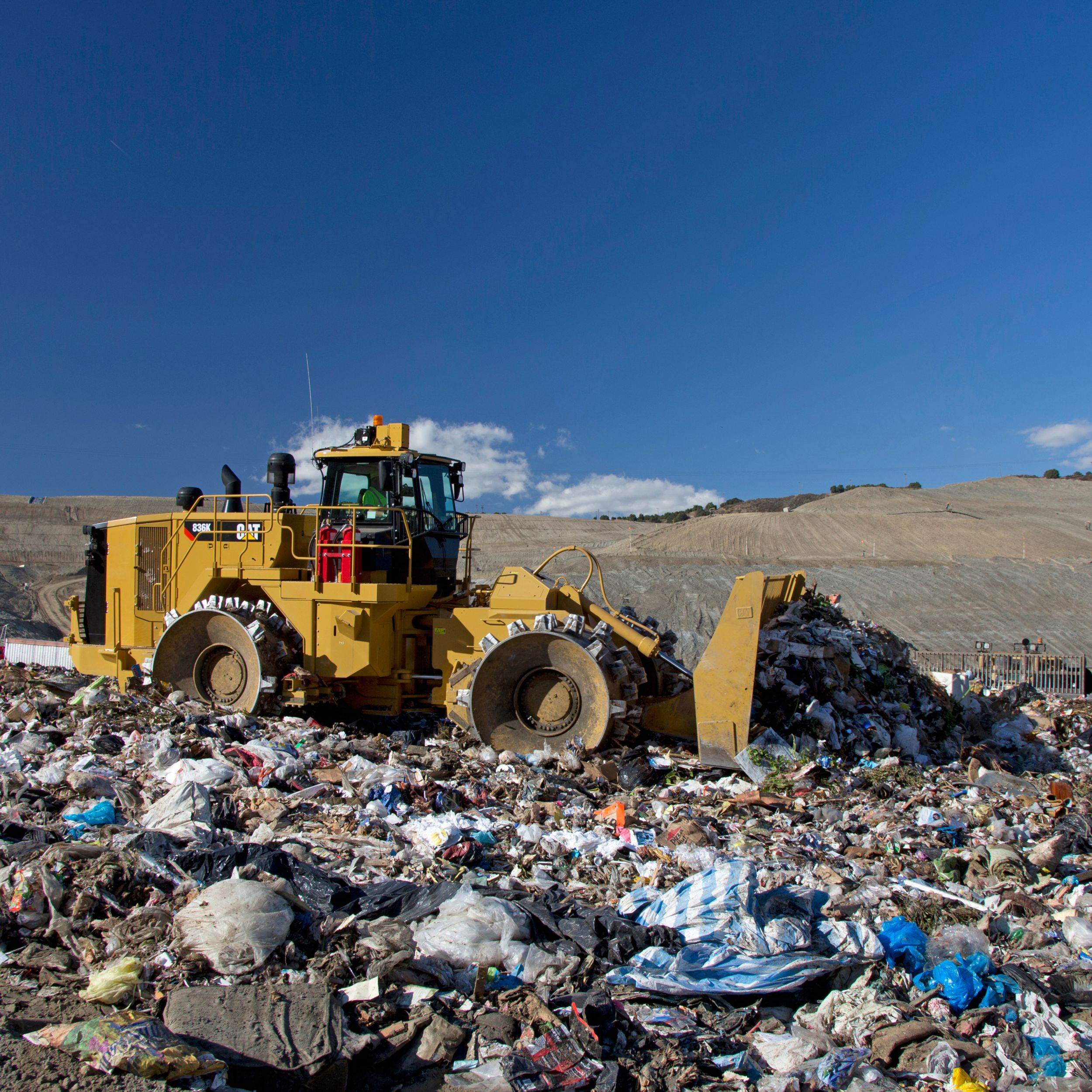

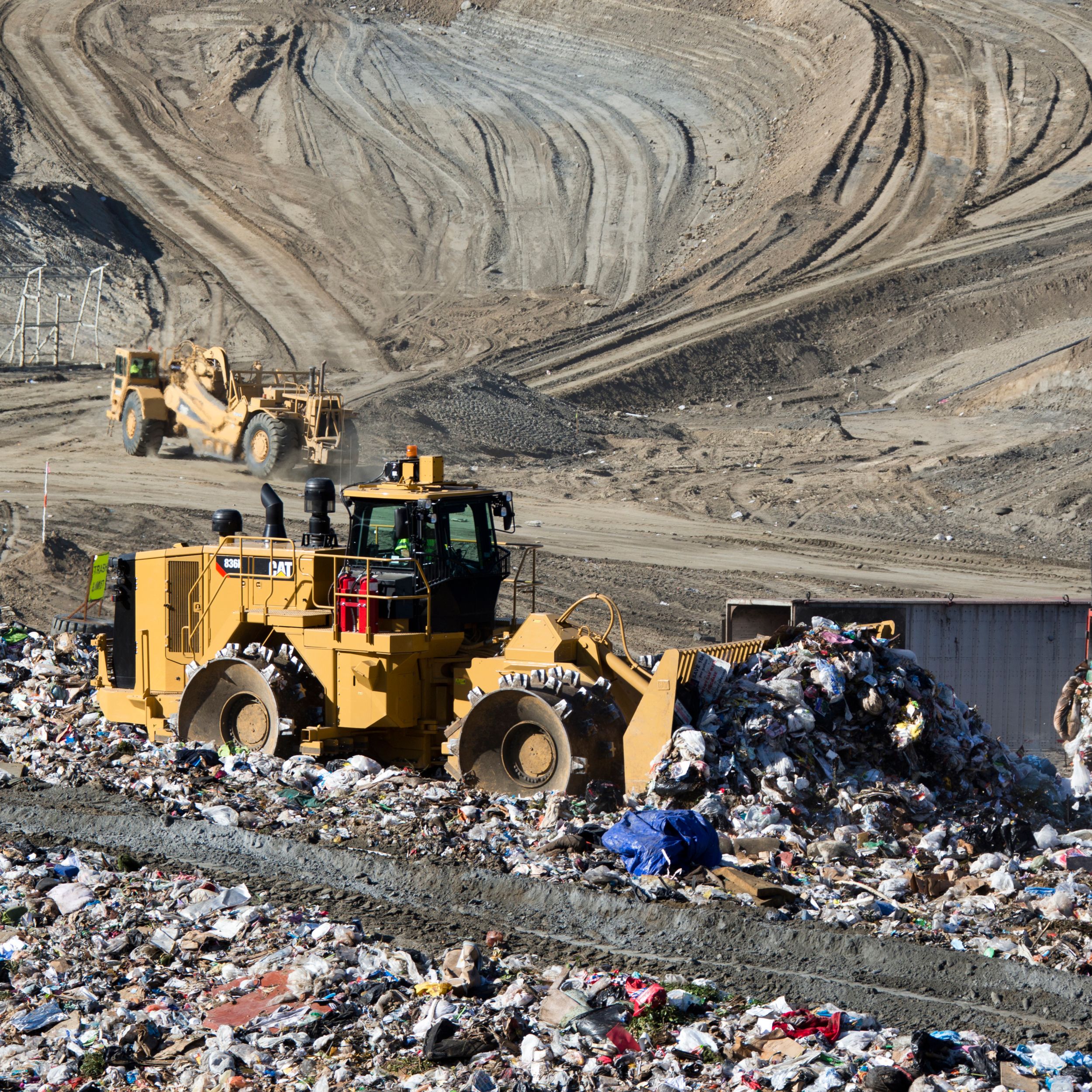

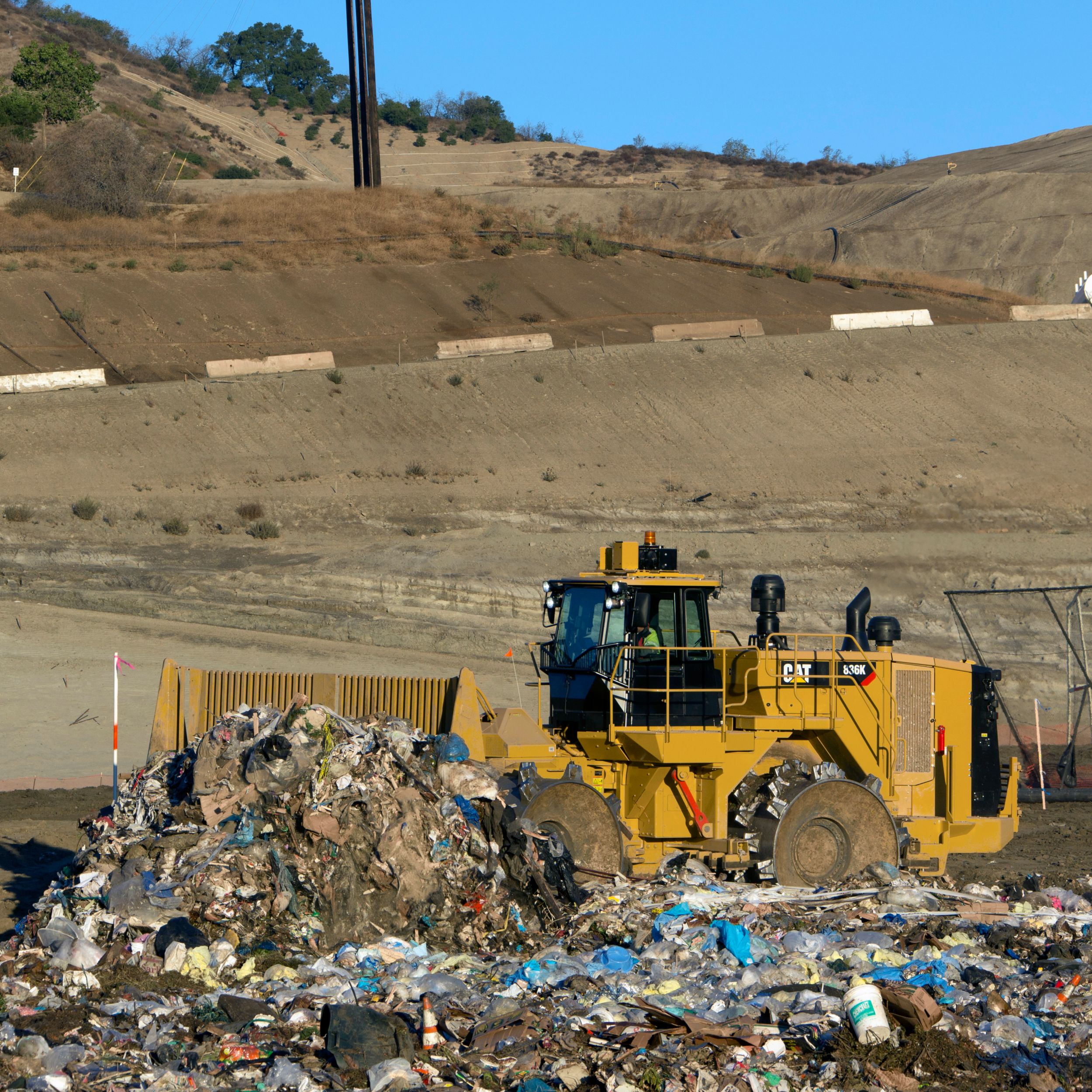

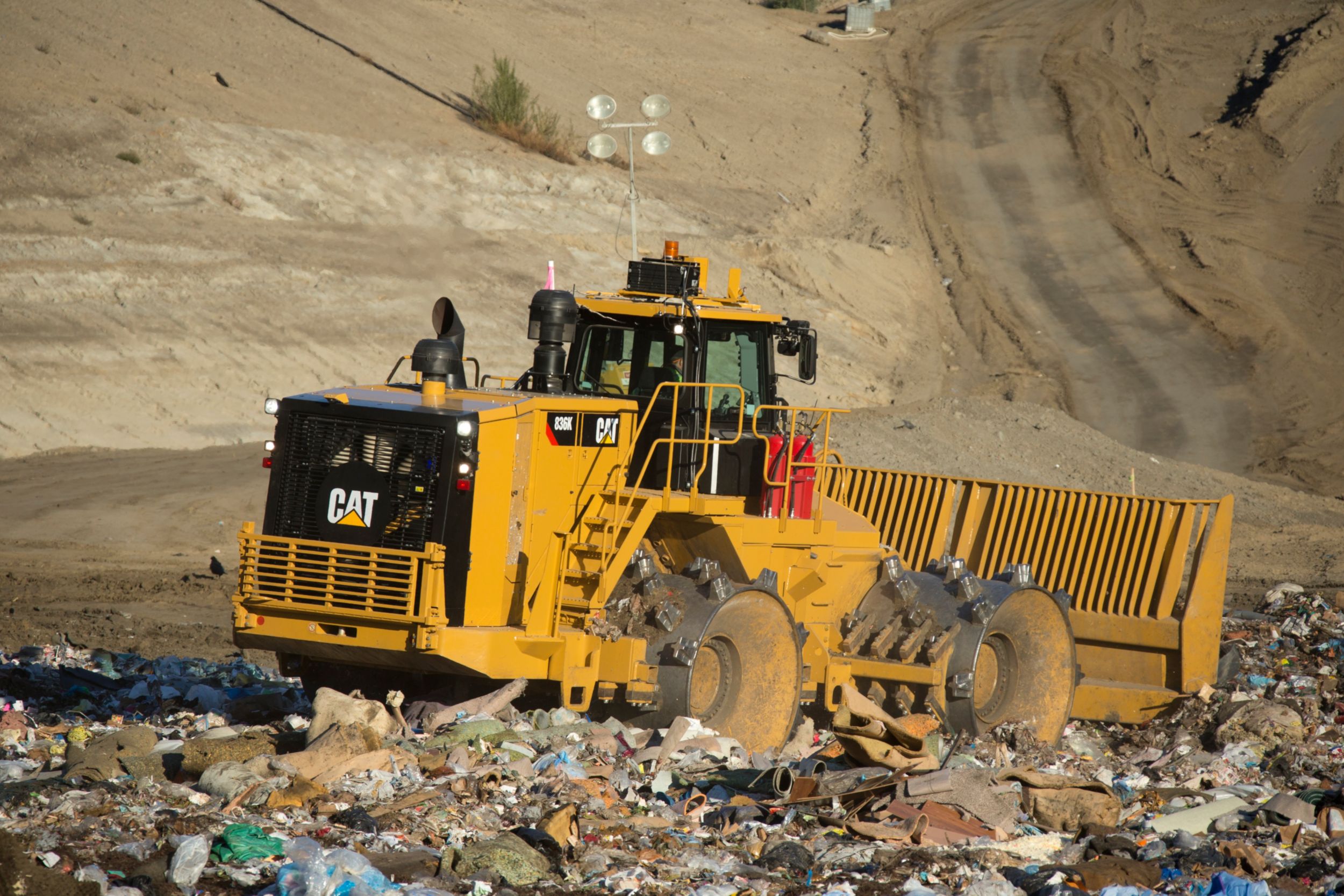

836K
Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1993, the 836 has been the industry leader for over 20 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 836K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
Gross Power
562.0 HP
Net Power
496.0 HP
Engine Model
C18 Cat®
Specification
Value
Gross Power
562.0 HP
Net Power
496.0 HP
Engine Model
C18 Cat®
Bore
5.71 in
Stroke
7.2 in
Displacement
1104.5 in³
Low Idle Speed
750.0 r/min
Gross - SAE J1349
562.0 HP
Rated Power (Net ISO 14396)
553.0 HP
Net Power - SAE J1349 - Converter Drive - Torque Rise
52.0 %
Net Power - SAE J1349 - Converter Drive - Gross Power
496.0 HP
Maximum Altitude - Without Derating
7500.0 ft
Net Power - SAE J1349 - Direct Drive - Gross Power
496.0 HP
High Idle Speed
2120.0 r/min
Net Power - SAE J1349 - Direct Drive - Torque Rise
52.0 %
Rated Power (Lab)
555.0 HP
Maximum Gross Torque - 1,300 rpm
2275.0 ft·lbf
Emissions
Tier 4 Final/Stage IV/Korea Tier 4 Final or Tier 3/Stage IIIA equivalent
Specification
Value
Travel Speed - Reverse - Converter 2nd
6.5 mile/h
Travel Speed - Forward - Lockup 2nd
7.3 mile/h
Travel Speed - Reverse - Lockup 2nd
7.6 mile/h
Travel Speed - Forward - Lockup 1st
4.0 mile/h
Transmission Type
Cat Planetary Powershift
Travel Speed - Forward - Converter 1st
3.9 mile/h
Travel Speed - Reverse - Converter 1st
4.0 mile/h
Travel Speed - Forward - Converter 2nd
6.8 mile/h
Travel Speed - Reverse - Lockup 1st
4.3 mile/h
Specification
Value
Steering System
Double Acting – End Mounted
Stroke (1)
29.1 in
Bore (1)
5.0 in
Vehicle Articulation Angle
86°
Bore (2)
5.5 in
Maximum Supply Pressure
4640.0 psi
Stroke (2)
40.2 in
Main Relief Pressure
3495.0 psi
Lift System
Double Acting Cylinder
Pump Flow at 2,006 rpm
66.0 gal/min
Hydraulic System
Flow Sharing Implement
Specification
Value
Front
Planetary – Fixed
Rear
Planetary – Oscillating
Oscillation Angle
13°
Specification
Value
Parking Brake
Spring Applied, Hydraulic Released
Specification
Value
Control System
Full Hydraulic Split Circuit
Specification
Value
Fuel Tank
209.0 gal (US)
Cooling System
28.0 gal (US)
Crankcase
16.0 gal (US)
Transmission
32.0 gal (US)
Diesel Engine Fluid Tank (Tier 4 Final/Stage IV/Korea Tier 4 Final)
9.0 gal (US)
Differential - Final Drives - Rear
50.0 gal (US)
Differential - Final Drives - Front
49.0 gal (US)
Hydraulic System - Tank Only
63.0 gal (US)
Specification
Value
Operating Weight
123319.0 lb
Specification
Value
Interior Sound Level - Standard
72.0 dB(A)
Exterior Sound Level - Suppression
109.0 dB(A)
Interior Sound Level - Suppression
71.0 dB(A)
Exterior Sound Level - Standard
111.0 dB(A)
Specification
Value
Maximum Operating Weight (Tier 4 Final/Stage IV/Korea Tier 4 Final) - Multiple Blade and Wheel Offerings
123319 lb
Maximum Operating Weight (Tier 3/Stage IIIA equivalent) - Multiple Blade and Wheel Offerings
122615 lb
Operating Weight - With Full Tank Capacities and U-Blade (Tier 3/Stage IIIA Equivalent)
122615 lb
Operating Weight - With Full Tank Capacities and U-Blade (Tier 4 Final/Stage IV/Korea Tier 4 Final)
123319 lb
Specification
Value
Height - Top of Cab with A/C
15.27 ft
Height - Top of Exhaust Pipe
15.12 ft
Height - Top of Hood
11.22 ft
Ground Clearance - Bumper
3.38 ft
Centerline of Rear Axle to Edge of Counterweight
10.46 ft
Hitch to Centerline of Front Axle
7.46 ft
Wheel Base
14.93 ft
Width - Over Wheels
14.04 ft
Height - ROPS/Canopy
14.06 ft
Height - Top of Cab with Strobe
15.9 ft
Length - With Blade on Ground - Straight Blade
33.41 ft
Turning Radius - Inside of Wheels
11.93 ft
Ground Clearance
2.07 ft
Specification
Value
Total Steering Angle
86 degrees
Steering Pressure Limited
3495 psi
Steering System - Circuit
Steering Double Acting – End Mounted
Steering System - Pump
Piston – Variable Displacement
Maximum Flow at × rpm
52 L/min @ 2,006 rpm
Specification
Value
Diameter - With Tips
7.0 ft
Drum Diameter
5.81 ft
Drum Width
4.59 ft
Tips per Wheel
40
