730 EJ

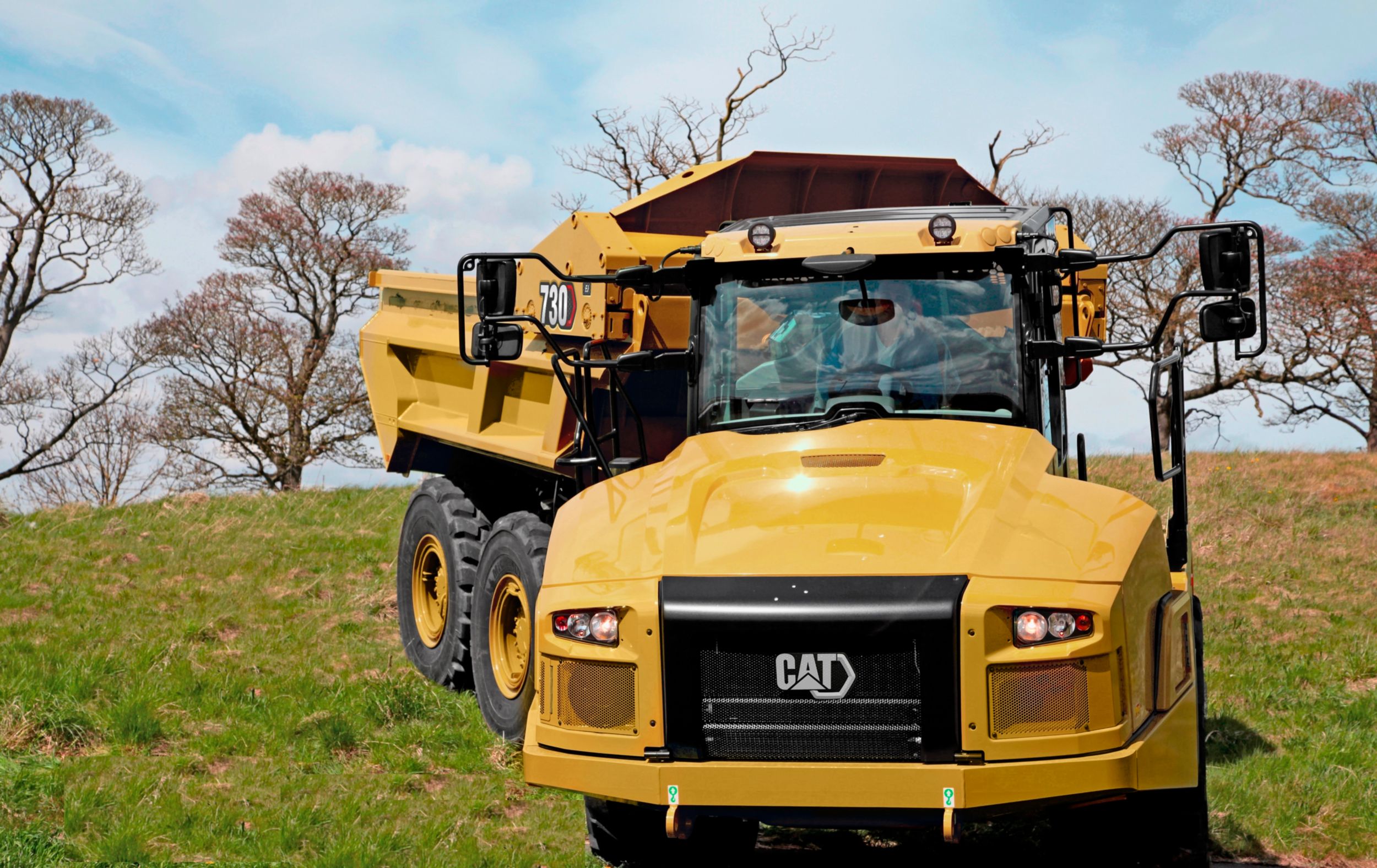

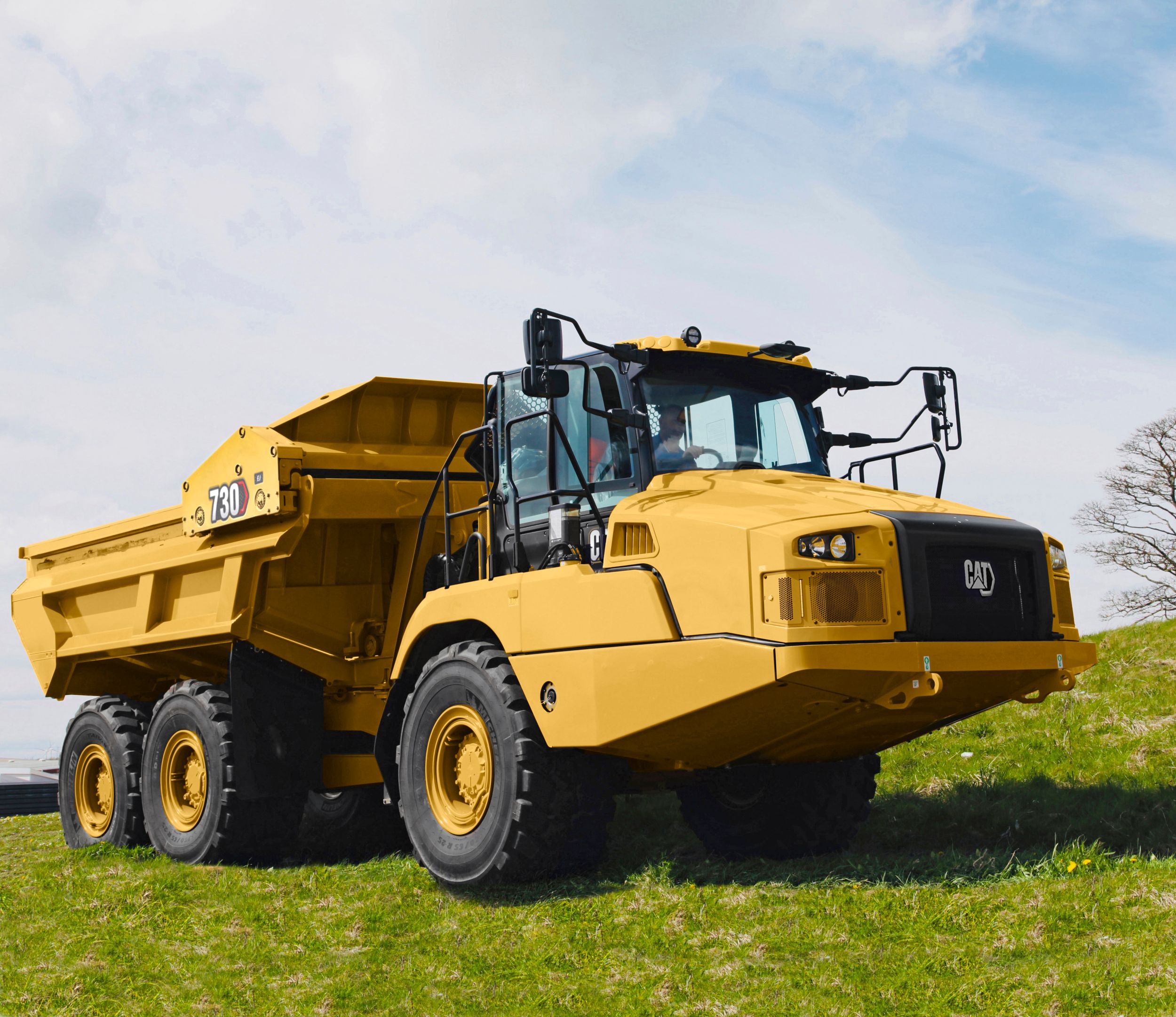

The Cat 730 EJ with a 16.9 m³ (22.1 yd³)/27.1 tonnes (30 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation.<br>Updating the successful 730C2 EJ to include the new cab design makes the 730 EJ a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Ejecting Control create operator comfort, making a productive machine all day long. The machines retain all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).
Engine Model
Cat® C13
Bore
5.1 in
Stroke
6.2 in
Specification
Value
Engine Model
Cat® C13
Bore
5.1 in
Stroke
6.2 in
Displacement
763 in³
Net Power - ISO 14396
370 HP
Net Power - SAE J1349
367 HP
Peak Engine Torque Gross (SAE J1995)
1350 ft·lbf
Gross Power - SAE J1995
375 HP
No Engine De-rating Below
13100 ft
Peak Engine Torque Speed
1200 r/min
Note (1)
The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Emissions
The 730 EJ meets either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emission standards.
Note (3)
Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (2)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Engine Model - Either U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage IIIA equivalent
Cat C13
Peak Engine Torque Net (ISO 14396)
1335 ft·lbf
Specification
Value
Rated Payload
30 ton (US)
Specification
Value
Heaped (SAE 2:1)
22.1 yd³
Struck
17.7 yd³
Specification
Value
Forward - 1
5 mile/h
Forward - 2
9 mile/h
Forward - 3
14 mile/h
Forward - 4
21 mile/h
Forward - 5
29 mile/h
Forward - 6
34 mile/h
Reverse - 1
6 mile/h
Specification
Value
Interior Cab
72 dB(A)
Note (1)
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Specification
Value
Total - Loaded
117528 lb
Center Axle - Loaded
41502 lb
Rear Axle - Empty
11861 lb
Front Axle - Rated Load
1433 lb
Total - Empty
57783 lb
Front Axle - Loaded
35009 lb
Rear Axle - Loaded
41017 lb
Total - Rated Load
59745 lb
Front Axle - Empty
33576 lb
Center Axle - Rated Load
29156 lb
Center Axle - Empty
12346 lb
Rear Axle - Rated Load
29156 lb
Specification
Value
Fuel Tank
108.8 gal (US)
Cooling System
21.9 gal (US)
Hydraulic System
29.1 gal (US)
Engine Crankcase
10 gal (US)
Transmission
12.4 gal (US)
Final Drives/Differential
33 gal (US)
Output Transfer Gear Box
6.3 gal (US)
Specification
Value
Lock to Lock
4.75 seconds @ 60 rpm
Specification
Value
Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2007
Specification
Value
Type
High strength Brinell HB450 wear resistant steel
Specification
Value
Turning Dimensions - Steer Angle - Left/Right
45°
Turning Dimensions - Aisle Width
214 in
Turning Dimensions - SAE Turning Radius
294 in
Turning Dimensions - Inside Radius
152 in
Note
Dimensions are for machines equipped with 750/65 R25 tires.
Turning Dimensions - Clearance Radius
318 in
Specification
Value
Eject Time
12 s
Retract Time
15 s
Specification
Value
Wheel Loaders: 966M/966M XE - Passes
4
Wheel Loader: 962M - Passes
4–5
Note
An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Hydraulic Excavators: 349F/349F XE - Passes
4–5
Wheel Loader: 950M - Passes
5
Wheel Loaders: 972M/972M XE - Passes
3–4
Hydraulic Excavators: 336F/336F XE - Passes
5–6
