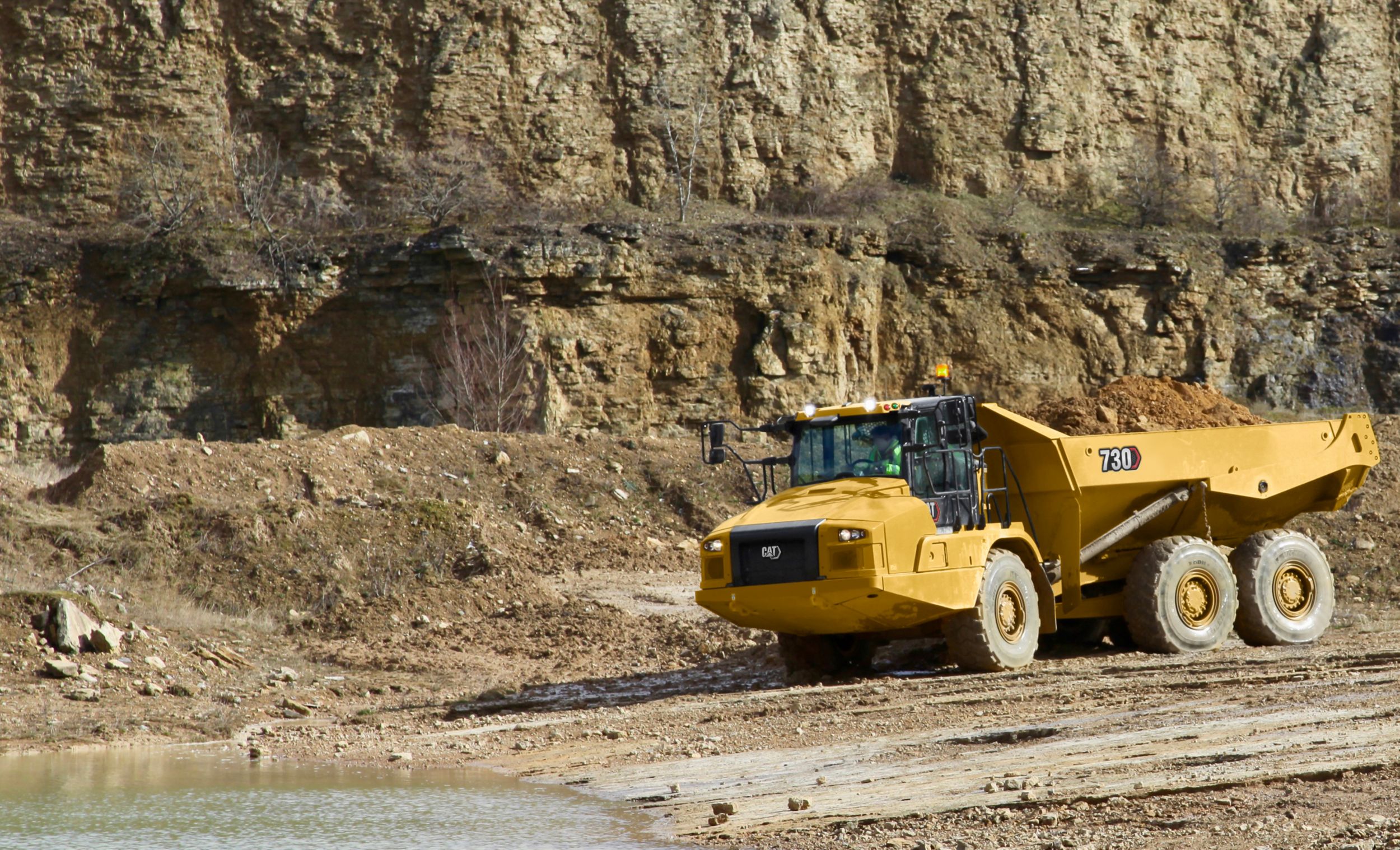

730
The Cat 730 with a 17.5 m3 (23 yd3)/28 tonnes (31 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation.<br>Updating the successful 730C2 to include the new cab design makes the 730 a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Hoisting Control create operator comfort, making a productive machine all day long while retaining all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).
Engine Model
Cat® C13
Bore
5.1 in
Stroke
6.2 in
Specification
Value
Engine Model
Cat® C13
Bore
5.1 in
Stroke
6.2 in
Displacement
762.8 in³
Peak Engine Torque Speed
1200 r/min
No Engine De-rating Below
12500 ft
Peak Engine Torque Gross (SAE J1995)
1579 ft·lbf
Peak Engine Torque Net (SAE J1349)
1564 ft·lbf
Net Power - ISO 14396
370 HP
Gross Power - SAE J1995
375 HP
Net Power - SAE J1349
367 HP
Note (1)
The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Note (2)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Emissions
The 730 meets either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emission standards.
Note (3)
Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions.
Engine Model - Either U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage IIIA equivalent
Cat C13
Specification
Value
Rated Payload
31 ton (US)
Specification
Value
Heaped (SAE 2:1)
23 yd³
Struck
17.4 yd³
Tailgate Heaped SAE 2:1
24.6 yd³
Tailgate Struck
18.2 yd³
Specification
Value
Forward - 1
5 mile/h
Forward - 2
9 mile/h
Forward - 3
14 mile/h
Forward - 4
21 mile/h
Forward - 5
29 mile/h
Forward - 6
34 mile/h
Reverse - 1
6 mile/h
Specification
Value
Interior Cab
72 dB(A)
Note (1)
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Specification
Value
Rear Axle - Rated Load
27249 lb
Rear Axle - Empty
9744 lb
Total - Rated Load
61729 lb
Rear Axle - Loaded
36994 lb
Center Axle - Loaded
37479 lb
Total - Loaded
113538 lb
Center Axle - Rated Load
27249 lb
Front Axle - Loaded
39066 lb
Front Axle - Empty
31835 lb
Total - Empty
51809 lb
Center Axle - Empty
10229 lb
Front Axle - Rated Load
7231 lb
Specification
Value
Fuel Tank
108.8 gal (US)
Cooling System
21.9 gal (US)
Hydraulic System
29.1 gal (US)
Engine Crankcase
10 gal (US)
Transmission
12.4 gal (US)
Final Drives/Differential
33 gal (US)
Output Transfer Gear Box
6.3 gal (US)
Specification
Value
Raise Time
12 s
Lower Time
8 s
Specification
Value
Lock to Lock
4.75 seconds @ 60 rpm
Specification
Value
Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2007
Specification
Value
Type
High strength Brinell HB450 wear resistant steel
Specification
Value
Turning Dimensions - Clearance Radius
318 in
Turning Dimensions - Inside Radius
153 in
Turning Dimensions - SAE Turning Radius
294 in
Turning Dimensions - Steer Angle - Left/Right
45°
Turning Dimensions - Aisle Width
210 in
Note
Dimensions are for machines equipped with 23.5R25 tires.
Specification
Value
Side Plates
0.43 in
Base Plate
0.51 in
Front Plate
0.28 in
Specification
Value
Wheel Loaders: 972M/972M XE - Passes
3–4
Note
An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Wheel Loaders: 966M/966M XE - Passes
4
Wheel Loader: 962M - Passes
4–5
Hydraulic Excavators: 349F/349F XE - Passes
4–5
Hydraulic Excavators: 336F/336F XE - Passes
5–6
Wheel Loader: 950M - Passes
5
