740 GC Bare Chassis
The Cat® OEM 740 GC Bare Chassis is available in a standard wheel base. With up to a 44.6 tonnes (49.2 tons) capacity, the 740 GC bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs.
Engine Model
Cat® C15
Bore
5.4 in
Stroke
6.75 in
Specification
Value
Engine Model
Cat® C15
Bore
5.4 in
Stroke
6.75 in
Displacement
926 in³
Gross Power - SAE J1995
452 HP
Net Power - SAE J1349
439 HP
Peak Engine Torque Gross (SAE J1995)
1711 lb/ft
Net Power - ISO 14396
447 HP
Peak Engine Torque Net (SAE J1349)
1670 lb/ft
Peak Engine Torque Speed
1200 r/min
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
Cat® C15
No Engine De-rating Required Below
10000 ft
Specification
Value
Standard Wheel Base
162.4 in
Specification
Value
Rated Payload
49.2 ton (US)
Specification
Value
Forward - 1
4 mile/h
Forward - 2
5.3 mile/h
Forward - 3
7.3 mile/h
Forward - 4
9.2 mile/h
Forward - 5
12.2 mile/h
Forward - 6
14.9 mile/h
Forward - 7
20.6 mile/h
Forward - 8
24.7 mile/h
Forward - 9
35.7 mile/h
Reverse - 1
4.2 mile/h
Reverse - 2
9.8 mile/h
Specification
Value
Fuel Tank
143.5 gal (US)
Cooling System
23.7 gal (US)
Brake Cooling Tank
17.7 gal (US)
Steering/Hoist Hydraulic System
36.9 gal (US)
Engine Crankcase
13.7 gal (US)
Transmission - OTG
19.8 gal (US)
Final Drive - Each
1.3 gal (US)
Axles - Each
15.8 gal (US)
DEF Tank
25 gal (US)
Specification
Value
Interior Cab
72 dB(A)
Specification
Value
Brakes
ISO 3450:2011
Cab - FOPS
ISO 3449:2005 Level II
Cab - ROPS
ISO 3471:2008
Steering
ISO 5010:2019
Specification
Value
Lock to Lock
4.75 seconds at 60 rpm
Specification
Value
Turning Dimensions - Aisle Width
220 in
Turning Dimensions - SAE Turning Radius
303 in
Turning Dimensions - Clearance Radius
330 in
Turning Dimensions - Inside Radius
156 in
Turning Dimensions - Steer Angle - Left/Right
45°
Note
Dimensions are for machines equipped with 29.5 R25 tires.
- Cat® Articulated Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match various size water tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
- Cat Articulated Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
- Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
- Cat Articulated Truck Bare Chassis are rugged and reliable platforms for specialty body applications.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling coal or waste, container trucks or hooklifts, cable reel trucks, and other applications.
- Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.

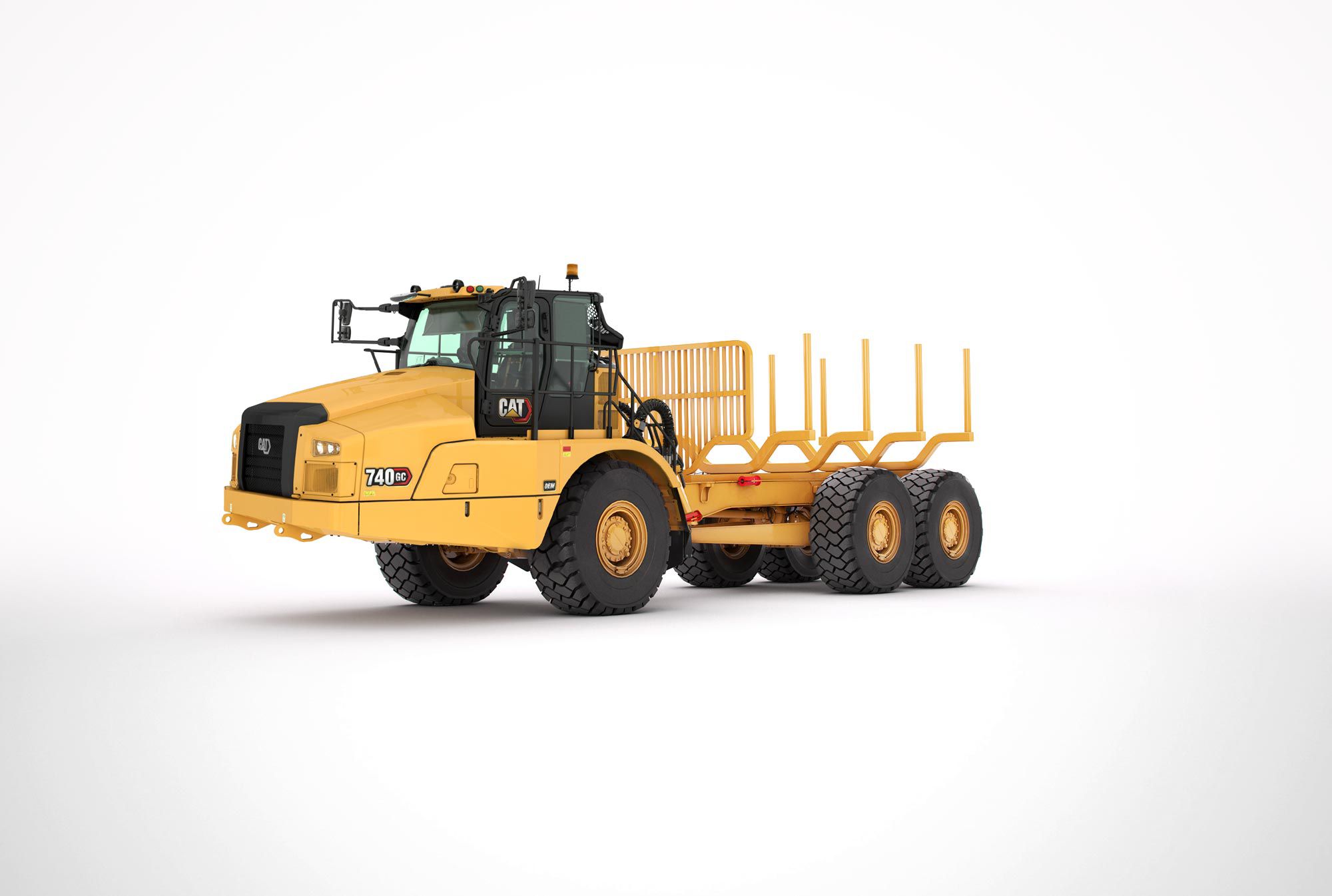

- Cat Articulated Truck Bare Chassis are rugged and reliable platforms for forestry applications.
- Using an articulated truck bare chassis provides a flexible solution that is ideal for hauling logs and other applications.
- Caterpillar works with OEMs worldwide to match various size service tanks with our bare chassis machines, all through your local Cat dealer, to provide the best solution for your business.
