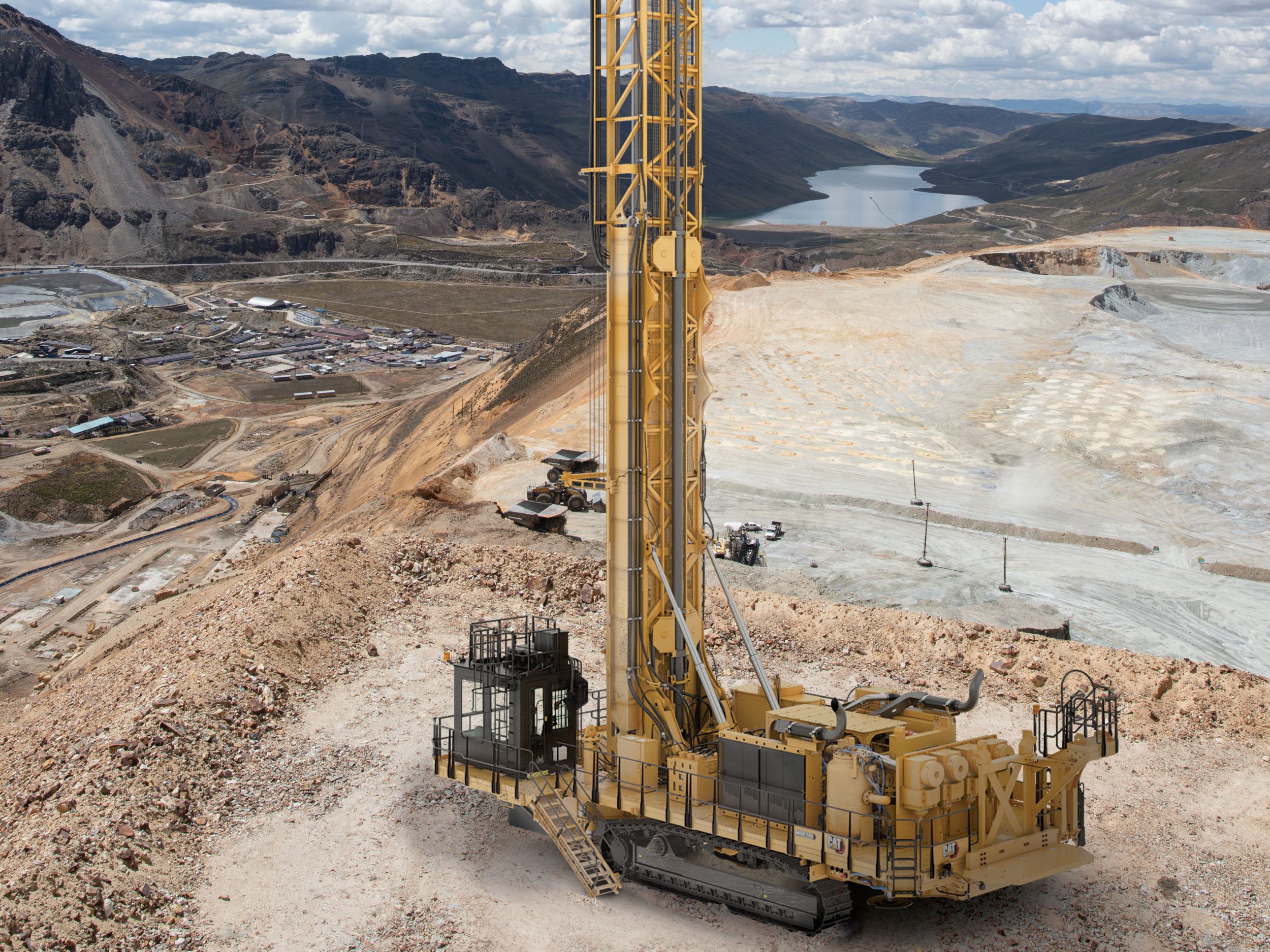

MD6380
MD6380 Rotary Blasthole Drill Specifications
Bit Load
Up to 53 845 kg (118,719 lb)
Hole Diameter
251-381 mm (9.875-15 in)
Engine
Cat® 3512C @ 1,800 rpm
DOWNLOAD TECHNICAL SPECIFICATIONS
REQUEST A QUOTE
COMPARE MODELS
Specifications
BENEFITS & FEATURES
MEDIA GALLERY
Specification
Value
Bit Load
Up to 53 845 kg (118,719 lb)
Hole Diameter
251-381 mm (9.875-15 in)
Engine
Cat® 3512C @ 1,800 rpm
Specification
Value
Power Rating (ISO 14396)
1273 HP
Emissions (1)
U.S. EPA Tier 2/EU Stage II equivalent
Power Rating (J1995)
1287 HP
Engine
Cat® 3512C @ 1,800 rpm
Specification
Value
Choice
Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE
Specification
Value
Features
Functional in ambient temperature of 52° C (125° F)
Specification
Value
Cat 374 EEL - Double Grousers for Hard Rock Applications
29.5 in
Cat 374 EEL - Drawbar Pull
723316 lbf
Cat 374 EEL - Double Grousers for Soft Rock Applications
35.4 in
Specification
Value
Components (1)
Two (2) primary pumps – 280 cc (piston with proportional electronic controls)
Components (2)
One (1) auxiliary circuit pump – 145 cc (piston, load sensing)
Components (3)
Two (2) fan pumps – 100 cc (piston with proportional electronic controls)
Components (4)
Two (2) charge pumps – 74 cc (fixed displacement)
Components (5)
Scheduled Oil Sampling (S·O·SSM) ports
Specification
Value
Note (1)
Vertical or angle drilling
Hole Diameter Range
251-381 mm (9.875-15 in)
Pull Down Capacity Up To
110000 lb
Bit Load Up To
118719 lb
Rotation Torque Up To
15400 lbf
Single Pass Hole Depth Down To
65 ft
Multi-Pass Hole Depth Down To
129 ft
Specification
Value
Accessory (1)
Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock
Accessory (2)
One hydraulic pipe catcher
Accessory (3)
Hydraulic pipe support in the upper section of the mast
Specification
Value
Feature
LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe
324 mm (12.75 in) diameter
– Single pipe rack
– Dust collector side only
– Single pass only
340 mm (13.375 in) diameter
– Single pipe rack
– Dust collector side only
– Single pass only
219 mm (8.625 in) diameter
– LH and RH, double pipe rack
– Capable of single and multi-pass
– Primary loader @ 29.68 m (97.4 ft)
– Secondary loader @ 39.59 m (129.9 ft)
273 mm (10.75 in) diameter
– LH and RH, double pipe rack
– Capable of single and multi-pass
– Primary loader @ 29.68 m (97.4 ft)
– Secondary loader @ 39.59 m (129.9 ft)
235 mm (9.25 in) diameter
– LH and RH, double pipe rack
– Capable of single and multi-pass
– Primary loader @ 29.68 m (97.4 ft)
– Secondary loader @ 39.59 m (129.9 ft)
Specification
Value
Variable Grip
– 219, 235, 273 mm (8.625, 9.25, 10.75 in)
– 324, 340 mm (12.75, 13.375 in)
Specification
Value
One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
– 219 mm (8.625 in)
– 235 mm (9.25 in)
– 273 mm (10.75 in)
– 324 mm (12.75 in)
– 340 mm (13.375 in)
Specification
Value
Shock absorber with top sub adapter - available in Standard or Premium
– 219 mm (8.625 in)
– 235 mm (9.25 in)
– 273 mm (10.75 in)
– 324 mm (12.75 in)
– 340 mm (13.375 in)
Specification
Value
Cab - Premium
– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass
– Additional storage plus windshield wipers on front and rear windows
– Removable driller window guard plus front window guard and trainer seat
Cab - Standard
– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat
Specification
Value
Service Package - Standard
– Fast fill fuel and water only
– Automated lubricant system
Service Package - Premium
– Service center for lubricant drain and fill
– Fast fill fuel and water
– Automated lubricant system
Specification
Value
Water Injection System
600 gal (US)
Water Injection System, High Volume Total Tank Capacity
1400 gal (US)
Water Injection System, High Volume Total Tank Capacity (Note 1)
2271 L (600 gal) below deck mounted tank
Water Injection System (Note 1)
Tank below deck
Water Injection/Dry Dust Collection
600 gal (US)
Water Injection System, High Volume Total Tank Capacity (Note 2)
3028 L (800 gal) above deck mounted tank
Water Injection System (Note 2)
Fast fill
Water Injection/Dry Dust Collection (Note 2)
Fast fill
Water Injection/Dry Dust Collection (Note 1)
Tank below deck
Water Injection/Dry Dust Collection (Note 3)
204 m³/min (7,200 ft³/min) dry dust collection
Water Injection System, High Volume Total Tank Capacity (Note 3)
Fast fill
Specification
Value
Note (2)
Six (6) each batteries, sealed
– Required for semi/full autonomy packages
Note (1)
Four (4) each batteries, sealed
Specification
Value
Climate Level 1 Standard Fluids and Lubricants (1)
– Temperature range of –1° C (30° F) to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants
– Temperatures down to –18° C (–0.4° F)
Specification
Value
Components (6)
Product Link™
Components (5)
Electric controls for drilling, tramming, leveling plus auxiliary functions
Type (1)
Radio-ready for communication and entertainment radio
Type (2)
Integrated Terrain for Drilling complete with wiring and harnesses
Components (1)
Single pass auto drill/drill assist
Components (2)
Multi pass auto drill/drill assist
Components (3)
Drill depth meter
Components (4)
Auto level, auto retract jacks, auto raise and lower mast
Specification
Value
Height mast up
87.6 ft
Height mast down
21.7 ft
Length mast down
92.9 ft
Note
*Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft)
Working Width (non-drill end)
19.9 ft
Working Width (drill end)
22.6 ft
Mast Only Shipping Length
82.8 ft
Working Length Mast Up*
48.1 ft
Specification
Value
Mast Only
88184 lb
Without Mast
225533 lb
Working Weight Range
142 300 kg (313,717 lb)
  • Ergonomic controls to help operators stay alert and avoid fatigue
  • Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
  • Excellent visibility, thanks to multiple cameras and full-length windows
  • Optional heated and ventilated seat for enhanced operator comfort
  • Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
  • Shared software for autonomous features
  • Backed by the world-class support of the Cat dealer network
  • Common electronic architecture across all Cat machines to ensure technician familiarity
  • Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
  • Serves as common platform for integrating future autonomy solutions
  • Product Link™ Elite provides real-time performance tracking
  • Variable air volume for reduced fuel consumption and powerful performance
  • C27 engine matched to largest “standard” compressor in this class for fast cycle times
  • Powertrain optimized to withstand rigorous drilling applications
  • High- and low-pressure configurations offer variable volume air control
  • Optimal feed force, rotary torque and air, helping to reduce fuel consumption
  • Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
  • Machine health and performance monitoring keep machine running productively
  • Drill depth meter helps reduce over- and under-drilling
  • Ready to connect with the Cat MineStar™ suite of technologies, including Terrain for drilling and Command for drilling
  • Four standard cameras give the operator excellent visibility: left, right and front view when tramming; carousel view when pipe handling; all three view simultaneously
  • Exterior lighting packages have spot and flood lights positioned to illuminate paths for ingress/egress and major service points
  • MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
  • Designed to use less fuel, which reduces engine emissions
  • Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
  • Longer maintenance intervals that decrease the amount of waste contributed to the environment.
