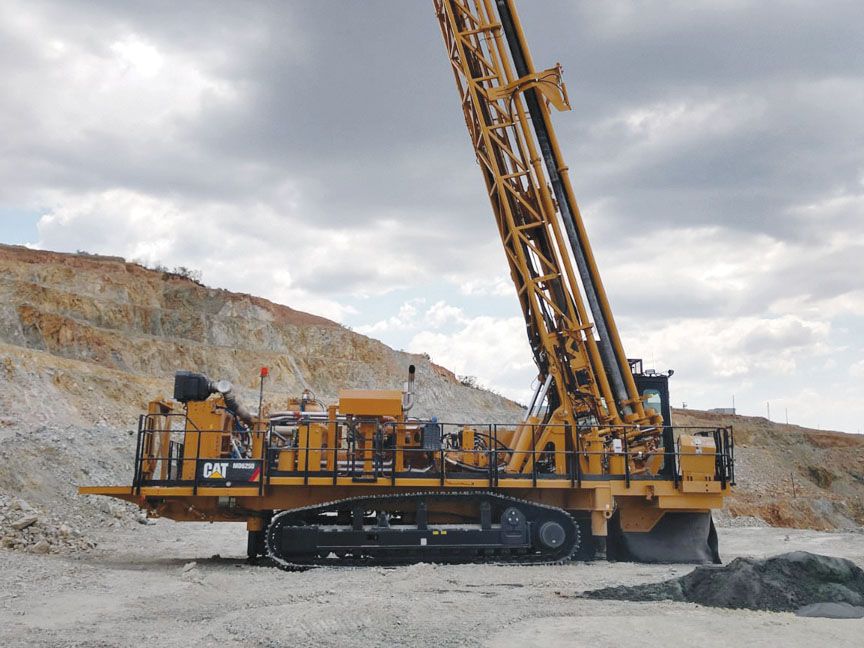

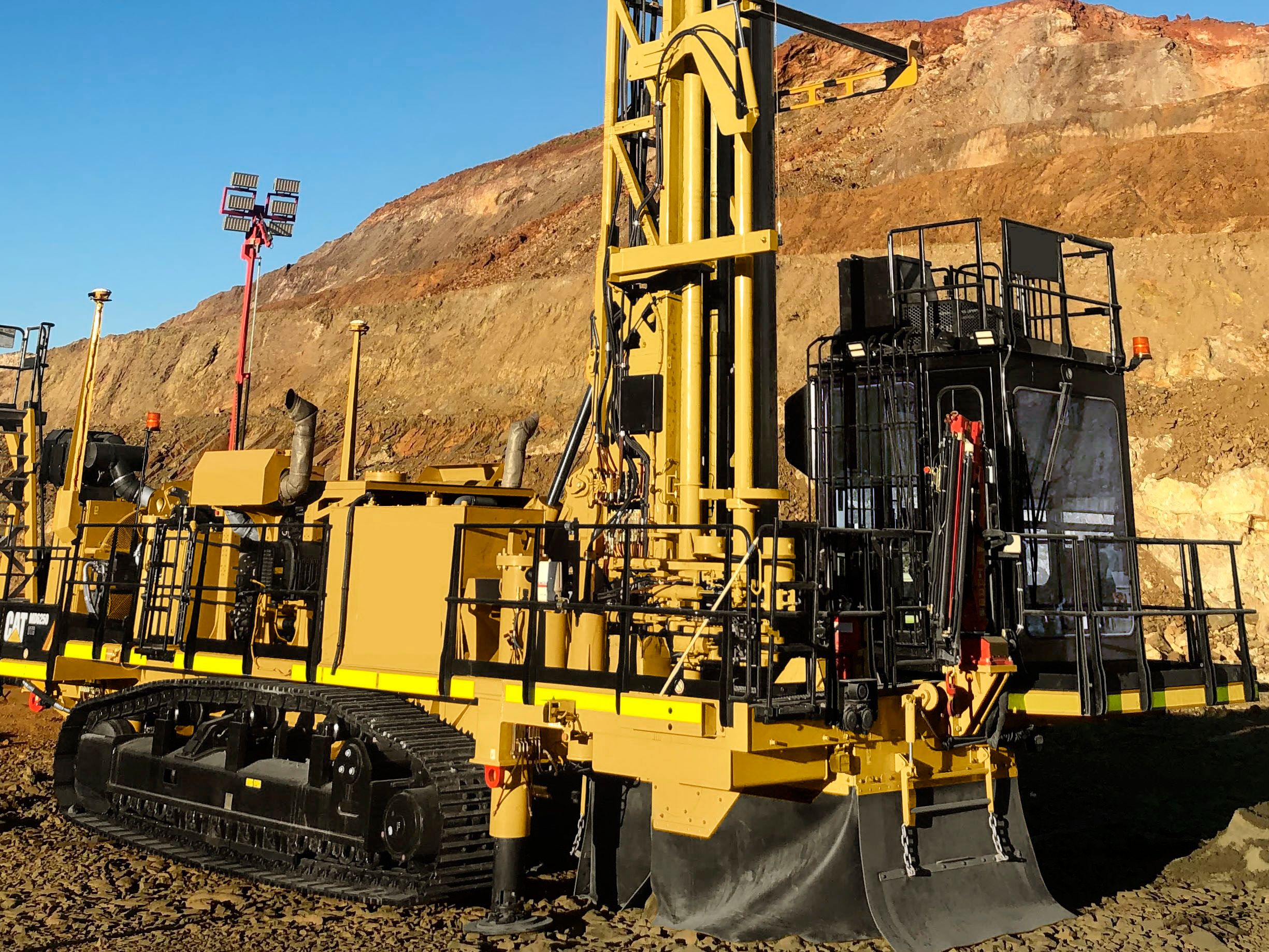

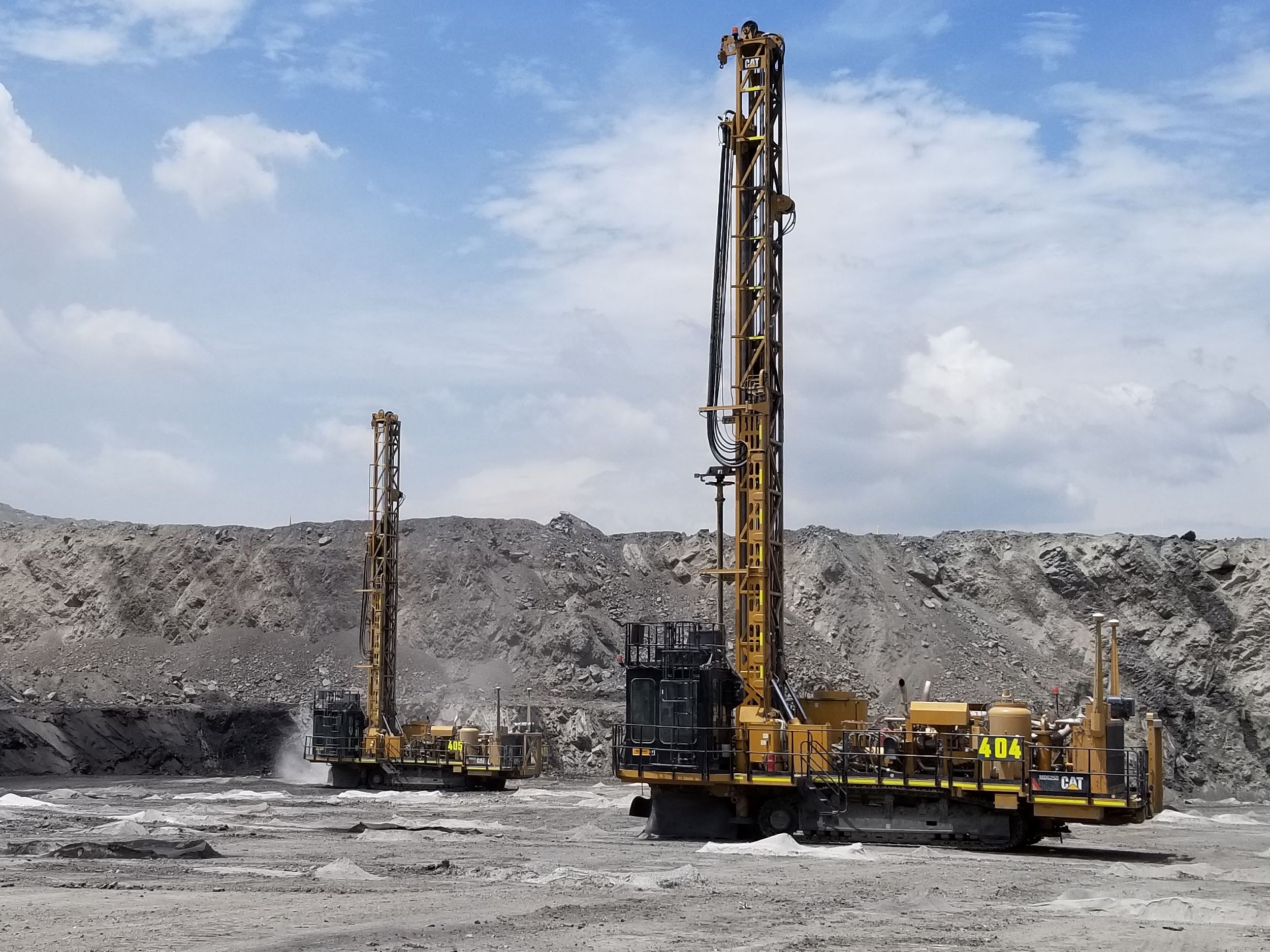

Specification
Value
Bit Load
Up to 32 655 kg (Up to 71,993 lb)
Hole Diameter
152-250 mm (6-9.875 in)
Engine
C27 @ 1,800 rpm
Specification
Value
Components (1)
Dual starter motors
Components (2)
Ether starting aid (ether bottle supplied locally)
Features
Scheduled Oil Sampling (S·O·SSM) ports
Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396
872 HP
Emissions: Equivalent to U.S. EPA Tier 4 Final - ISO 14396 (DIN)
884 mhp (PS)
Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396 (DIN)
838 mhp (PS)
Emissions: Equivalent to U.S. EPA Tier 2 - ISO 14396
826 HP
Emissions: Equivalent to U.S. EPA Tier 2 - Engine Power
C27 @ 1,800 rpm
Emissions: Equivalent to U.S. EPA Tier 4 Final - Engine Power
C27 @ 1,800 rpm
Specification
Value
Components (1)
Coolers with easy cleaning access
Components (2)
Separate engine cooling module
Components (3)
All cooler core sections are replaceable
Components (4)
Automatic variable speed fan control
Features
Functional in ambient temperature of 52° C (125° F)
Specification
Value
Climate Level 1 Standard Fluids and Lubricants (1)
Rated down to –1° C (30° F)
Climate Level 1 Standard Fluids and Lubricants (2)
Withstands high heat to 52° C (125° F)
Climate Level 2 Arctic Fluids and Lubricants
Rated down to –18° C (–0.4° F)
Climate Level 4 Arctic Fluids and Lubricants (1)
Rated down to –40° C (–40° F)
Climate Level 4 Arctic Fluids and Lubricants (2)
Diesel fired heating system that heats and circulates engine coolant through engine block, below deck water tank, heating elements for battery trays
Climate Level 4 Arctic Fluids and Lubricants (3)
Full Arctic lubricant package to include engine and hydraulic oil
Climate Level 4 Arctic Fluids and Lubricants (4)
Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, heat trace for hosing from water tank to water pump and water fast-fill assembly, plus primary tank
Climate Level 4 Arctic Fluids and Lubricants (5)
Shore power connection box with switchable 240-600V (50 amp) connection (diesel gen set and/or plug supplied locally). Box includes standard 50 hz battery charger, if 60 hz charger required, to be ordered via after market, refer to P-n 540-4271
Climate Level 4 Arctic fluids and lubricants (6)
Breaker panel includes five (5) additional breakers for locally supplied heating elements if needed
Batteries, Sealed (1)
Quantity: Four (4)
Batteries, Sealed (2)
Quantity: Six (6) (required for cold weather Level 2 and 4 and/or semi autonomy packages)
Specification
Value
Features (1)
Leveling Jacks, A-frame/mast pivot and drill deck are welded integrally to mainframe for maximum durability and long life
Features (2)
Primary fuel tank capacity 1416 L (374 gal)
Features (3)
Fuel capacity expansion for additional 1416 L (374 gal) optional for total capacity of 2832 L (748 gal); (required for autonomy packages)
Features (4)
Three (3) egress points on deck areas in addition to main access
Components (1)
Stationary drill deck; for vertical and angle drilling
Components (2)
Four leveling jacks provide leveling on a 7° bench (any orientation)
Components (3)
Heavy duty tow hooks (front end)
Components (4)
Four (4) lift lugs, for use with cables or chains
Components (5)
Fixed access stairs to the cab area
Components (6)
Sturdy guardrails with toe guards, self-closing gates
Specification
Value
Model
Cat® 336E EL Excavator type
Carrier Rollers
Three (3)
Track chain guards and guides
Level two
Drawbar Pull
93745 lbf
Triple Grousers (1)
600 mm (23.6 in); for hard rock; 0.88 bar (12.7 psi) ground bearing pressure
Triple Grousers (2)
750 mm (29.5 in); for soft rock; 1.10 bar (15.9 psi) ground bearing pressure
Lower rollers
Twelve (12)
Travel Speed
1.5 mile/h
Specification
Value
Components (1)
Two (2) primary pumps – 145 cc (piston, with proportional electronic controls)
Components (2)
One (1) auxiliary circuit pump – 110 cc (piston, load sensing)
Components (3)
Two (2) fan pumps – 74 cc (piston, with proportional electronic controls)
Components (4)
Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement)
Components (5)
Scheduled Oil Sampling (S·O·S) ports
Specification
Value
Width Non-Cab End
15.9 ft
Width Cab End
18.45 ft
Note
Width and length dimensions include: cascading stairs and walk-around access for cab.
Mast Only Shipping Length
61.4 ft
Height - Mast Up
61.13 ft
Body Length
38.41 ft
Length - Mast Down
66.17 ft
Height - Mast Down
16.84 ft
Specification
Value
Variable Grip Hydraulic Break Out Wrench Grip Ranges (1)
114-152 mm (4.5-6.0 in)
Variable Grip Hydraulic Break Out Wrench Grip Ranges (2)
152-216 mm (6.0-8.5 in)
Specification
Value
Components (7)
Pipe wiper seal
Components (8)
Drill tool lubricator is included with selection of DTH Compressor
Components (1)
Two-piece roller deck bushing
Components (2)
Pipe positioner rollers
Components (3)
Deck wrench
Components (4)
Shock sub
Components (5)
Top Sub
Components (6)
Hammer Sub
Specification
Value
Feature
Approach angle of 15 degrees facilitates loading and unloading on a lowboy
Components (13)
Lifting lugs
Components (1)
Alloy drill deck covers, for servicing when mast is horizontal
Components (2)
Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck
Components (3)
Over forty (40) conditional safety interlocks
Components (4)
Hinged window guard over the full length of the front drill window
Components (5)
Three (3) egress points on deck areas in addition to main access
Components (6)
Self-closing gates secure egress ladder locations
Components (7)
Electric horn activated by push button in the cab
Components (8)
Automatic tram alarm, audible
Components (9)
Under deck mounted battery box with keyed battery disconnect/starter disconnect/remote jump start terminals
Components (10)
Compressor air hoses with safety retention cables
Components (11)
Slip resistant surfaces
Components (12)
Tow hooks on non-drill-end
Specification
Value
Cab - Premium
– Additional storage
– Leather seat with heat and ventilation
– Heavy duty seat suspension
– Dual pane window glass
– Removable guard for driller window, plus window facing power train
– Wipers for the driller window plus front and rear windows
– Leather seat with heat and ventilation
– Heavy duty seat suspension
– Dual pane window glass
– Removable guard for driller window, plus window facing power train
– Wipers for the driller window plus front and rear windows
Cab - Standard
– Fabric seat
– Single pane window glass
– Removable guard for driller window
– Wiper for the driller window
– Single pane window glass
– Removable guard for driller window
– Wiper for the driller window
Cab Design
– Spacious FOPS cab is 3 m² (32.3 ft²) with an integrated operator station
– Cab rubber shock-mounts
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing-out doors and Cat keyed locks
– Literature holder
– Removable floor mat
– Cab rubber shock-mounts
– Operator station design integrates an ergonomic seat, joystick controls with full instrumentation, and dual 254 mm (10 in) color displays, high definition touchscreen and 12-volt power port
– Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
– Three (3) cc cameras (front and left side) providing 360° vision coverage from operators seat; camera in the mast to view pipe rack carousel/top drive operation
– Power convertor 24V to 12V
– Radio-ready for communication and entertainment stereo
– Two swing-out doors and Cat keyed locks
– Literature holder
– Removable floor mat
Seating
– Seat swivels, locks and retractable, two-point/76 mm (3 in) wide seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in)
Windows
– Large windows front, rear and right cab side; full length drill window with guard
– Windshield wipers with a common washer tank
– Windshield wipers with a common washer tank
Lighting
– LED interior lights and map light at operators seat, backlit joysticks and keypads
– Flood lights for the drill perimeter
– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways
– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon
– Flood lights for the drill perimeter
– Spotlights for power group area; drill deck; mast carousel; access ladder and walkways
– Lighting package includes 4,200 lumens flood light on perimeter, mast clearance lights, cab mounted strobe, front mounted tram beacon
HVAC
– Floor heating vent
– Roof-mounted air conditioner/heating/pressurizing unit
– Filter access from deck
– Defogging HVAC vents on main window
– Roof-mounted air conditioner/heating/pressurizing unit
– Filter access from deck
– Defogging HVAC vents on main window
Specification
Value
Components (22)
Prewired for Terrain and autonomous operation
Components (23)
Drill Assist automated functionality:
– Auto level, auto jack retract
– Auto mast raise and lock, auto mast unlock and park
– Auto level, auto jack retract
– Auto mast raise and lock, auto mast unlock and park
Components (1)
All electric controls for drilling, tramming, leveling plus auxiliary functions
Components (2)
Electronic compressor control
Components (3)
Rotary torque control
Components (4)
Virtual rotary head travel stops and interlocks
Components (5)
Pipe positioner engaged/disengaged indicator
Components (6)
Drill depth meter
Components (7)
Drill performance and drill health display system
Components (8)
Data logging of machine health with warnings and fault code records with export capability
Components (9)
Delayed engine shut down
Components (10)
Rotary head rpm gauge (digital display in screen)
Components (11)
Filter indicators for hydraulic, fuel, compressor and engine
Components (12)
Jack pressure sensors in display
Components (13)
Dust suppression control
Components (14)
Mast lock indicator
Components (15)
ECM proportional fan speed control system
Components (16)
Tram interlock, machine stability limits
Components (17)
Tram interlock, pipe in hole
Components (18)
Tram interlock, mast up and locked or down and parked
Components (19)
Tram interlock, jack retracted
Components (20)
Tram interlock, winch parked
Components (21)
Cab environment controls (AC, filter, heat, fan speeds)
Specification
Value
Width Non-Cab End
15.9 ft
Width Cab End
18.45 ft
Note
Width and length dimensions include: cascading stairs and walk-around access for cab.
Mast Only Shipping Length
53.5 ft
Height - Mast Up
56.3 ft
Body Length
38.41 ft
Length - Mast Down
58.3 ft
Height - Mast Down
16.84 ft
Specification
Value
Receiver Tank Choice (1)
Low pressure 8.6 bar (125 psi) for ASME/CRN/AU or CE
Receiver Tank Choice (2)
High pressure 24.1 or 34.4 bar (350 or 500 psi) for ASME/CRN/AU or CE
Compressor - Rotary Drilling
56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi)
Compressor - DTH Drilling (1)
38.2 m³/min (1,350 ft³/min) @ 34.4 bar (500 psi)
Compressor - DTH Drilling (2)
42.4 m³/min (1,500 ft³/min) @ 24.1 bar (350 psi)
Features (1)
With the compressor’s variable volume control, the operator can limit air output resulting in reduced fuel consumption
Features (2)
Electronic compressor control and regulation
Features (3)
DTH selection includes tool oiler
Specification
Value
Angle Drilling
Included with either mast
Mast Accessories Manual - 11.2 m (36.7 ft) or 13.6 m (44.6 ft) Mast
One (1) wire rope pipe catcher, manual bit basket
Mast Accessories Hydraulic - 11.2 m (36.7 ft) Mast
One (1) hydraulically actuated pipe catcher, hydraulically operated bit basket
Mast Accessories Hydraulic - 13.6 m (44.6 ft) Mast
One (1) hydraulically actuated pipe catcher, plus one (1) wire rope pipe catcher, hydraulically operated bit basket
Specification
Value
Lifting Bails (Available on Request)
– API thread 89 mm (3.5 in) – to lift corresponding drill tools (6.75 in tricone bits or 6-inch class DTH hammers)
– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)
– API thread 140 mm (5.5 in) – to lift shock sub adapter
– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)
– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)
– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD)
– API thread 114 mm (4.5 in) – to lift corresponding drill tooling (7.875 and 9.0 in tricone bits or 8-inch class DTH hammers)
– API thread 140 mm (5.5 in) – to lift shock sub adapter
– BECO thread 102 mm (4.0 in) – to lift corresponding drill pipe (5.5 in OD)
– BECO thread 114 mm (4.5 in) – to lift corresponding drill pipe (6.0, 6.5, 6.625 and 7.0 in OD)
– BECO thread 152 mm (6.0 in) – to lift corresponding drill pipe (7.625 in OD)
Specification
Value
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 4
6.5 in
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 1
5 in
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 6
7.625 in
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 1
5 in
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 3
6 in
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 6
7.625 in
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 4
6.5 in
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 3
6 in
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 2
5.5 in
10.6 m (35 ft) Pipes for 11.2 m (36.7 ft) Mast - holds quantity of four (4) - Option 5
7 in
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 2
5.5 in
6.1 m (20 ft) Pipes for 13.6 m (44.6 ft) Mast - holds quantity of four (4) - Option 5
7 in
Specification
Value
Pipe rack carousel, standard:
– 11.2 m (36.7 ft) Mast: holds quantity of four (4) 10.6 m (35 ft) pipes
– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes
– 13.6 m (44.6 ft) Mast: holds quantity of four (4) 6.1 m (20 ft) pipes
Specification
Value
Features (7)
Sliding deck wrench assembly
13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Single-Pass Depth
44.6 ft
Features (5)
Auto tensioning of pull down and hoist cables
11.2 m (36.7 ft) Mast - Hoist Speed
2.65 ft/s
Features (3)
Drill strings configured for bit changes (above the deck)
Features (1)
Mast configurations complete with pipe rack carousel and angle drilling package (vertical, out to 30 degrees in 5-degree increments)
Features (8)
Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH
Features (10)
Drill pipe positioner
Features (11)
Rotation gear box with single motor up to 160 rpm, up to 11 700 N∙m (8,629 lbf-ft) torque
Features (9)
Closed circuit camera in mast is used to view pipe rack carousel/top drive operation while racking pipes
Features (6)
Variable grip hydraulic break out wrench for range of pipe diameters
11.2 m (36.7 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth
Down to 53.9 m (Down to 176.7 ft)
Features (4)
Single Hydraulic Cylinder and cable system for pulldown/hoist
Features (2)
Hydraulically actuated, self-indexing pipe rack carousel accepts pipe diameters from 127 mm (5.0 in) to 194 mm (7.625 in)
13.6 m (44.6 ft) Mast - Hole Diameter Range: 152-250 mm (6-9.875 in) - Multi-Pass Depth
Down to 37.9 m (Down to 124.6 ft)
13.6 m (44.6 ft) Mast - Hoist Speed
2.16 ft/s
11.2 m (36.7 ft) Mast - Bit Load (single pass)
Up to 22 321 kg (Up to 49,210 lb)
11.2 m (36.7 ft) Mast - Pull-Down Capacity
Up to 20 411 kg (Up to 45,000 lb)
13.6 m (44.6 ft) Mast - Bit Load (single pass)
Up to 32 655 kg (Up to 71,993 lb)
13.6 m (44.6 ft) Mast - Pull-Down Capacity
Up to 29 483 kg (Up to 65,000 lb)
13.6 m (44.6 ft) Mast - Hoist Capacity
Up to 16 584 kg (Up to 36,563 lb)
11.2 m (36.7 ft) Mast - Hoist Capacity
Up to 15 309 kg (Up to 33,750 lb)
Specification
Value
Components (1)
One-piece roller deck bushing
Components (2)
Pipe positioner rollers
Components (3)
Deck wrench
Components (4)
Top sub
Components (5)
Bit sub
Components (6)
Pipe wiper seal
Specification
Value
Torque - Single Motor
8629 lb/ft
Rotation Speed
0-160 rpm
Components (1)
Spindle – 140 mm (5.5 in) API regular thread with splined collar
Components (2)
Rotary torque control
Components (3)
Virtual rotary head travel interlocks
Specification
Value
Type (1)
Cat Terrain ready
Type (2)
Autonomy ready
Components (1)
Drill depth indicator
Components (2)
Product Link™ Elite (hardware from factory, subscription package via dealer)
Specification
Value
Choices (1)
Water injection – tank mounted below front deck 1271 L (336 gal)
– Water flow meter, volume control, tank fill level indicator
– Water flow meter, volume control, tank fill level indicator
Choices (2)
Water injection plus dry dust collector 127 m³/min (4,500 ft³/min) dust collector; includes standard water injection
– Self-cleaning filters, dust chute with ejector
– Self-cleaning filters, dust chute with ejector
Choices (3)
High volume water injection (maximum) – tanks total capacity 2786 L (736 gal)
– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
– Tank above deck capacity 1514 L (400 gal)
– Tank below deck (isolated for extreme cold weather) capacity 1271 L (336 gal)
– Tank above deck capacity 1514 L (400 gal)
Choices (4)
Static dust curtains, four sided/boxed enclosed
Specification
Value
Package (1)
Fast fill for fuel and water, automated lubrication system
Package (2)
Service center for lubricant drain and fill, automated lubrication system, fast fill fuel and water, blow down hose (option)
Specification
Value
Working Weight Range
56 468 kg to 64 154 kg (124,490 lb to 141,436 lb)
- Ergonomic controls to help operators stay alert and avoid fatigue
- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
- Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
- Shared software for autonomous features
- Backed by the world-class support of the Cat dealer network
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serve as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
- Volumetric air flow control enables operator to reduce air flow by up to 50% to match a specific drilling tool and application
- C27 engine matched to largest “standard” compressor in this class for fast cycle times
- Powertrain optimized to withstand rigorous drilling applications
- High - and low -pressure configurations offer variable volume air control
- Optimal feed force, rotary torque and air, helping to reduce fuel consumption
- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over- and under-drilling
- Ready to connect with the Cat MineStar suite of technologies, including Terrain for drilling and Command for drilling
- Excellent visibility, thanks to multiple cameras and full-length windows
- MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
- Seven engine shut-down buttons and more than 40 conditional safety interlocks
- Slip-resistant surfaces for safer ingress/egress and service
- LED interior lights and backlit joysticks and keypads; exterior spot and flood lights illuminate paths for ingress/egress and major service points
- Large water and fuel tanks reduce time spent refilling
- Grouped service-access points, neat hose-runs and wiring reduce maintenance time
- Cat MineStar Health offerings enable onboard health and performance monitoring
- Extended service intervals minimize maintenance downtime
- Designed to use less fuel, which reduces engine emissions
- Tier 4 Final engines reduce NOx and particulate matter
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
- Longer maintenance intervals that decrease the amount of waste contributed to the environment
