AD45

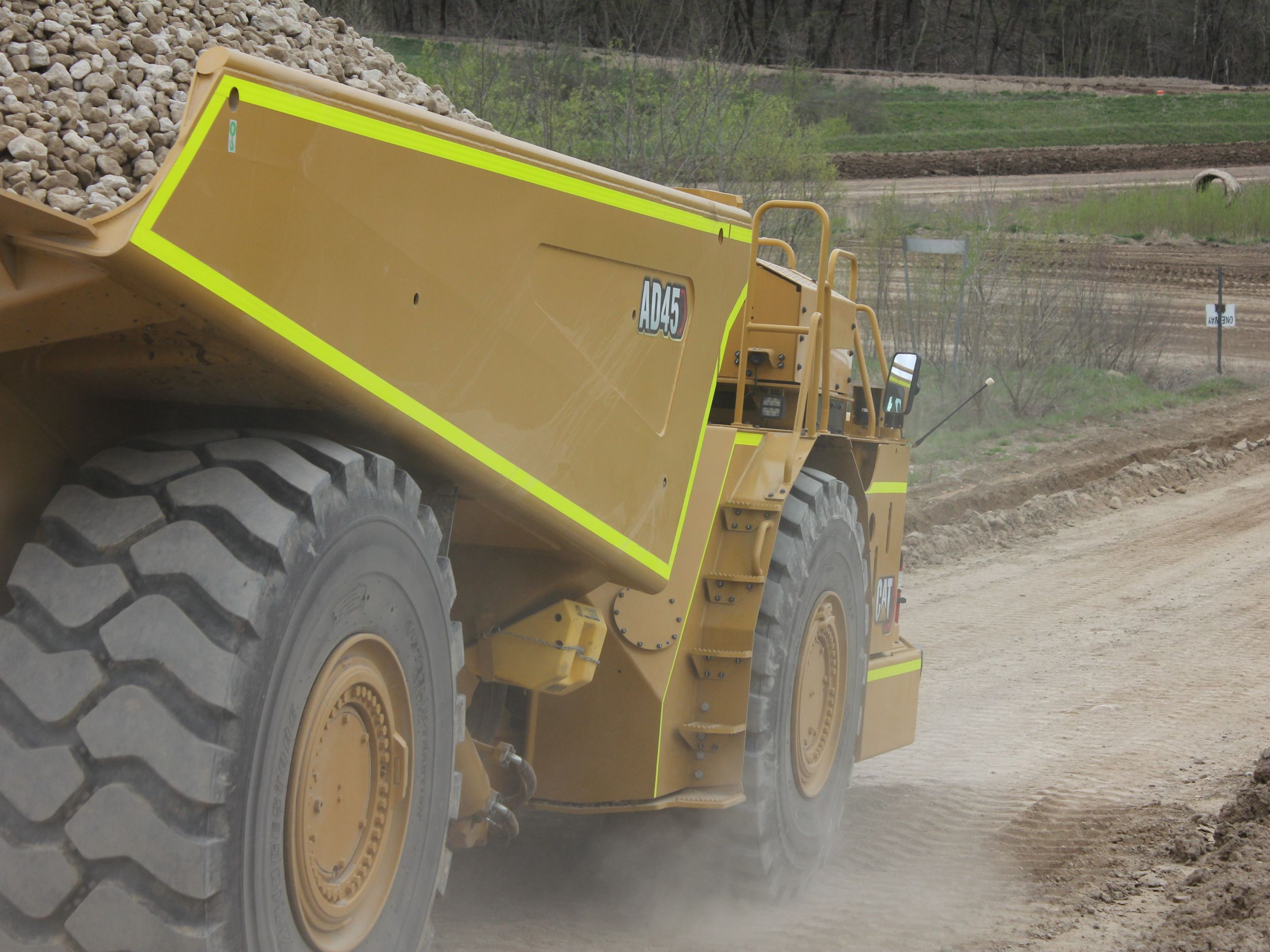

The Cat® AD45 Underground Truck delivers all the power, performance and reliability you expect from the AD45 — but the latest model also offers an an advanced EU Stage V compliant engine and aftertreatment solution that meets the strictest emissions standards, lowers your carbon footprint and improves air quality in your mine. In addition, a retrofit solution is available that allows you to retrofit the previous model, the AD45B, to meet the same strict standards. This ultra-clean diesel machine delivers superior productivity thanks to its ideal match with the next generation Cat R1700 underground loader and is technology-enhanced with features that improve productivity, boost uptime and keep operators and personnel safer on the job.
Engine Model
Cat® C18
Engine Power - EU Stage V Engine - ISO 14396:2002
598 HP
Engine Power - Tier 3 Engine - ISO 14396:2002
581 HP
Specification
Value
Engine Model
Cat® C18
Engine Power - EU Stage V Engine - ISO 14396:2002
598 HP
Engine Power - Tier 3 Engine - ISO 14396:2002
581 HP
Engine Power - VR Engine - ISO 14396:2002
581 HP
Bore
5.7 in
Stroke
7.2 in
Displacement
1104.53 in³
Note (1)
Power ratings apply at a rated speed of 2,000 rpm when tested under the reference conditions for the specified standard.
Note (2)
All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F).
Note (3)
Minimal engine derating* required up to 3048 m (10,000 ft) @ rated speed for Stage V engines, 2700 m (8,858 ft) for Tier 3/Stage IIIA equivalent engines and 3505 m (11,500 ft) for Tier 2/Stage II equivalent VR engines.
Note (4)
Optional Ventilation Reduction Package available.
Note (5)
Optional engine with emissions equivalent to Tier 3 and Stage IIIA is also available.
Note (6)
Optional engine available that meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (7)
*<5 %
Specification
Value
Nominal Payload Capacity
99208 lb
Gross Machine Mass
196765 lb
Shipping Mass (Stage V Engine Model)
96225 lb
Shipping Mass (Other Engine Models)
94415 lb
Body Capacities
18.0-25.1 m³ (23.5-32.8 yd³)
Specification
Value
Operating Mass
91285 lb
Operating Mass - Front Axle
64565 lb
Operating Mass - Rear Axle
26720 lb
Operating Mass + Rated Payload
190495 lb
Operating Mass + Rated Payload - Front Axle
89235 lb
Operating Mass + Rated Payload - Rear Axle
101260 lb
Specification
Value
Operating Mass
88320 lb
Operating Mass - Front Axle
61225 lb
Operating Mass - Rear Axle
27095 lb
Operating Mass + Rated Payload
187530 lb
Operating Mass + Rated Payload - Front Axle
85355 lb
Operating Mass + Rated Payload - Rear Axle
102175 lb
Specification
Value
Empty - Front Axle
70.7%
Empty - Rear Axle
29.3%
Loaded - Front Axle
46.8%
Loaded - Rear Axle
53.2%
Specification
Value
Empty - Front Axle
69.3%
Empty - Rear Axle
30.7%
Loaded - Front Axle
45.5%
Loaded - Rear Axle
54.5%
Specification
Value
Forward - 1
4.4 mile/h
Forward - 2
5.9 mile/h
Forward - 3
8 mile/h
Forward - 4
10.8 mile/h
Forward - 5
14.6 mile/h
Forward - 6
19.7 mile/h
Forward - 7
26.4 mile/h
Reverse - 1
4.2 mile/h
Reverse - 2
5.6 mile/h
Note
Maximum travel speeds with standard 29.5 × R29 tires.
Specification
Value
Differential Ratio
3.46:1
Final Drive Ratio
5.65:1
Total Reduction Ratio
19.55:1
Specification
Value
Raise
15 Seconds
Lower
21 Seconds
Total Cycle Time
36 Seconds
Specification
Value
Raise
14 Seconds
Lower
21 Seconds
Total Cycle Time
35 Seconds
Specification
Value
Dump Body - 1
23.6 yd³
Dump Body - 2 - Standard
27.9 yd³
Dump Body - 3
32.8 yd³
Ejector Body
29.9 yd³
Note
Heaped SAE 2:1.
Specification
Value
Outside Clearance Radius*
371 in
Inside Clearance Radius*
209 in
Frame Oscillation
10°
Articulation Angle
42.5°
Note
*Clearance dimensions are for reference only.
Specification
Value
Engine Crankcase - With Filter
16.9 gal (US)
Transmission
15.9 gal (US)
Hydraulic Tank
70.3 gal (US)
Cooling System
22.5 gal (US)
Front Differential and Final Drives
20.3 gal (US)
Rear Differential and Final Drives
21.9 gal (US)
Fuel Tank
201.8 gal (US)
Specification
Value
Tire Size
29.5 × R29
Specification
Value
Standards
ROPS/FOPS Certified Cab
- Standard Operator Present System, which protects the machine and operator from uncontrolled machine movements, with hydraulic system neutralization and door sensor.
- Optional reverse and cab loading cameras, plus additional camera mounted on the right-hand side to enhance visibility for the EU Stage V model.
- Safer access and egress with anti-skid upper deck surfaces, upper deck handrails and 3-point cabin and machine access.
- Four corner oil-cooled braking system that provides excellent control, with service brake system actuated by hydraulic pressure and parking brake function that is spring applied and hydraulic released to ensure braking in the event of loss of hydraulic failure.
- Safer service with service with steering frame lock, body retaining pins, exhaust heat shielding and firewall fitted, hitch hydraulic hoses fitted with burst protection sleeves, tailgate retaining pins (ejector body), and hot and cold side of engine.
- Controls, levers, switches and gauges positioned to maximize productivity and minimize fatigue.
- Optional sound-suppressed ROPS cab for a quiet, secure and comfortable air-conditioned working environment with fresh, pressurized, temperature-controlled air circulation.
- Ergonomic, fully adjustable suspension seat with thick cushions that reduce pressure on lower back and thighs and wide, retractable seat belts that provide a secure, comfortable restraint.
- Comfort wheel with tilt steering that provides a comfortable driving position, secure grip and greater control.
- Rollover Protective Structure (ROPS) and Falling Objects Protective Structure (FOPS) resiliently mounted to the mainframe to isolate the operator from vibration for a more comfortable ride.
- Truck Payload Measurement System, which automatically records load cycle information when the load is dumped, giving operators real-time loading data and sorting it for download.
- Automatic Retarder Control (ARC) electronically controls retarding on grade, allowing the operator to maintain optimum engine speeds for faster downhill hauls and greater productivity.
- Single-stage hoist cylinders that provide fast dump cycle times of 16 seconds for raise and 21 seconds for lower.
- Cat C18 engine, which provides efficient fuel management for quick response, high productivity and exceptional service life.
- Torque rise that effectively matches transmission shift points for maximum efficiency and fast cycle times.
- Lockup Torque Converter combines maximum rimpull while in torque converter drive with the efficiency and performance of direct drive when the lockup clutch is engaged.
- Mechanically Actuated, Electronic Unit Injection (MEUI™) high-pressure, direct injection fuel system, which electronically monitors operator demands and sensor inputs to optimize engine performance and fuel combustion.
- Cat seven-speed planetary power shift transmission matched with the direct-injection Cat C18 engine to deliver constant power over a wide range of operating speeds.
- Cat truck bodies designed for optimal strength, capacity and durability.
- Designed and matched with the integrated chassis system for optimum structural reliability, durability and long life.
- Two Cat body styles, dump body and ejector body, for the most efficient hauling solution at the lowest cost per ton.
- Greater versatility with ejector body that can be easily removed and a dump body fitted.
- Box-section frame design with stiff frame beams to resist twisting forces; weld joint and materials matched to optimize structural life.
- Full floating axles that relieve internal stresses and increase durability, plus rolled splines that provide increased service life.
- Two independent variable rebound suspension cylinders that dissipate haul road forces for longer frame life and a comfortable ride.
- Proven planetary power shift transmission built for long life between overhauls.
- Frame, powertrain, engine and components that are built to be rebuilt, delivering second and third lives.
- Ground-level access to all tanks, filters, lubrication points and compartment drains; remote mounted fuel filters for easier serviceability; and fluid-level sight gauges.
- Radial seal air filters that are easy to change, reducing time required for air filter maintenance.
- Electrical connectors that are sealed to lock out dust and moisture, harnesses that are covered for protection, and wires that are color- and number-coded for easy diagnosis and repair.
- Cat Electronic Technician (ET), which enables quick electronic diagnosis of machine performance and key diagnostic data for effective maintenance and repairs.
- Cat Electronic Monitoring System (EMS), which provides continuous access to critical machine data to keep the machine performing at a high level.
- Smoother shifts and longer component life with Controlled Throttle Shifting, which regulates engine RPM, torque converter lock-up and transmission clutch engagement.
- Reduced fuel consumption, decreased noise levels and potential for longer engine life with Economy Shift Mode.
- Machine damage prevented by directional shift management, which regulates engine speed to avoid high-speed directional changes; and body-up shift inhibitor, which prevents the transmission from shifting above a pre-programmed gear without the body fully lowered.
- Overspeed protection provided by Automatic Retarder Control, which engages the brakes if an unsafe engine speed is reached when the throttle is being depressed by the operator.
- Engine with EU Stage V emissions package for mines that require compliance with highest emission standards to drive down diesel particulate matter and NOx emission to near-zero while improving overall air quality and maintaining a high machine performance; also available with EU Stage IIIA /U.S. EPA Tier 3 engine.
- Optional Ventilation Reduction (VR) Package, which incorporates selective engine hardware and software to reduce diesel particulate matter in the engine exhaust and deliver a significant ventilation rate reduction, a decrease in fuel consumption, and maintained or improved product performance.
- Cat Diesel Particulate Filter, which complements the VR engine by further reducing particulate matter in the exhaust.
- Ongoing research and development into engine compatibility with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels, plus power options like electrification.
- Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions, plus retrofits and upgrades for older machines to incorporate efficiency improvements and emission reductions.
