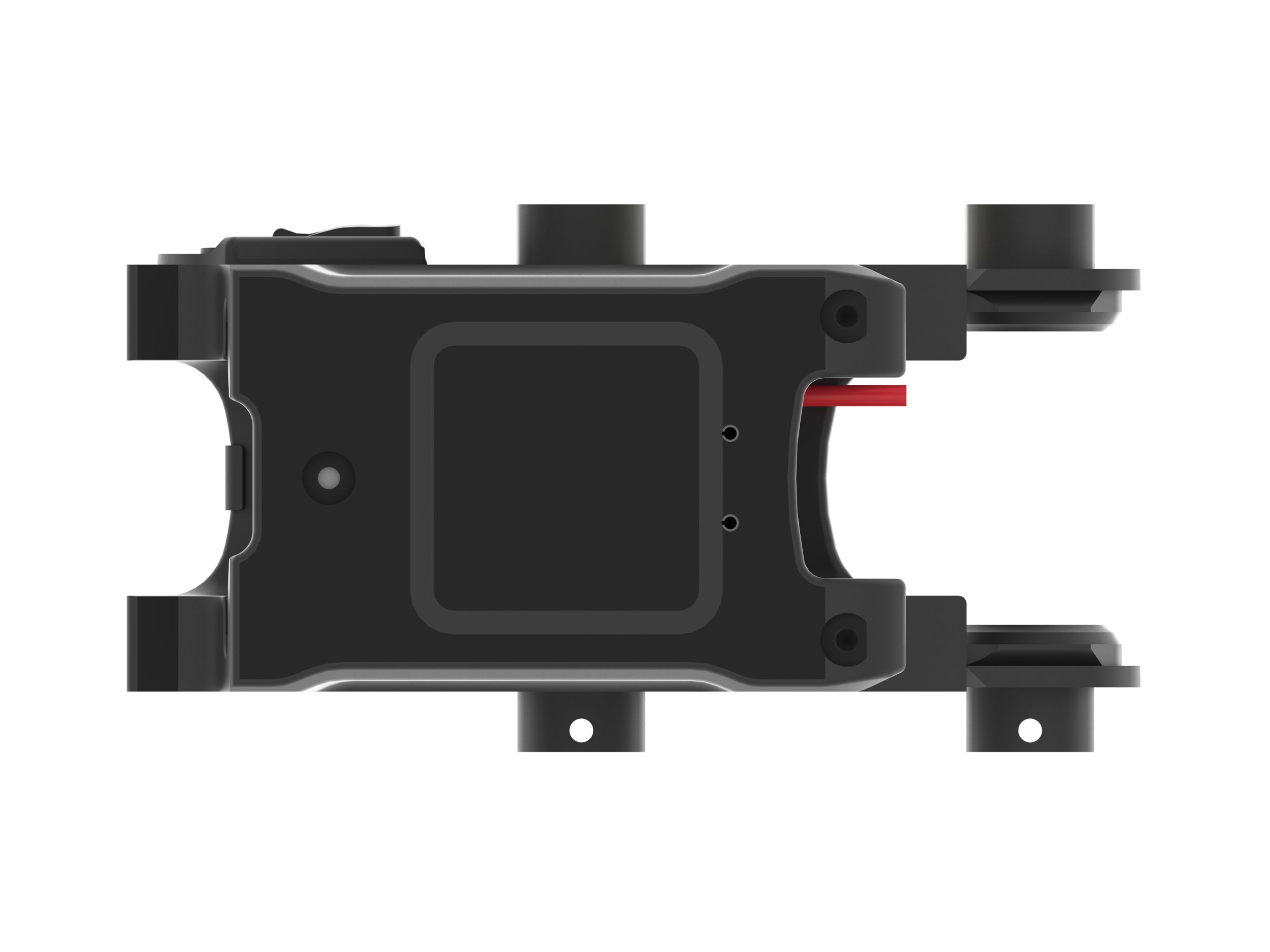

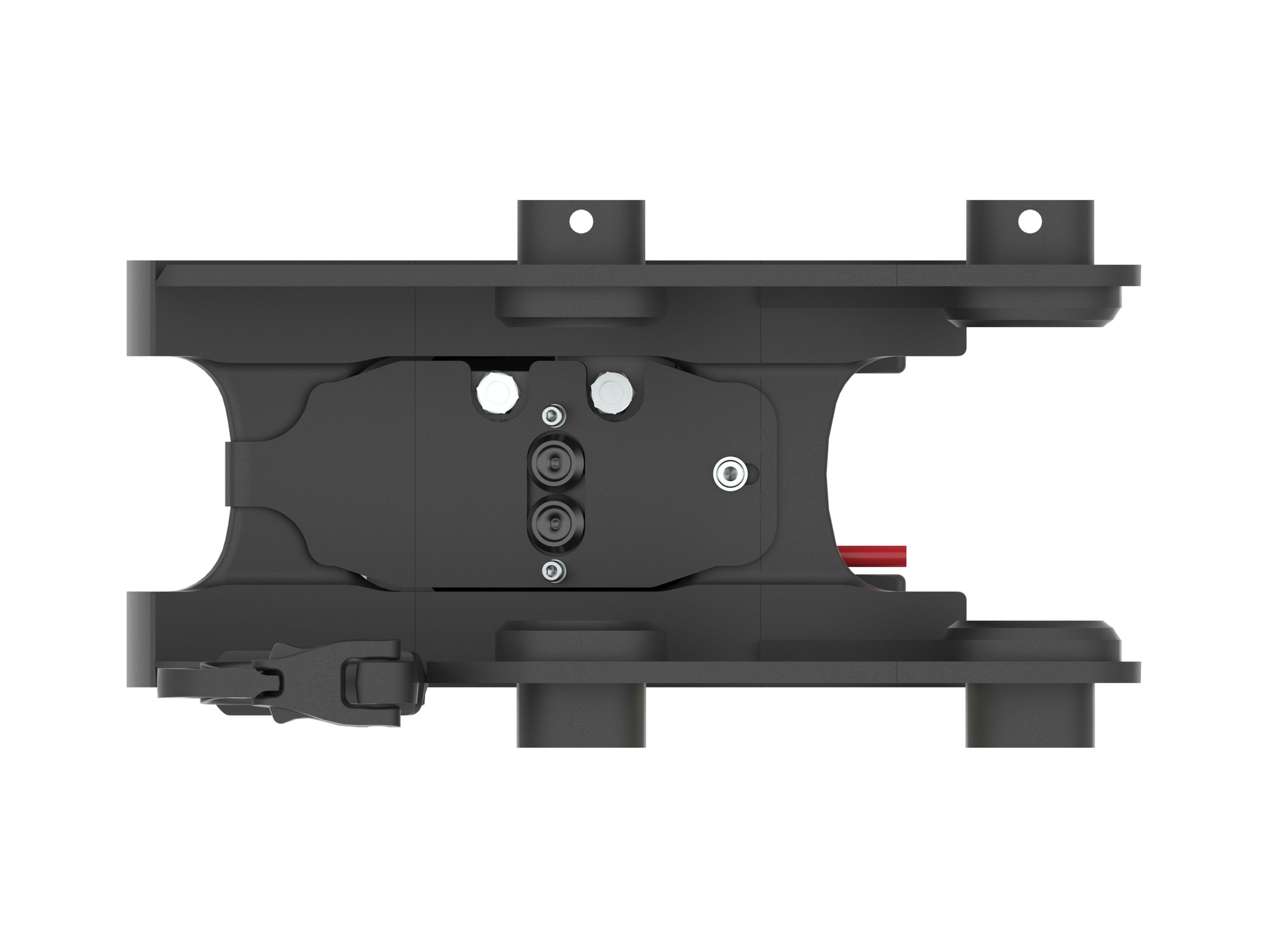

S-40 Pin Grabber 3 Ton
Cat® S Type Couplers for Mini Excavators are an optimal design for a dedicated quick coupler solution. Low offset, pin grabber ability, and a wedge type locking system ensures a tight fit, no attachment play during use. It also creates the solution to exchange work tools among different platforms and brands. In combination with the Tilt Rotate System that can be equipped with an S Type Coupler and the variety of different buckets offered, it provides a complete attachment solution for Mini Excavators. The coupler is designed with the highest safety standards and comes with a visible locking mechanism.
Weight
92.6 lb
Lifting Hook Capacity
4409.2 lb
Width
10 in
Specification
Value
Weight
92.6 lb
Lifting Hook Capacity
4409.2 lb
Width
10 in
Overall Length
18.5 in
Overall Height
10.3 in
Pin Diameter
1.6 in
Machine Class
3-4 Ton Mini Excavators
Interface Type
Pin on
Required Hydraulics
Dedicated Factory Installed
Maximum Operating Pressure
4351.1 psi
Coupler Type
S-40 Pin Grabber
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.

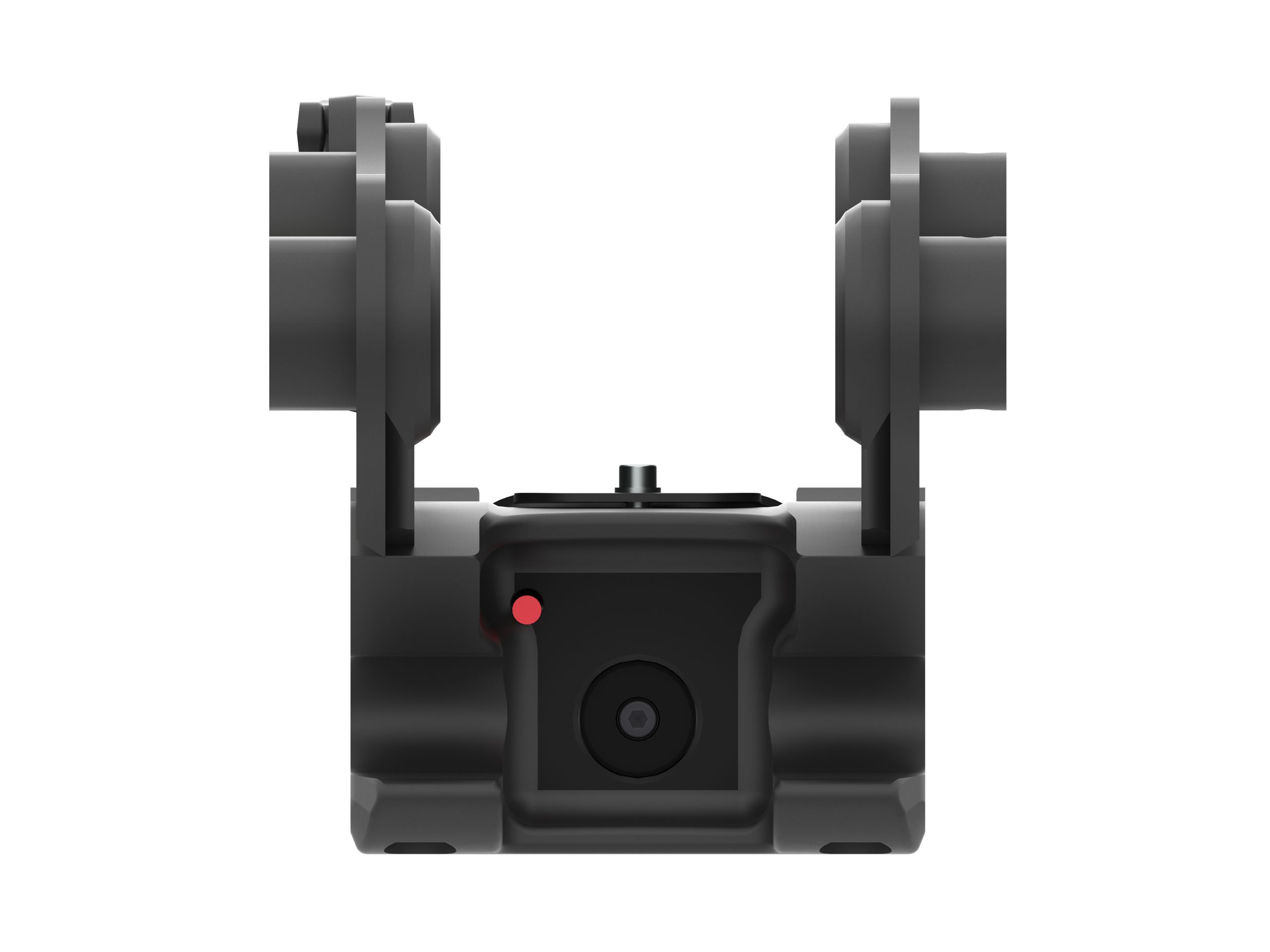

The visual verification rod allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.

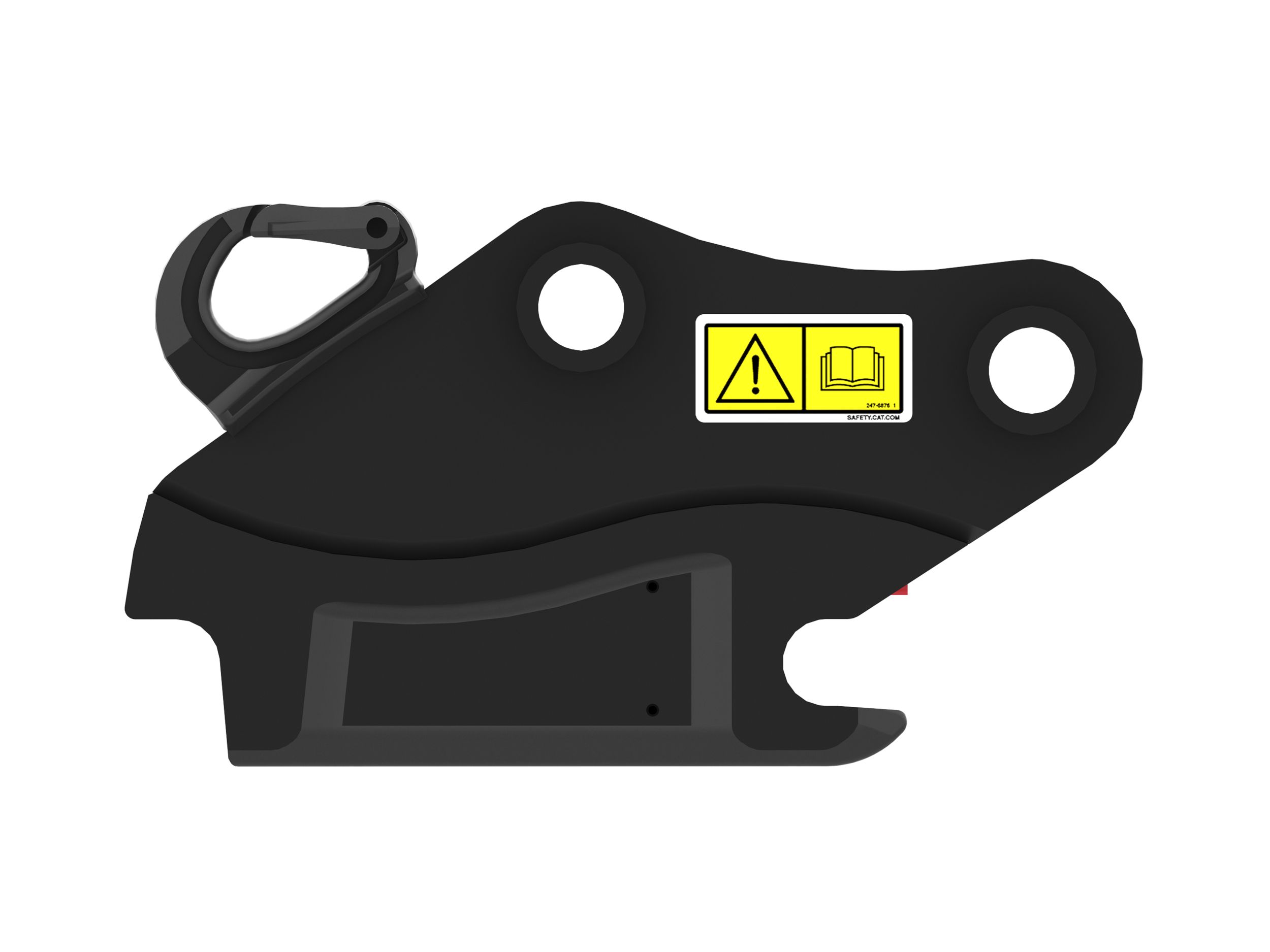

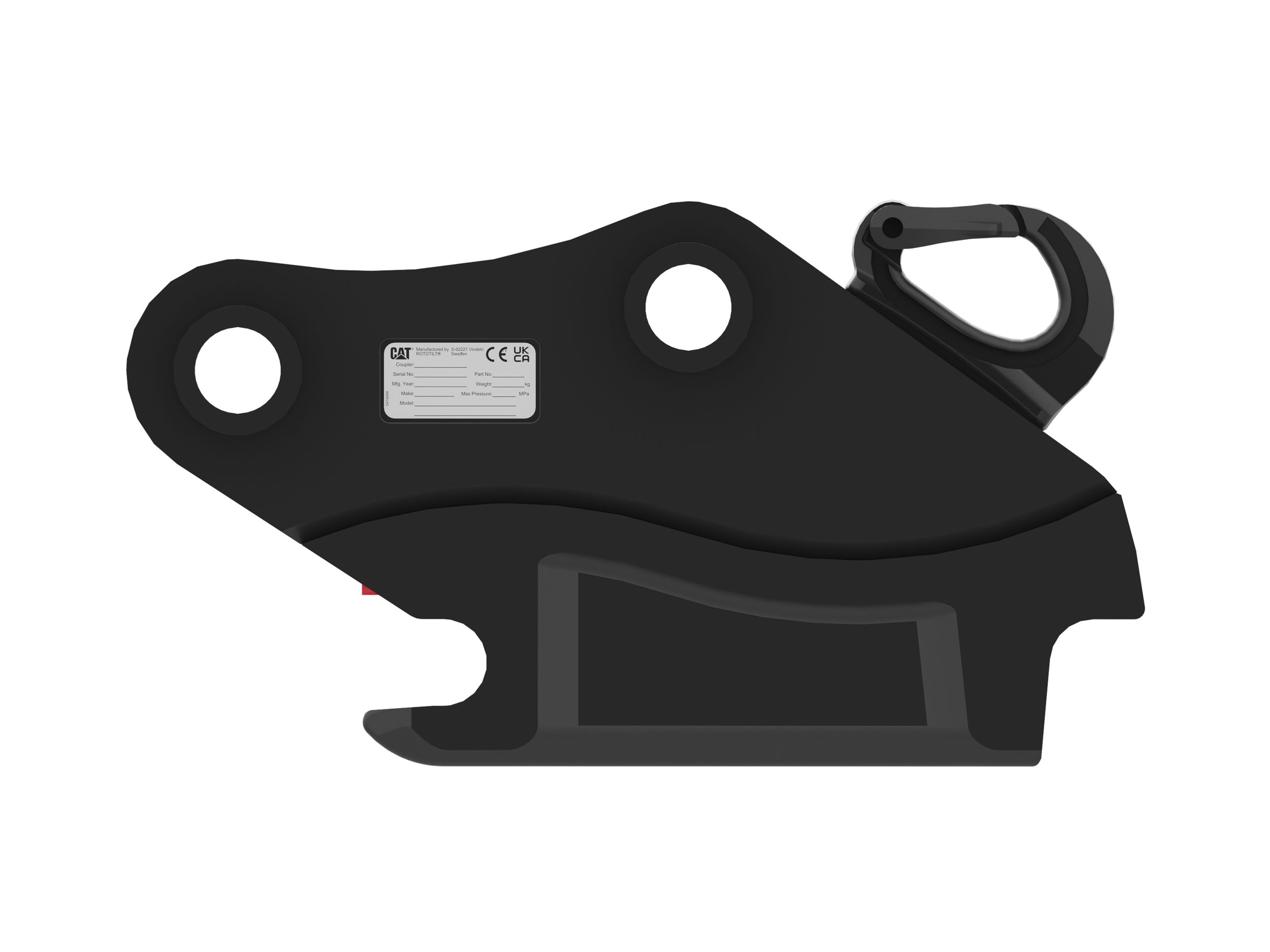

Integrated lifting hook allows the operator to switch tasks to lifting without changing tools or coupler.
Low build height quick coupler with minimal offset results in minimal break out force reduction.
All components integrated inside the coupler housing and protected against contaminants and potential force impact.
Wedge type locking mechanism minimizes impact loading into the hydraulic cylinder.
Locking Control System (LCS) incorporates cylinder positioning sensing and provides electrical feedback to the machine which requires Cat® software to display locking system status.
