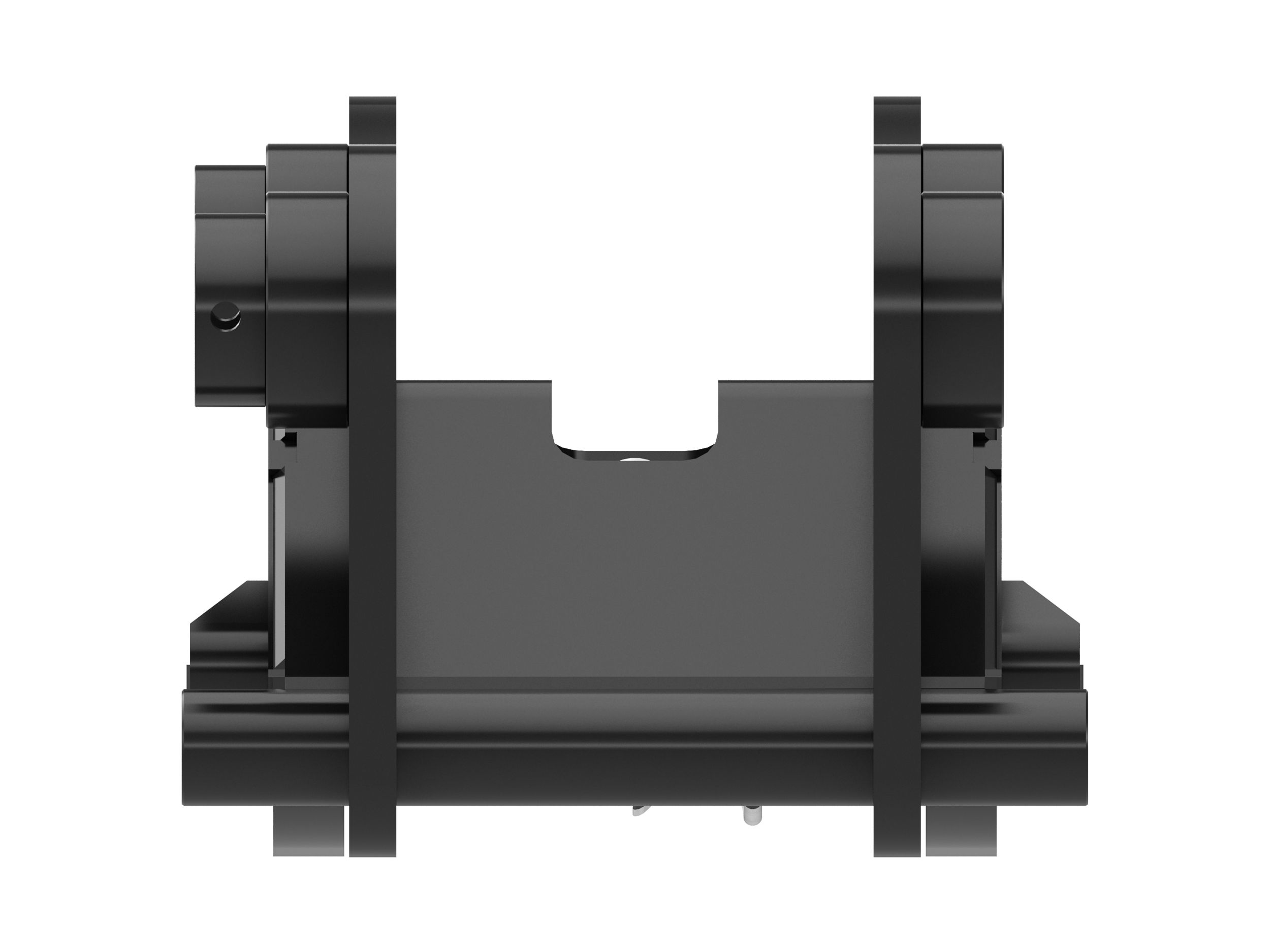

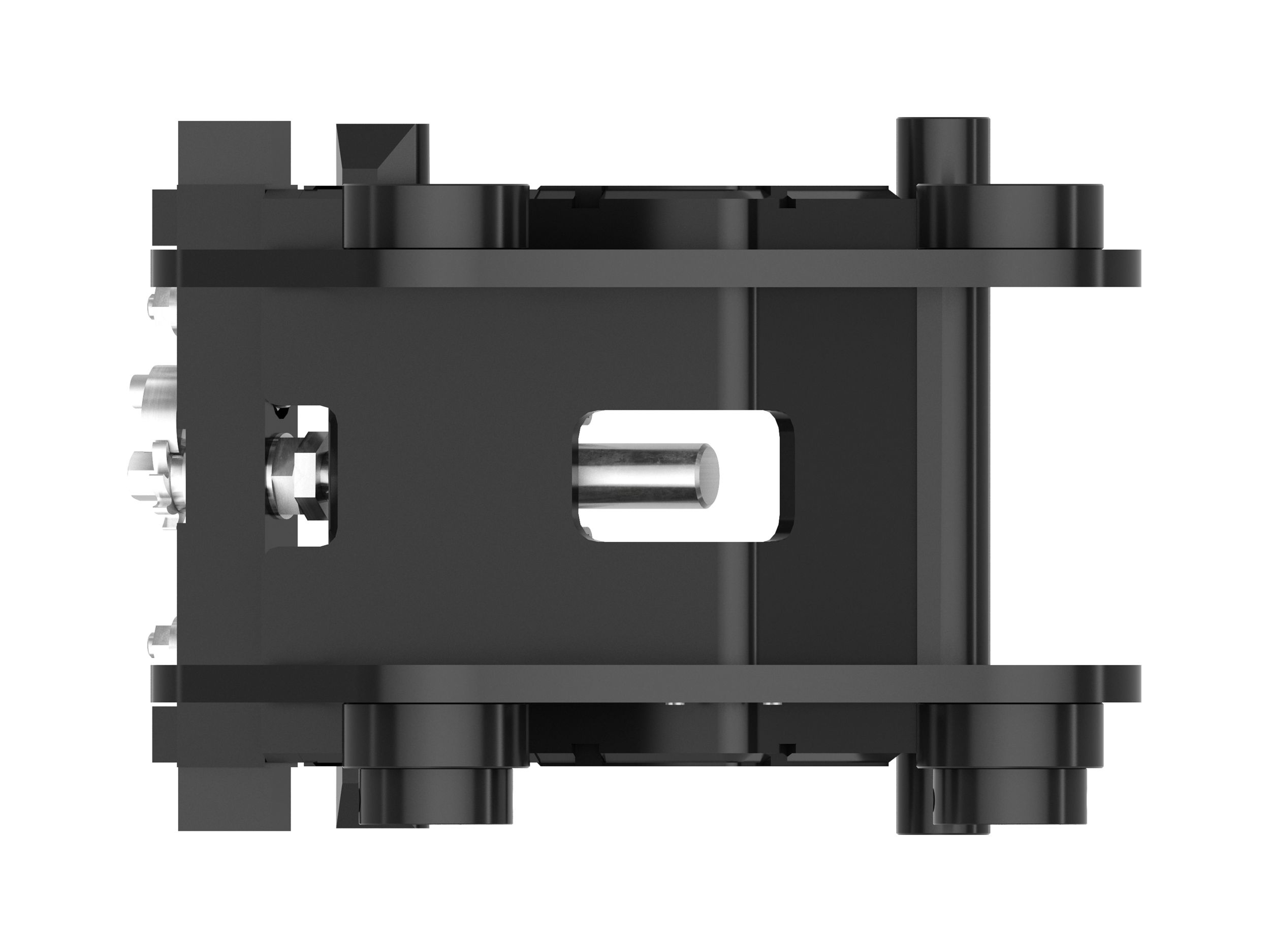

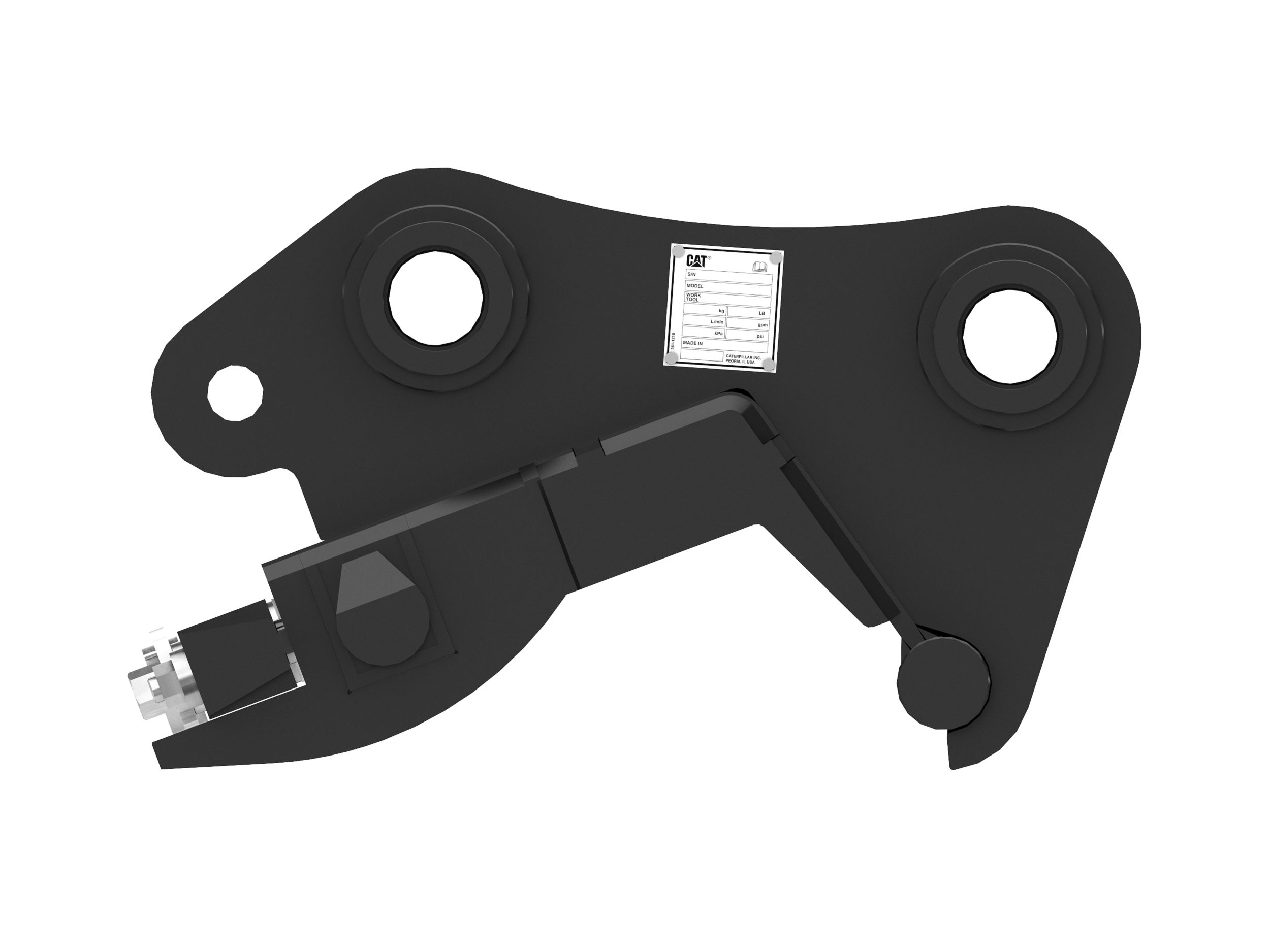

CW-10 Manual 8 Ton Mini Excavators
CW Quick Couplers increase the utilization of an excavator by becoming an all-purpose tool carrier. Simply release one work tool attachment and pick up another in a matter of seconds. Available in hydraulic or manual (spindle) versions.
Weight
163.1 lb
Overall Width
15 in
Machine Class
8 Ton Mini Excavators
Specification
Value
Weight
163.1 lb
Overall Width
15 in
Machine Class
8 Ton Mini Excavators
Overall Height
13 in
Overall Length
20.7 in
Pin Diameter
2 in
Interface Type
Pin On
Required Hydraulics
None Required
CW style coupler covers a certain range of Mini Hydraulic Excavator (MHE) buckets that have different pin sizes. This provides a huge advantage for customers who have different size MHE models and need the flexibility of using one bucket among multiple machines.
Wedge style coupler has a rattle-free design ensuring a tight fit between coupler and attachment.
Hook on front axle is a safe procedure to attach and disconnect tools to the quick coupler and provides an additional safety feature against unwanted disengaging of the tool.

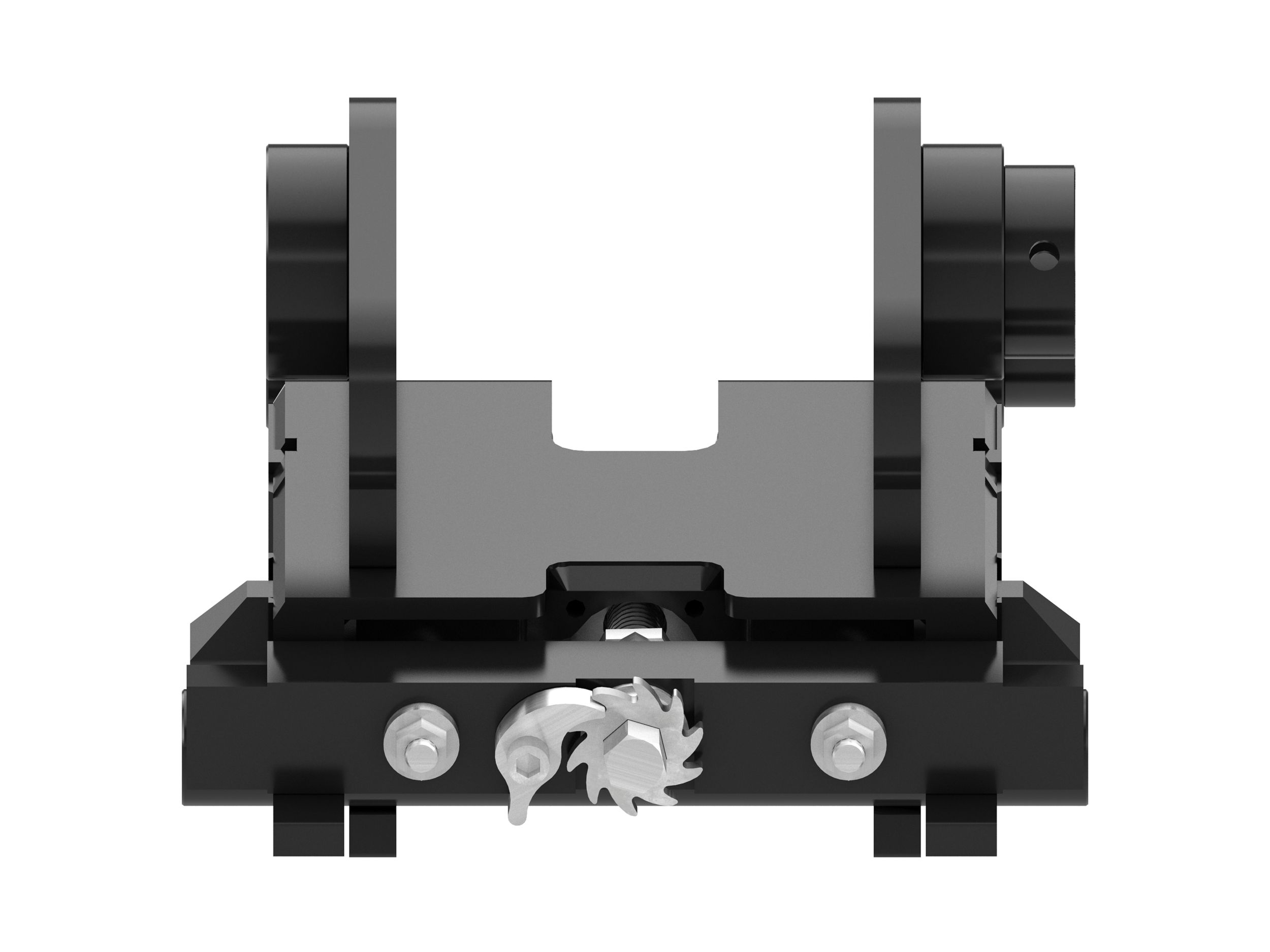

Spindle style locking lever provides an extra locking mechanism to prevent unwanted disengaging.
Retention springs hold locking spindle and retain attachment in the unlikely event of hydraulic failure (hydraulic couplers only).
Optional lifting hook is an alternative to the lifting eye on machine linkage.
