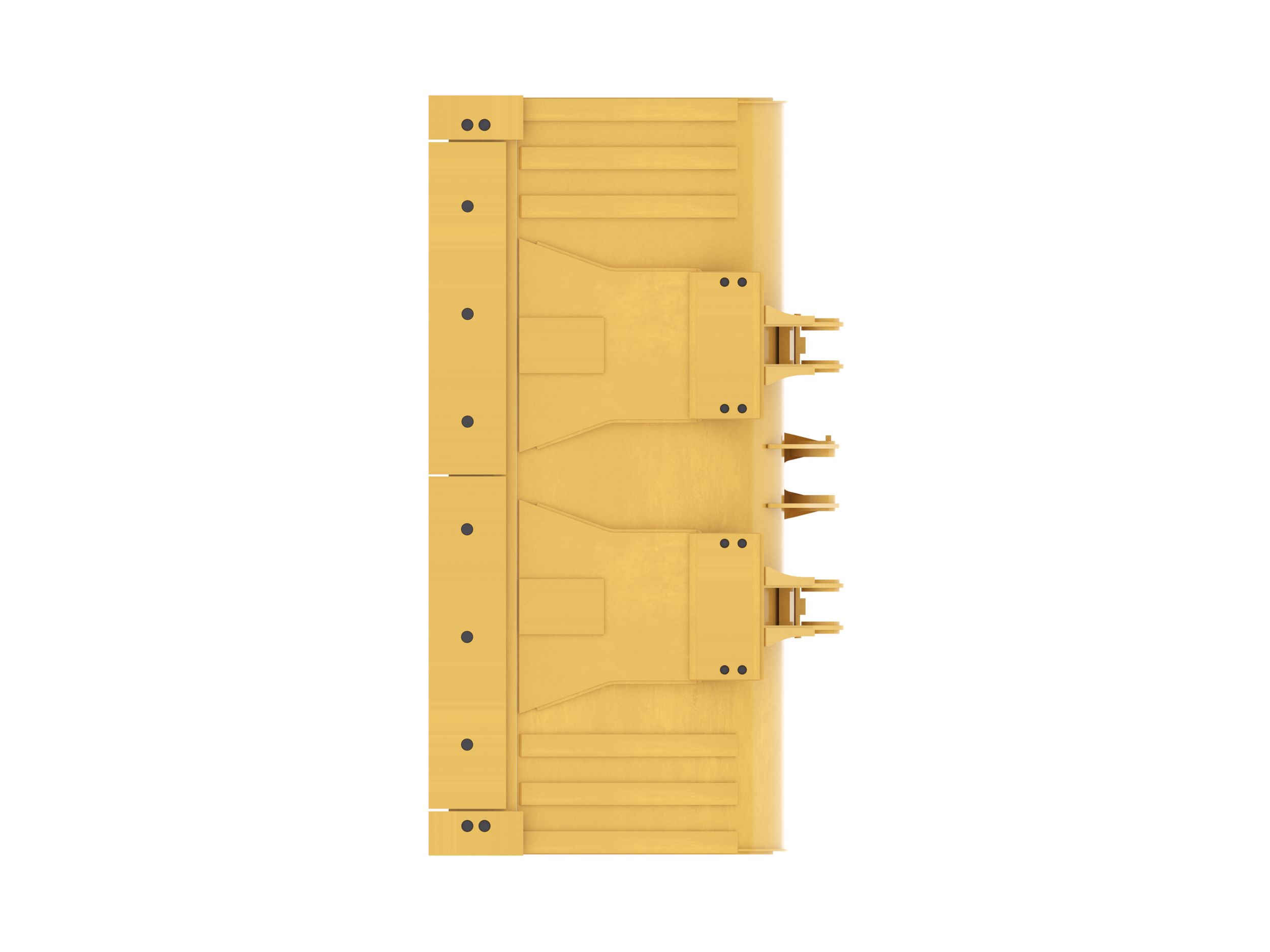

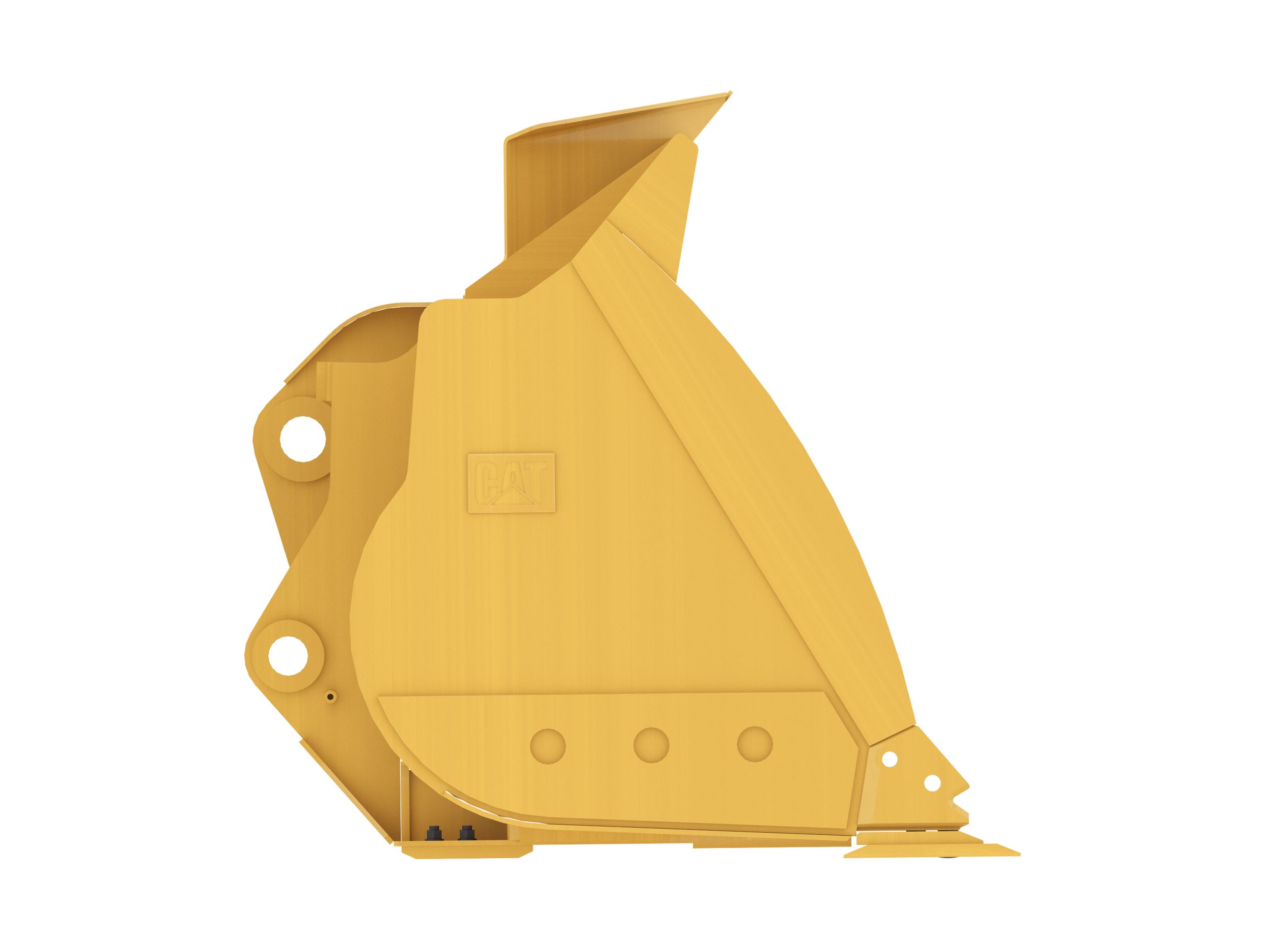

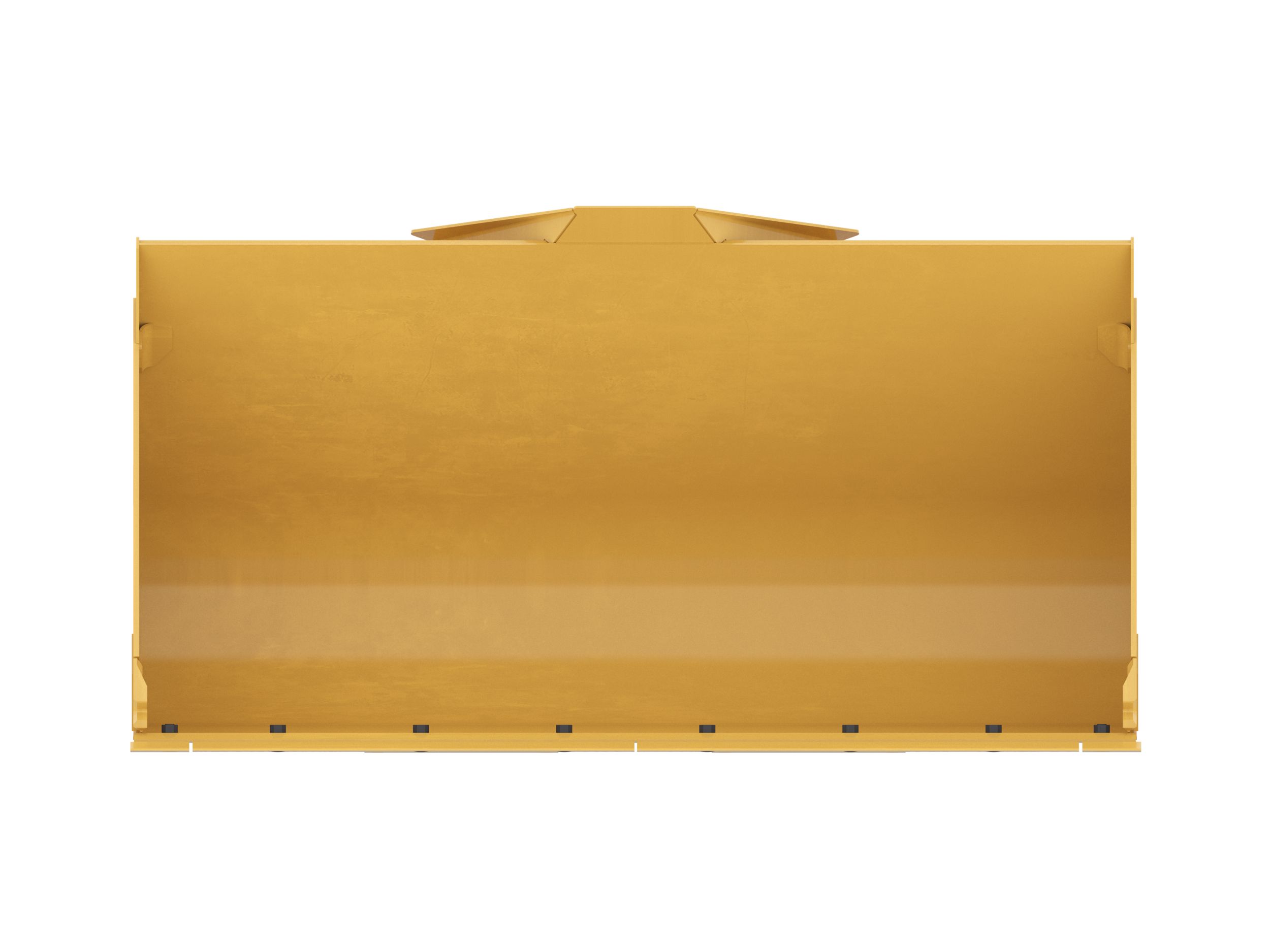

3.2 m3 (4.2 yd3), Pin On, Bolt-On Cutting Edge
Cat® Loader Sand & Gravel Buckets are designed for aggregate handling in batch plant loader applications.
Width
108 in
Height
56.7 in
Weight
2758 lb
Specification
Value
Width
108 in
Height
56.7 in
Weight
2758 lb
Length
56.2 in
Capacity
3.8 yd³
Base Edge Thickness
1 in
Cutting Edge Thickness
1 in
Interface Type
Pin On
Ideal for aggregate handling in batch plant loader applications.
Additional wear plates on bottom and sides of the bucket improves life of the bucket in coarse aggregate applications.
Performance Series technology - innovations in bucket designs that improve load-ability of buckets, increasing productivity and decreasing fuel costs.
Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.
Spill guard prevents rock and other materials from spilling onto coupler interface and hydraulics.
Adds extra material under the bucket heels to prevent bucket wear specially on high abrasion sites. Easy to replace in the field when needed - no welding required.
The 4 piece cutting edge allows for easy transportation and handling when needed to install at the field. The ability to rotate and use both sides of the cutting edge extends the component life and reduces the operational cost.
Built using special hardened material, the reinforced side cutters allow better wear resistance and the designed for improved material penetration. The available holes permit the extra bolt on side cutters to be installed in required applications.
These buckets were incorporated to the loader bucket portfolio to accompany those 938´s configured with 23.5” tires for better ground dig performance offsetting the increased machine ground clearance added by the big tires.
