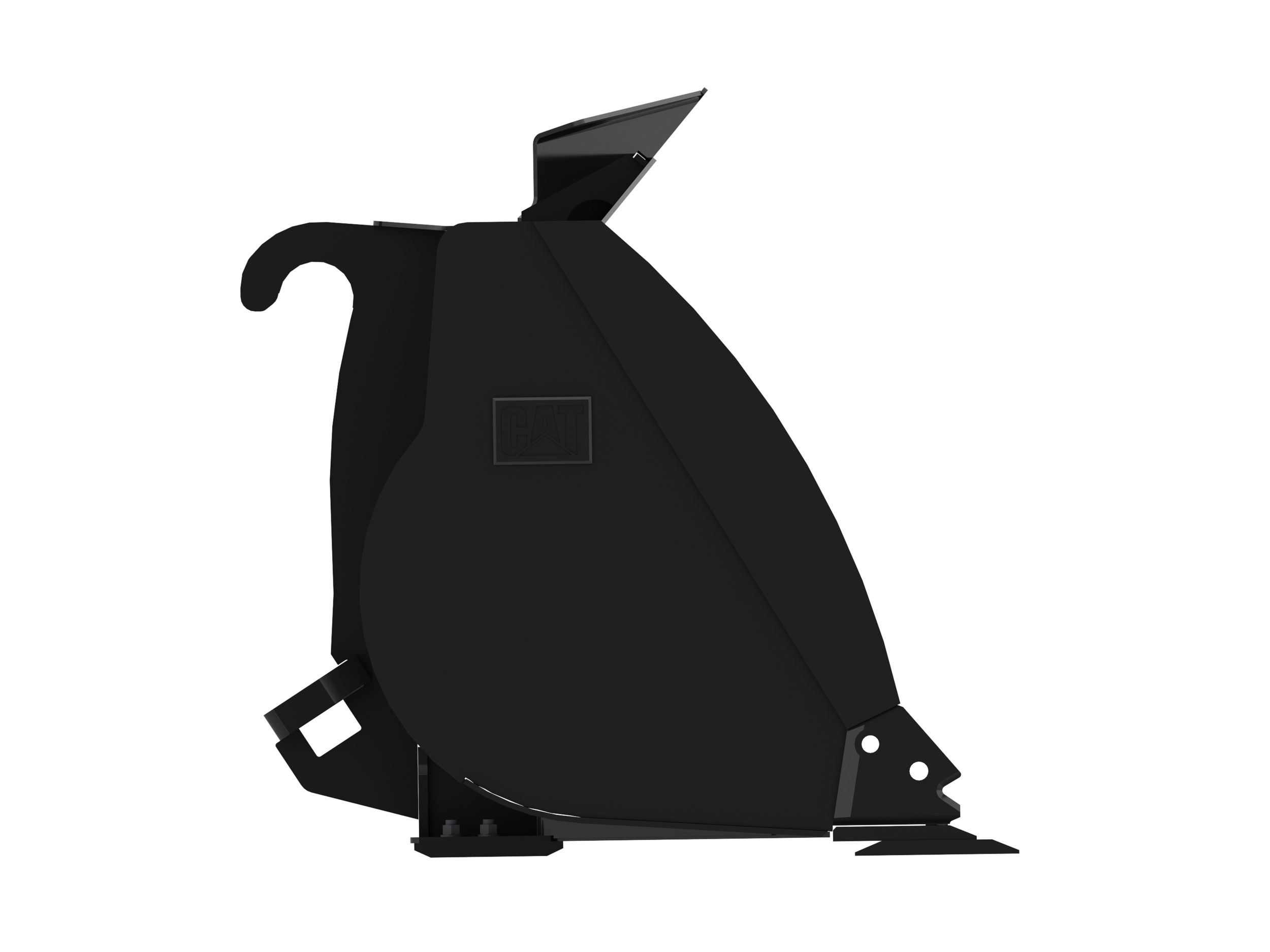

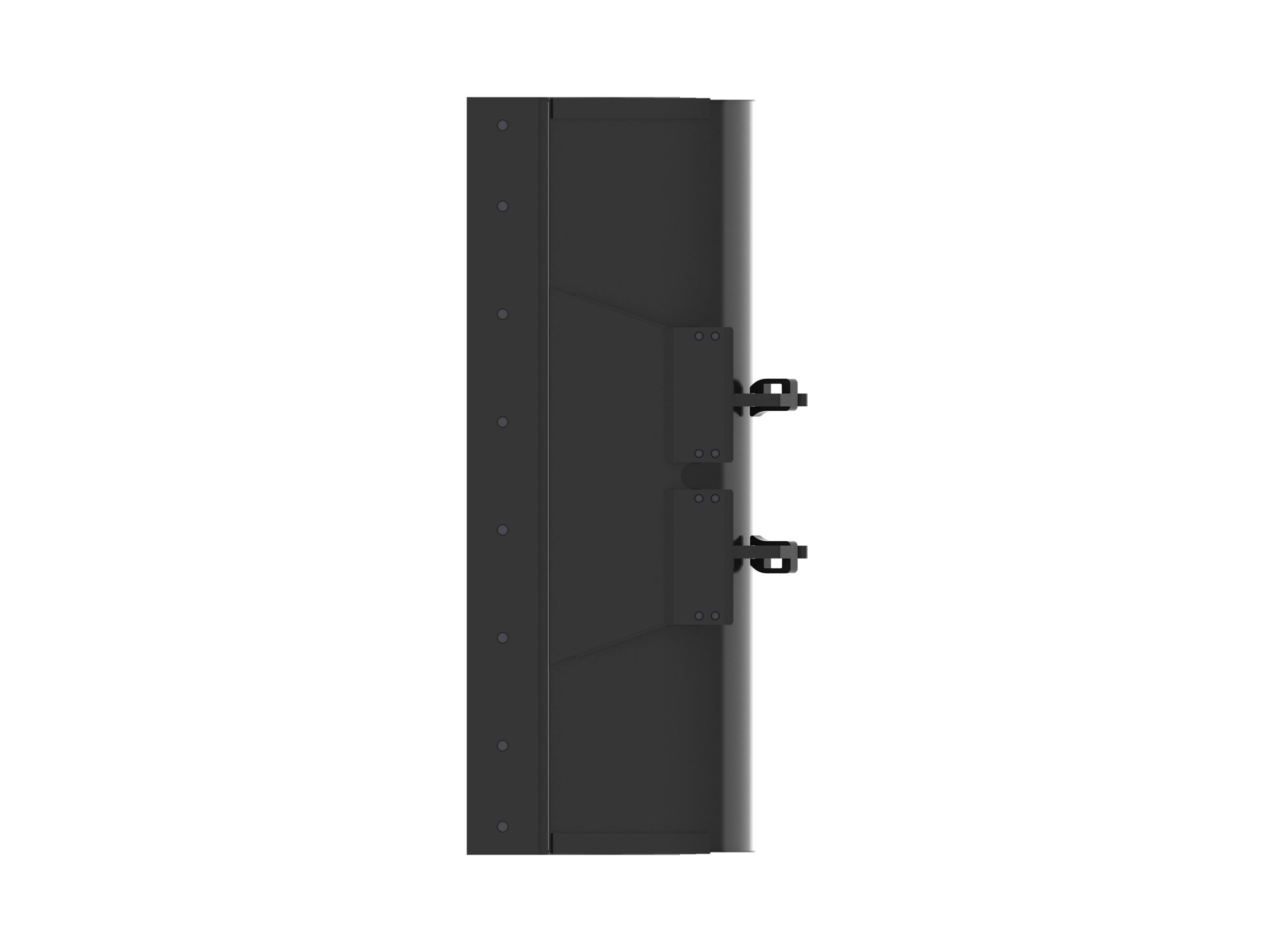

2.6 m3 (3.4 yd3), Fusion™ Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
Width
116 in
Height
51.7 in
Weight
2491.2 lb
Specification
Value
Width
116 in
Height
51.7 in
Weight
2491.2 lb
Length
51.7 in
Base Edge Thickness
1 in
Cutting Edge Thickness
1 in
Interface Type
Fusion
General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.
Rounded sidebars help funnel material into the bucket and retain it.
Performance Series profile for easy loading and maximum carry load.
Open throat design improves heap size and fill factor.
Replaceable wear plates on the rear of the bucket bottom help to provide a much longer life for the bucket in high wear situations.
