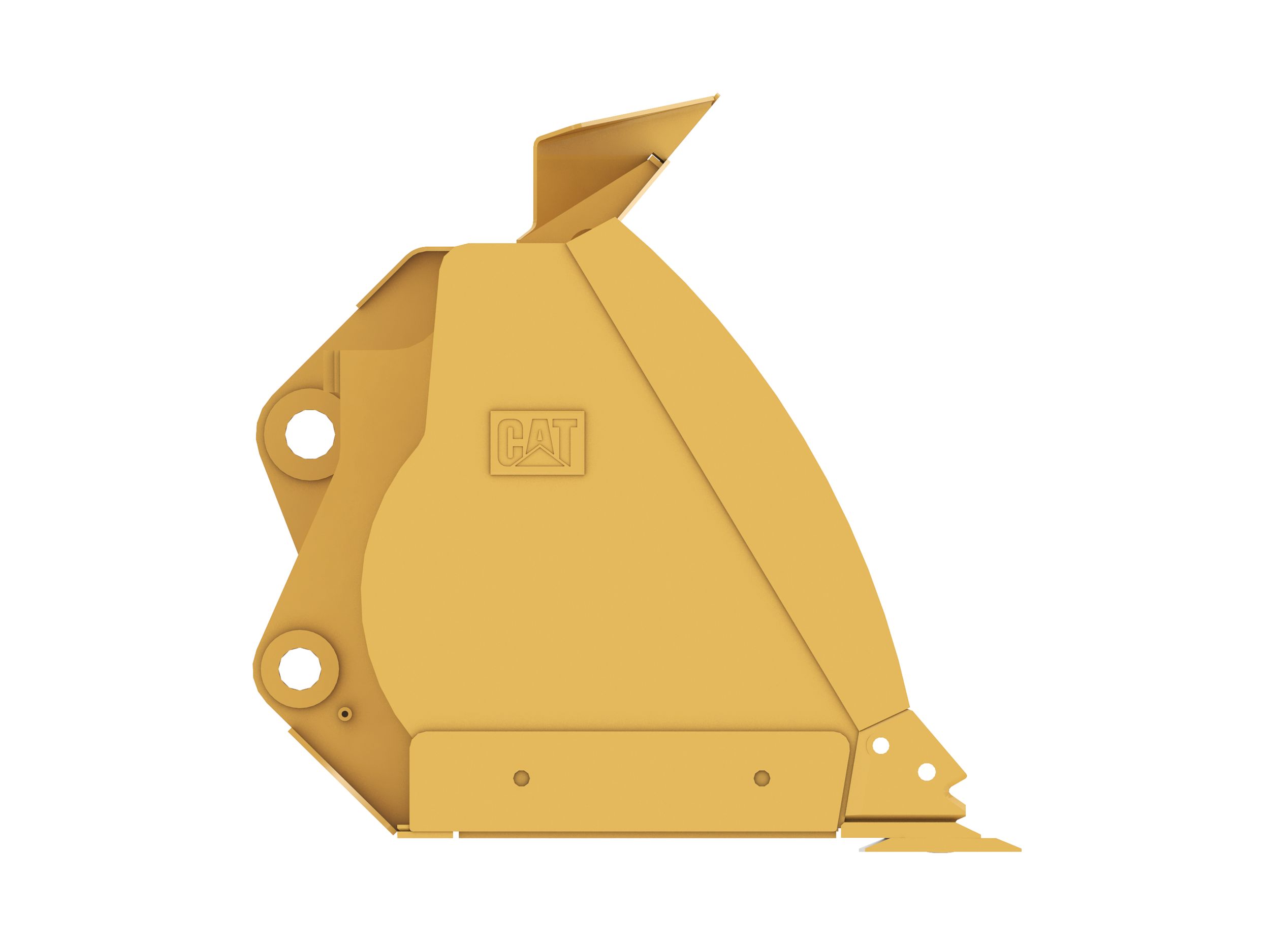

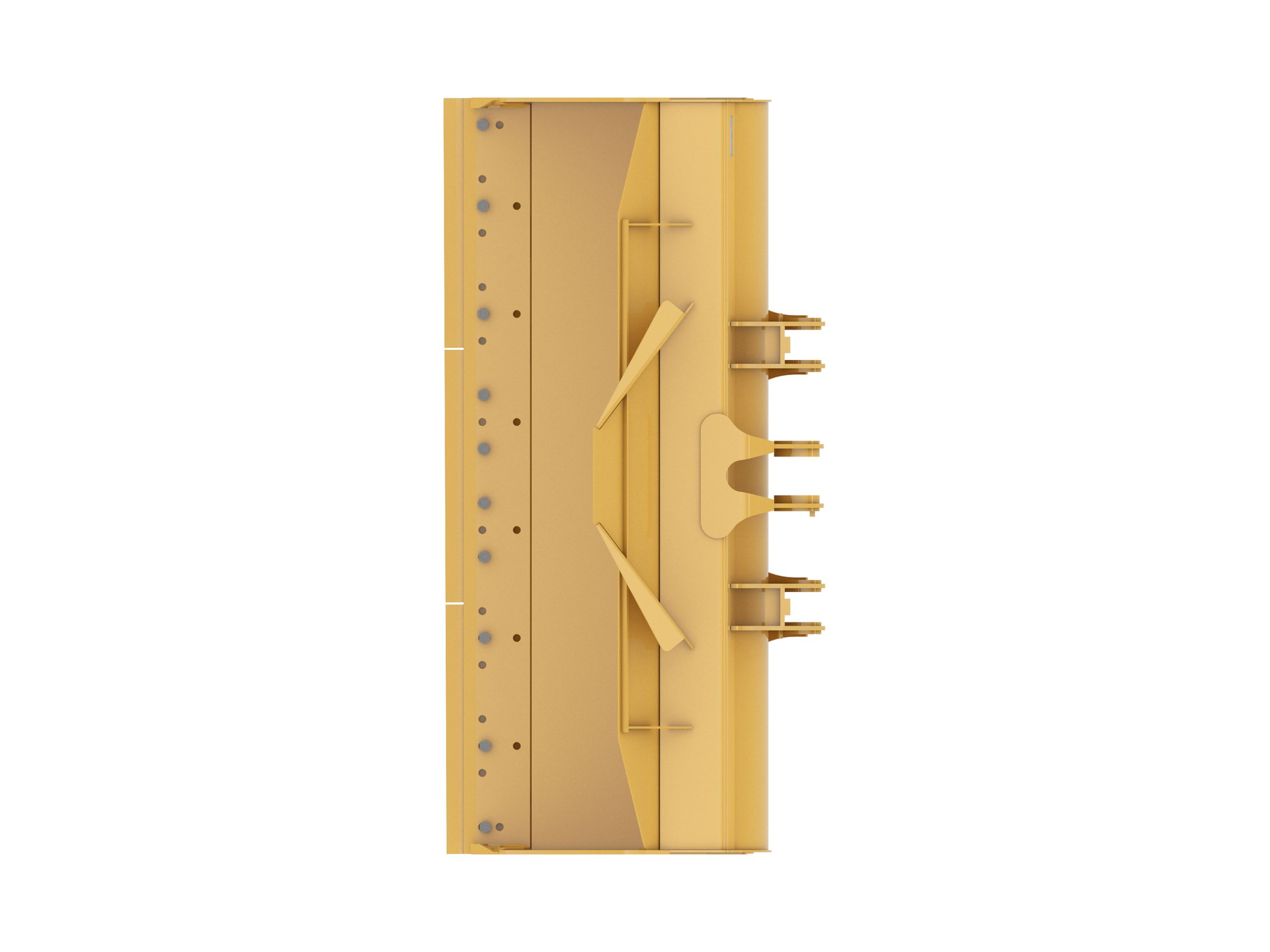

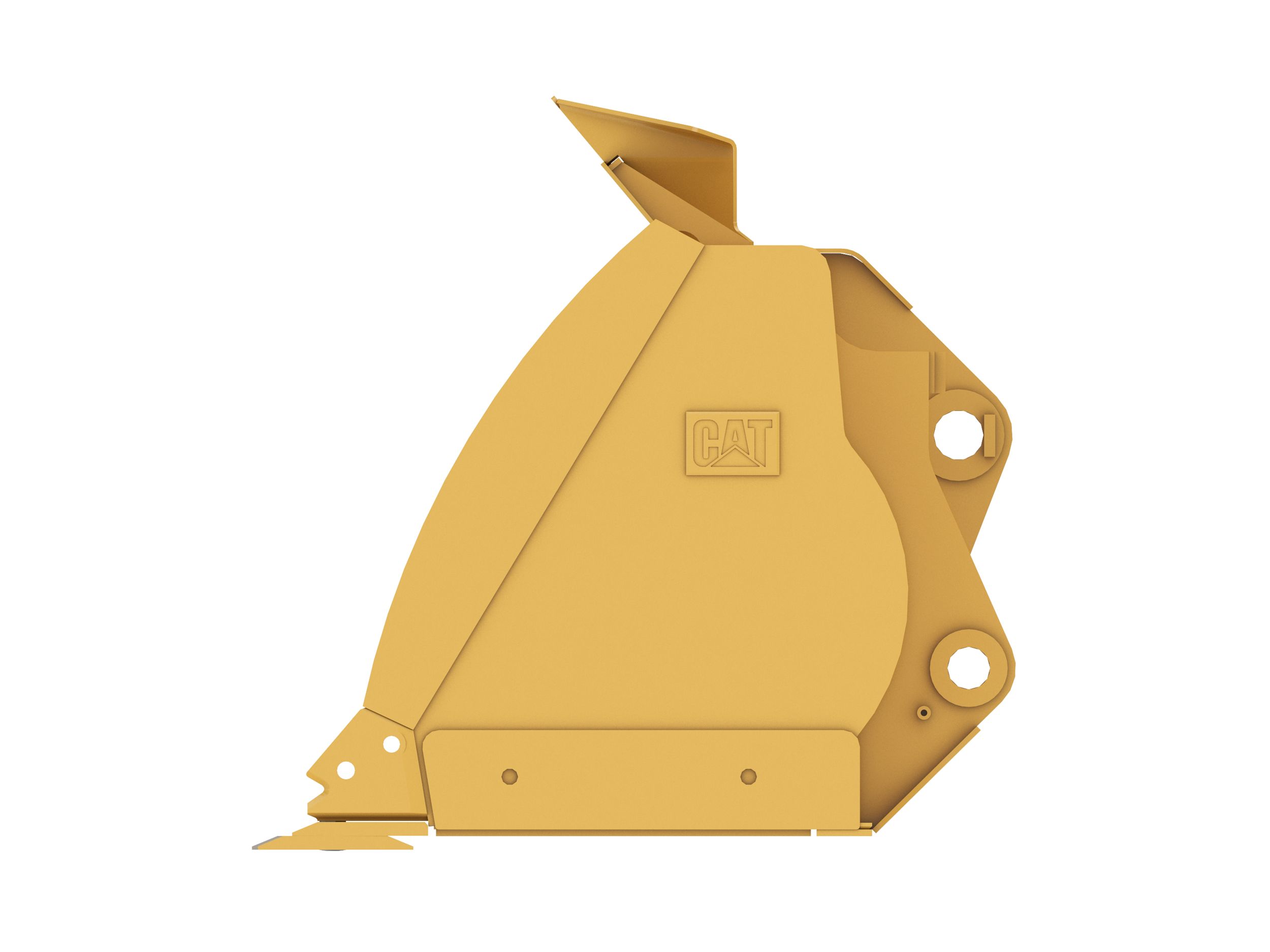

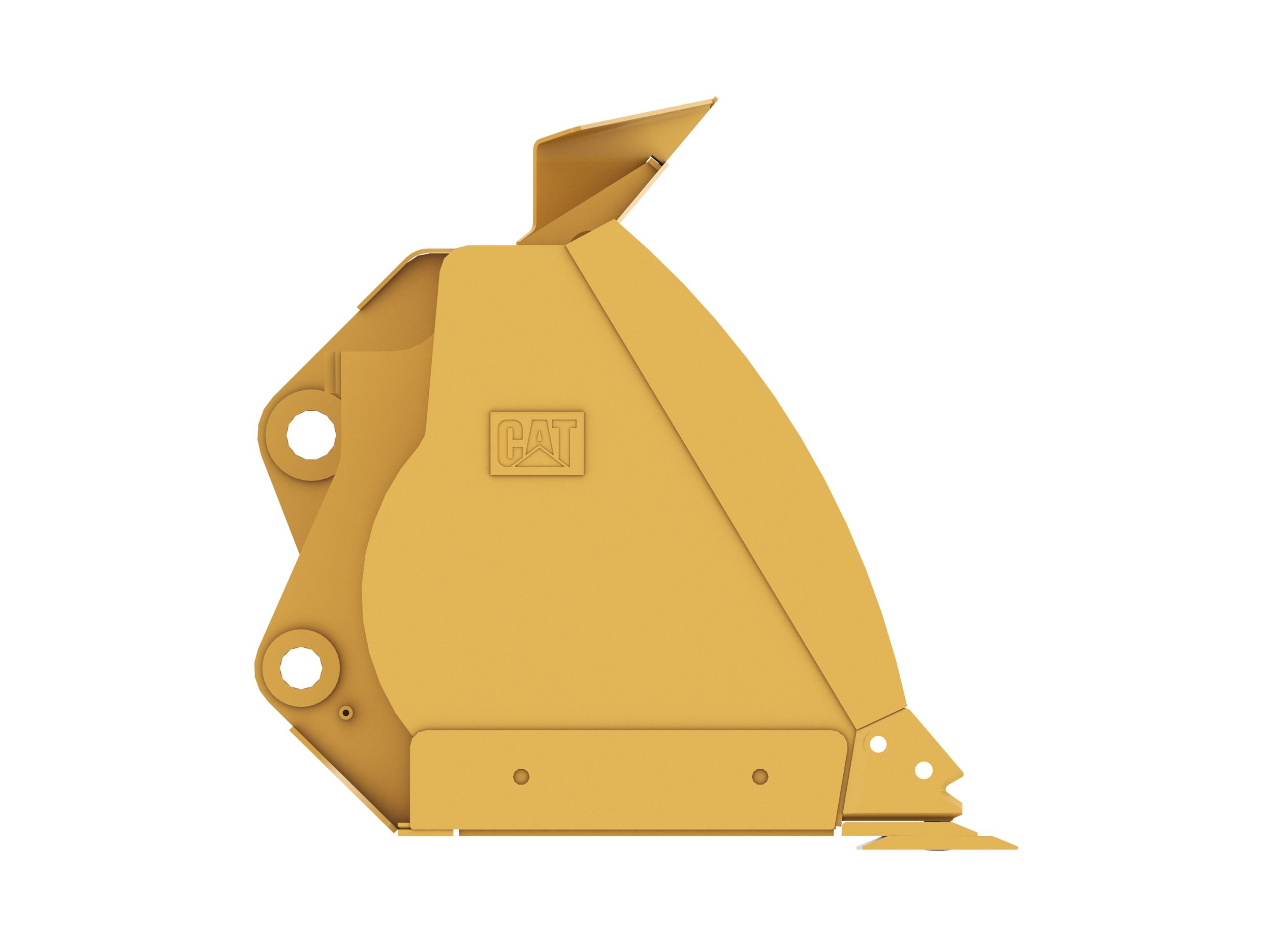

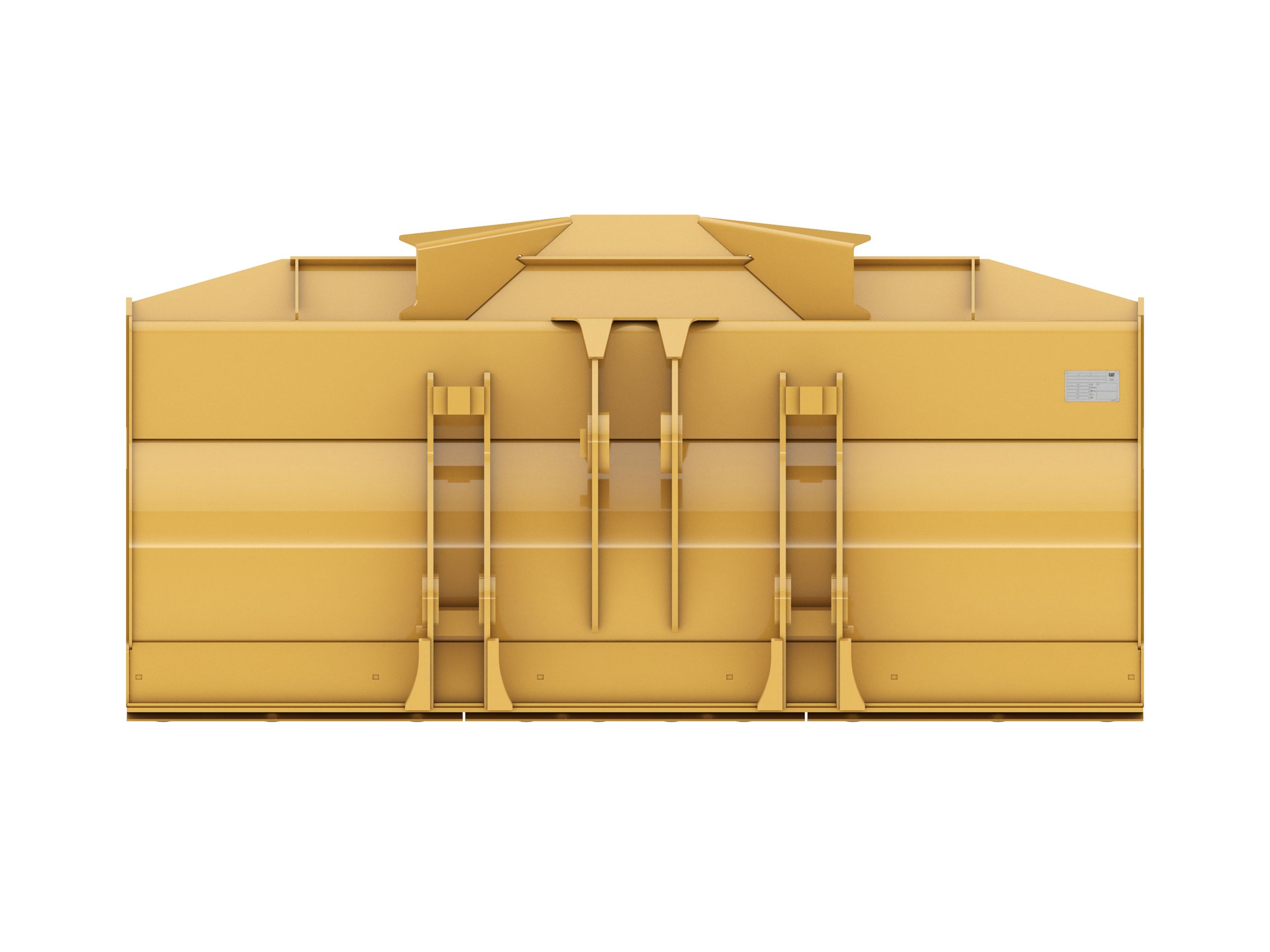

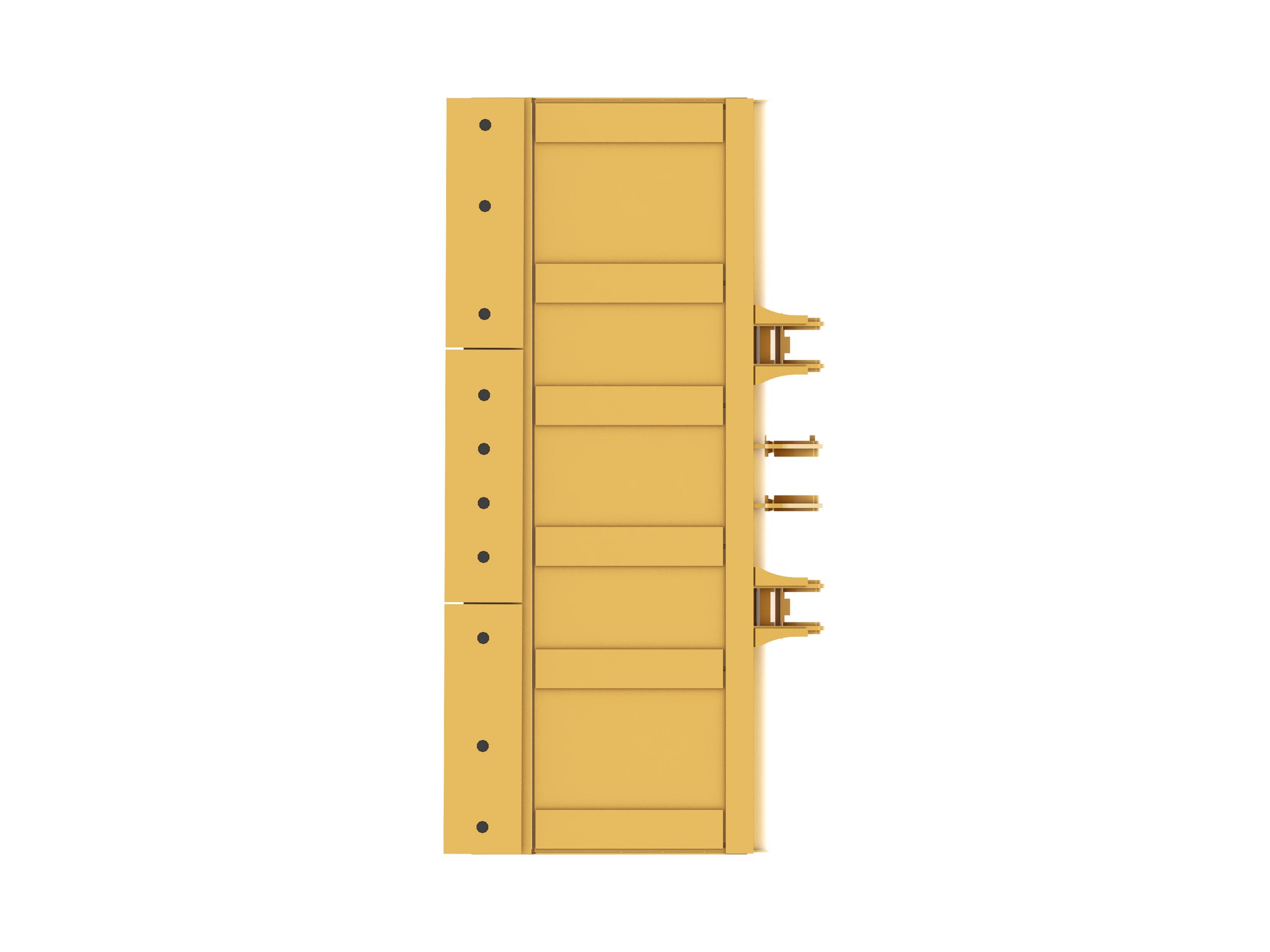

2.5 m3 (3.3 yd3), Pin On, Bolt-On Cutting Edge
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.
Width
107.4 in
Height
53.5 in
Weight
2711.7 lb
Specification
Value
Width
107.4 in
Height
53.5 in
Weight
2711.7 lb
Length
54.1 in
Capacity
3.3 yd³
Base Edge Thickness
1 in
Cutting Edge Thickness
1 in
Interface Type
Pin On
Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Additional wear plates on bottom surface of bucket improves bucket life in coarse aggregate applications.
Performance Series Technology - Innovations in bucket design that improve load-ability of buckets, increasing productivity and decreasing fuel costs.
Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.
