1600 mm (63 in)

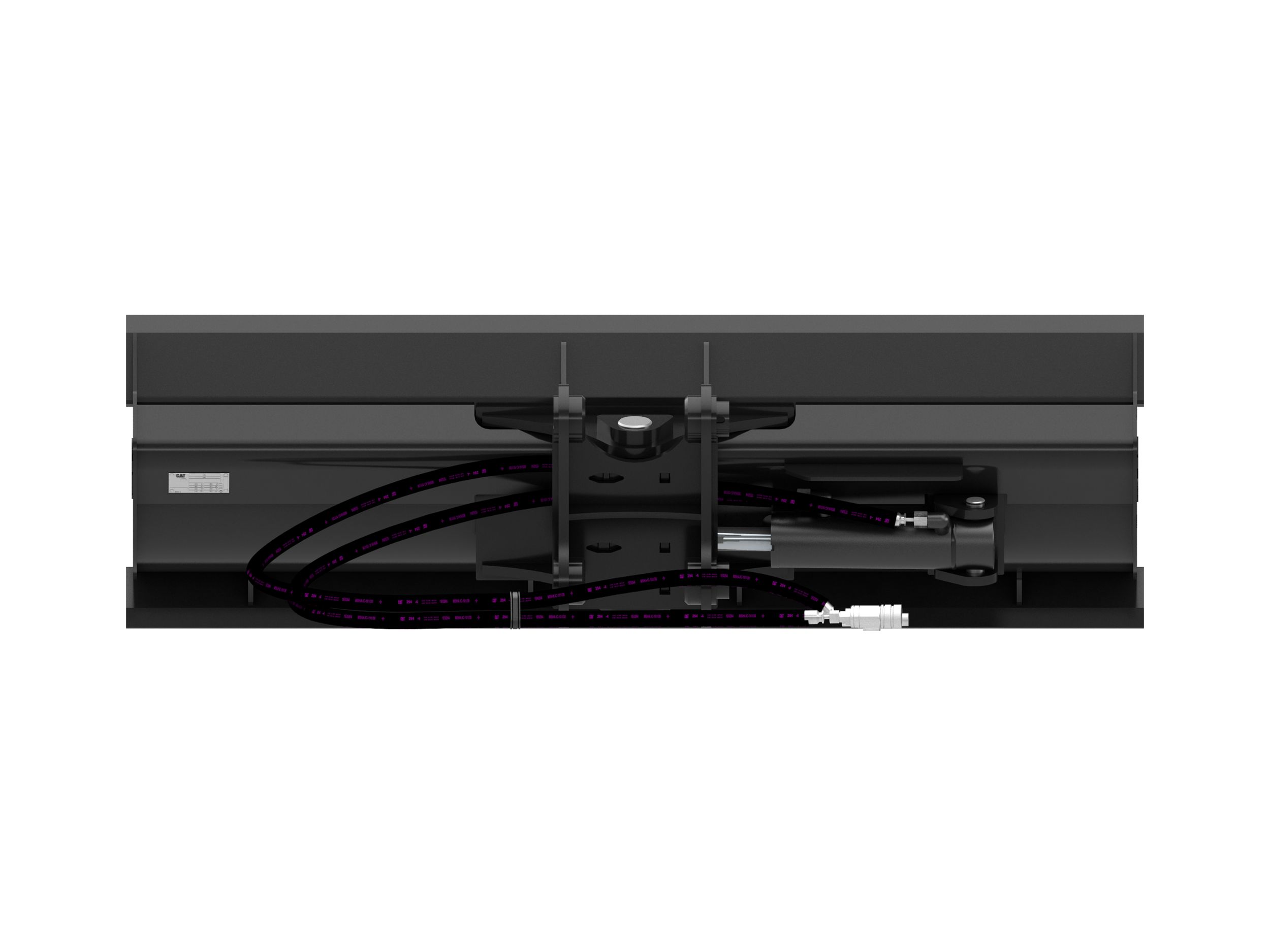

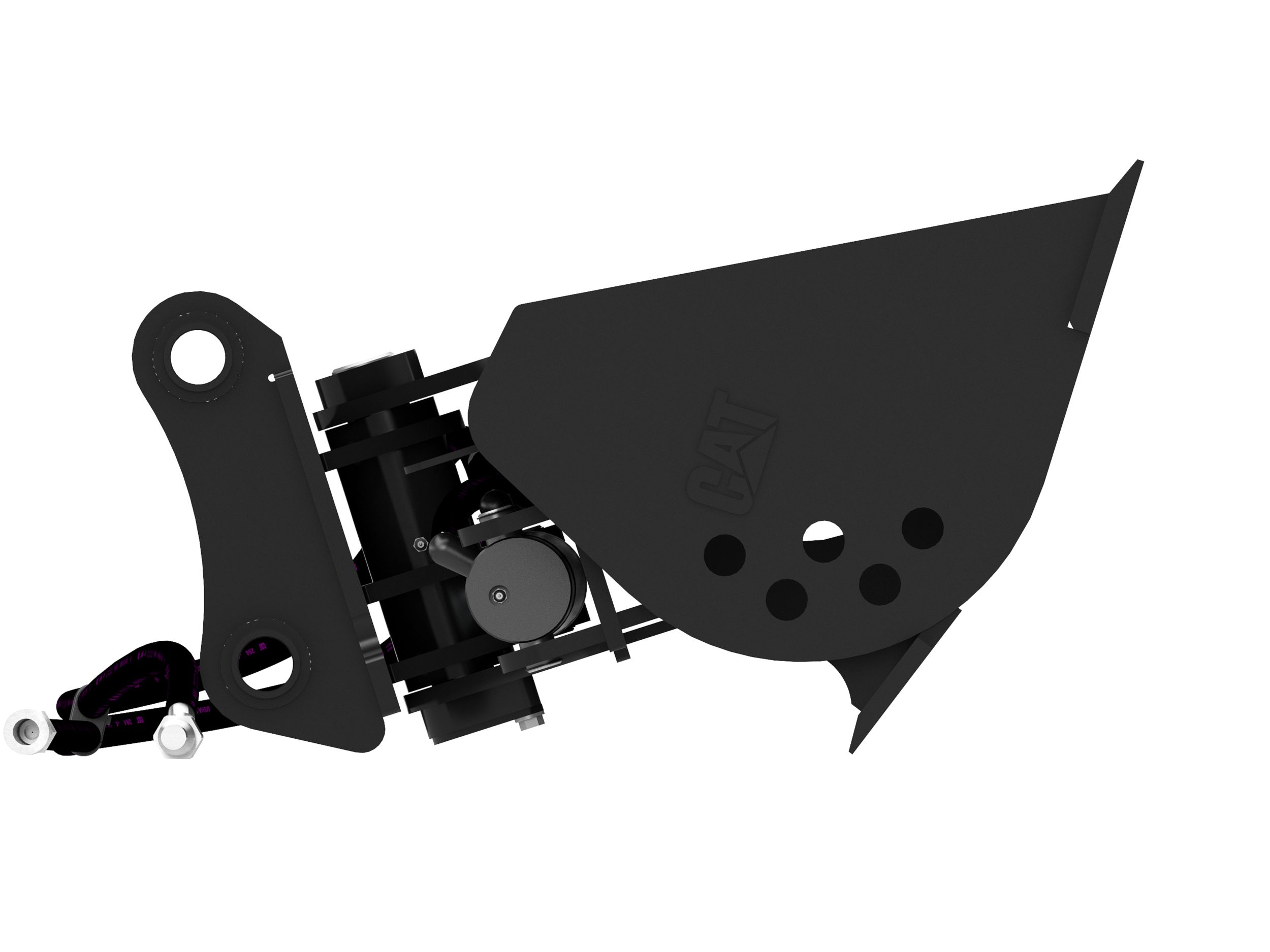

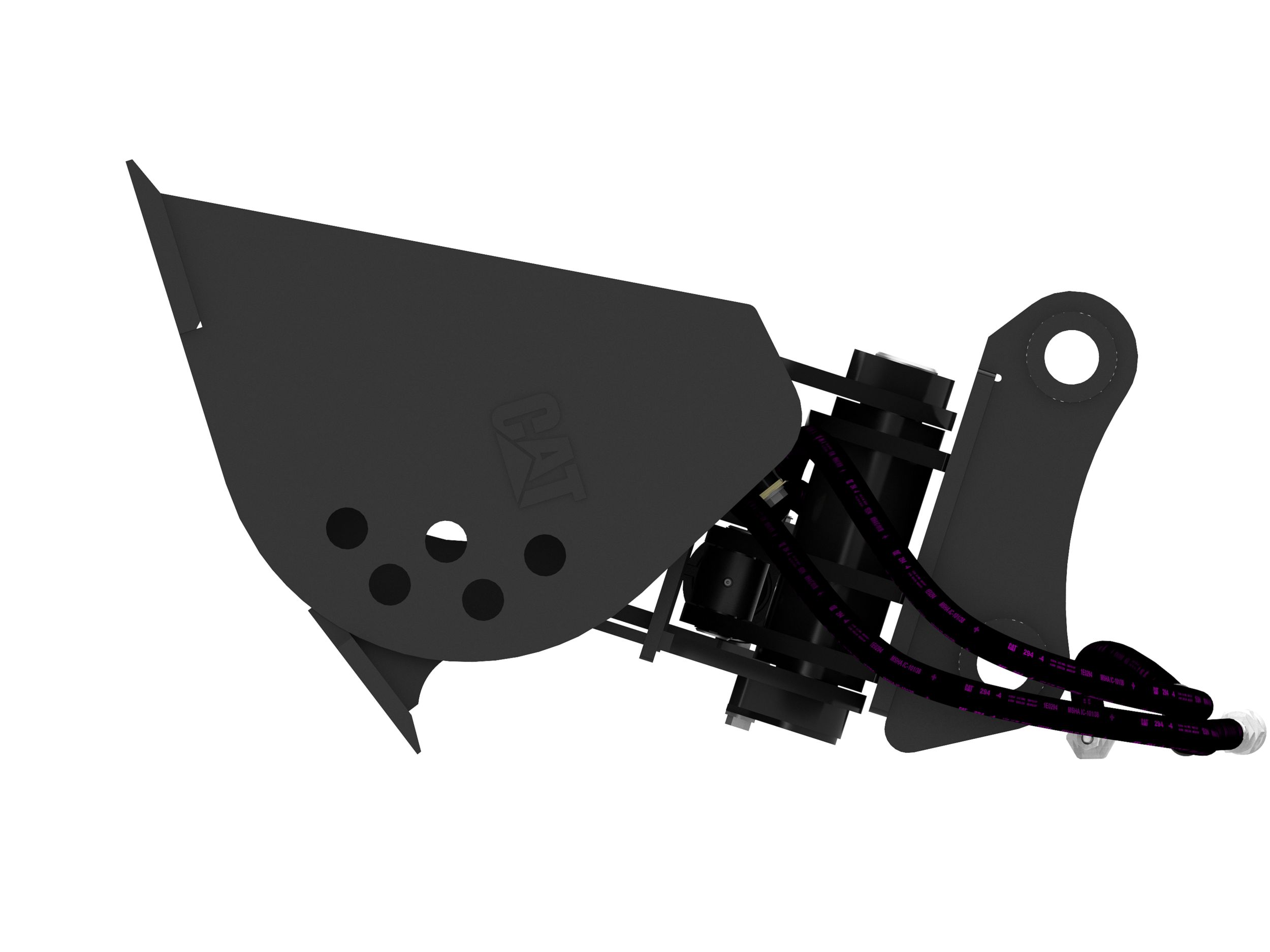

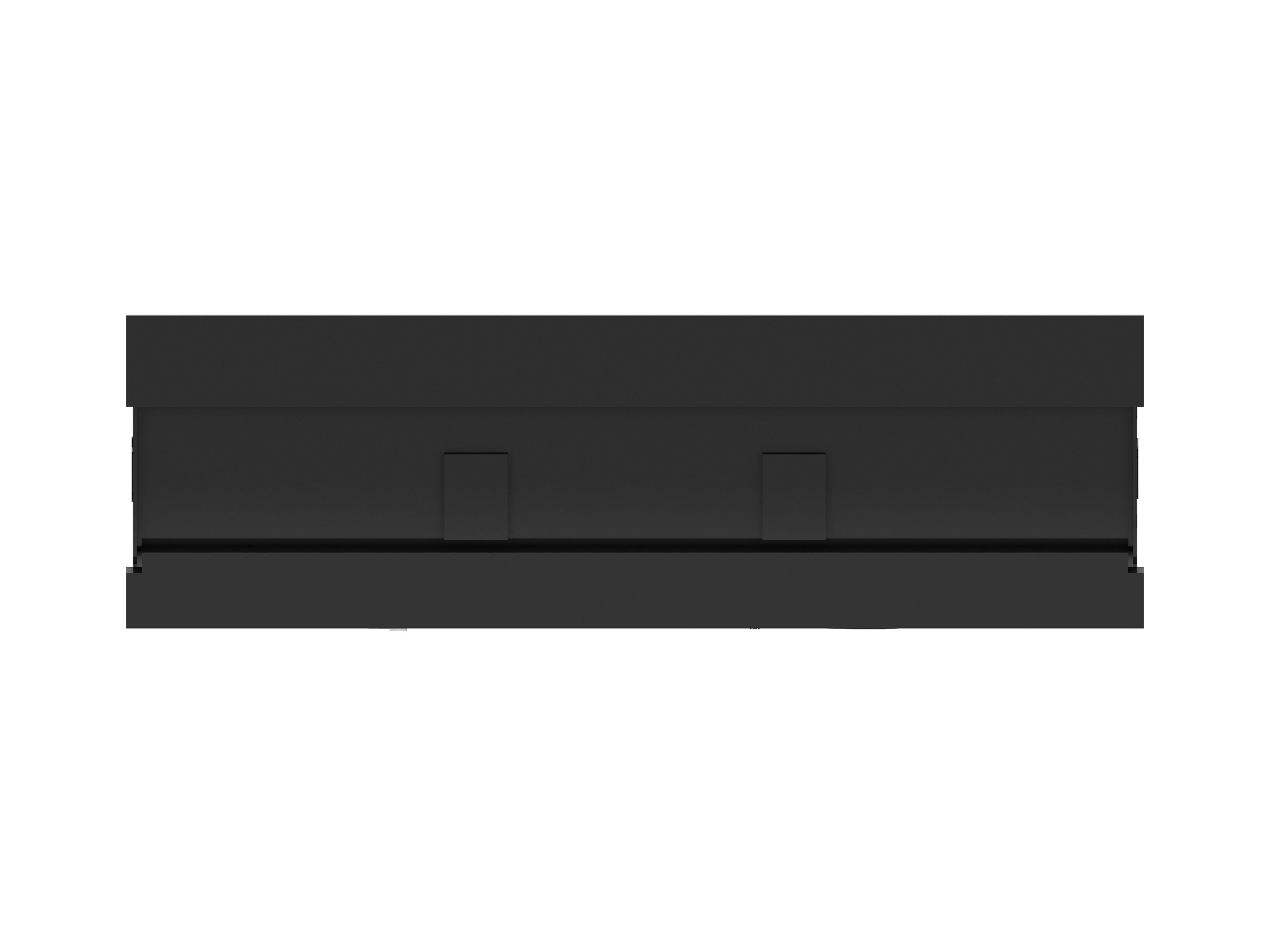

Tilting Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
Width
63 in
Capacity
9.9 ft³
Weight
552.3 lb
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Width
63 in
Capacity
9.9 ft³
Weight
552.3 lb
Base Edge Thickness
0.8 in
Tip Radius
31.5 in
Interface Type
Pin On
Ideal for cleaning wide trenches, loading materials, slope-cutting and profiling, grading and finishing work in construction, landscaping and road maintenance applications.
Formed back wrapper design enhances bucket loading ability and production.
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
