1200 mm (47 in)

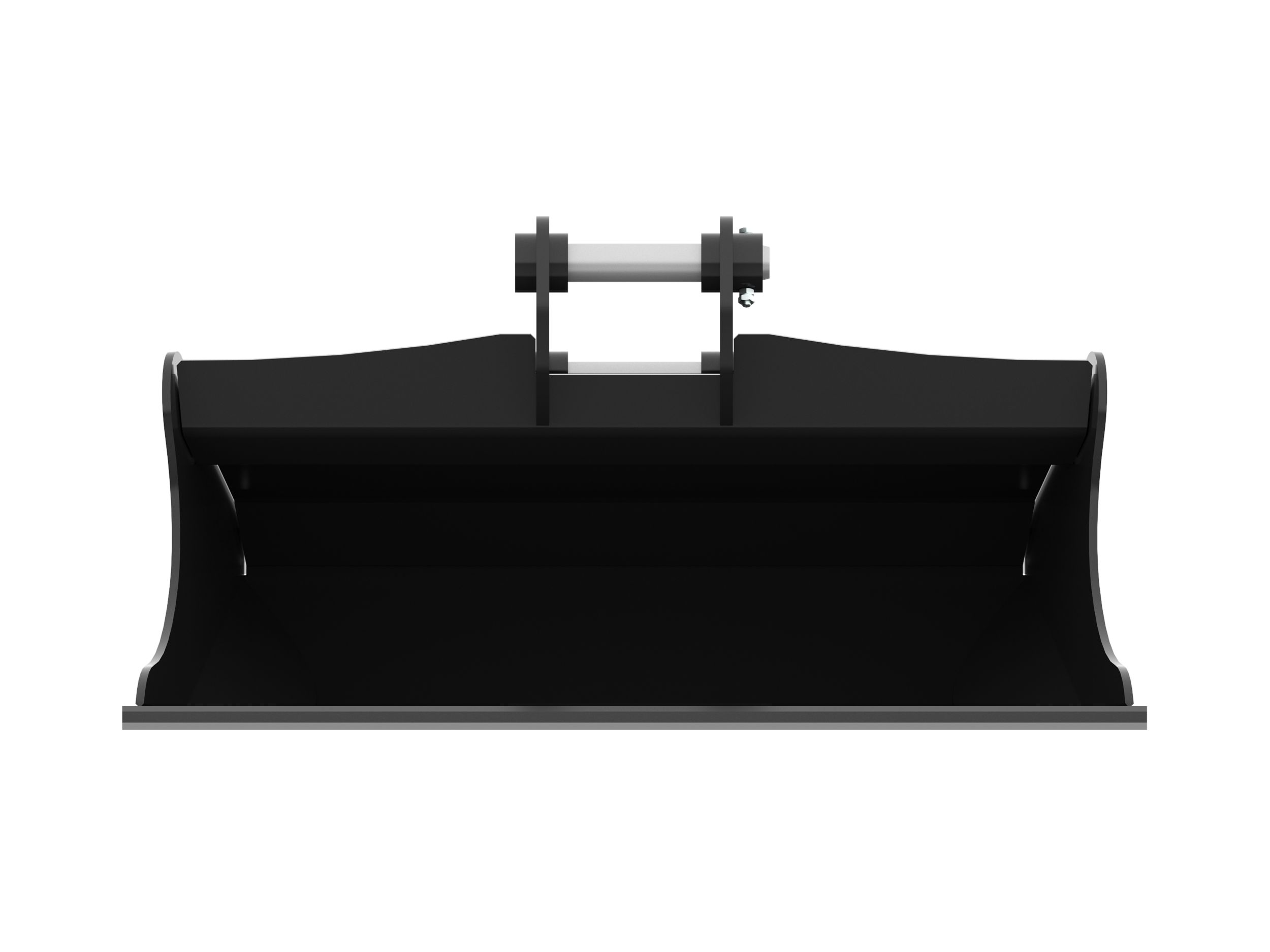

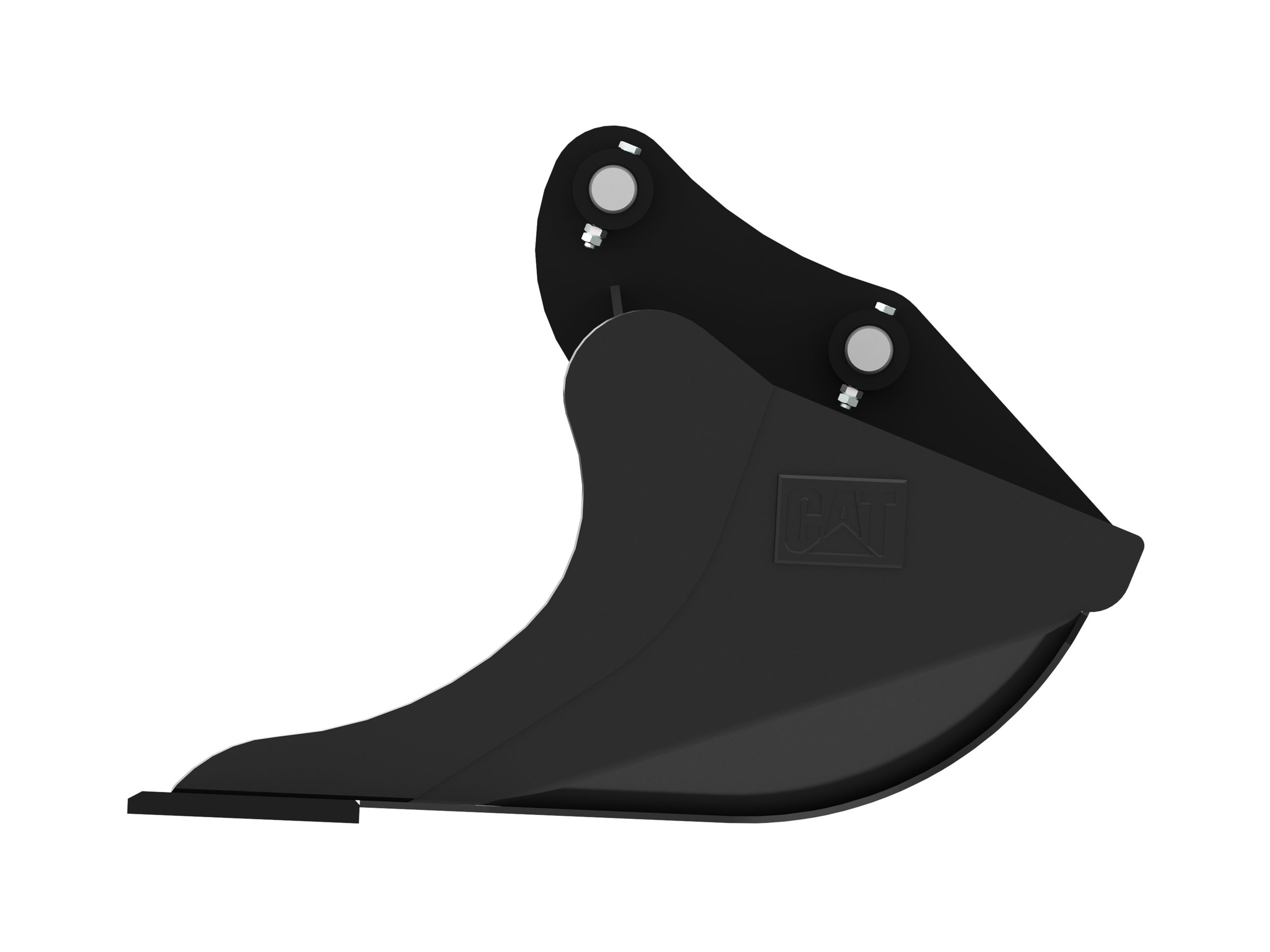

Nordic Grading Buckets for Cat® Mini Excavators are ideal for grading applications, but also suitable for general excavation, loading, and backfilling in all kinds of different soil types. The design features durable wear plates for longer wear resistance in heavy duty applications. Due to the rounded side shape, shorter tip radius, and flat torque tube construction they are optimal for using in combination with a Tilt Rotate System.
Width
47.2 in
Capacity
7.4 ft³
Weight
383.6 lb
Specification
Value
Width
47.2 in
Capacity
7.4 ft³
Weight
383.6 lb
Base Edge Thickness
0.8 in
Tip Radius
26.9 in
Interface Type
Pin Grabber
Designed to create maximum performance in combination with a tiltrotator equipped with an S-Type or pin grabber coupler.
Specially designed side wear plates provide for optimal wear resistance in heavy duty applications.
For low build bracket solution, close to zero offset and high bending resistance even during high stress work.
Special shape allows for easy bucket filling and emptying as well as inner trench rotating capabilities while using in conjunction with a tiltrotator.
With high breakout forces combined with tiltrotator usage, the bucket still produces acceptable bucket volumes.
