320 mm (12 in)

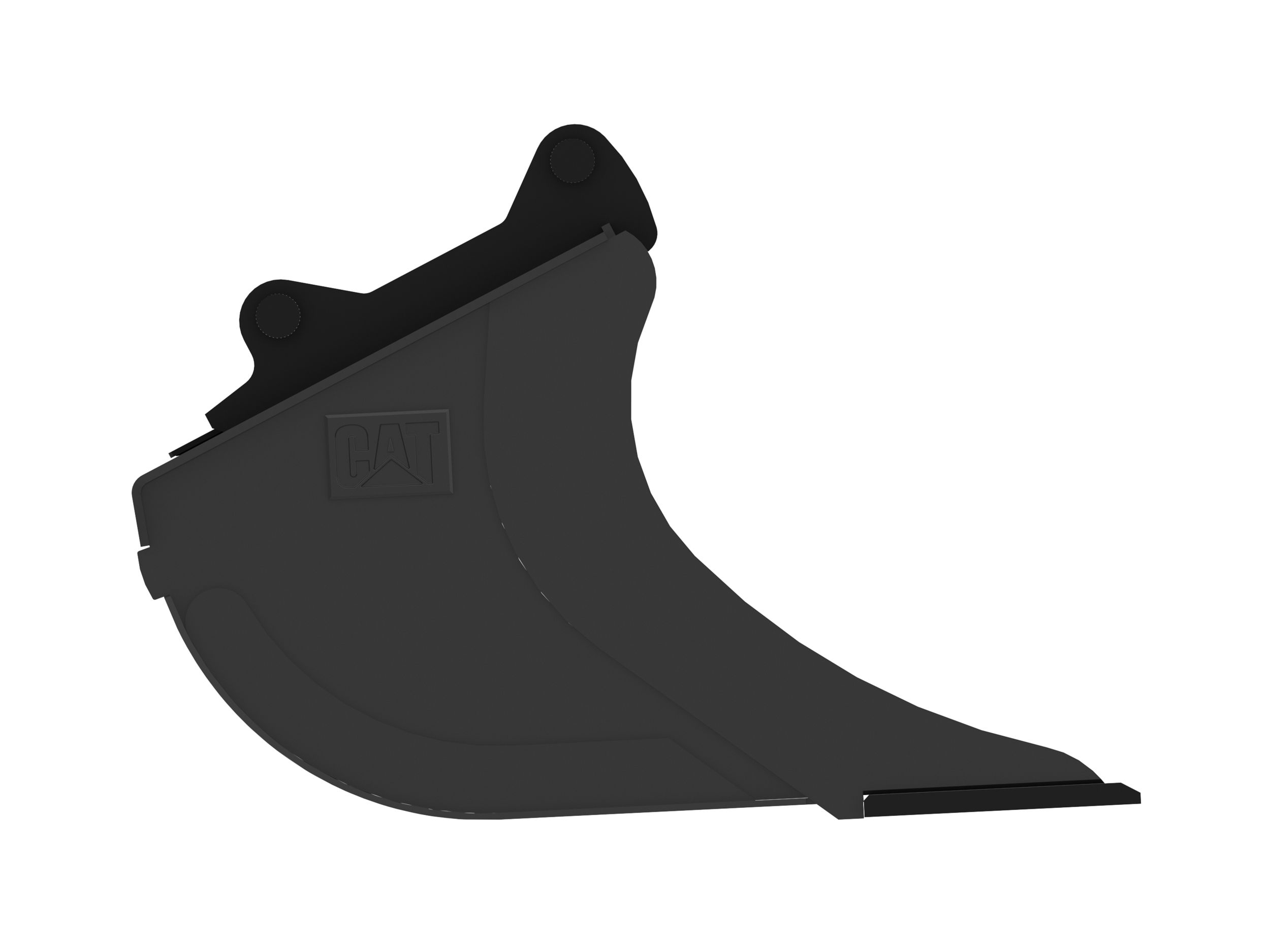

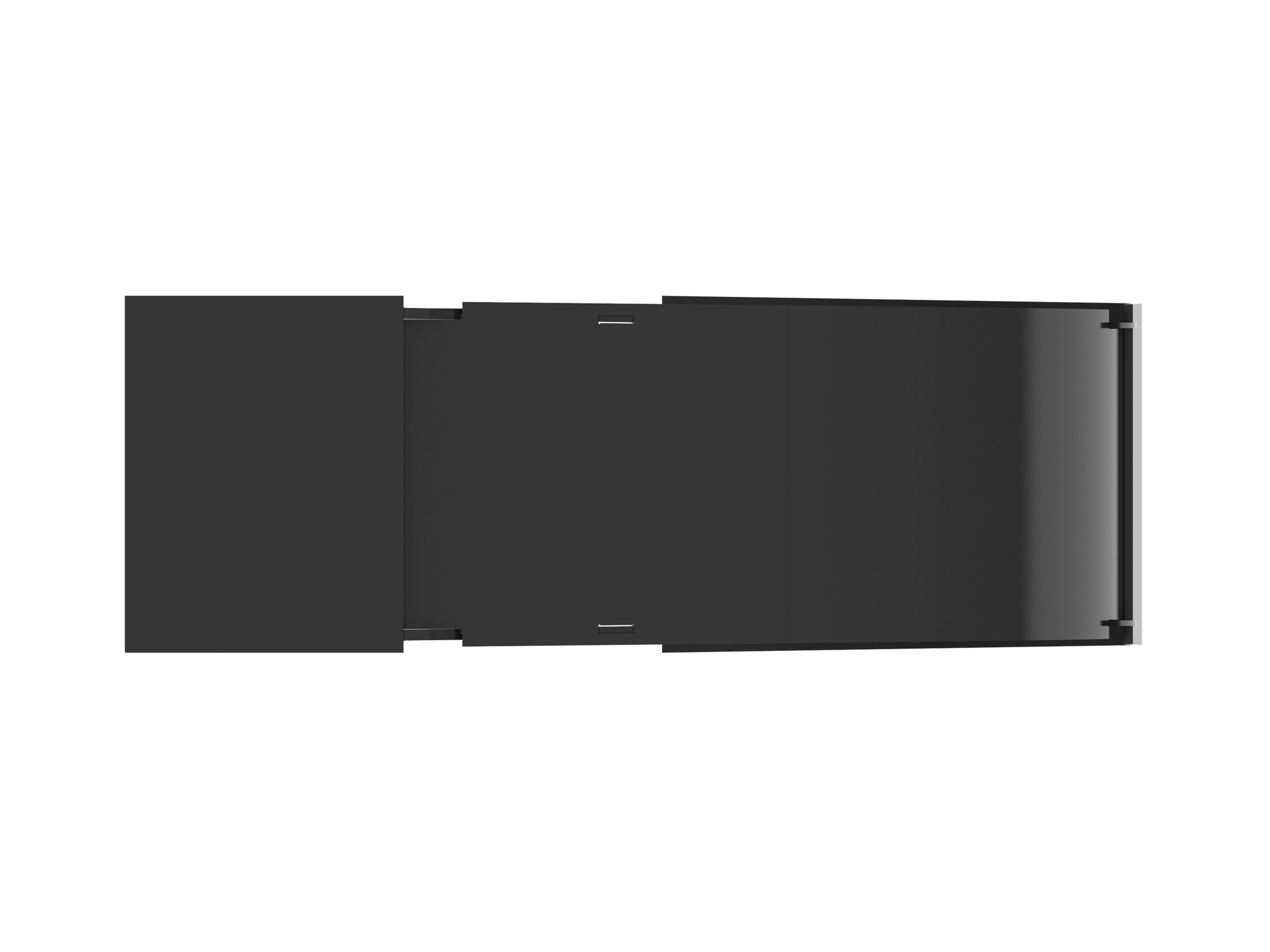

Nordic Trenching Buckets for Cat® Mini Excavators are ideal for trenching applications, but can be used for general excavation and backfilling in a variety of soil types. Durable side wear plates provide optimal wear resistance in heavy duty applications. Due to the longer bucket floor length, shorter tip radius and flat torque tube construction they are an ideal match when combined with an S Type Coupler or Tilt Rotate System.
Width
12.6 in
Capacity
2.8 ft³
Weight
169.8 lb
Specification
Value
Width
12.6 in
Capacity
2.8 ft³
Weight
169.8 lb
Base Edge Thickness
0.8 in
Tip Radius
30.2 in
Interface Type
S-40 Coupler
Designed to create maximum performance in combination with an S Type quick coupler and/or tiltrotator.
Specially designed side wear plates provide for optimal wear resistance in heavy duty applications.
For low build bracket solution, close to zero offset and high bending resistance even during high stress work.
With high breakout forces combined with tiltrotator usage, the bucket still produces acceptable bucket volumes.
