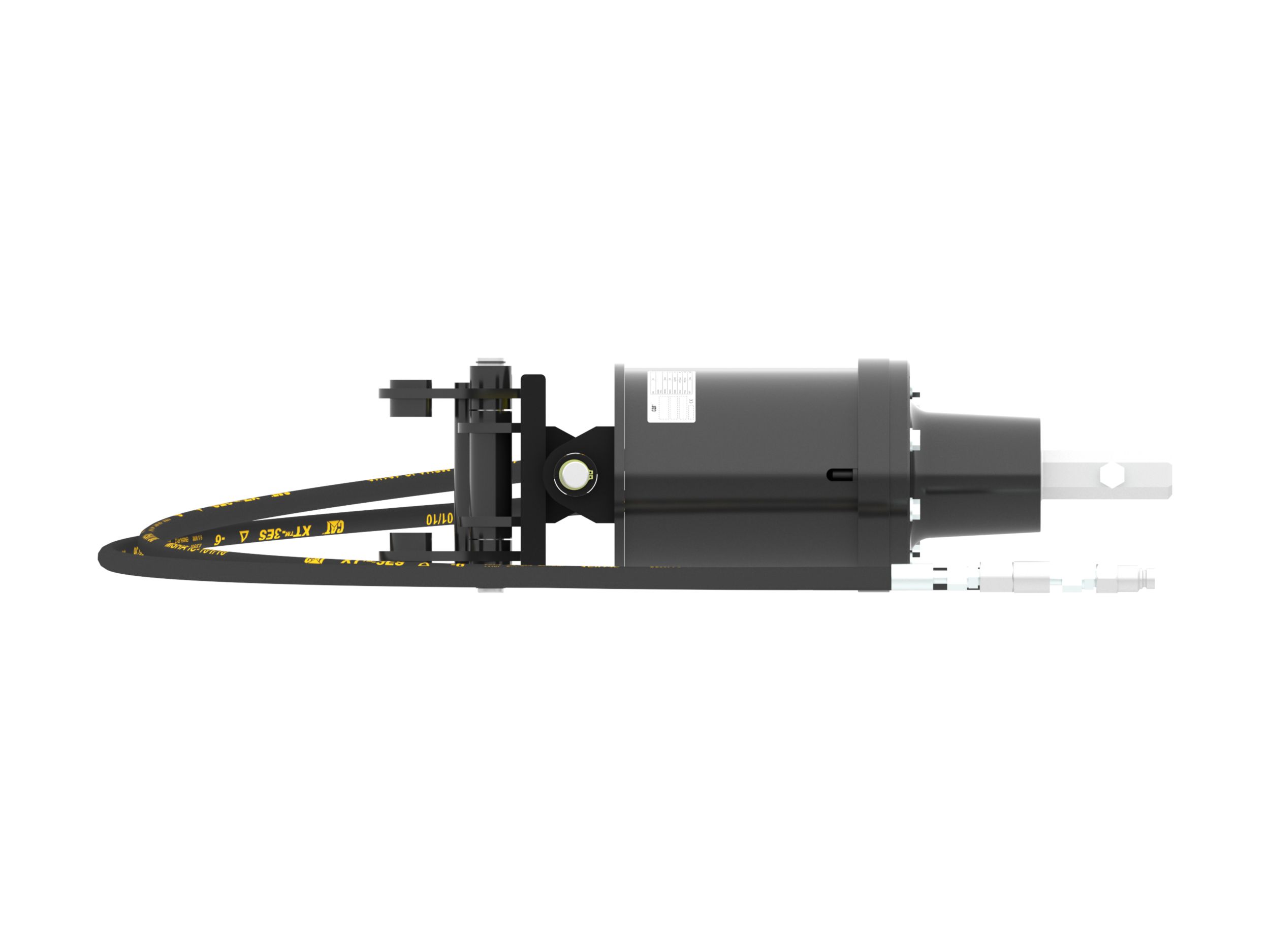

A23
Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.
Drive Shaft Torque at Maximum Pressure
1699.3 lb/ft
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
2 Ton Mini Excavator Pin On
Specification
Value
Drive Shaft Torque at Maximum Pressure
1699.3 lb/ft
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
2 Ton Mini Excavator Pin On
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Overall Width - With Bracket
11.1 in
Overall Length - With Bracket
11.1 in
Overall Height
37.3 in
Housing Diameter
11 in
Swing Range (fore/aft)
70 degrees
Swing Range (L/R)
76 degrees
Weight
257.9 lb
Motor Displacement
38 in³
Bit Speed at Maximum Flow
127 rpm
Hex Output Shaft Size
2 in
Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.
Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.
- A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
- A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
- A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.
Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.
Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.
Articulated joint ensures auger hangs straight, independent of machine positioning.
Mechanical swing stops protect from auger over swing.
152 mm (6 in)
229 mm (9 in)
457 mm (18 in)
305 mm (12 in)
610 mm (24 in)
610 mm (24 in)
762 mm (30 in)
381 mm (15 in)
457 mm (18 in)
610 mm (24 in)
152 mm (6 in)
229 mm (9 in)
305 mm (12 in)
381 mm (15 in)
152 mm (6 in)
229 mm (9 in)
305 mm (12 in)
406 mm (16 in)
457 mm (18 in)
610 mm (24 in)
762 mm (30 in)
229 mm (9 in)
305 mm (12 in)
406 mm (16 in)
457 mm (18 in)
508 mm (20 in)
610 mm (24 in)
762 mm (30 in)
102 mm (4 in)
Hex To Round Adapter
Round To Hex Adapter
914 mm (36 in) Extension
1829 mm (72 in) Extension
305 mm (12 in) Extension
610 mm (24 in) Extension
302.7 CR
