TRS4

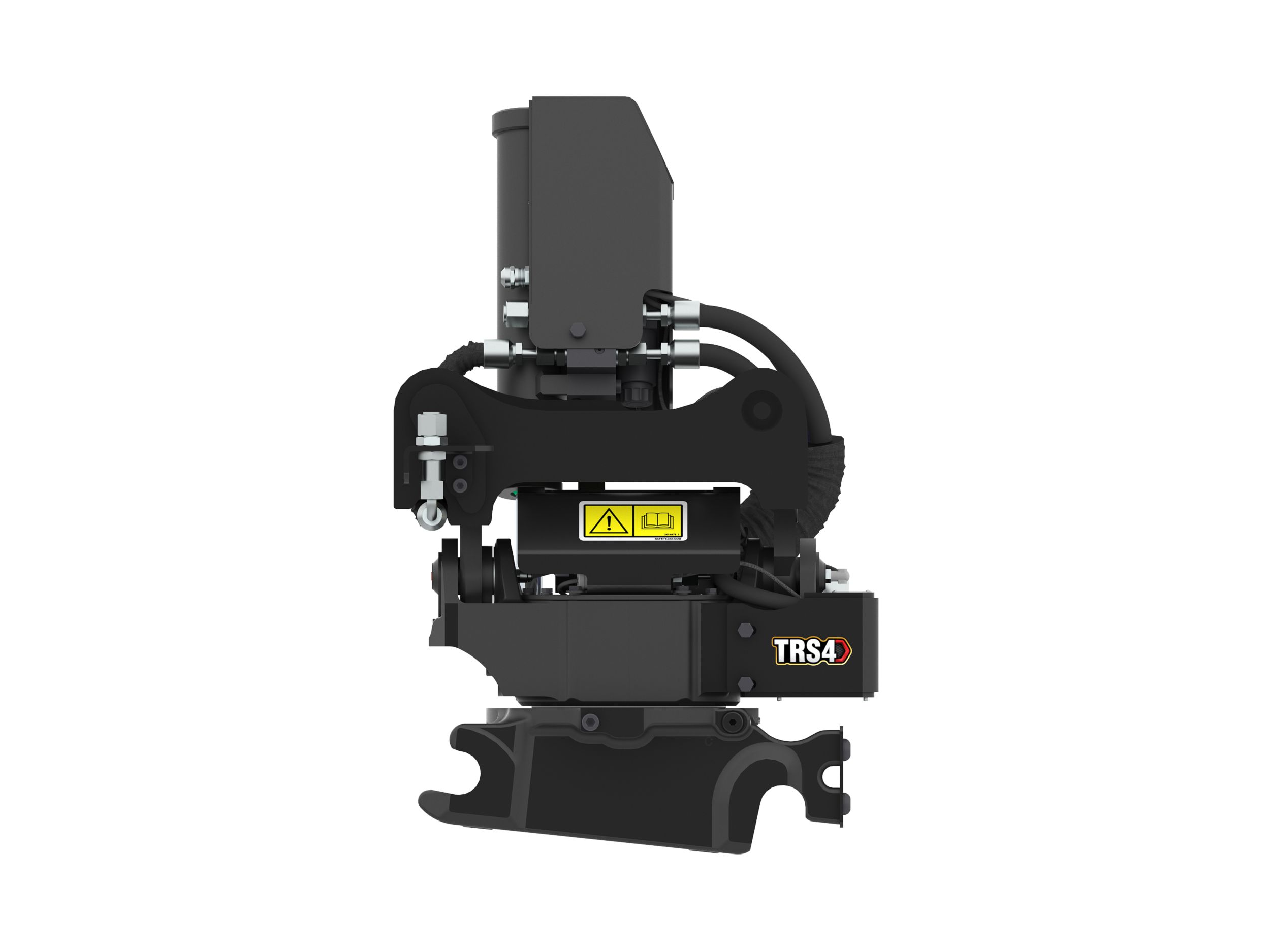

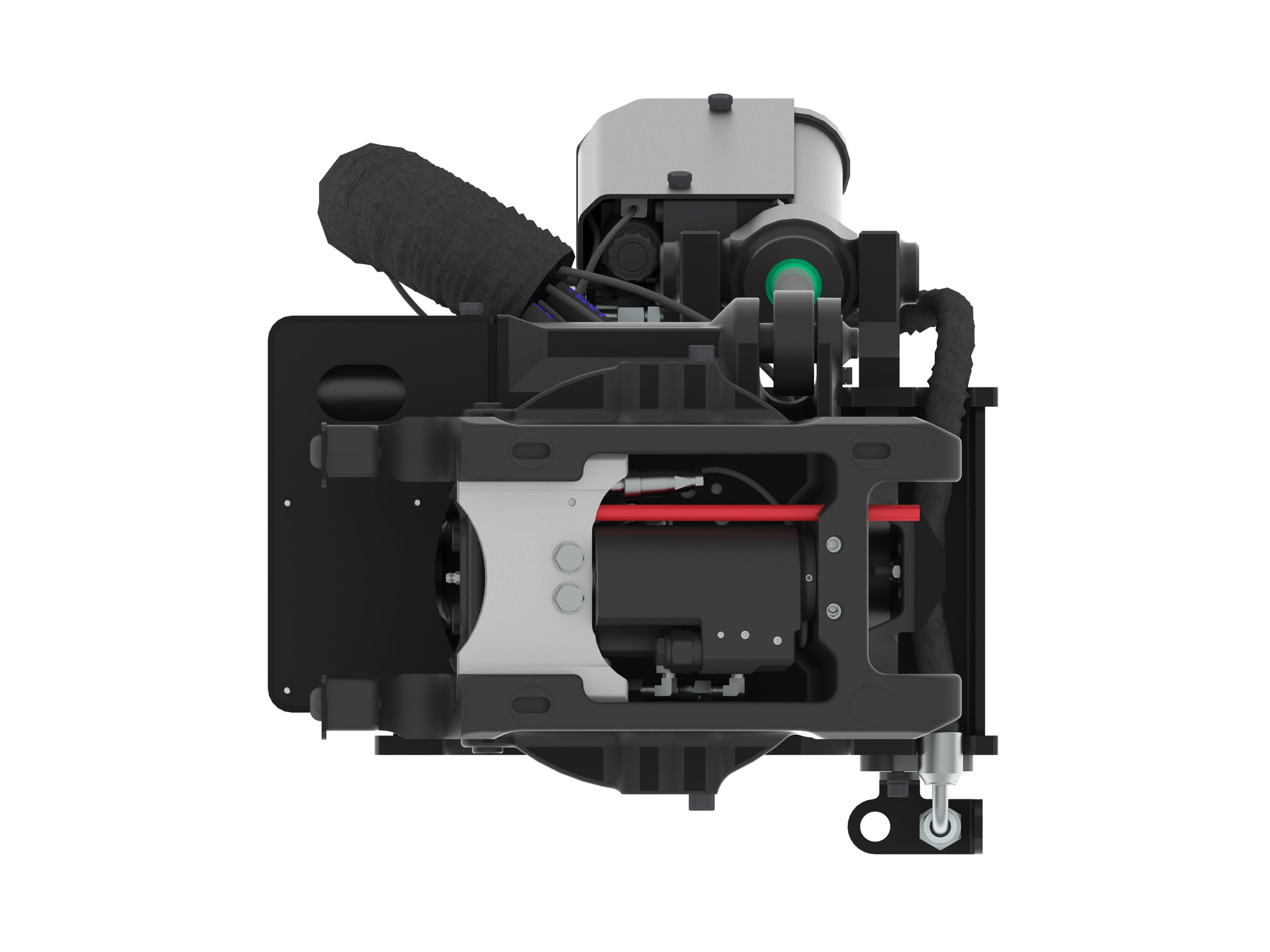

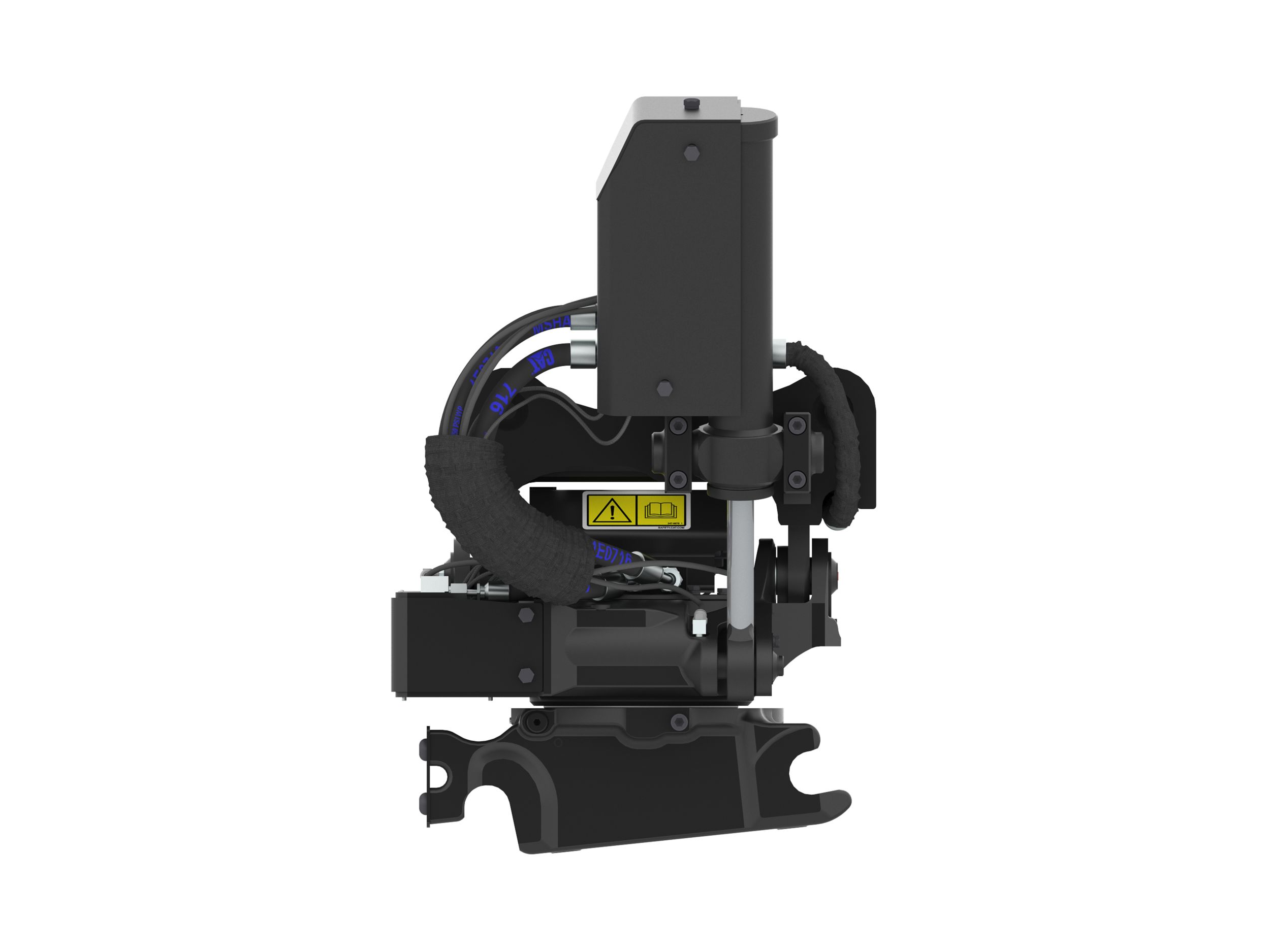

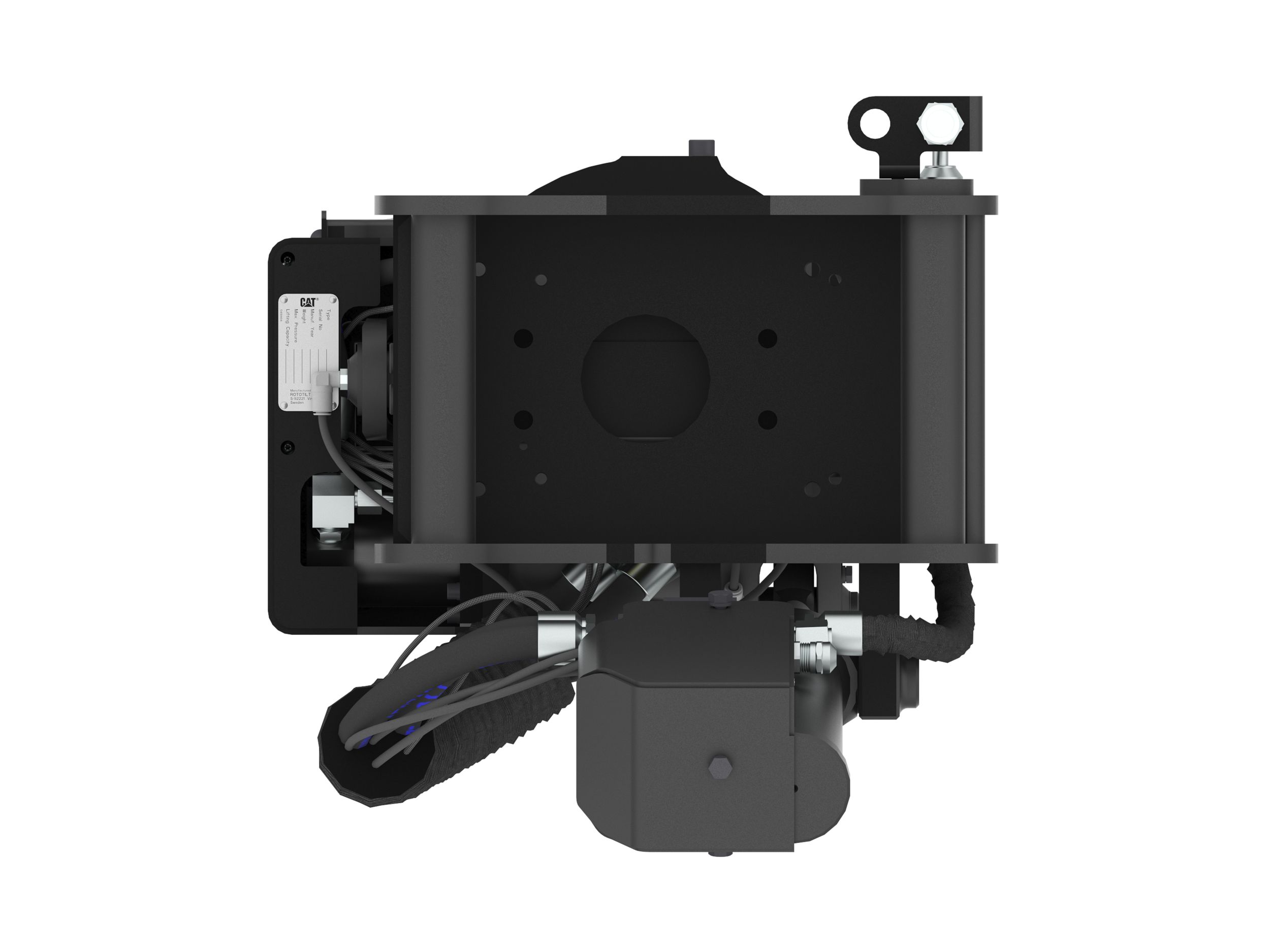

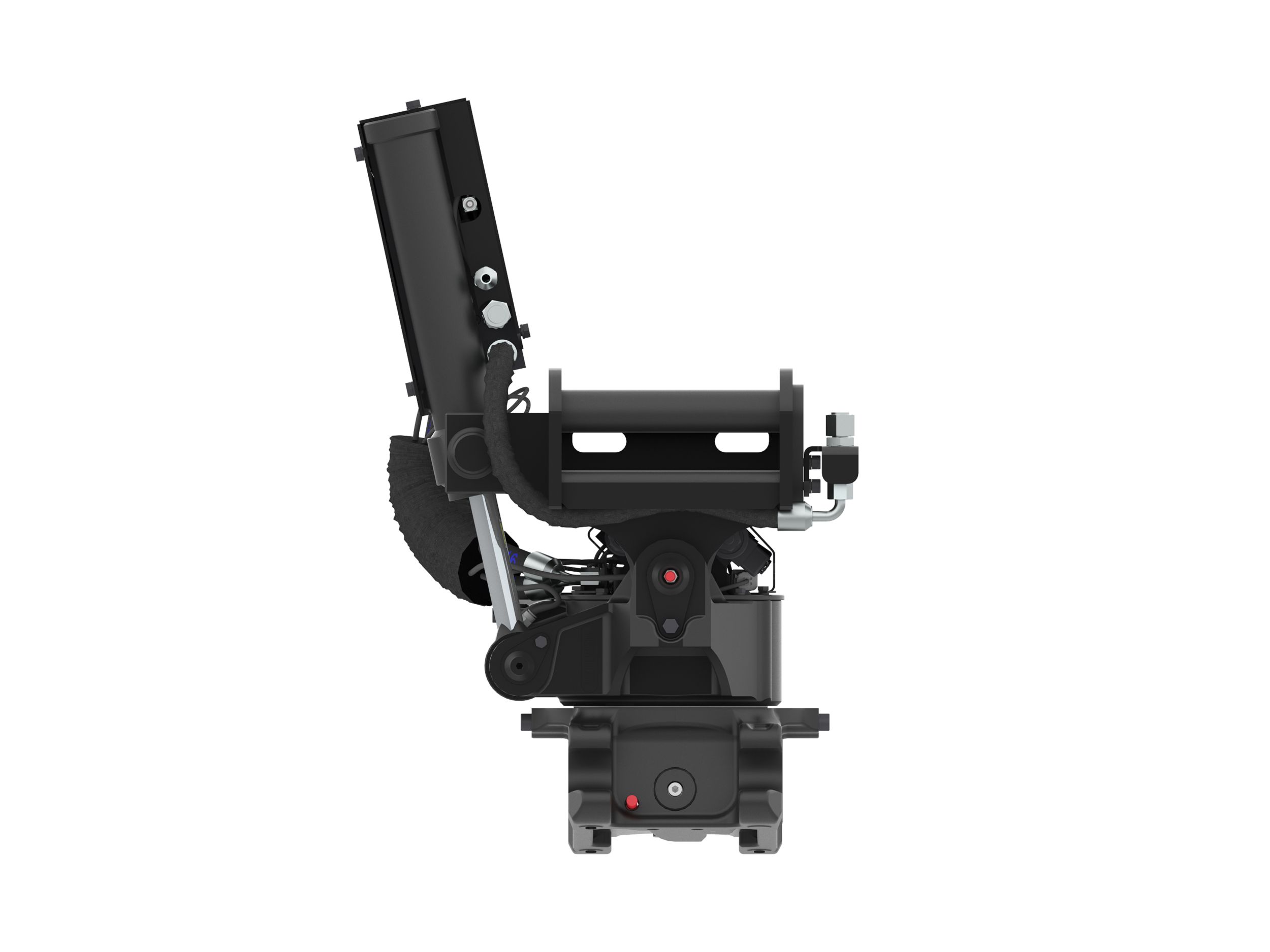

Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.
Machine Class
3-4 Ton Mini Excavator
Weight
253.5 lb
Interface Options: Top-Bottom
S40 / S40
Specification
Value
Machine Class
3-4 Ton Mini Excavator
Weight
253.5 lb
Interface Options: Top-Bottom
S40 / S40
Overall Height
27.6 in
Length
17.7 in
Overall Width
15.9 in
Rotation Speed
7 Seconds per 1 full rotation
Tilt Angle Range +/-
40° Left/Right
Maximum Bucket Width
39.4 in
Optimal Hydraulic Flow
17-25 L/min (4.5-6.7 gpm)
Maximum Operating Pressure
3045.8 psi
Required Hydraulics
1st Auxiliary
Tilting Torque
4277.9 lb/ft
Turning Torque
1253.9 lb/ft
Provides optimal control of your work tools to provide greater flexibility.
A single point of entry for grease allows the entire unit to be greased quickly and easily.
Used to pick up objects such as pipe and debris.
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Valves sustain holding pressures and prevent cylinder movement under load constraints.
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
Only compatible with the following Next Gen machines and serial numbers:
- 303 - S/N MY3 1 & Up
- 303.5 - S/N CE9 1 & Up
- 304 - S/N AN4 1 & Up
