1705 mm (67 in)

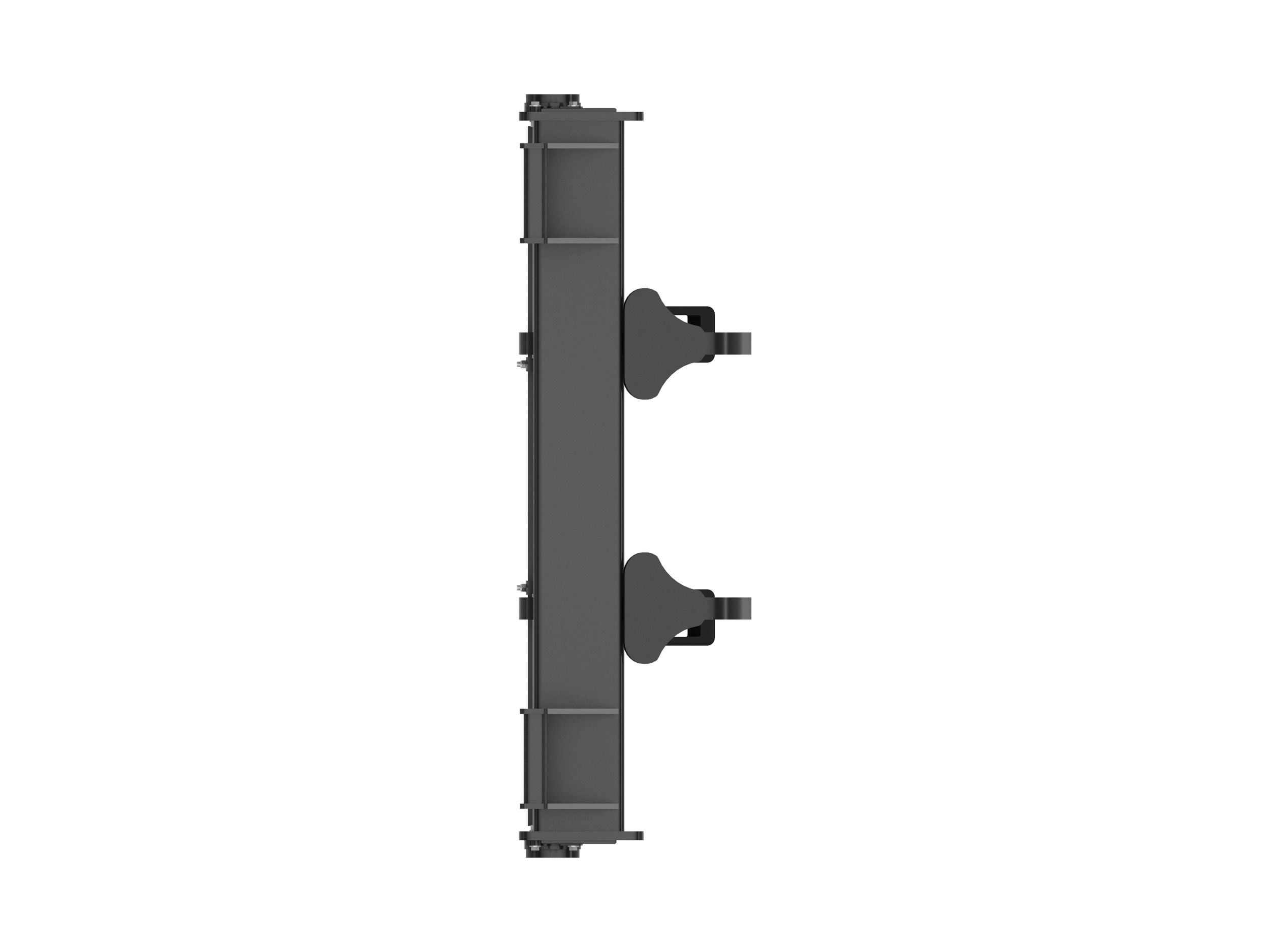

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Interface Type
Fusion™ Coupler
Tine Configuration
Swinging, Floating
Height
74 in
Specification
Value
Interface Type
Fusion™ Coupler
Tine Configuration
Swinging, Floating
Height
74 in
Weight
1455 lb
Width
67.1 in
Length
20.5 in
Tine Spacing Range - Outside Width
942-1487 mm (37-59 in)
Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.
Wider carriages increase stability when handling longer poles/loads.
Wider tine widths provide a larger surface area for stability when transporting larger materials.
Forks can be configured to allow the tines to either swing or stay in a fixed position, using common hand tools.
Easily interchange floating and non floating tine configurations by adding/removing a single bolt.
