2185 mm (86 in), Pin On

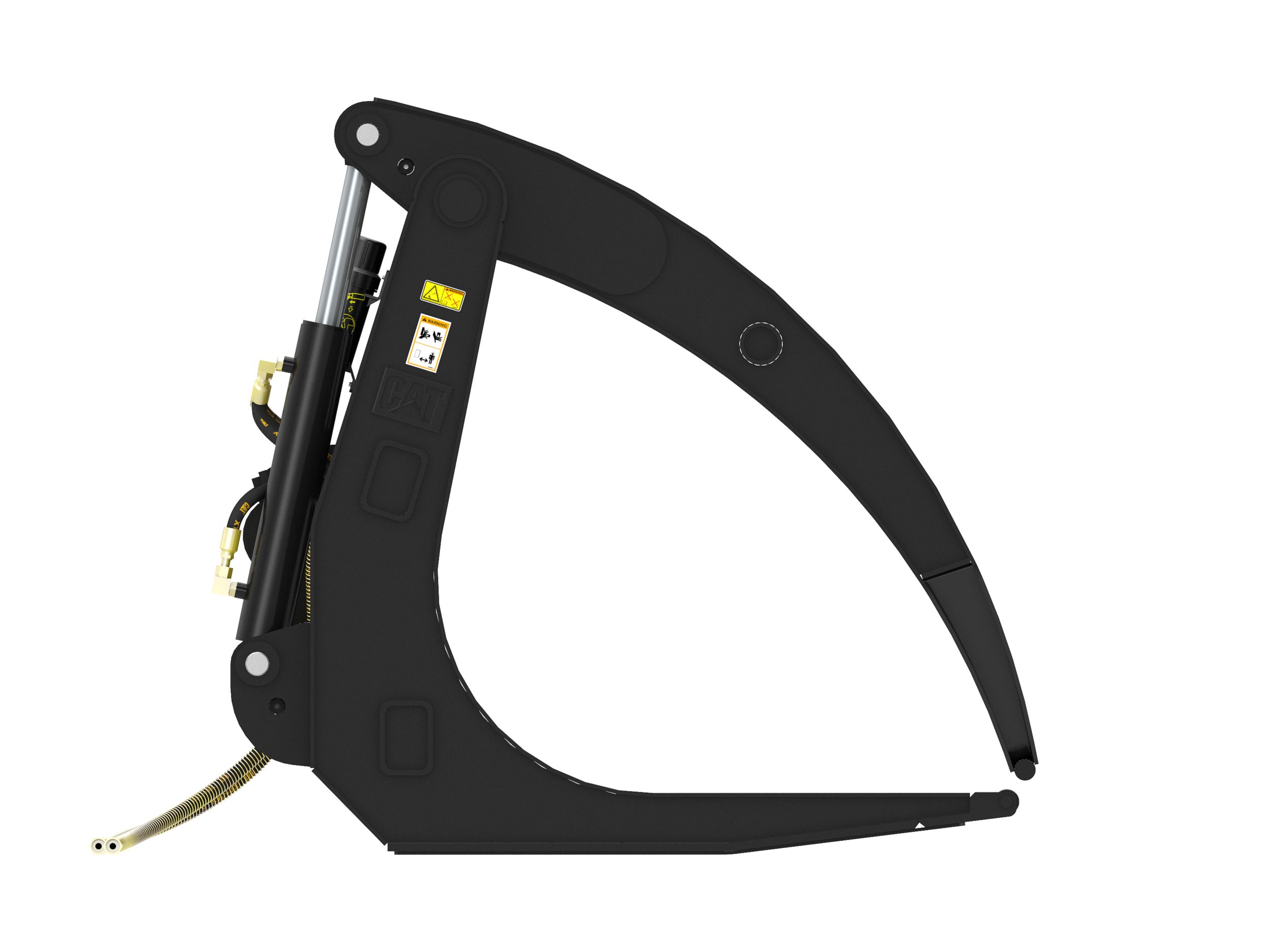

The Cat® Millyard Forks for Small Wheel Loaders are designed to efficiently load and unload from trucks, capably sort pole and decking materials, effectively feed sawmills as well as handle other long or bulky material.
Width
87.1 in
Tine Spacing - Maximum Width
86 in
Tine Spacing - Inside Width
77 in
Specification
Value
Width
87.1 in
Tine Spacing - Maximum Width
86 in
Tine Spacing - Inside Width
77 in
Tine Length
49.6 in
Tine Width
4.5 in
Maximum Clamp Opening
82.2 in
Minimum Clamp Opening
5.9 in
Weight
3736.8 lb
Tip Type
Roller Tips
Interface Type
Pin On
End Area
13 ft²
Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.
Large open frame top design increases visibility and assists operator in loading and unloading materials.
Promotes rolling action of logs for smooth loading and unloading. Log quality is preserved by rounded corners and fewer sharp angles.
Helps prevent damage to poles when loading and unloading.
Helps to increase life of the tines.
Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
