1812 mm (71 in), Fusion™ Coupler

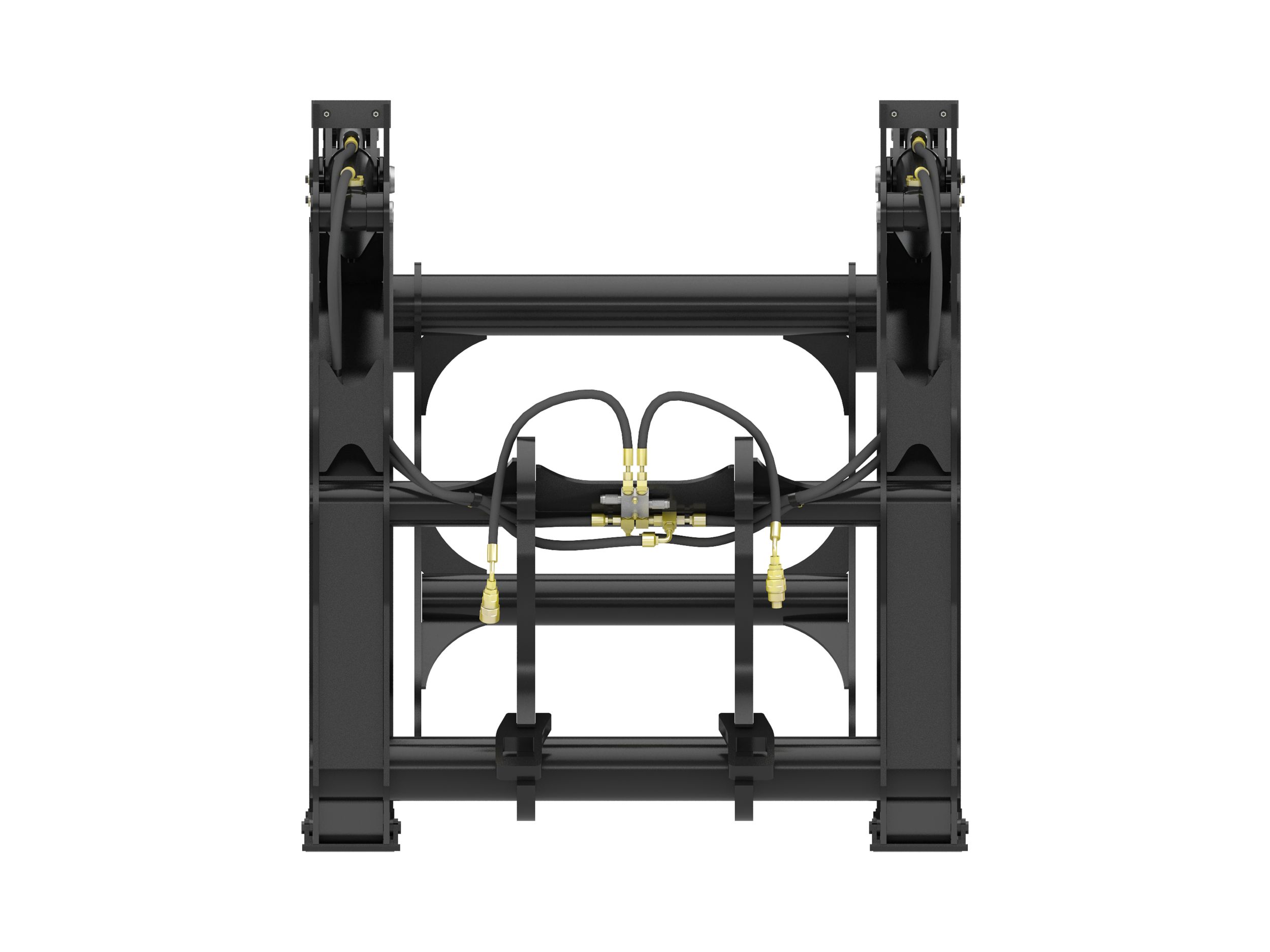

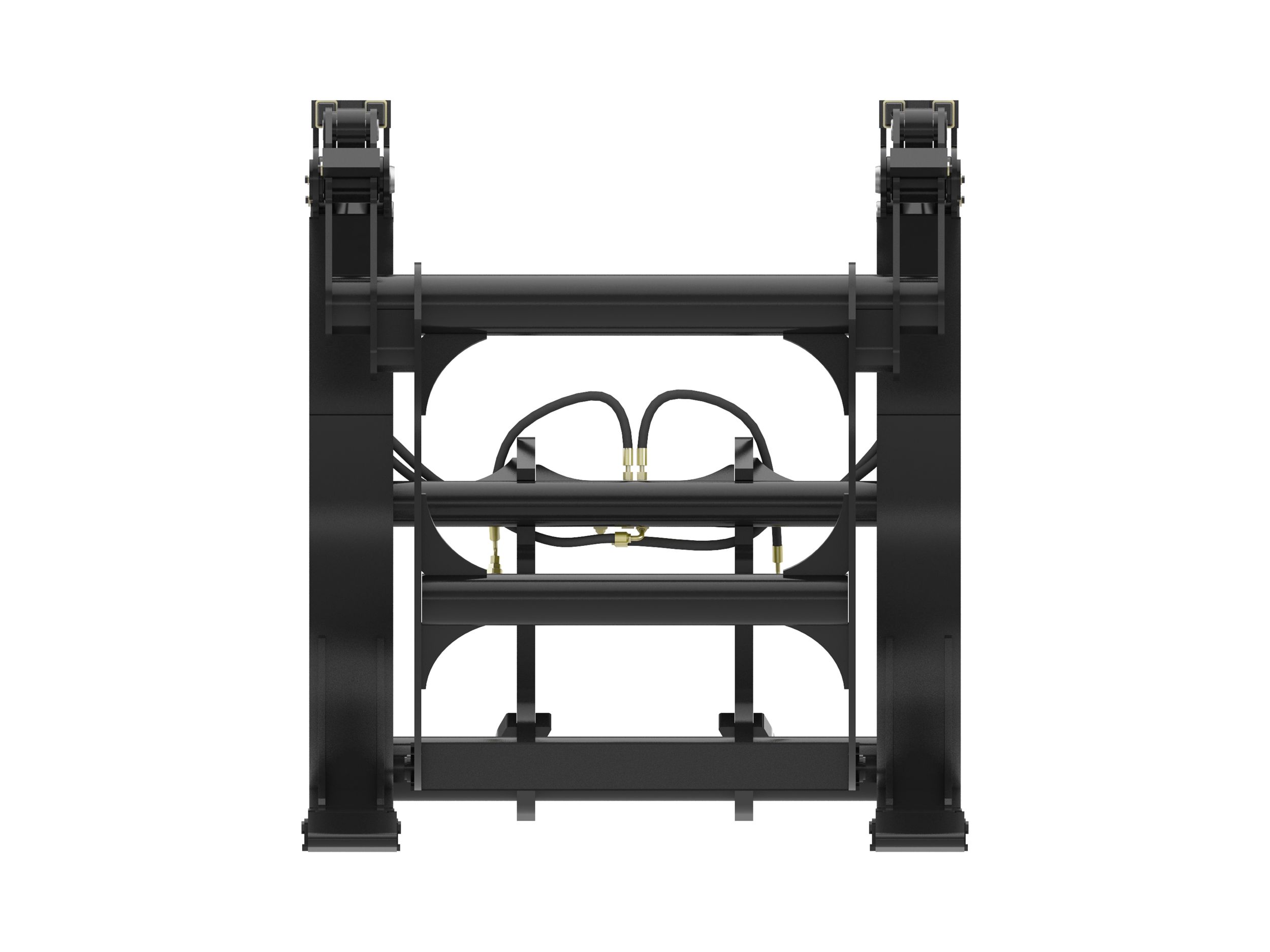

The Cat® Sorting Grapple Forks for Small Wheel Loaders are designed for numerous applications in log and lumber handling. Moving logs from stack piles for further processing or unloading trucks the Sorting Grapple Forks are built to perform. With adjustable clamp pressure and bolt-wear plates the Sorting Grapple Forks are adjustable to meet the operator’s preferences while reducing owning and operating cost.
Width
71.3 in
Tine Length
50 in
Grapple Area
20.6 ft²
Specification
Value
Width
71.3 in
Tine Length
50 in
Grapple Area
20.6 ft²
Grapple Height
102.6 in
Grapple Weight
3860.3 lb
Interface Type
Fusion™ Coupler
Operating Weight
33170.7 lb
Designed and built for log and lumber and is primarily used for moving logs from stack piles for further processing.

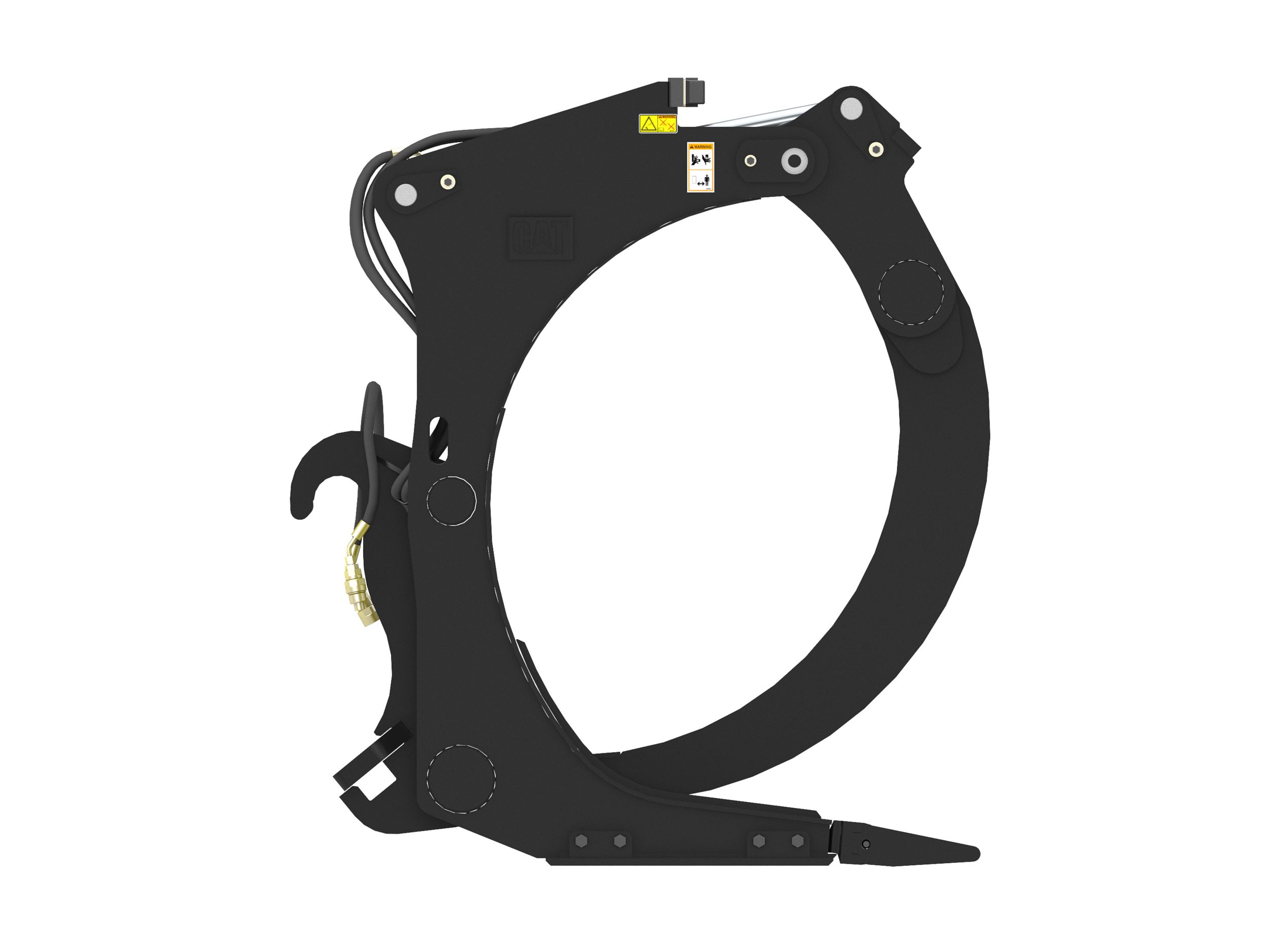

Purpose-built for use in log and lumber applications, the Sorting Grapple Fork is equipped with a large clamp creating a 21 square foot opening for material.
Integrated pressure regulator provides the ability to adjust clamping force, minimizing the potential to damage material being carried.

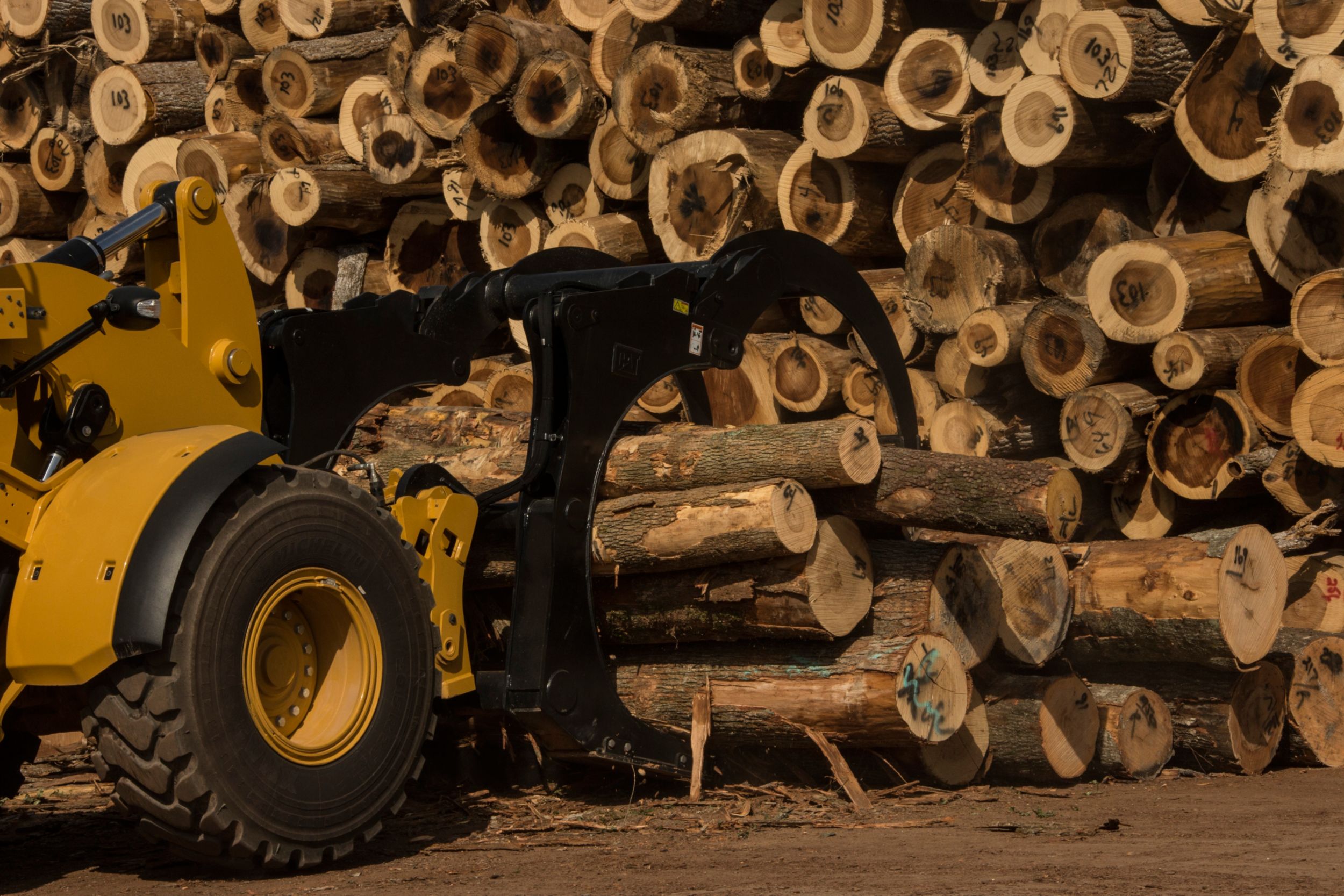

Specifically designed to slide under log piles and roll them into the grapple. Short tines allow for precise control when loading the grapple with logs.

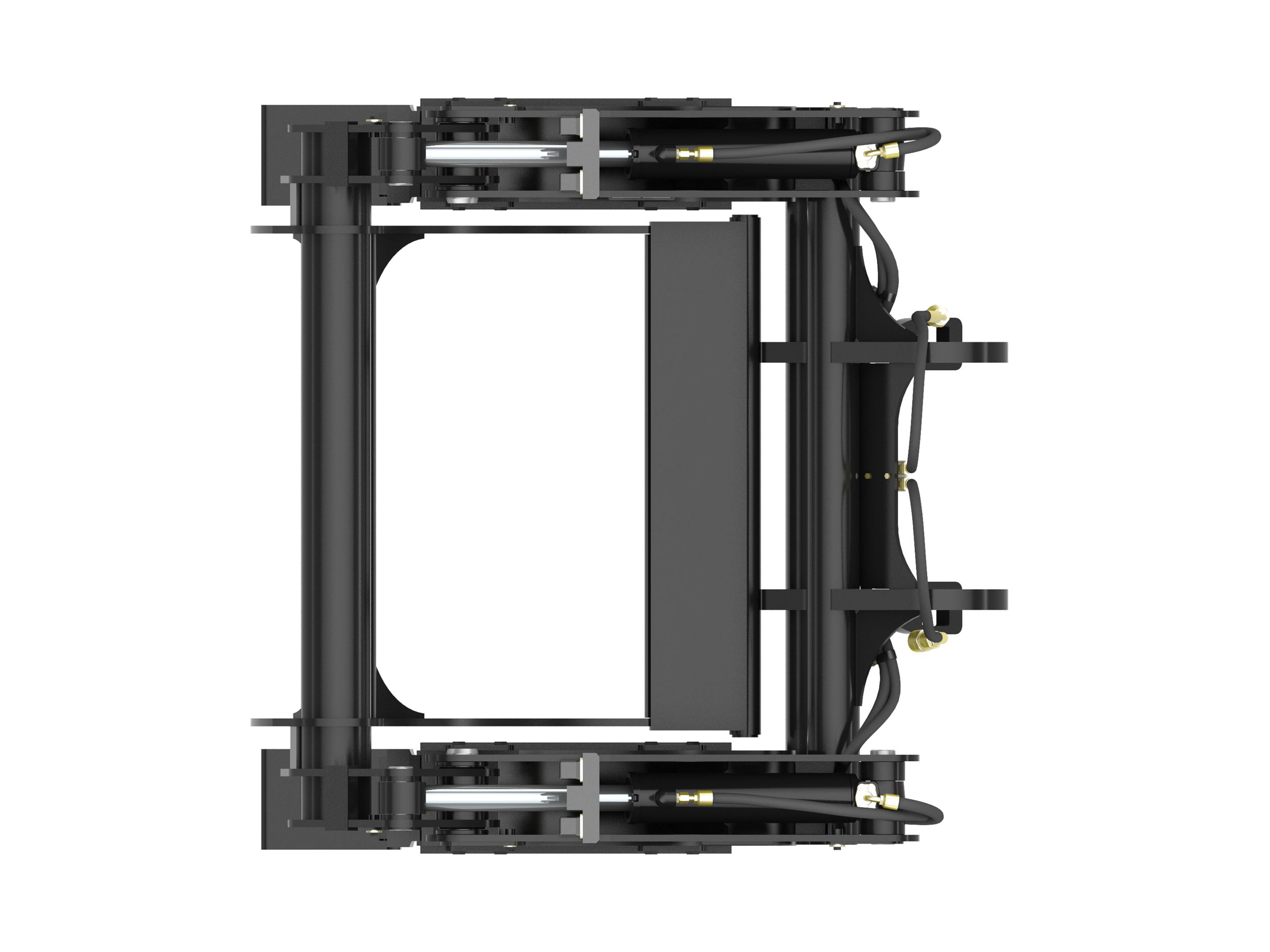

Bolt-on wear strips on the underside of the grapple are easily replaced at regular service intervals avoiding additional welding.
Various available fork tips allow the Sorting Grapple to be configured to machine and operation.
