2498 mm (98 in)

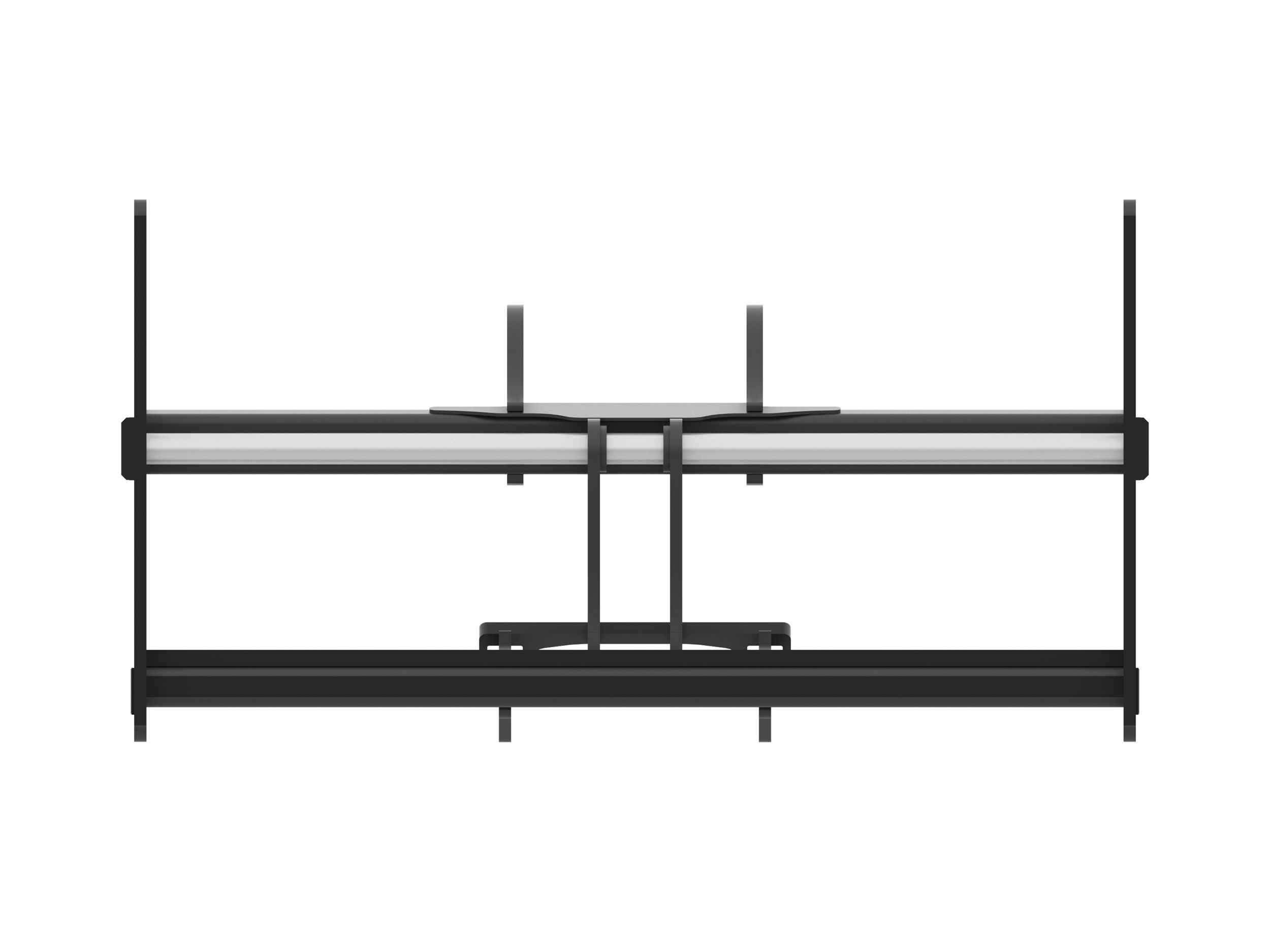

Cat® Construction Fork Carriages for Small Wheel Loaders are wider than pallet fork carriages and are designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.
Height
52 in
Width
98.3 in
Tine Spacing Range - Outside Width
340-2380 mm (13.4-93.7 in)
Specification
Value
Height
52 in
Width
98.3 in
Tine Spacing Range - Outside Width
340-2380 mm (13.4-93.7 in)
Weight
1408.8 lb
Length
24.9 in
Interface Type
Fusion™ Coupler
The robust design provides durability as well as exceptional visibility. The high backs prevent material from shifting towards the machine.
In some operations, swinging forks helps to pick materials out of the ground. This carriage offers this option by just changing the configuration of the retention plate located on the forks.
Adjust the fork position a total of 855 mm (33.7 in) from one side to the other with increments of 55 mm (2.2 in) and lock them to prevent non-expected movements.
By removing two bolts on either side of the carriage, the fork tines can be easily changed to different sizes as needed.
